DCS BIOS - Caution Panel setup

[0414 Wee Neal]

Hi

I am having an issue with loading the DCS Bios sketch for my recently constructed Caution light panel. The panel is wired in a matrix based on tigershark thread. The code is:



#define DCSBIOS_IRQ_SERIAL
#include <DcsBios.h>
#include <LedControl.h>

//pin 10 is connected to the DataIn
//pin 11 is connected to the CLK
//pin 12 is connected to LOAD
LedControl lc=LedControl(2,4,3,1);//DIN,CLK,LOAD,# OF IC's

unsigned char cl_row_map[48] = {
 5, 5, 1, 1,
 5, 5, 1, 1,
 5, 5, 1, 1,
 3, 3, 7, 7,
 3, 3, 7, 7,
 3, 3, 7, 7,
 6, 6, 2, 2,
 6, 6, 2, 2,
 6, 6, 2, 2,
 0, 0, 4, 4,
 0, 0, 4, 4,
 0, 0, 4, 4,
 };
#define SEG_DP (1<<7)
#define SEG_A (1<<6)
#define SEG_B (1<<5)
#define SEG_C (1<<4)
#define SEG_D (1<<3)
#define SEG_E (1<<2)
#define SEG_F (1<<1)
#define SEG_G (1<<0)
unsigned char cl_mask_map[48]= {
 SEG_B, SEG_G, SEG_G, SEG_B,
 SEG_C, SEG_E, SEG_E, SEG_C,
 SEG_DP, SEG_D, SEG_D, SEG_DP,
 SEG_B, SEG_G, SEG_G, SEG_B,
 SEG_C, SEG_E, SEG_E, SEG_C,
 SEG_DP, SEG_D, SEG_D, SEG_DP,
 SEG_B, SEG_G, SEG_G, SEG_B,
 SEG_C, SEG_E, SEG_E, SEG_C,
 SEG_DP, SEG_D, SEG_D, SEG_DP,
 SEG_B, SEG_G, SEG_G, SEG_B,
 SEG_C, SEG_E, SEG_E, SEG_C,
 SEG_DP, SEG_D, SEG_D, SEG_DP,
 };


unsigned char max7219_rows[8];

void setup() {
 DcsBios::setup();
 memset(max7219_rows, 0xff, sizeof(max7219_rows));

 lc.shutdown(0,false); //turn on the display
 lc.setIntensity(0,8);//set the brightness
 lc.clearDisplay(0); //clear rthe display and get ready for new data
}

void updateCautionLights(unsigned int address, unsigned int data) {
   unsigned char clp_row = (address - 0x10d4) * 2;
   unsigned char start_index = clp_row * 4;
   unsigned char column = 0;
   unsigned char i;

   bool is_on;
   for (i=0; i<16; i++) {
       is_on = data & 0x01;
       // set caution light state (clp_row, column, is_on)
       if (is_on) {
         max7219_rows[cl_row_map[start_index+i]] |= cl_mask_map[start_index+i];
       } else {
         max7219_rows[cl_row_map[start_index+i]] &= ~(cl_mask_map[start_index+i]);
       }
       data >>= 1;
       column++;
       if (column == 4) {
          clp_row++;
          column = 0;
       }
   }

}

void onClpData1Change(unsigned int newValue) {
   updateCautionLights(0x10d4, newValue);
}
DcsBios::IntegerBuffer clpData1(0x10d4, 0xffff, 0, onClpData1Change);

void onClpData2Change(unsigned int newValue) {
   updateCautionLights(0x10d6, newValue);
}
DcsBios::IntegerBuffer clpData2(0x10d6, 0xffff, 0, onClpData2Change);

void onClpData3Change(unsigned int newValue) {
   updateCautionLights(0x10d8, newValue);
}
DcsBios::IntegerBuffer clpData3(0x10d8, 0xffff, 0, onClpData3Change);

void loop() {
 DcsBios::loop();

 // update MAX7219
 unsigned char i;
 for (i=0; i<8; i++) {
   lc.setRow(0, i, max7219_rows[i]);
 }
}



I get an error message:



C:\Users\baker_000\Documents\Arduino\Caution_panel\Caution_panel.ino:3:24: fatal error: LedControl.h: No such file or directory



#include <LedControl.h>



^



compilation terminated.



exit status 1

Error compiling.



Can anyone advise on this error?



Thanks



Neal

[ClayM]

Have you installed the LedControl library?



Go to arduino website. It has info there.



You then need to "install" the library in Arduino IDE.



Clay

[FSFIan]

In recent versions of the Arduino IDE, you can also select Sketch > Include Library > Manage Libraries..., search for "LedControl", select the entry and click the Install button.



The LedControl library handles talking to the MAX7219 chip.

[0414 Wee Neal]

Next step



Hi



I solved the above issue by loading the LED Control library; thank you. The sketch loaded ok onto my Uno and I connected to DCS world, ran the Cmd window and ran DCS world - Nothing fundamental happened in that no caution lights came on. I then reread 'http://forums.eagle.ru/showthread.ph...highlight=clay and realised that I had not set the mapping correctly; Now done.



However when studying the sketch my poor brain could not understand:



//pin 10 is connected to the DataIn
//pin 11 is connected to the CLK
//pin 12 is connected to LOAD
LedControl lc=LedControl(2,4,3,1);//DIN,CLK,LOAD,# OF IC's



I am I correct in assuming that in the above example DIN is connected to Pin 2, CLK to Pin 4, Load to pin 3? I am not sure what # of IC's means and if that should then connect to Pin 1?



Sorry if this seems like a dense question.



Thanks



Neal

[FSFIan]

That comment is from an earlier version of the sketch, and someone (probably WarHog or myself) forgot to adapt or delete the comment when setting the correct pin numbers for their setup. The one-line command on the line that creates the LedControl instance is correct.



The lines should read:

//pin 2 is connected to the DataIn
//pin 4 is connected to the CLK
//pin 3 is connected to LOAD
LedControl lc=LedControl(2,4,3,1);//DIN,CLK,LOAD,# OF IC's



The last parameter specifies how many MAX7219 chips you have daisy-chained.



Here's the relevant part of the LedControl documentation:

http://playground.arduino.cc/Main/LedControl#Setup

[0414 Wee Neal]

Almost there



Hi Ian



thanks for the reply, that clarified everything. I managed to get the panel connected and working, albeit with the columns reversed. A quick alteration to the sketch and all the correct LEDs work - Hooray, pleased as punch!



One thing that I have noticed is that I get some of the non active (that is not lit on the caution panel in the Sim) flashing or coming on, but very very dim. Can anyone advise what might be causing this? I am not sure if its hardware or software related.



Success in increments is still success!



Thanks



Neal

[FSFIan]

One thing that I have noticed is that I get some of the non active (that is not lit on the caution panel in the Sim) flashing or coming on, but very very dim.



Could it be light bleeding over from adjacent indicators? Or does this also happen with LEDs that are surrounded by other inactive LEDs?

[0414 Wee Neal]

Hi

Could it be light bleeding over from adjacent indicators? Or does this also happen with LEDs that are surrounded by other inactive LEDs?

its the Led itself that is lighting up, but probably about a quarter of the normal brightness!

[Warhog]

That shouldn't happen. So to help diagnose this, can you post some close up pictures of your panel so I can see how you put it together. Can I assume you used the correct iset resistor as well as including the 2 capacitors that are needed for the Max7219? Have you tried another 7219 to see if it's the IC that's causing the problem?

John

[0414 Wee Neal]

Hi

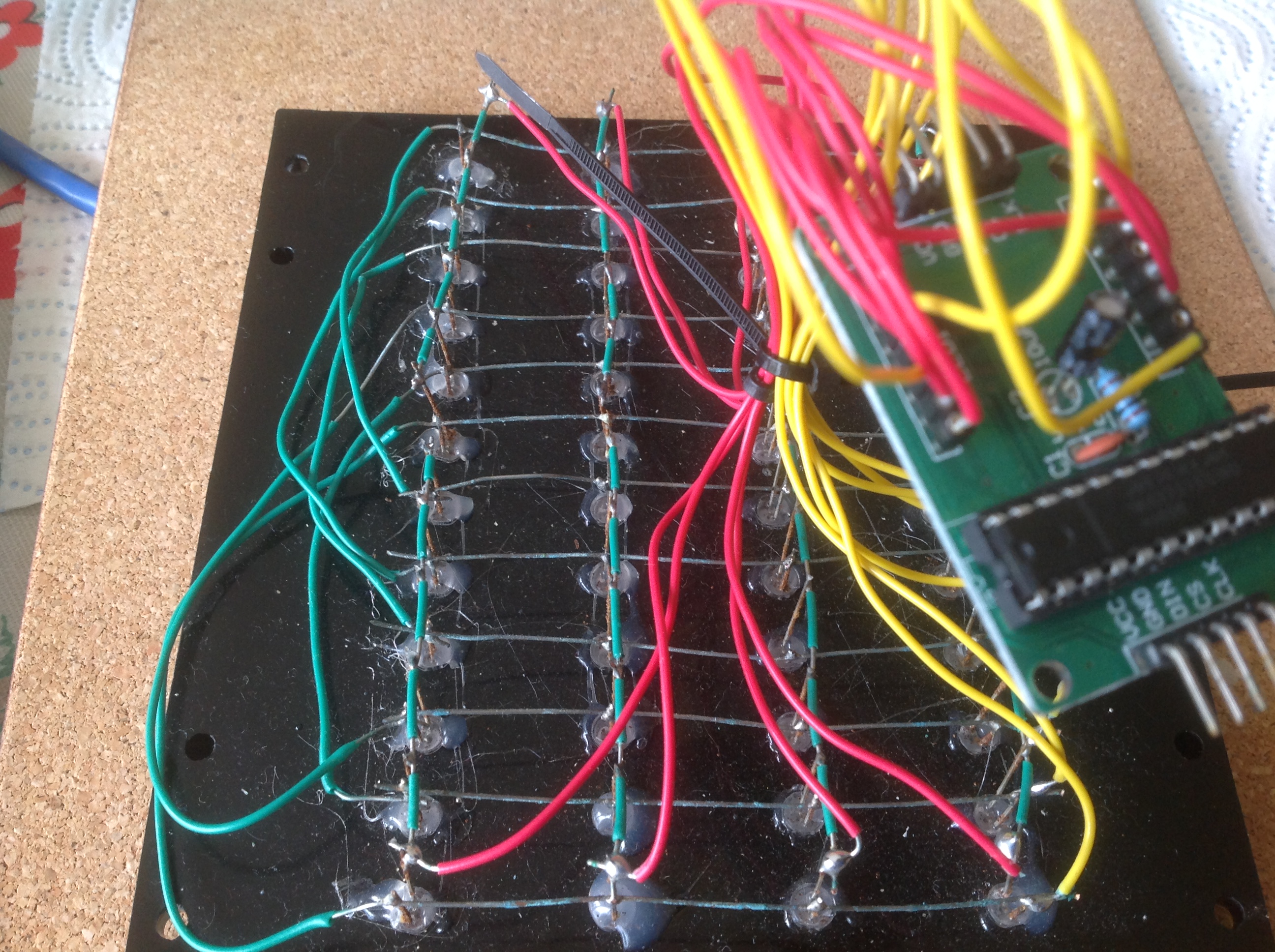

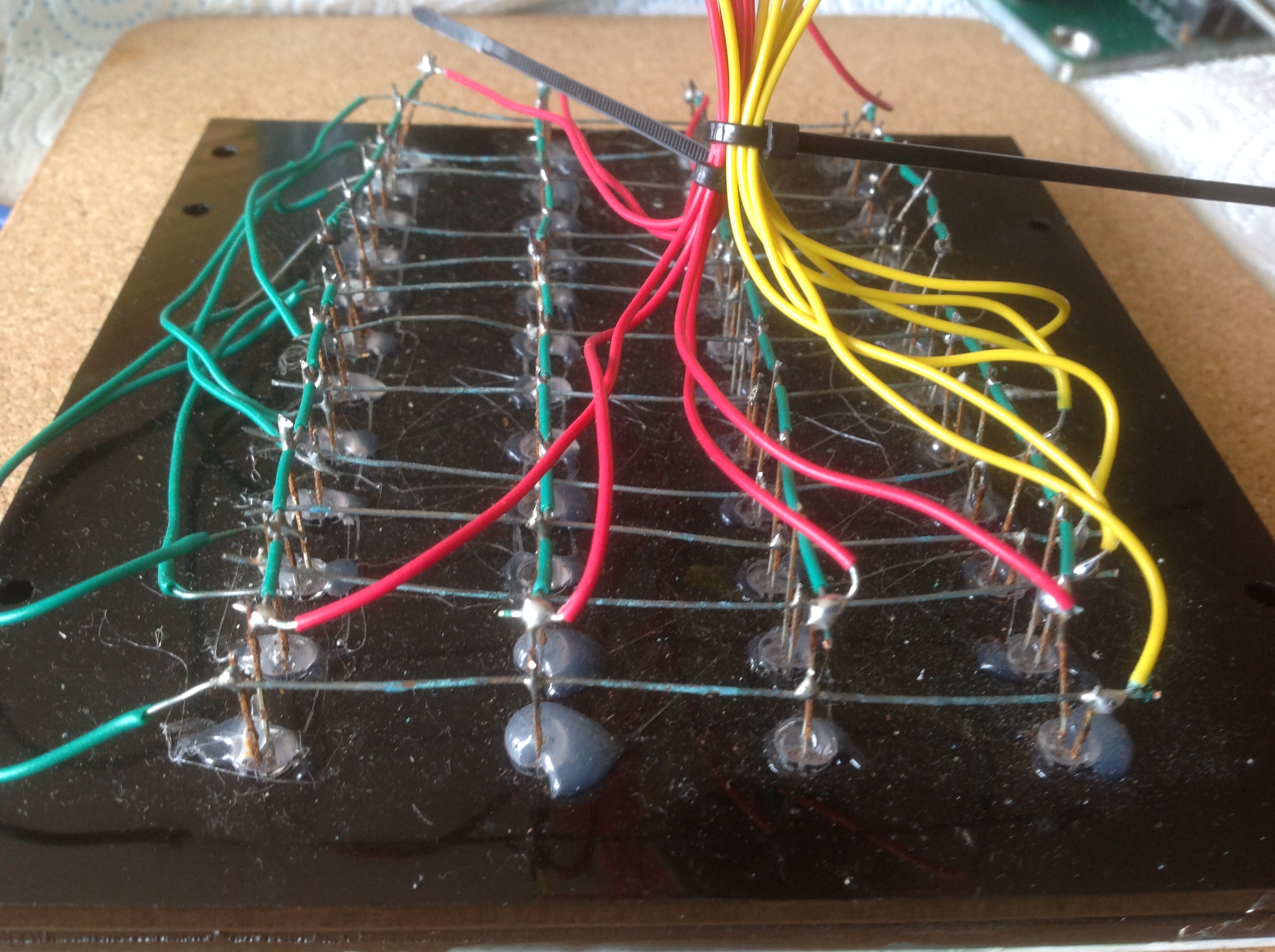

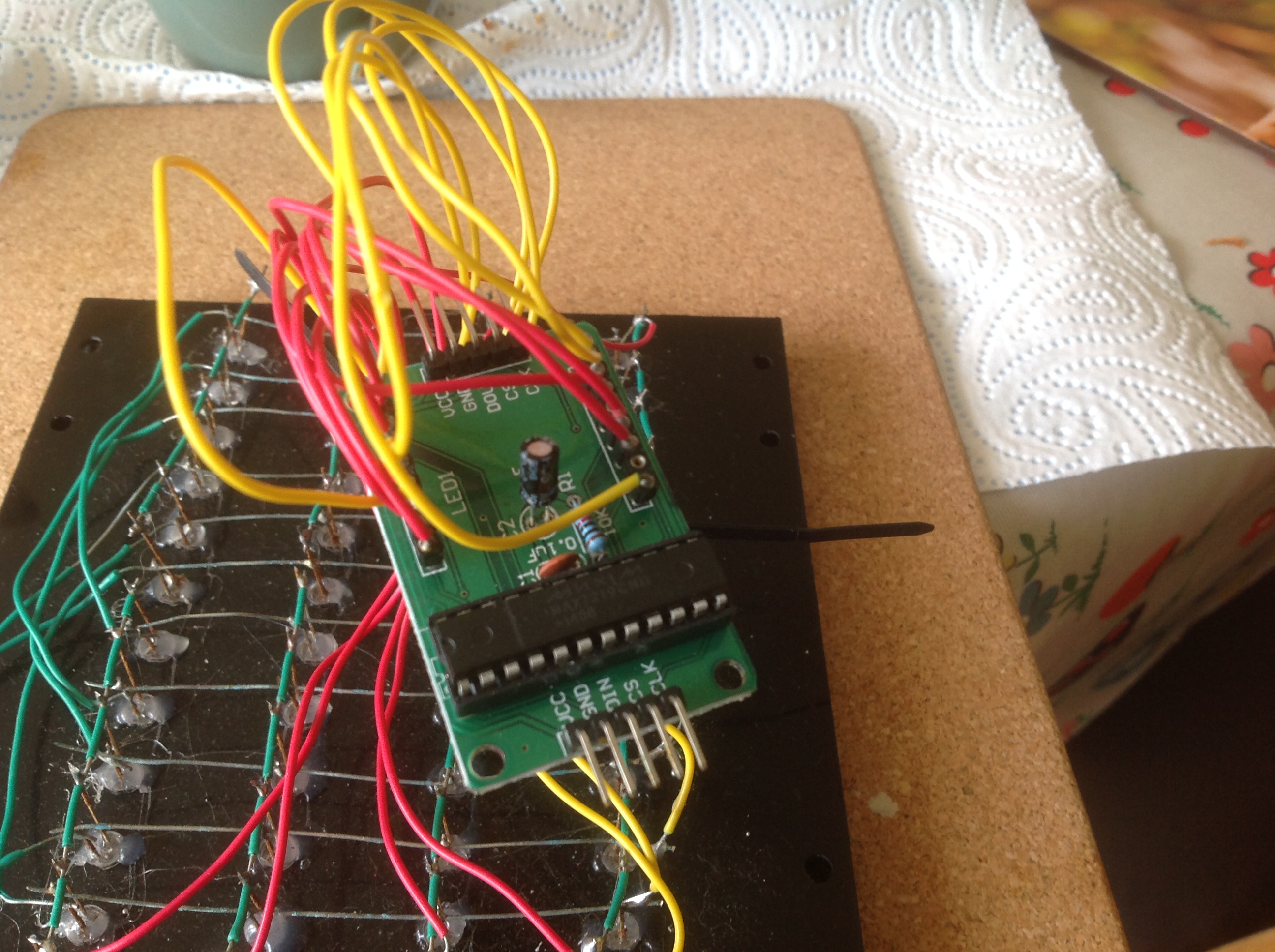

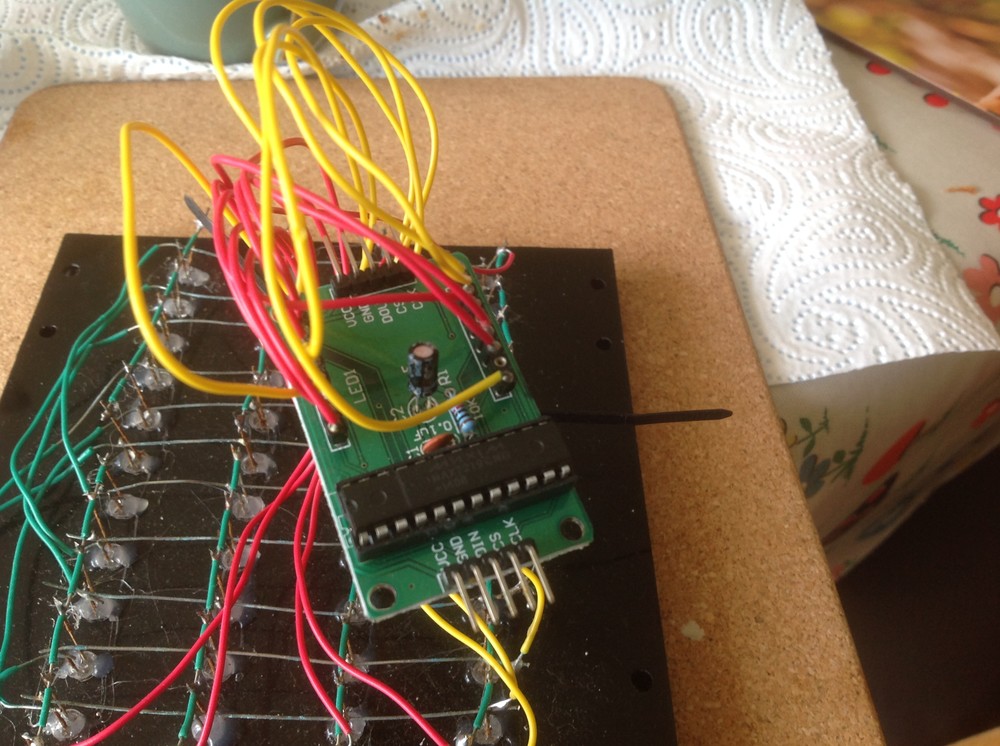

please see the pictures attached. The 7219 chip is one of the modules you can buy from China, which comes in kit form; I soldered it myself so not pre-assembled.



The matrix follows tigershark schematic and I have soldered a common wire between Anode and Cathode wires on each LED. I have done this in two blocks with a linking wire.



With hindsite I would have used 2 led for each indicator and when I have completed all my panels I may revisit this one and use two leds.



Thanks for your help.



Neal

[Warhog]

Everything looks ok as far as I can trace the wires from your pictures. Try this code and tell me if it makes a difference. I adjusted it for your pins so all you need to do is a straight copy and paste. Other than that, I would check everywhere for possible shorts or connections that appear to be connected but in fact are not connected. But try the code first.



#define DCSBIOS_IRQ_SERIAL
#include <DcsBios.h>
#include <LedControl.h>

LedControl lc=LedControl(2,4,3,1);//DIN,CLK,LOAD,# OF IC's

unsigned char cl_row_map[48] = {
 0, 0, 0, 0,
 1, 1, 1, 1,
 2, 2, 2, 2,
 3, 3, 3, 3,
 4, 4, 4, 4,
 5, 5, 5, 5,
 0, 0, 0, 0,
 1, 1, 1, 1,
 2, 2, 2, 2,
 3, 3, 3, 3,
 4, 4, 4, 4,
 5, 5, 5, 5,
 };
#define SEG_DP (1<<7)
#define SEG_A (1<<6)
#define SEG_B (1<<5)
#define SEG_C (1<<4)
#define SEG_D (1<<3)
#define SEG_E (1<<2)
#define SEG_F (1<<1)
#define SEG_G (1<<0)
unsigned char cl_mask_map[48]= {
 SEG_DP, SEG_B, SEG_D, SEG_F,
 SEG_DP, SEG_B, SEG_D, SEG_F,
 SEG_DP, SEG_B, SEG_D, SEG_F,
 SEG_DP, SEG_B, SEG_D, SEG_F,
 SEG_DP, SEG_B, SEG_D, SEG_F,
 SEG_DP, SEG_B, SEG_D, SEG_F,
 SEG_A, SEG_C, SEG_E, SEG_G,
 SEG_A, SEG_C, SEG_E, SEG_G,
 SEG_A, SEG_C, SEG_E, SEG_G,
 SEG_A, SEG_C, SEG_E, SEG_G,
 SEG_A, SEG_C, SEG_E, SEG_G,
 SEG_A, SEG_C, SEG_E, SEG_G,
 };


unsigned char max7219_rows[8];

void setup() {
 DcsBios::setup();
 memset(max7219_rows, 0xff, sizeof(max7219_rows));

 lc.shutdown(0,false); //turn on the display
 lc.setIntensity(0,8);//set the brightness
 lc.clearDisplay(0); //clear rthe display and get ready for new data
}

void updateCautionLights(unsigned int address, unsigned int data) {
   unsigned char clp_row = (address - 0x10d4) * 2;
   unsigned char start_index = clp_row * 4;
   unsigned char column = 0;
   unsigned char i;

   bool is_on;
   for (i=0; i<16; i++) {
       is_on = data & 0x01;
       // set caution light state (clp_row, column, is_on)
       if (is_on) {
         max7219_rows[cl_row_map[start_index+i]] |= cl_mask_map[start_index+i];
       } else {
         max7219_rows[cl_row_map[start_index+i]] &= ~(cl_mask_map[start_index+i]);
       }
       data >>= 1;
       column++;
       if (column == 4) {
          clp_row++;
          column = 0;
       }
   }

}

void onClpData1Change(unsigned int newValue) {
   updateCautionLights(0x10d4, newValue);
}
DcsBios::IntegerBuffer clpData1(0x10d4, 0xffff, 0, onClpData1Change);

void onClpData2Change(unsigned int newValue) {
   updateCautionLights(0x10d6, newValue);
}
DcsBios::IntegerBuffer clpData2(0x10d6, 0xffff, 0, onClpData2Change);

void onClpData3Change(unsigned int newValue) {
   updateCautionLights(0x10d8, newValue);
}
DcsBios::IntegerBuffer clpData3(0x10d8, 0xffff, 0, onClpData3Change);

void loop() {
 DcsBios::loop();

 // update MAX7219
 unsigned char i;
 for (i=0; i<8; i++) {
   lc.setRow(0, i, max7219_rows[i]);
 }
}

[0414 Wee Neal]

Hi John



tried the new sketch, no change. One of my led's was not working so i have swapped that out, not sure if that could have been affecting anything. I have gone through and checked joints and remade a few dodgy looking ones. The dim leds were on te same row as the non functioning one.



I will check on dcs pc tomorrow.



thanks for the assistance.



Neal

[0414 Wee Neal]

Success



Hi



I am please to say that after replacing the failed led, the issue of the leds lighting up dimly dissappeared. It appears that when one of the Leds within the matrix fails it creates some kind of electrical feedback to the other leds in that ROW. It did not appear to have the same effect in the column.



Thank you for your support, I now have a fully functioning CLP: YIPPEEEE!



Best wishes



Neal

[Zorg.]

Hello, sorry to post on an open topic. I am looking to use the code above caution lights panel of the A10 adapted to the ECM panel of the F16. I am currently testing on a 2-row, 8-column matrix with the following code (Final 4x8 matrix). I am not at all comfortable with the programming language, I updated the mapping of digit 0 and 1 and segments according to pinout. The second code part corresponding to the update function, I do not understand it. Is it possible to adapt for the ecm light F16 ? Could someone help me? Thanks

Quote

/*

  Tell DCS-BIOS to use a serial connection and use the default Arduino Serial

  library. This will work on the vast majority of Arduino-compatible boards,

  but you can get corrupted data if you have too many or too slow outputs

  (e.g. when you have multiple character displays), because the receive

  buffer can fill up if the sketch spends too much time updating them.



  If you can, use the IRQ Serial connection instead.

*/

#define DCSBIOS_DEFAULT_SERIAL



#include "DcsBios.h"

#include "LedControl.h"



/*

 Now we need a LedControl to work with.

 ***** These pin numbers will probably not work with your hardware *****

 pin 12 is connected to the DataIn

 pin 11 is connected to the CLK

 pin 10 is connected to LOAD

 We have only a single MAX72XX.

 */

LedControl lc=LedControl(12,11,10,1);//DIN,CLK,CS

/* paste code snippets from the reference documentation here */



unsigned char c1_row_map[16] ={



  0, 1,

  0, 1,

  0, 1,

  0, 1,

  0, 1,

  0, 1,

  0, 1,

  0, 1,

};



#define SEG_DP (1<<7)



#define SEG_A (1<<6)



#define SEG_B (1<<5)



#define SEG_C (1<<4)



#define SEG_D (1<<3)



#define SEG_E (1<<2)



#define SEG_F (1<<1)



#define SEG_G (1<<0)



unsigned char c1_mask_map[16] = {



SEG_DP, SEG_DP,

SEG_G, SEG_G,

SEG_F, SEG_F,

SEG_E, SEG_E,

SEG_C, SEG_C,

SEG_D, SEG_D,

SEG_B, SEG_B,

SEG_A, SEG_A,



};



unsigned char max7219_rows[2];



void setup() {

  DcsBios::setup();



  memset(max7219_rows, 0xff, sizeof(max7219_rows));

     The MAX72XX is in power-saving mode on startup,

   we have to do a wakeup call

   */

  lc.shutdown(0,false);

  /* Set the brightness to a medium values */

  lc.setIntensity(0,8);

  /* and clear the display */

  lc.clearDisplay(0);

}



void updateEcmLights (unsigned int address, unsigned int data){

unsigned char clp_row = (address-0x10d4) *2;

unsigned char stard_index = clp_row * 4;

unsigned char column = 0;

unsigned char i;



  bool is_on;

   for (i=0; i<16; i++) {

       is_on = data & 0x01;

       // set caution light state (clp_row, column, is_on)

       if (is_on) {

         max7219_rows[cl_row_map[start_index+i]] |= cl_mask_map[start_index+i];

       } else {

         max7219_rows[cl_row_map[start_index+i]] &= ~(cl_mask_map[start_index+i]);

       }

       data >>= 1;²

       if (column == 4) {

          clp_row++;

          column = 0;

       }

   }



}

void onClpData1Change(unsigned int newValue) {

   updateEcmLights(0x448, newValue);

}

DcsBios::IntegerBuffer clpData1(0x4480, 0xffff, 0, onClpData1Change);



void onClpData2Change(unsigned int newValue) {

   updateEcmLights(0x448a, newValue);

}

DcsBios::IntegerBuffer clpData2(0x448a, 0xffff, 0, onClpData2Change);



void loop() {

 DcsBios::loop();



 // update MAX7219

 unsigned char i;

 for (i=0; i<8; i++) {

   lc.setRow(0, i, max7219_rows[i]);

 }





[Vinc_Vega]

Hi Zorg,

I'll have a look in the evening if help is possible.

Regards, Vinc

[Zorg.]

Hi Vinc, thank you in advance for your help. I have code that works with an 8x8 matrix but this requires me to double the number of LEDs. If a solution is possible from the A10 deposit code, it is unexpected and good for optimization. Thanks again to everyone who makes the interface accessible - I will work on a post as soon as possible to present the progress of the panels.

Edited September 28, 2023 by Zorg.

[Vinc_Vega]

Hi Zorg,

First I have to say, that I have the F-16 module just to check some scripting but have no clue how the ECM panel works or the inner data structure. I cannot find a LED matrix for the ECM panel within the DcsBios reference tool that is comparable to the A-10 coding.

If you want to do your own 2 col and 8 row matrix, in my opinion you should change the coding somehow to the following pattern

unsigned char c1_row_map[16] ={

 0, 0, 0, 0,
 1, 1, 1, 1,
 0, 0, 0, 0,
 1, 1, 1, 1,
};

#define SEG_DP (1<<7)
#define SEG_A (1<<6)
#define SEG_B (1<<5)
#define SEG_C (1<<4)
#define SEG_D (1<<3)
#define SEG_E (1<<2)
#define SEG_F (1<<1)
#define SEG_G (1<<0)

unsigned char c1_mask_map[16] = {

 SEG_DP, SEG_B, SEG_D, SEG_F,
 SEG_DP, SEG_B, SEG_D, SEG_F,
 SEG_A, SEG_C, SEG_E, SEG_G,
 SEG_A, SEG_C, SEG_E, SEG_G,
};

unsigned char max7219_rows[8];



Furthermore, I think that you cannot change the A-10 command "updateCautionLights" into "updateEcmLights" without knowing the correct commands and addresses for the F-16 module. For example, the hex code 0x10d4 is for the A-10 CLP.

void updateEcmLights (unsigned int address, unsigned int data){
unsigned char clp_row = (address-0x10d4) *2;
unsigned char stard_index = clp_row * 4;
unsigned char column = 0;
unsigned char i;



Same for the A-10 commands "ClpData1" and "ClpData2" where no F-16 equivalent is within your code.

void onClpData1Change(unsigned int newValue) {
   updateEcmLights(0x448, newValue);
}
DcsBios::IntegerBuffer clpData1(0x4480, 0xffff, 0, onClpData1Change);

void onClpData2Change(unsigned int newValue) {
   updateEcmLights(0x448a, newValue);
}
DcsBios::IntegerBuffer clpData2(0x448a, 0xffff, 0, onClpData2Change);



So in the end, the problem cannot be solved without further knowledge on the F-16 EMC panels inner data structure.

Sorry for that!



Regards, Vinc

Edited September 28, 2023 by Vinc_Vega

[Zorg.]

After several tests, it was simpler than I thought, I just used the led.control.h library + the Digit 0 and Digit 1 interface on the seven segments - converting newValue to Bool. It works. Phew

Thanks again for taking a look anyway.

[Vinc_Vega]

Yes, that's the easy way to talk to a smaller matrix

Congratulations!

Regards, Vinc
