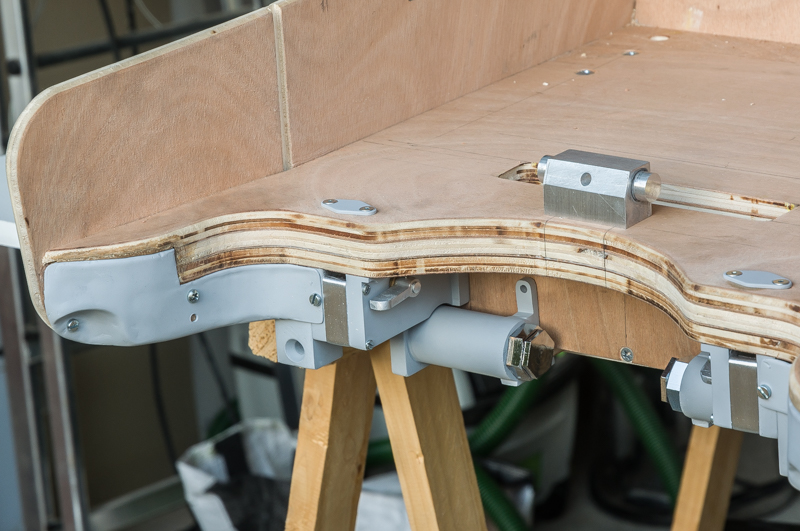

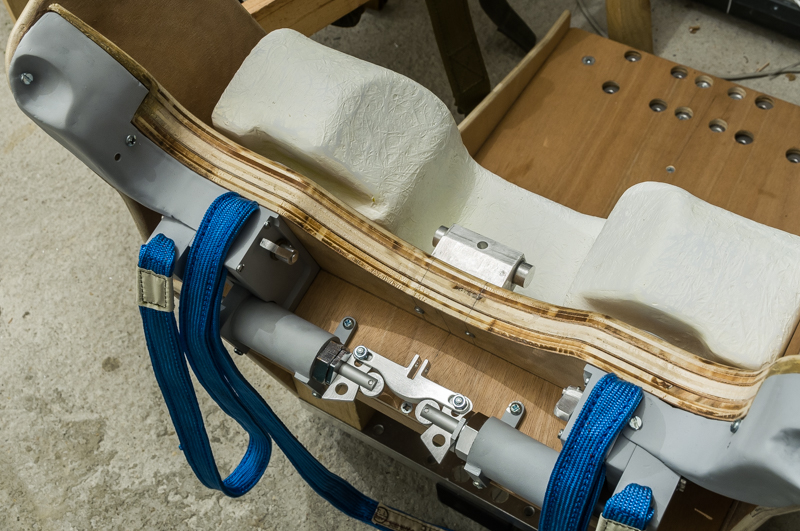

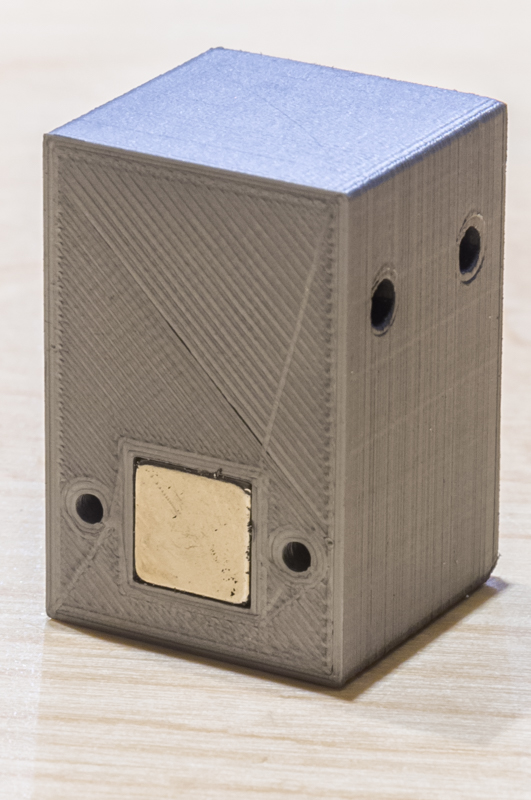

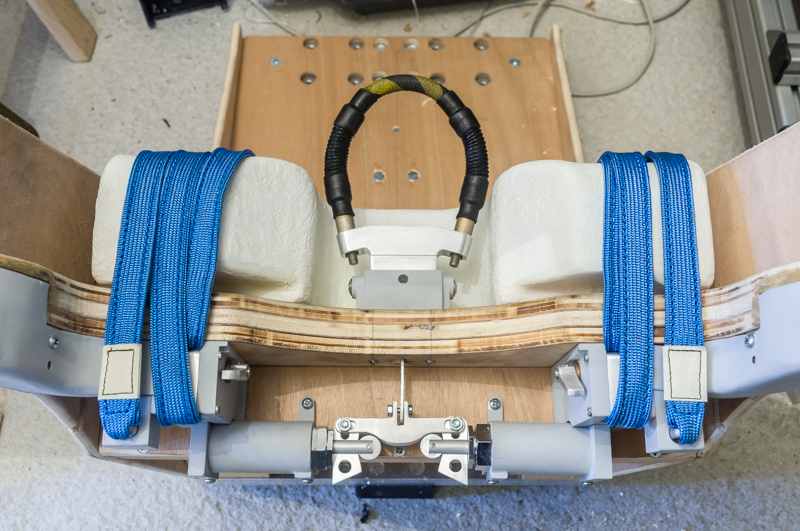

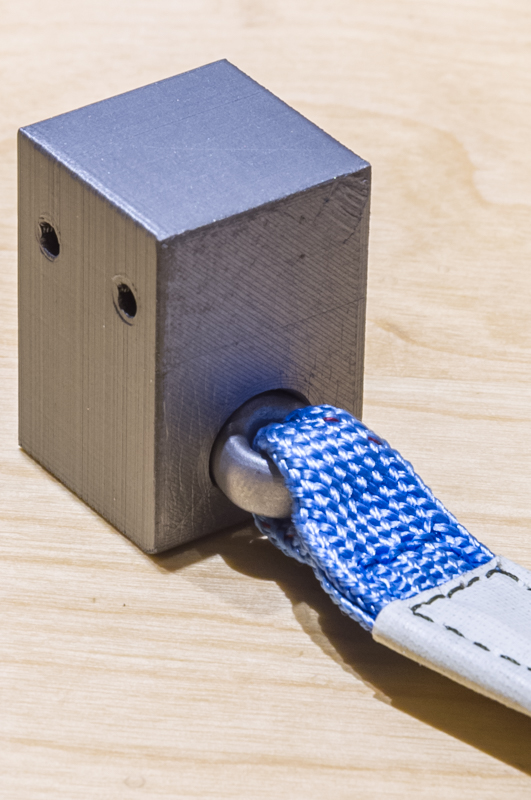

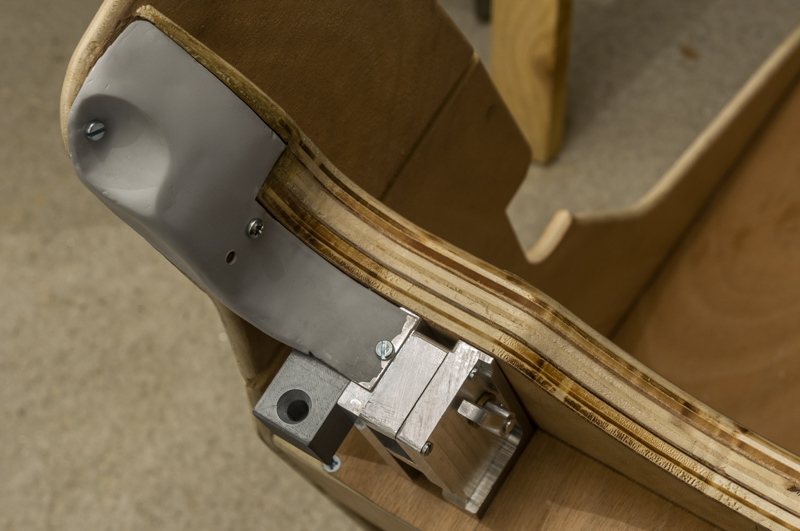

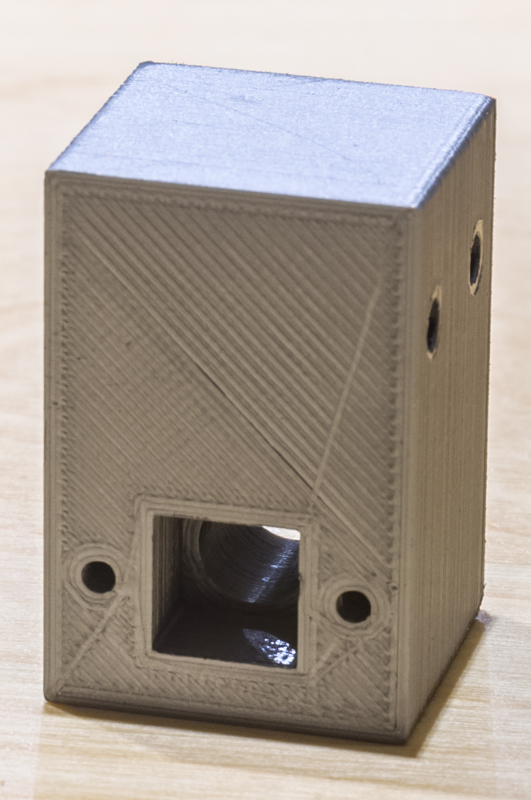

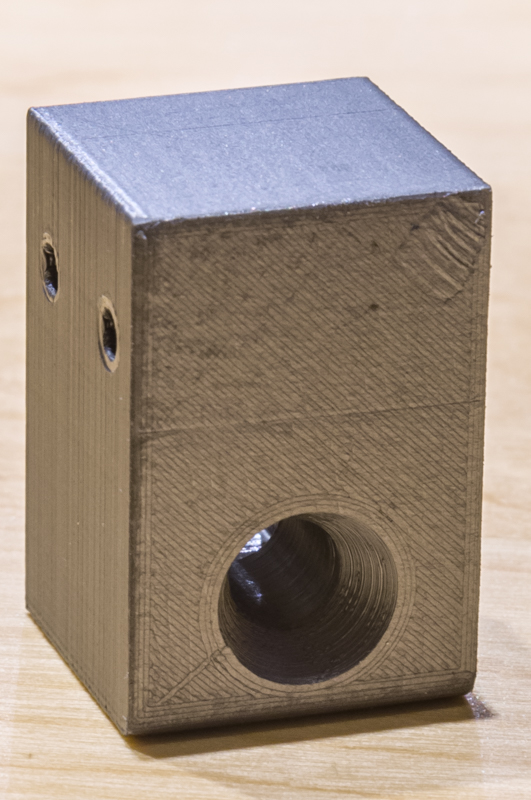

matbog Posted September 5, 2018 Author Posted September 5, 2018 Here is a leg restraint line cones receiver made with my 3D printer. On the real seat there is a mecanism which lock the cone and which can be unlock by the little lever on the left of the seat. I have decided not to make this mecanism to be able to use the lever for an analog command (for the zoom for example) and I place a magnet at the rear of the receiver to maintain the cone. [sIGPIC][/sIGPIC] My Mirage 2000C Pit construction 3D model of a Mirage 2000C Cockpit 3D model of a Martin Baker Mk10

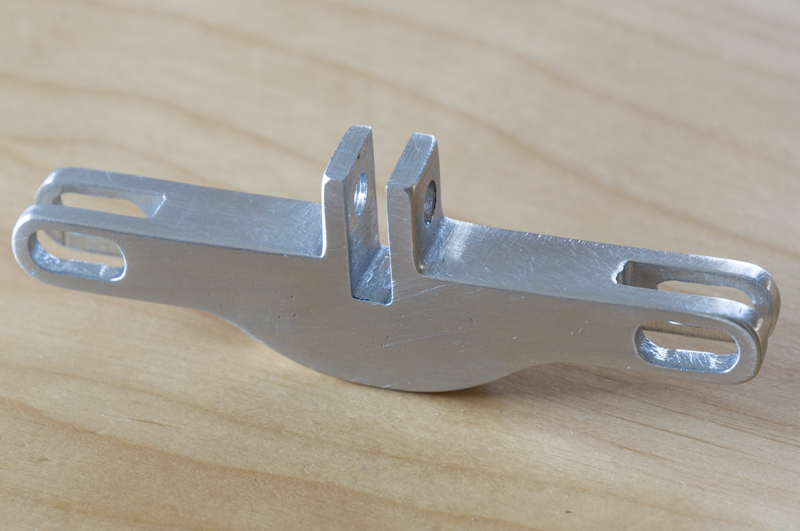

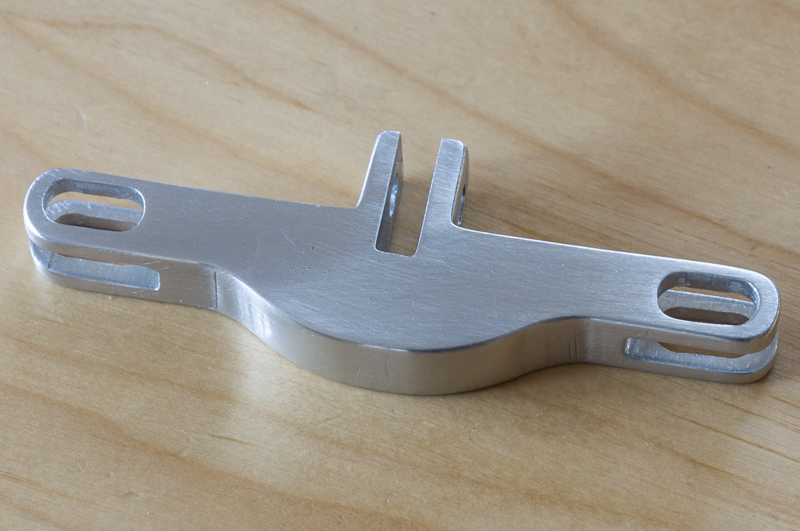

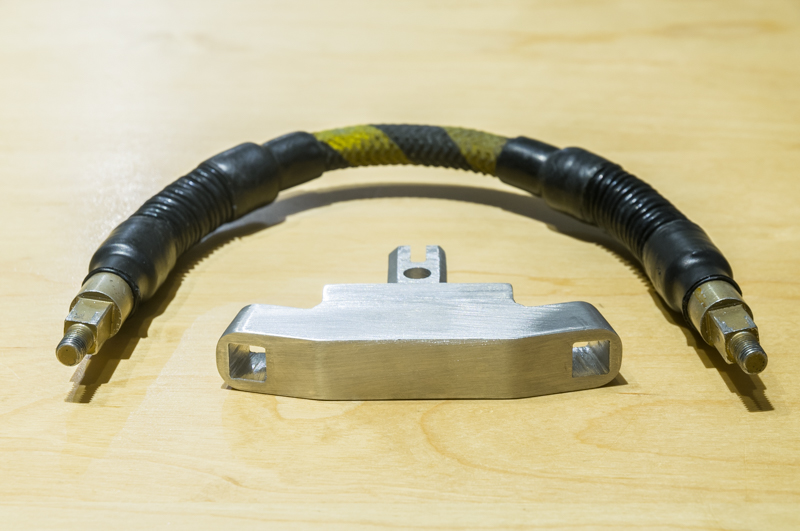

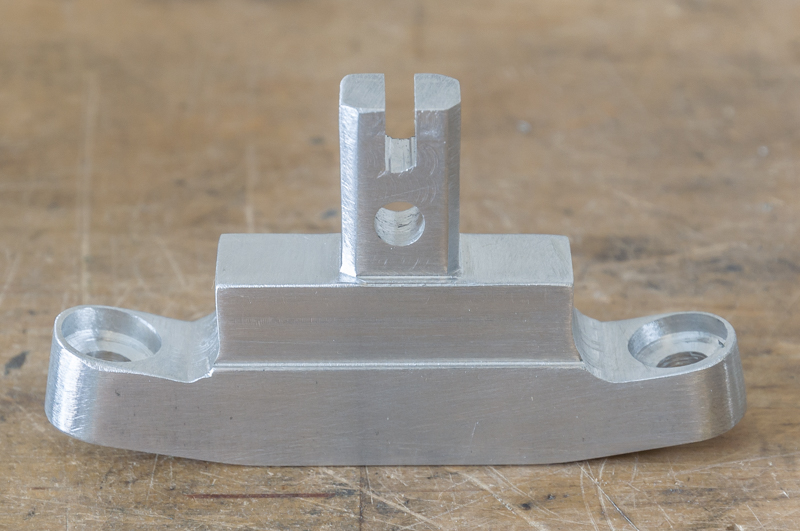

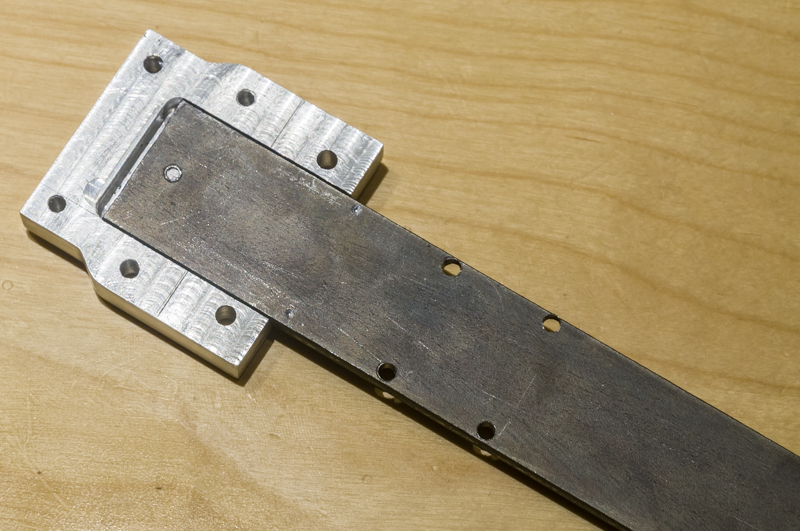

matbog Posted September 13, 2018 Author Posted September 13, 2018 Here is the piece making the link between the ejection handle and the sears of the 2 seat initiator firing cartridge. [sIGPIC][/sIGPIC] My Mirage 2000C Pit construction 3D model of a Mirage 2000C Cockpit 3D model of a Martin Baker Mk10

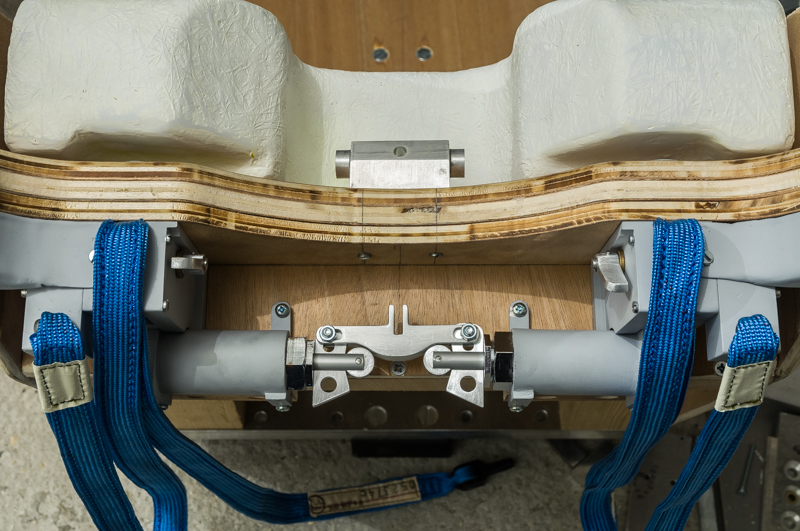

matbog Posted October 2, 2018 Author Posted October 2, 2018 Not so many updates but i like to see lot of photos on a building thread so I guess you too :D [sIGPIC][/sIGPIC] My Mirage 2000C Pit construction 3D model of a Mirage 2000C Cockpit 3D model of a Martin Baker Mk10
Askerov24 Posted October 2, 2018 Posted October 2, 2018 Man, this is awesome! I'm patiently waiting the final result! Good luck Matbog! Acer Aspire E5-571G-713W/Intel® Core™ i7-4510U 2.0-3.1GHz/12 GB DDR3 L Memo/NVIDIA® GeForce® 820M 2 GB/1000 GB HDD

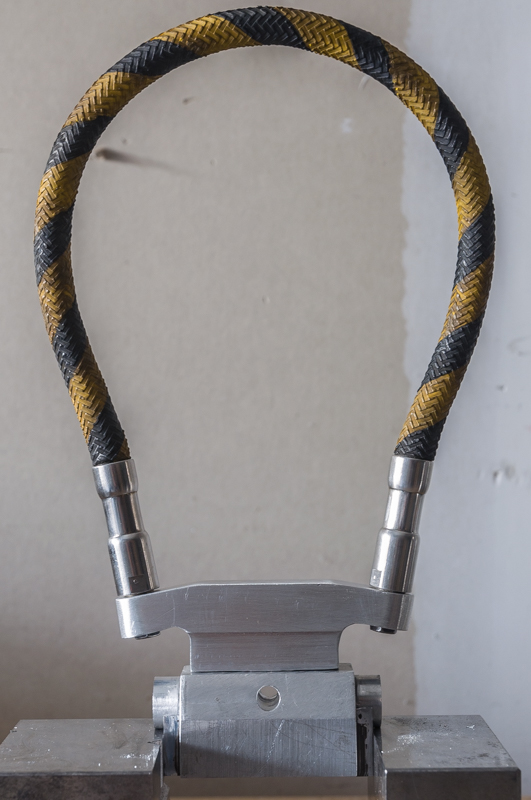

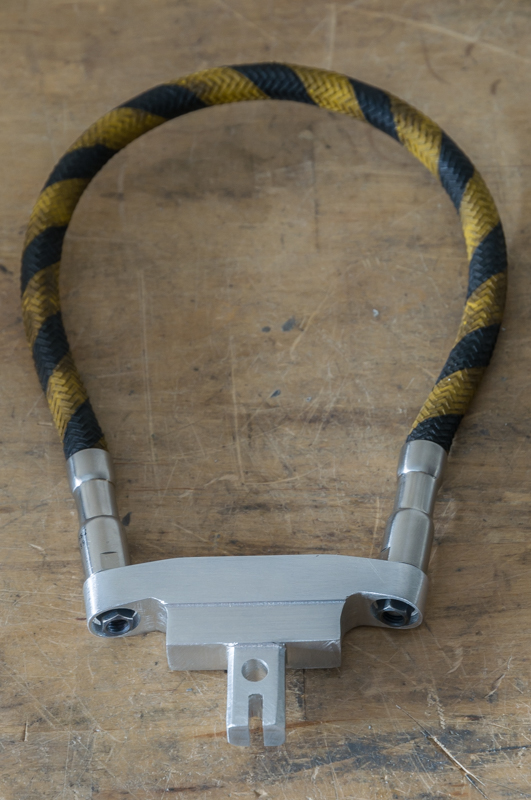

matbog Posted October 6, 2018 Author Posted October 6, 2018 Thanks a lot Askerov!!! Here is the ejection seat handle. The handle is from a Belgium Mirage 5. It is a little bit too long for a Mirage 2000... [sIGPIC][/sIGPIC] My Mirage 2000C Pit construction 3D model of a Mirage 2000C Cockpit 3D model of a Martin Baker Mk10
djokerslam6 Posted October 7, 2018 Posted October 7, 2018 awesome mate ______________________________________________________ AMD Ryzen 3 2200G GTX 1050 3GB 8GB Ram 'Beauty MATE' :thumbup: Owner of PROJECT TORNADO https://forums.eagle.ru/showthread.php?t=221698 :helpsmilie:
matbog Posted October 7, 2018 Author Posted October 7, 2018 Thank you! [sIGPIC][/sIGPIC] My Mirage 2000C Pit construction 3D model of a Mirage 2000C Cockpit 3D model of a Martin Baker Mk10

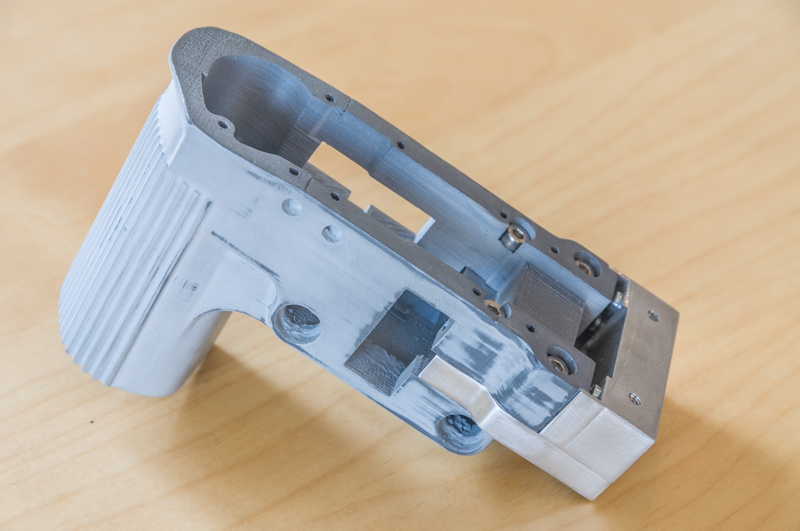

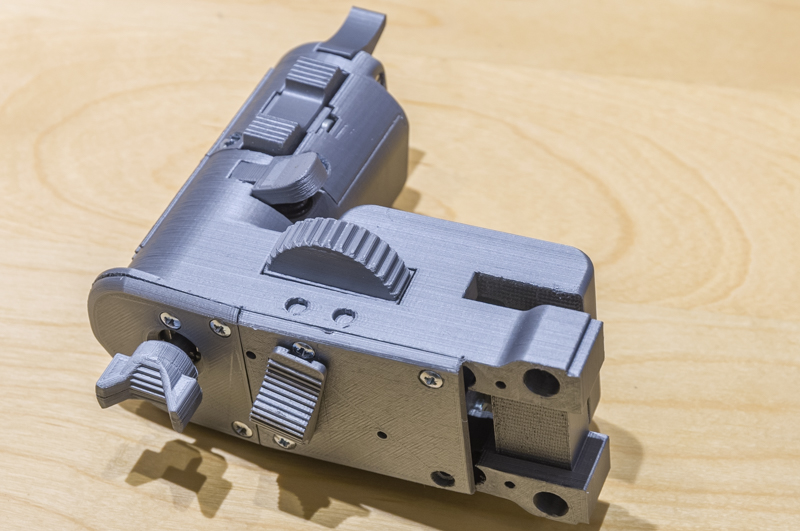

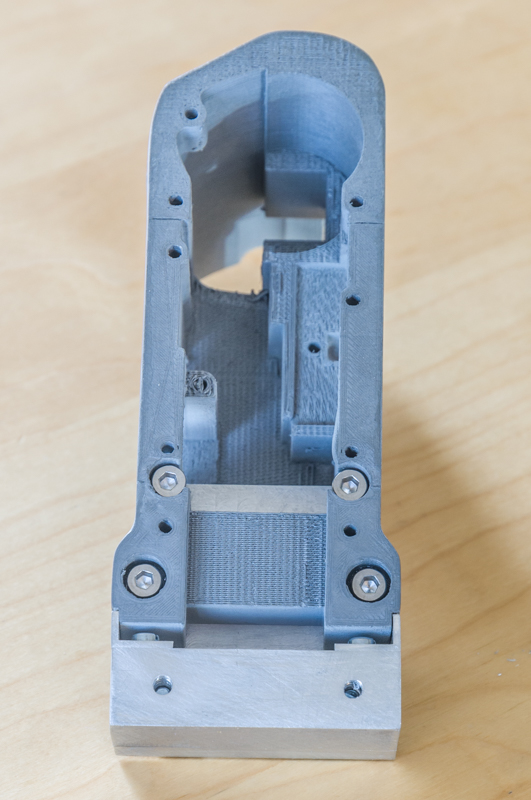

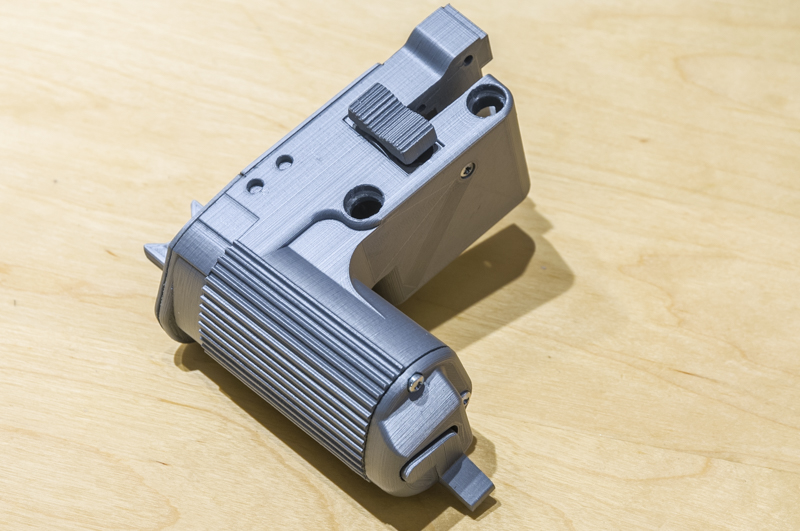

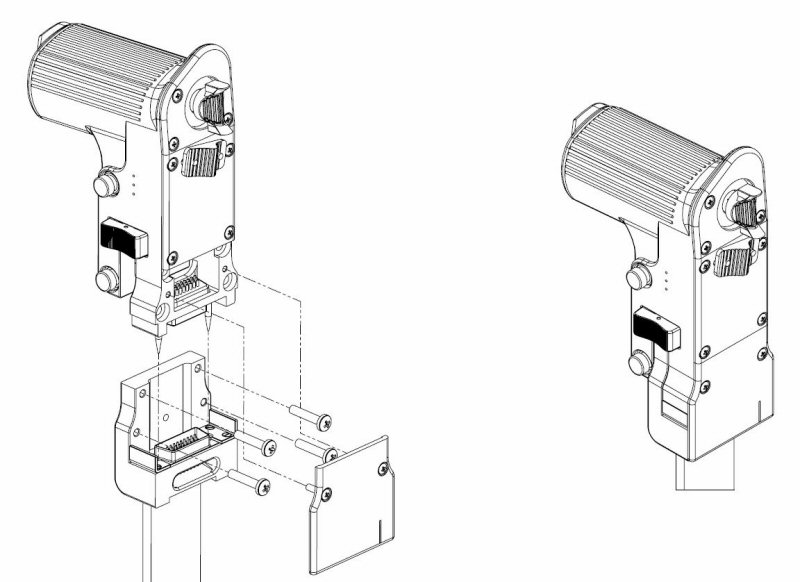

matbog Posted October 23, 2018 Author Posted October 23, 2018 Here is some pics of my brand new Mirage 2000C throttle. The model is design by Dimebug and it is just awesome!!!! And cherry on the cake: he will release it for download soon!!!! [sIGPIC][/sIGPIC] My Mirage 2000C Pit construction 3D model of a Mirage 2000C Cockpit 3D model of a Martin Baker Mk10
McG Posted October 23, 2018 Posted October 23, 2018 The throttle looks really good. Is it designed to attach to a Warthog throttle?
matbog Posted October 23, 2018 Author Posted October 23, 2018 Yes it is. [sIGPIC][/sIGPIC] My Mirage 2000C Pit construction 3D model of a Mirage 2000C Cockpit 3D model of a Martin Baker Mk10
streakeagle Posted October 24, 2018 Posted October 24, 2018 Here is some pics of my brand new Mirage 2000C throttle. The model is design by Dimebug and it is just awesome!!!! And cherry on the cake: he will release it for download soon!!!! Awesome! It is a shame that the Warthog throttle wasn't designed to have interchangeable handles like the joystick. [sIGPIC][/sIGPIC]
matbog Posted October 24, 2018 Author Posted October 24, 2018 Thanks for him. [sIGPIC][/sIGPIC] My Mirage 2000C Pit construction 3D model of a Mirage 2000C Cockpit 3D model of a Martin Baker Mk10
Tantalum7 Posted October 27, 2018 Posted October 27, 2018 This is pretty awesome. I'd love to have the measurements to be able to model my own version up. Great work!
matbog Posted October 27, 2018 Author Posted October 27, 2018 You will have to wait for Dimebug to release the files... It should happen soon [sIGPIC][/sIGPIC] My Mirage 2000C Pit construction 3D model of a Mirage 2000C Cockpit 3D model of a Martin Baker Mk10

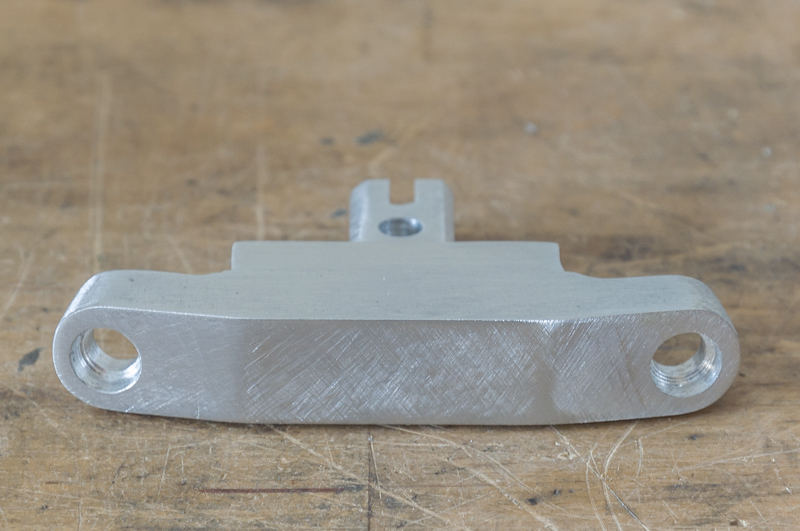

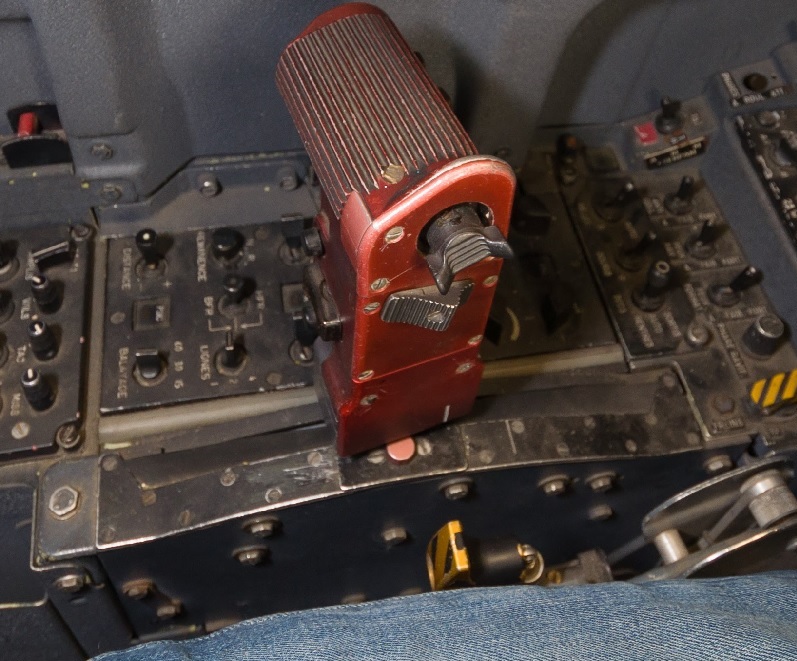

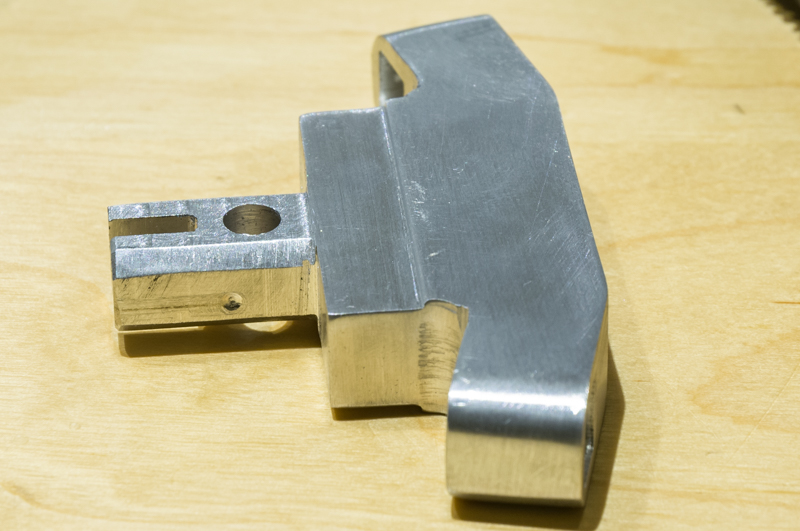

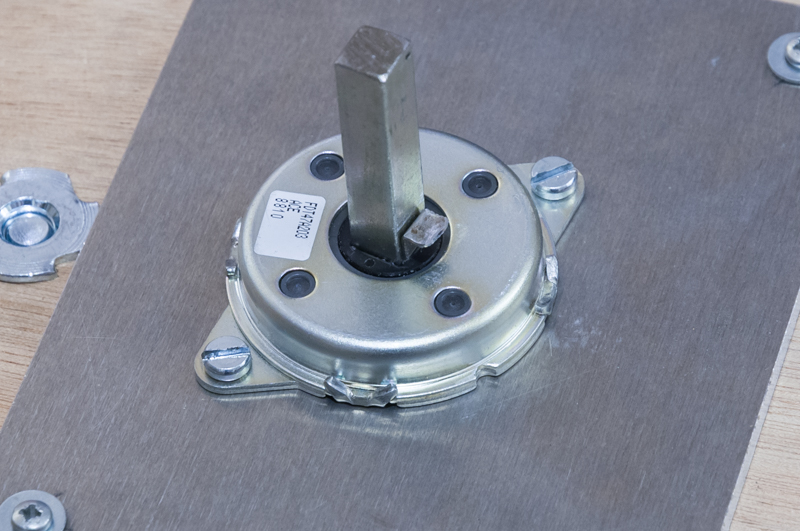

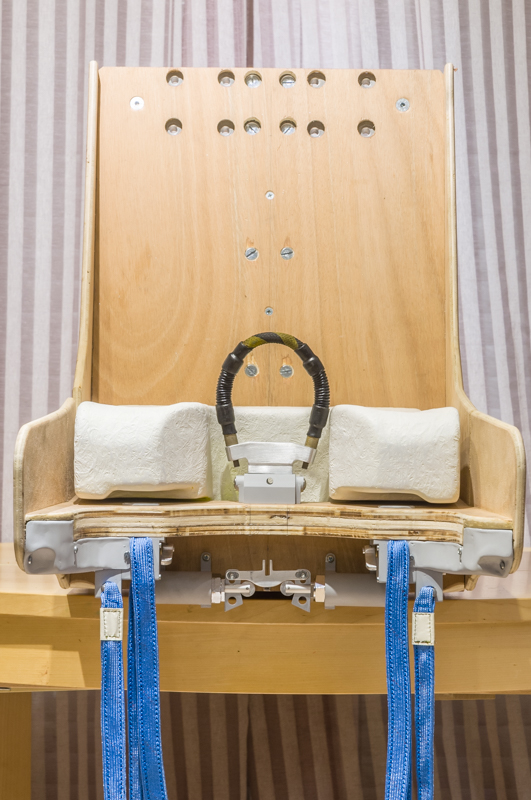

matbog Posted November 1, 2018 Author Posted November 1, 2018 Just after building the ejection seat handle support I found a Mirage 2000 handle (the one I had was from a Mirage 5 and was too tall). So I had to make a new support with square holes :cry: But now it is nice :) [sIGPIC][/sIGPIC] My Mirage 2000C Pit construction 3D model of a Mirage 2000C Cockpit 3D model of a Martin Baker Mk10
matbog Posted November 11, 2018 Author Posted November 11, 2018 Some news! I made the rod under the ejection handle and the throttle base. [sIGPIC][/sIGPIC] My Mirage 2000C Pit construction 3D model of a Mirage 2000C Cockpit 3D model of a Martin Baker Mk10

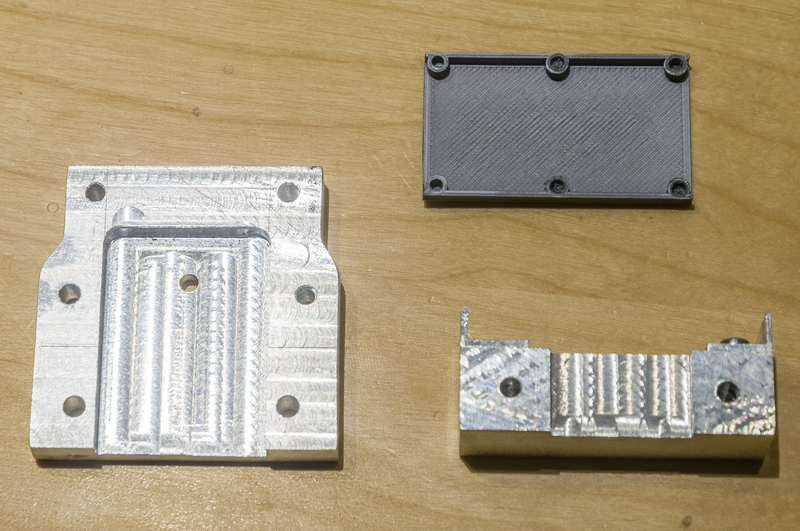

matbog Posted December 2, 2018 Author Posted December 2, 2018 Here is the integration of the lever of the throttle. [sIGPIC][/sIGPIC] My Mirage 2000C Pit construction 3D model of a Mirage 2000C Cockpit 3D model of a Martin Baker Mk10
matbog Posted December 3, 2018 Author Posted December 3, 2018 Thank you Tantalum! [sIGPIC][/sIGPIC] My Mirage 2000C Pit construction 3D model of a Mirage 2000C Cockpit 3D model of a Martin Baker Mk10

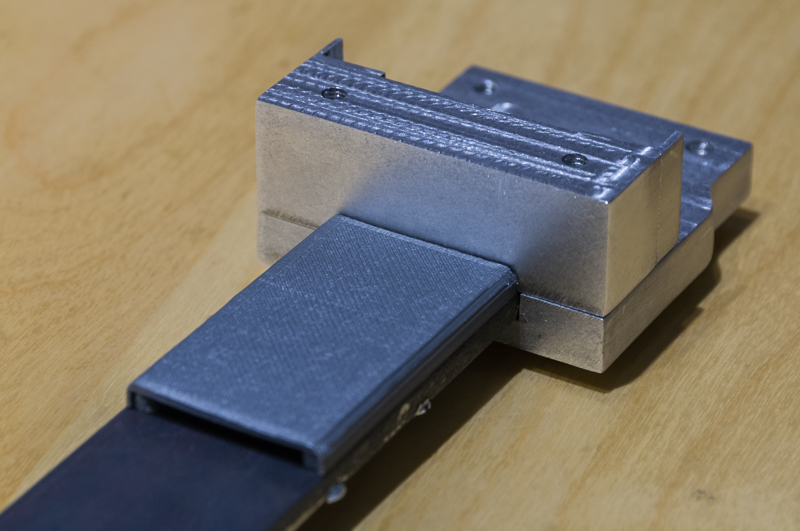

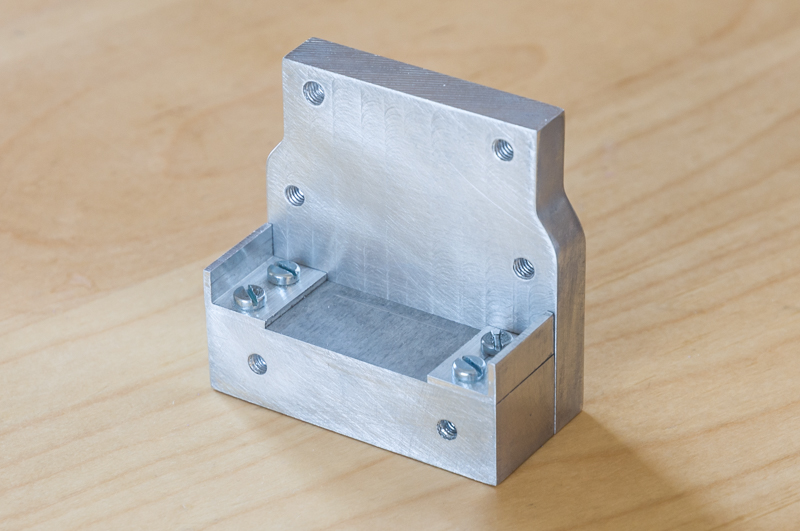

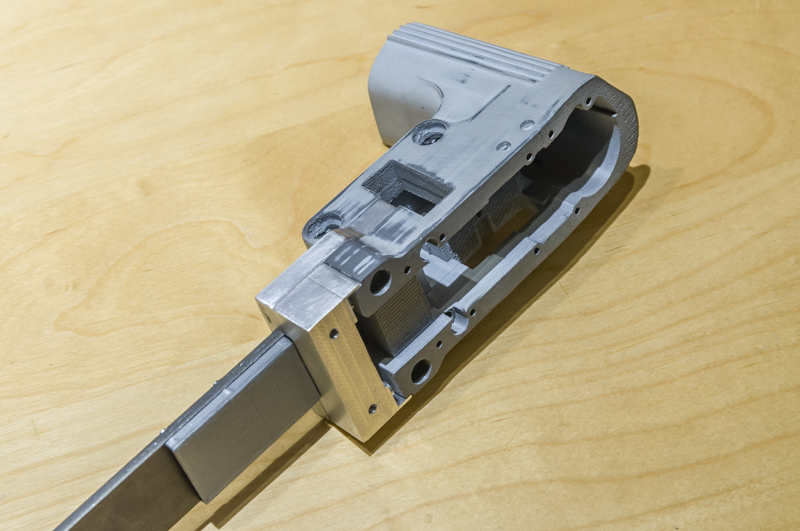

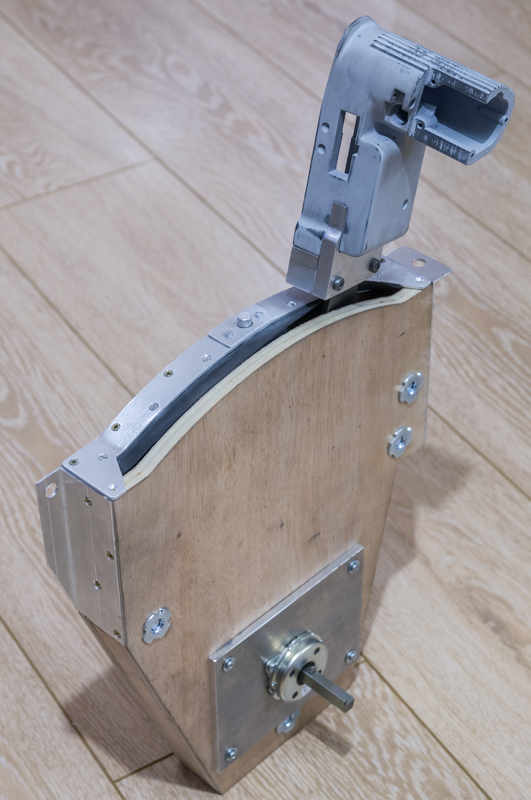

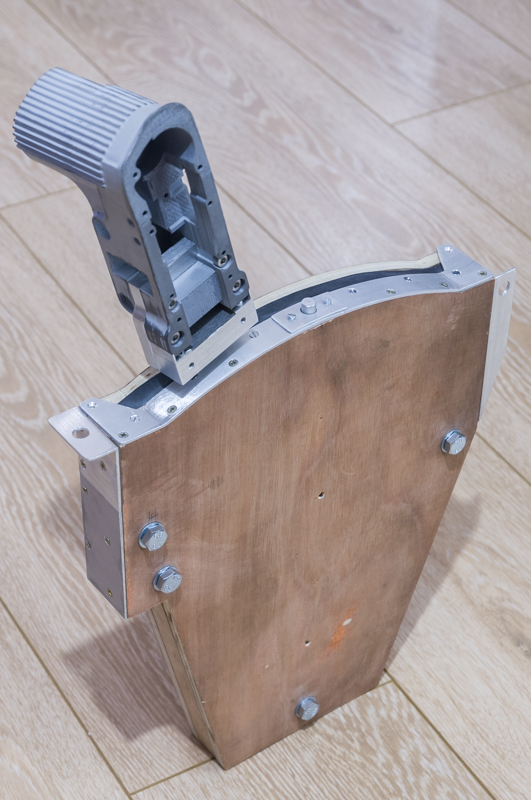

matbog Posted March 30, 2019 Author Posted March 30, 2019 Hello all! Some news of my Mirage 2000C cockpit. Here is the throttle case. [sIGPIC][/sIGPIC] My Mirage 2000C Pit construction 3D model of a Mirage 2000C Cockpit 3D model of a Martin Baker Mk10
Askerov24 Posted March 30, 2019 Posted March 30, 2019 Lookin good! Acer Aspire E5-571G-713W/Intel® Core™ i7-4510U 2.0-3.1GHz/12 GB DDR3 L Memo/NVIDIA® GeForce® 820M 2 GB/1000 GB HDD
Lobinjaevel Posted March 30, 2019 Posted March 30, 2019 I've started buildning my own Mk10 seat the last week, thanks to your exellent model. Your simpit looks great and is probably my favorite build here, great job! Always looking forward to more build updates! Cheers
matbog Posted March 30, 2019 Author Posted March 30, 2019 Thanks guys! I am very happy that my model is helping you Lobinjaevel, this is why I share my work. It is motivating to know that it is used by other people! [sIGPIC][/sIGPIC] My Mirage 2000C Pit construction 3D model of a Mirage 2000C Cockpit 3D model of a Martin Baker Mk10
Marcq Posted March 30, 2019 Posted March 30, 2019 (edited) Fantastic job matdog!!! Do you mind me asking for the width of the front panel Thanks, Marc.. Edited March 31, 2019 by Marcq
