DIY Helicopter Cockpit (UH-1)

[BlacleyCole]

Would be able to send me the cad files for the collective head parts

[slowmover]

how the project is going yoreh?

[yoreh]

Would be able to send me the cad files for the collective head parts



Hi, i'm sorry but the collective head parts are not my desgin and prints. i ordered them from MicroHelis.de



Cheers,

Yoreh

[yoreh]

how the project is going yoreh?



Well, for now it's somehow in a stand still... hoping to find more time to push on.

Cheers,

Yoreh

[yoreh]

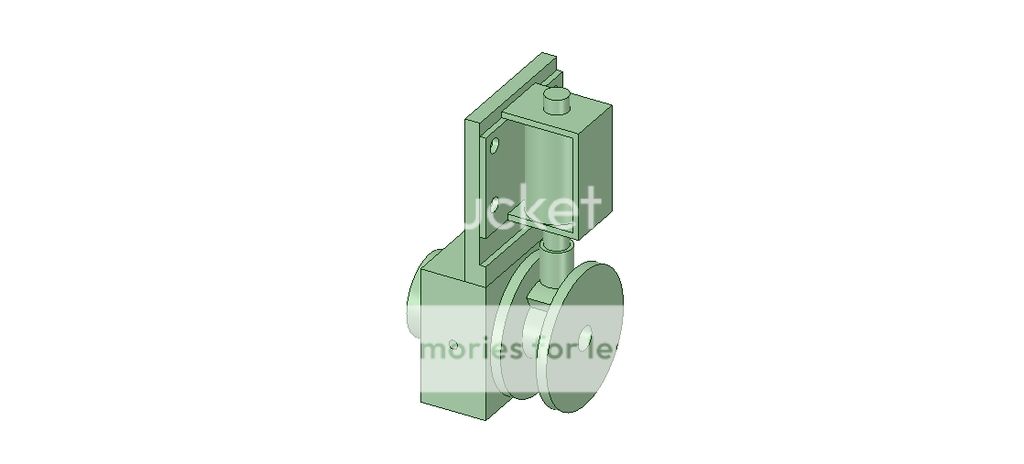

My (very baisc...) design for the ilde stop/release mecanism. it features a solonoid mounted verticaly above a cam pully wheel. when throttle is opened, the pully is rotated up to the point where the solonoid shaft "clears" the cam and drops into place by means of a spring. from this point the trottle can only be opened further as the solonoisd shaft bumps into the cam wall when trying to close. to fully close it, we need to press the idle release button witch activate the solonoid, electro-agneticly pulling the shaft above the cam level so throttle can be fully closed.









to be printed...

cheers,

Yoreh

[yoreh]

Parts printed and assembled for test fitting:









Cheers,

Yoreh.

[molevitch]

Think I need a 3D printer!



Damn, Yoreh!



This project is just so brilliant. Your execution and design is so thorough and competent.



Sigh! I wish I had your workshop and skills.



Mole
