Laser Code problem

[TIGER]

I would like to report a problem/bug on setting the laser code of the F-5



while the aircraft is totally cold nothing is turning on so I can set up the laser code



I noticed that the second digit does not change from 1 till 8

It change only to 5 - 6 and 7 only

1-1-1-3



is a bug?



Thank you

[Frederf]

Laser designator PRF coding:

Band I 111-488

Band II 511-788

There are 3-digit and 4-digit codes. 0XXX and 1XXX I think are the same but 0XXX is older or not encrypted or something like that compared to 1XXX. 0XXX codes I think are old/rare/obsolete.



Yes, it's normal for X7XX to be the highest available digit in that position of the code. Some systems can only do up to 1688, 1788 would be beyond their capability. A-10C can't do X7XX for example.

[BillyCrusher]

Not a bug.

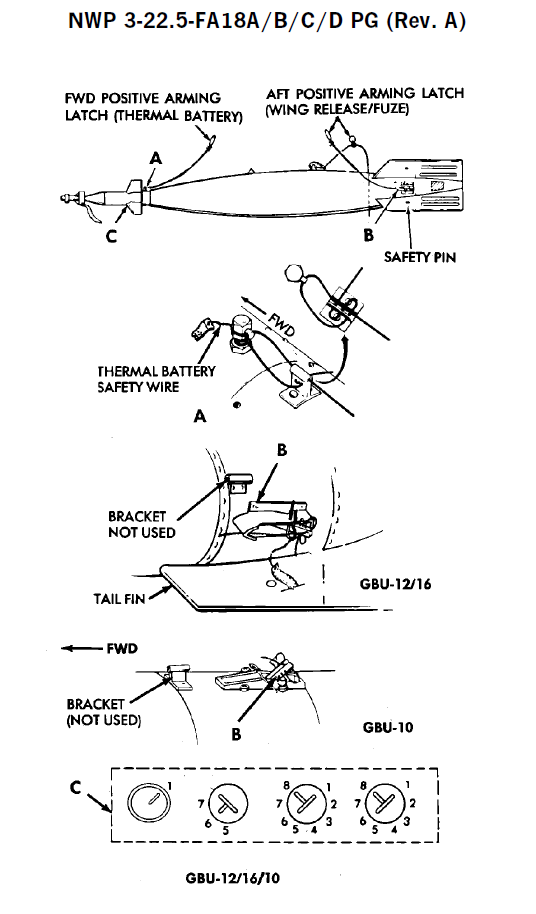

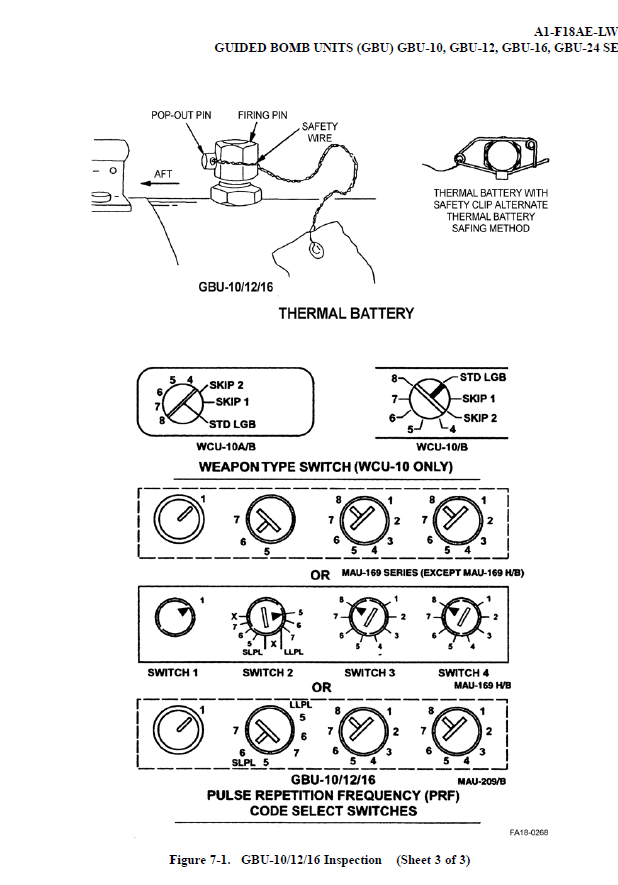

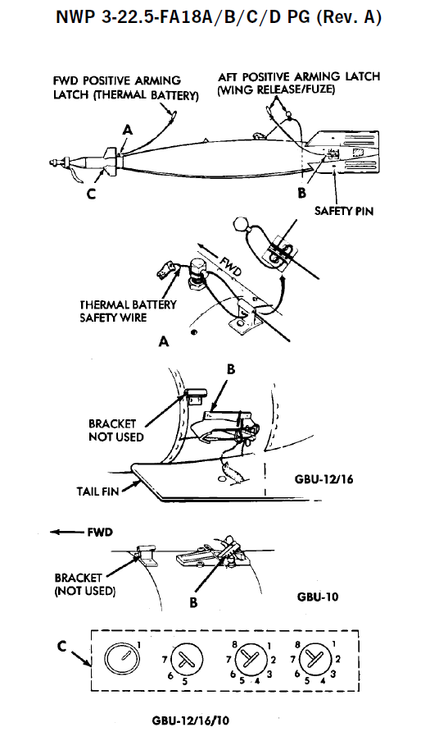

You have set laser code for specified weapon. For GBU-10/12/16 the second digit can be only 5, 6 or 7 (see attaches).

[TheBigTatanka]

Hello,



Is there a way that we can change this back to how it was before the bug fix? I'm fine if it does not pass integrity check, but it would be great to know how to do, so that we could fly with the SU-25T as a lasing aircraft for our F-5s.



Thanks
