sharkfin61 Posted July 6, 2019 Posted July 6, 2019 (edited) Has anyone experienced the same? I was lucky enough to buy a TM Cougar from a friend of mine, who, after flying IL-2 for years, got married, quit simming :doh: and sold me some of his hardware. After resoldering the joysticks cables of the 5-pin connector at the bottom (he put a long, thin extension on it), I found that the DMS right button was shown as a pinkie input and the TMS down button showed up as a paddle input? Firmware was flashed after the installationof the drivers. Any help and suggestions appreciated. Edited July 6, 2019 by sharkfin61 Loads do it on the fly! Royal Bavarian Airforce all the way RIG: RYZEN 7 5800X3D~ ZOTAC 4080 Super ~ AORUS X570S Elite AX ~64 GB Corsair Venegance DDR-4 3600 ~ BeQuiet AIO Silent loop 2 360 watercooled ~ Samsung 890 Pro M.2 (2TB) + 870 EVO (1TB) SSD ~ WIN 10 64-bit ~ AOC 31.5" Gaming 144Hz Display ~ DelanClip@TrackIR 5 ~ TM Warthog no.2 ~Saitek rudder pedals~ 2 TM MFDs on 2nd 27"display ~ Buddyfox A-10 UFC ~ CDU/AAP panel via DCSBios ~ ARC-210 (soldering WIP) ~ QUEST 3

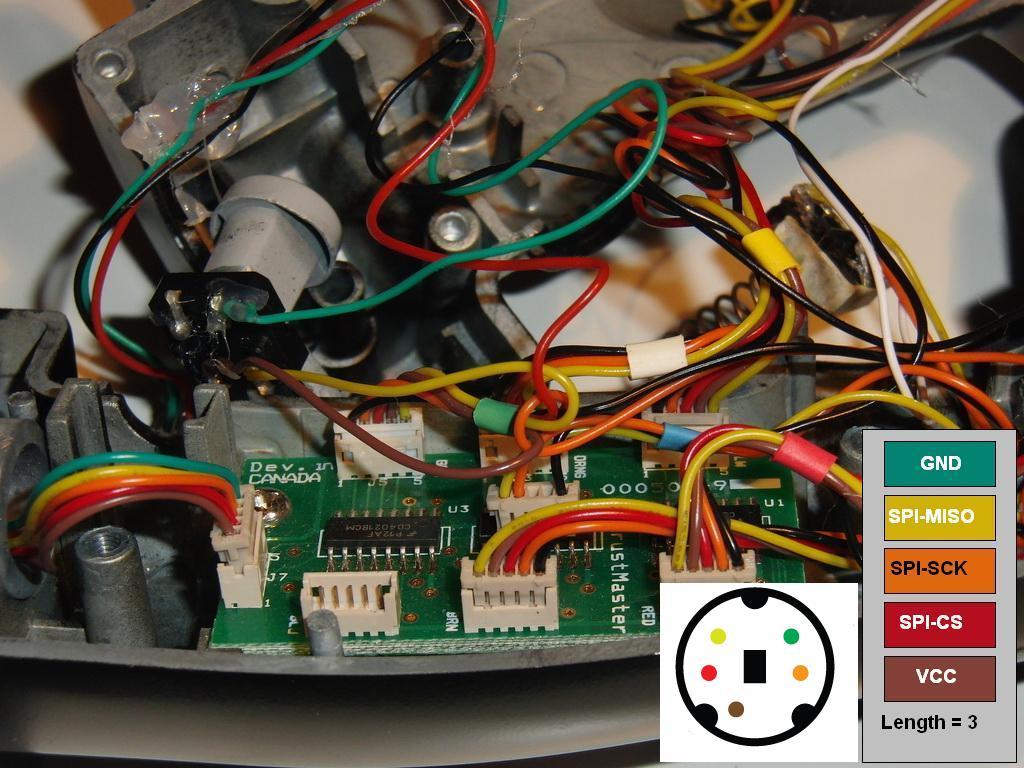

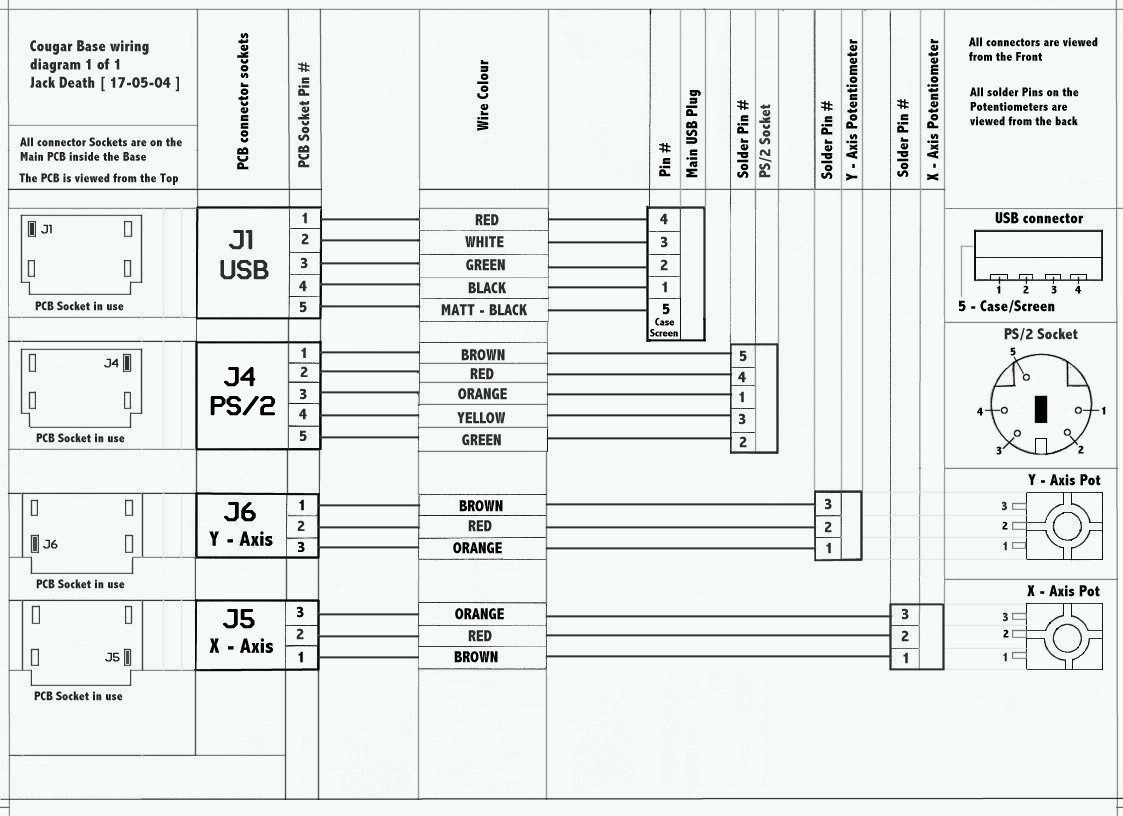

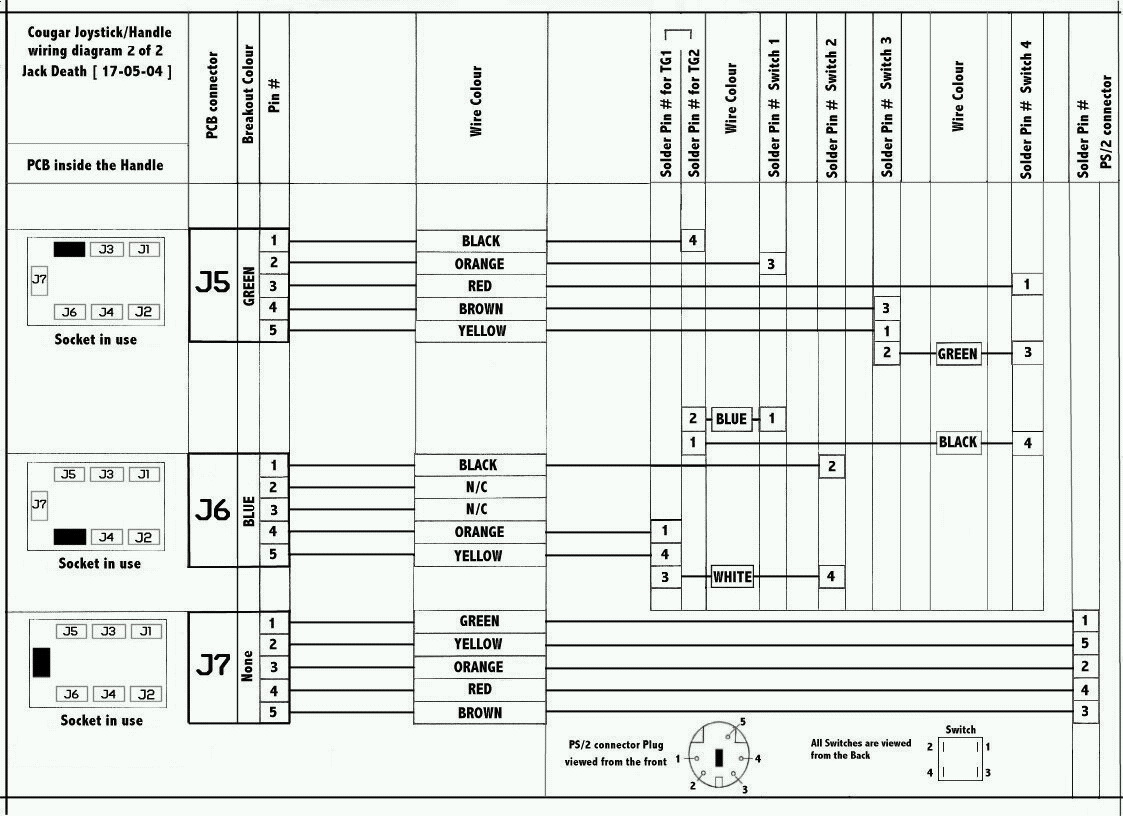

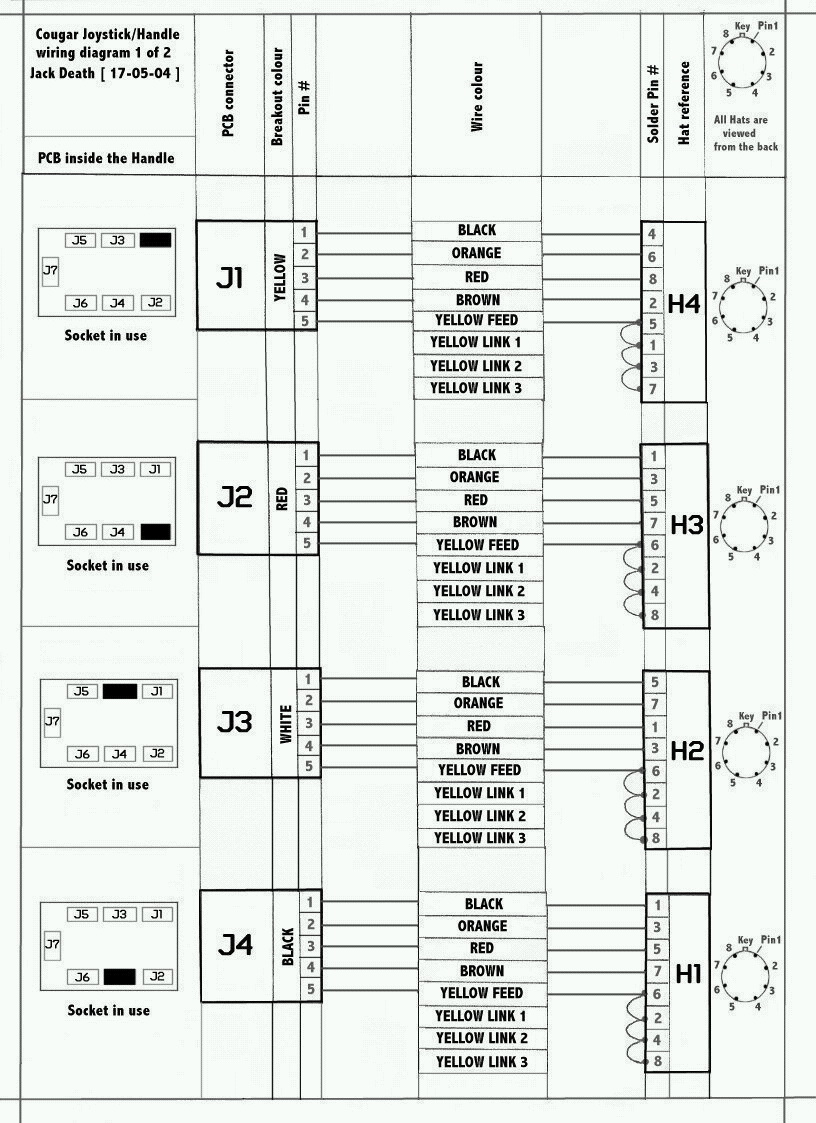

The_Nephilim Posted July 6, 2019 Posted July 6, 2019 here maybe these will help ;) Intel Ultra 265K 5.5GHZ / Gigabyte Z890 Aorus Elite / MSI 4070Ti Ventus 12GB / SoundBlaster Z SoundCard / Corsair Vengance 64GB Ram / HP Reverb G2 / Samsung 980 Pro 2TB Games / Crucial 512GB M.2 Win 11 Pro 21H2 / ButtKicker Gamer / CoolerMaster TD500 Mesh V2 PC Case
sharkfin61 Posted July 6, 2019 Author Posted July 6, 2019 Thanks for the diagrams. But I didn't change anything in the inside of the stick. Maybe some connectors inside are not really connected to the sockets? But, in that case, would't the buttons work at all? Loads do it on the fly! Royal Bavarian Airforce all the way RIG: RYZEN 7 5800X3D~ ZOTAC 4080 Super ~ AORUS X570S Elite AX ~64 GB Corsair Venegance DDR-4 3600 ~ BeQuiet AIO Silent loop 2 360 watercooled ~ Samsung 890 Pro M.2 (2TB) + 870 EVO (1TB) SSD ~ WIN 10 64-bit ~ AOC 31.5" Gaming 144Hz Display ~ DelanClip@TrackIR 5 ~ TM Warthog no.2 ~Saitek rudder pedals~ 2 TM MFDs on 2nd 27"display ~ Buddyfox A-10 UFC ~ CDU/AAP panel via DCSBios ~ ARC-210 (soldering WIP) ~ QUEST 3
RustBelt Posted July 8, 2019 Posted July 8, 2019 Your shift registers are off check that you got the connector pins correct going from stick to base. I think, don’t have my notes handy, you are going “backward” up the shift register. Which could happen if clock and one of the other pins is flipped I THINK. Re check the 5 pin connector.
sharkfin61 Posted July 8, 2019 Author Posted July 8, 2019 I'll check on that! Loads do it on the fly! Royal Bavarian Airforce all the way RIG: RYZEN 7 5800X3D~ ZOTAC 4080 Super ~ AORUS X570S Elite AX ~64 GB Corsair Venegance DDR-4 3600 ~ BeQuiet AIO Silent loop 2 360 watercooled ~ Samsung 890 Pro M.2 (2TB) + 870 EVO (1TB) SSD ~ WIN 10 64-bit ~ AOC 31.5" Gaming 144Hz Display ~ DelanClip@TrackIR 5 ~ TM Warthog no.2 ~Saitek rudder pedals~ 2 TM MFDs on 2nd 27"display ~ Buddyfox A-10 UFC ~ CDU/AAP panel via DCSBios ~ ARC-210 (soldering WIP) ~ QUEST 3
sharkfin61 Posted July 8, 2019 Author Posted July 8, 2019 O.K. good news! I opened the grip again and, oops, I had cut the black cable of the DMS switch (which I soldered just before) with the screw again when putting the stick together. Today, after extending the original cable a 3 cm long piece (to give me some space to maneuver the cable in a position well far away from the screw) the whole HOTAS worked AS EXPECTED! Every button is doing it's job. Thank you for your help. F-16 may come now, I'm prepared. Loads do it on the fly! Royal Bavarian Airforce all the way RIG: RYZEN 7 5800X3D~ ZOTAC 4080 Super ~ AORUS X570S Elite AX ~64 GB Corsair Venegance DDR-4 3600 ~ BeQuiet AIO Silent loop 2 360 watercooled ~ Samsung 890 Pro M.2 (2TB) + 870 EVO (1TB) SSD ~ WIN 10 64-bit ~ AOC 31.5" Gaming 144Hz Display ~ DelanClip@TrackIR 5 ~ TM Warthog no.2 ~Saitek rudder pedals~ 2 TM MFDs on 2nd 27"display ~ Buddyfox A-10 UFC ~ CDU/AAP panel via DCSBios ~ ARC-210 (soldering WIP) ~ QUEST 3
Sokol1_br Posted July 8, 2019 Posted July 8, 2019 I opened the grip again and, oops, I had cut the black cable of the DMS switch (which I soldered just before) with the screw again when putting the stick together. Good part of people that venture in open joy/throttle grips has "screwed" things in the same way. :)
sharkfin61 Posted July 10, 2019 Author Posted July 10, 2019 Good part of people that venture in open joy/throttle grips has "screwed" things in the same way. :) :megalol: Only who dares, .... Loads do it on the fly! Royal Bavarian Airforce all the way RIG: RYZEN 7 5800X3D~ ZOTAC 4080 Super ~ AORUS X570S Elite AX ~64 GB Corsair Venegance DDR-4 3600 ~ BeQuiet AIO Silent loop 2 360 watercooled ~ Samsung 890 Pro M.2 (2TB) + 870 EVO (1TB) SSD ~ WIN 10 64-bit ~ AOC 31.5" Gaming 144Hz Display ~ DelanClip@TrackIR 5 ~ TM Warthog no.2 ~Saitek rudder pedals~ 2 TM MFDs on 2nd 27"display ~ Buddyfox A-10 UFC ~ CDU/AAP panel via DCSBios ~ ARC-210 (soldering WIP) ~ QUEST 3
