mapping the gun pod switch?

[Sprool]

I'm trying to map the 3-way gun pod switch to a button box, bindings dont seem to work. Switch just stays in the middle. It's the inner 800/outer 800/624/622 mode switch. Any ideas?

{combos = {{key = 'O'}}, down = device_commands.Button_59, cockpit_device_id = devices.WEAPON_SYS, value_down = 1.0, name = _('800 or 624-622-800 Switch - 800/624-622-800'), category = {_('Left Overhead Panel'), _('Armament System')}},
{ down = device_commands.Button_41, cockpit_device_id = devices.WEAPON_SYS, value_down = 1, name = _('800 or 624-622-800 Switch - 800'), category = {_('Left Overhead Panel'), _('Armament System')}},
{ down = device_commands.Button_41, cockpit_device_id = devices.WEAPON_SYS, value_down = 0, name = _('800 or 624-622-800 Switch - 624-622-800'),

This is from the default keyboard control lua, but this controls the otehr up/down switches, theres no mention of the 3-way switch to select canon type.

[Bailey]

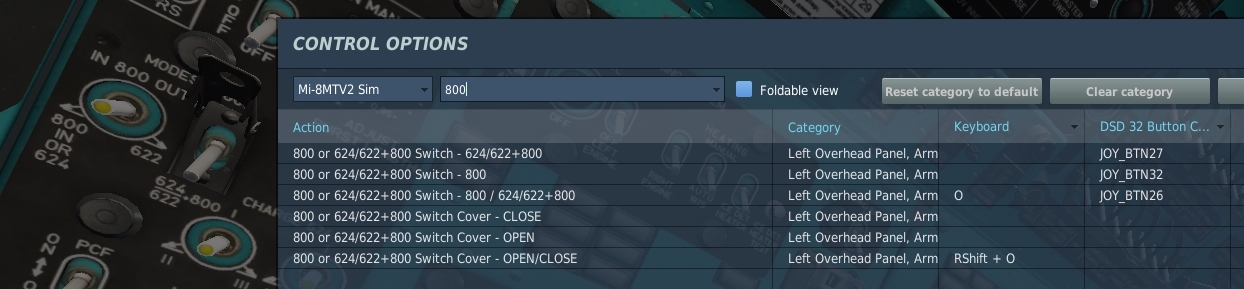

It looks like the switches you bound do nothing because you bound the incorrect switches. The ones you bound control the guarded switch, seen as un-guarded in this picture, to the left of the menu.

[Bailey]

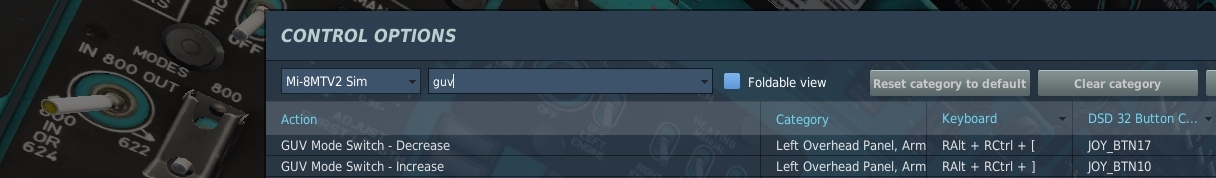

You want to bind the GUV Mode switches, as you can see in the pic.

[Sprool]

Brilliant - many thanks- that solved it. So it actually works like a 4-position rotary select

[Bailey]

Brilliant - many thanks- that solved it. So it actually works like a 4-position rotary select



Almost. It stops when it gets to "either end".
