Picture in picture

[ebabil]

It would be good addition if we can see our plane from outside in a small screen at the top corner of the main screen. So we can observe our plane's behaviors without getting out cockpit view. It is a good eye candy as well

[Bailey]

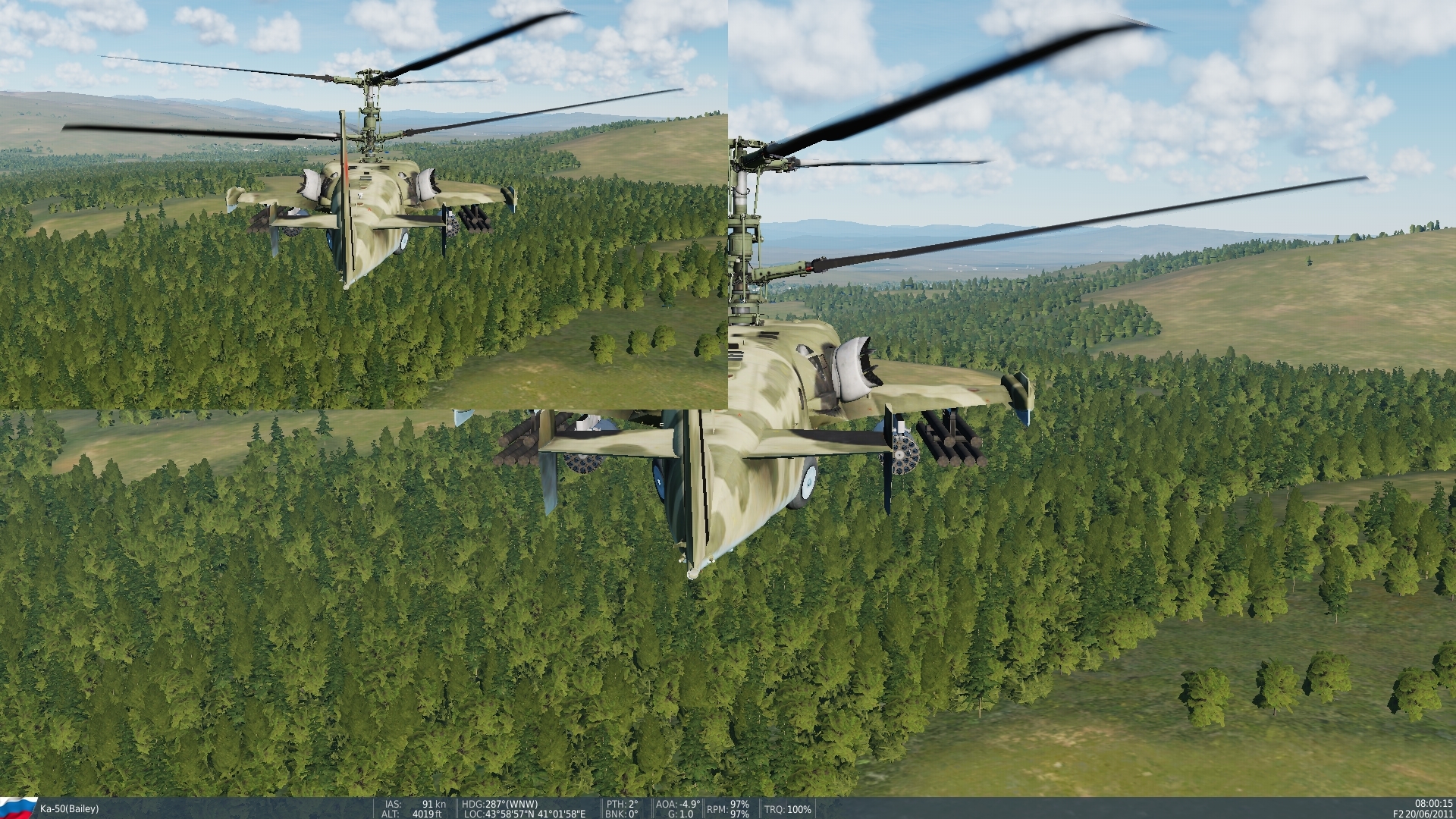

We have PiP (picture-in-picture), but there is now way that I know of the control them separately. If you want to check it out, put the atached lua in the following folder: "\DCS World OpenBeta\Config\MonitorSetup", launch DCS, Click Options, Click System, Monitors, and select "1 Screen PiP".



_ = function(p) return p; end;
name = _('1 Screen PiP');
Description = 'One monitor configuration Picture in Picture'
Viewports =
{
Center =
{
x = 0;
y = 0;
width = screen.width;
height = screen.height;
viewDx = 0;
viewDy = 0;
aspect = screen.aspect;
},

Left =
{
x = 0;
y = 0;
width = screen.width / 2;
height = screen.height / 2;
viewDx = 0;
viewDy = 0;
aspect = screen.aspect;
}
}
GU_MAIN_VIEWPORT = Viewports.Center

1CameraPiP.lua
