Snabbresning and other unkown buttons on my radar


Recommended Posts

Posted (edited)

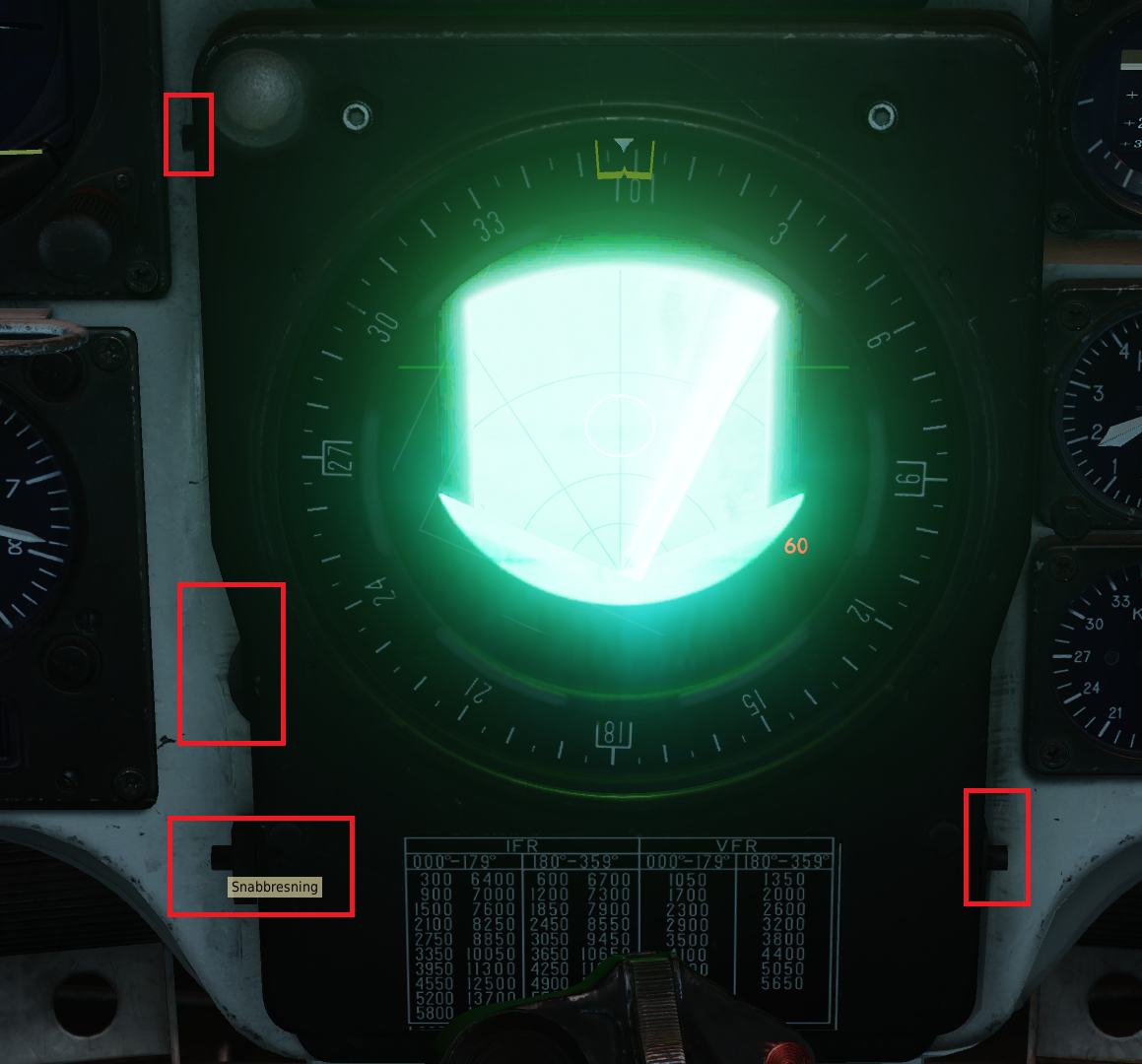

I recently noticed, that there are a bunch of buttons/dials on the radar panel of the Viggen of which I have zero clue what they are supposed to do. Only one of them seems to actually be implemented in DCS, which is the Snabbresning button (see pic).



So my questions are:

1) What does the Snabbresning button do and why is it not mentioned anywhere in the manual?

2) What are all the other buttons/dials supposed to do and why are they not implemented?






Edited by QuiGon
  • Thanks 1

Intel i7-12700K @ 8x5GHz+4x3.8GHz + 32 GB DDR5 RAM + Nvidia Geforce RTX 2080 (8 GB VRAM) + M.2 SSD + Windows 10 64Bit

DCS Panavia Tornado (IDS) really needs to be a thing!

Tornado3 small.jpg

Posted

I just found this thread, which explains the functionality of the dial on the left side at least:





filter CI.JPG

  • Thanks 1

Intel i7-12700K @ 8x5GHz+4x3.8GHz + 32 GB DDR5 RAM + Nvidia Geforce RTX 2080 (8 GB VRAM) + M.2 SSD + Windows 10 64Bit

DCS Panavia Tornado (IDS) really needs to be a thing!

Tornado3 small.jpg

Posted
25 minutes ago, Desert Fox said:

Also note the difference in layout between our CI and the one in the SFI pic you posted. Snabbresing and the button on the opposite side are missing there but on the pic there is one on the bottom side of the CI we don't have instead.



Good point! Why is that? @Heatblur



25 minutes ago, Desert Fox said:

Snabbresing translates to "fast errect" apparently, so i assume it might work the compass on the CI maybe?



Yeah, seems like. I just found this post in another thread:

I have tested this ingame and it definitely does something, as the nav system goes crazy after pressing the Snabbresning button and the warning panel shows a NAV SYS warning.

So when and how is this button supposed to be used correctly? :huh:

  • Like 1

Intel i7-12700K @ 8x5GHz+4x3.8GHz + 32 GB DDR5 RAM + Nvidia Geforce RTX 2080 (8 GB VRAM) + M.2 SSD + Windows 10 64Bit

DCS Panavia Tornado (IDS) really needs to be a thing!

Tornado3 small.jpg

Posted (edited)

More info on the CI filter dial on the left side of the radar panel:

Apparently it's the dial that is known as the "radar night filter" in DCS. It can be mapped as a keybinding, but it's not possible to interact with the dial in the cockpit.



Edit: The radar night filter keybindings don't seem to work (anymore). I made a new bug report.




Edited by QuiGon
  • Thanks 1

Intel i7-12700K @ 8x5GHz+4x3.8GHz + 32 GB DDR5 RAM + Nvidia Geforce RTX 2080 (8 GB VRAM) + M.2 SSD + Windows 10 64Bit

DCS Panavia Tornado (IDS) really needs to be a thing!

Tornado3 small.jpg

Posted
1 hour ago, QuiGon said:

More info on the CI filter dial on the left side of the radar panel:

Apparently it's the dial that is known as the "radar night filter" in DCS. It can be mapped as a keybinding, but it's not possible to interact with the dial in the cockpit.



Edit: The radar night filter keybindings don't seem to work (anymore). I made a new bug report.






Did you try pressing the keybind a few times? It takes a few presses for it to start having an effect.

  • Like 1

Viggen is love. Viggen is life.

7800X3D | RTX 4070 Ti S | 64GB 6000MHz RAM |

Posted (edited)
5 minutes ago, MYSE1234 said:

Did you try pressing the keybind a few times? It takes a few presses for it to start having an effect.



I did yes. I tried pressing it multiple times as well as keeping it pressed in for some time. Neither did work.

It just seems to be a keybind issue (on my end?) anyways, as I have learned.



So let's keep this thread here for figuring out what the remaining functions on the radar panel are supposed to do :smile:

Edited by QuiGon

Intel i7-12700K @ 8x5GHz+4x3.8GHz + 32 GB DDR5 RAM + Nvidia Geforce RTX 2080 (8 GB VRAM) + M.2 SSD + Windows 10 64Bit

DCS Panavia Tornado (IDS) really needs to be a thing!

Tornado3 small.jpg

Posted
2 hours ago, QuiGon said:



Good point! Why is that? @Heatblur





Yeah, seems like. I just found this post in another thread:

I have tested this ingame and it definitely does something, as the nav system goes crazy after pressing the Snabbresning button and the warning panel shows a NAV SYS warning.

So when and how is this button supposed to be used correctly? :huh:

Snabbresning is indeed used to realign the ADI (FLI37). I've been using it a lot since the last patch, it gets unaligned very easily now with the new changes.

Viggen is love. Viggen is life.

7800X3D | RTX 4070 Ti S | 64GB 6000MHz RAM |

Posted
1 minute ago, MYSE1234 said:

Snabbresning is indeed used to realign the ADI (FLI37). I've been using it a lot since the last patch, it gets unaligned very easily now with the new changes.



That's interesting. I have not noticed that so far and when I pressed the Snabbresning to test it, it messed up my nav system as described above 🤔

Intel i7-12700K @ 8x5GHz+4x3.8GHz + 32 GB DDR5 RAM + Nvidia Geforce RTX 2080 (8 GB VRAM) + M.2 SSD + Windows 10 64Bit

DCS Panavia Tornado (IDS) really needs to be a thing!

Tornado3 small.jpg

Posted
1 minute ago, QuiGon said:



That's interesting. I have not noticed that so far and when I pressed the Snabbresning to test it, it messed up my nav system as described above 🤔

Yeah, it's best done on the ground. The nav system stops working when aligning (as it looses all gyro inputs), which will cause some problems as you've noticed. 😅



No idea if that's how it's meant to work, will have to look through the manual a bit.

Viggen is love. Viggen is life.

7800X3D | RTX 4070 Ti S | 64GB 6000MHz RAM |

Posted
30 minutes ago, MYSE1234 said:

Yeah, it's best done on the ground. The nav system stops working when aligning (as it looses all gyro inputs), which will cause some problems as you've noticed. 😅



No idea if that's how it's meant to work, will have to look through the manual a bit.



Oh, it's supposed to be done on the ground! Well, that explains a lot! 😅

That's why it needs a description in the manual! @Heatblur



8 minutes ago, Desert Fox said:

but muh Swedish /O\ 😄



Same here :biggrin:

  • Like 1

Intel i7-12700K @ 8x5GHz+4x3.8GHz + 32 GB DDR5 RAM + Nvidia Geforce RTX 2080 (8 GB VRAM) + M.2 SSD + Windows 10 64Bit

DCS Panavia Tornado (IDS) really needs to be a thing!

Tornado3 small.jpg

Posted

It's a rather detailed and technical description of how the different gyros are reset by the use of pendulums, magnetic compass and whatnot. It's obviously written by an engineer.

Anyway, from the description it's pretty obvious that it should be done with a stationary aircraft.

It takes 32 seconds plus a maximum of 70 seconds, so not quite so fast as the name might suggest.

A FLI 37 warning should light up for the duration of the process and then go away.

  • Thanks 2
Posted (edited)
4 hours ago, QuiGon said:



Oh, it's supposed to be done on the ground! Well, that explains a lot! 😅

That's why it needs a description in the manual! @Heatblur



Not strictly, but you will get a much better alignment, obviously. But if it's very misaligned you can do it In the air, but you should fly as straight and level as possible, with as little deviation from 1g as possible.

Edited by MYSE1234

Viggen is love. Viggen is life.

7800X3D | RTX 4070 Ti S | 64GB 6000MHz RAM |

Posted
vor 4 Stunden schrieb Desert Fox:

Page 313 in the SFI is about Snabbresning (ADI and CI bit further up from 310), but muh Swedish /O\ 😄






vor 3 Stunden schrieb Katj:

It's a rather detailed and technical description of how the different gyros are reset by the use of pendulums, magnetic compass and whatnot. It's obviously written by an engineer.

Anyway, from the description it's pretty obvious that it should be done with a stationary aircraft.

It takes 32 seconds plus a maximum of 70 seconds, so not quite so fast as the name might suggest.

A FLI 37 warning should light up for the duration of the process and then go away.




I only can understand that it seems to apply the magnetic course to the gyro, and that chapter explains how it is done and what happens during the process. It seems to be similar to the F-16's inflight alignment when used in the air.
I'm learning swedish and decided that once I can read viggen manuals, I can travel to sweden and use my language skills, because if I do, I'm certainly good enough in swedish to order some kanelbullar without being awkward 🤣
