Hi,

ähm,

vor 1 Stunde schrieb X_legio:

So you can have 32 x 15 input ?

16 boards (0 -15) can be identified by the ID.
So even 32x16 = 512 inputs can be used.
But I don't know how many inputs DCS can manage.
Boards with 64 or 128 inputs are being planned, but Windows will only ever display the first 32 inputs.

[X_legio]

Wow, amazing and the power comes from the usb c ?



[yogi149]

Hi,

yes, they are powered by the USB.

And they have an addtional 5V on the board, so you can use switches with LED/lamp too.

[EvilBert VR]

Well guys,
what shall I say..... Whenever you need a solution for a specific control issue or wish, @yogi149 is the man!
He is very supportive and his work is just as excellent as his suggestions, tips or hints. I can warmly recommend his work and his products!

Cheers!

[Lt_Jaeger]



[winghunter]

On 11/25/2021 at 1:28 PM, yogi149 said:

These are the 32 button boards that I'll be using soon.

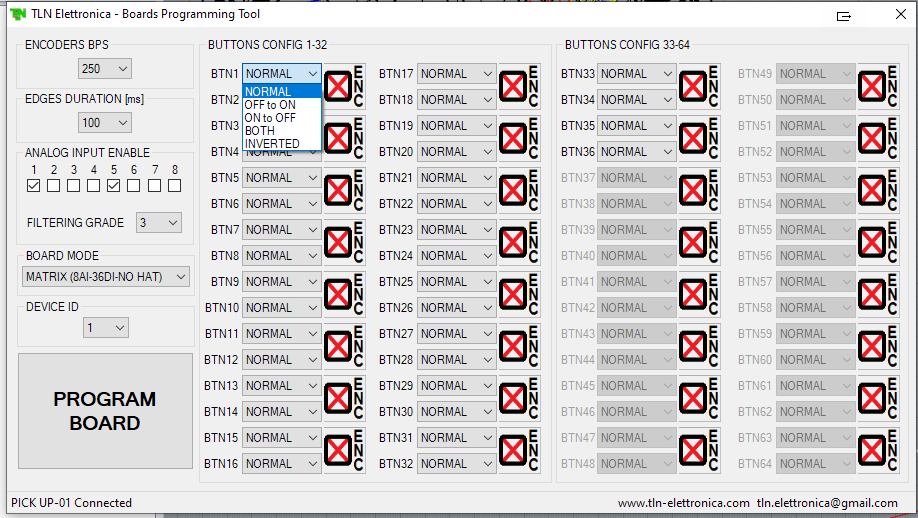

The inputs can be programmed for different functions.

You will get an additional board that enables the connection of the buttons or switches with screw terminals.

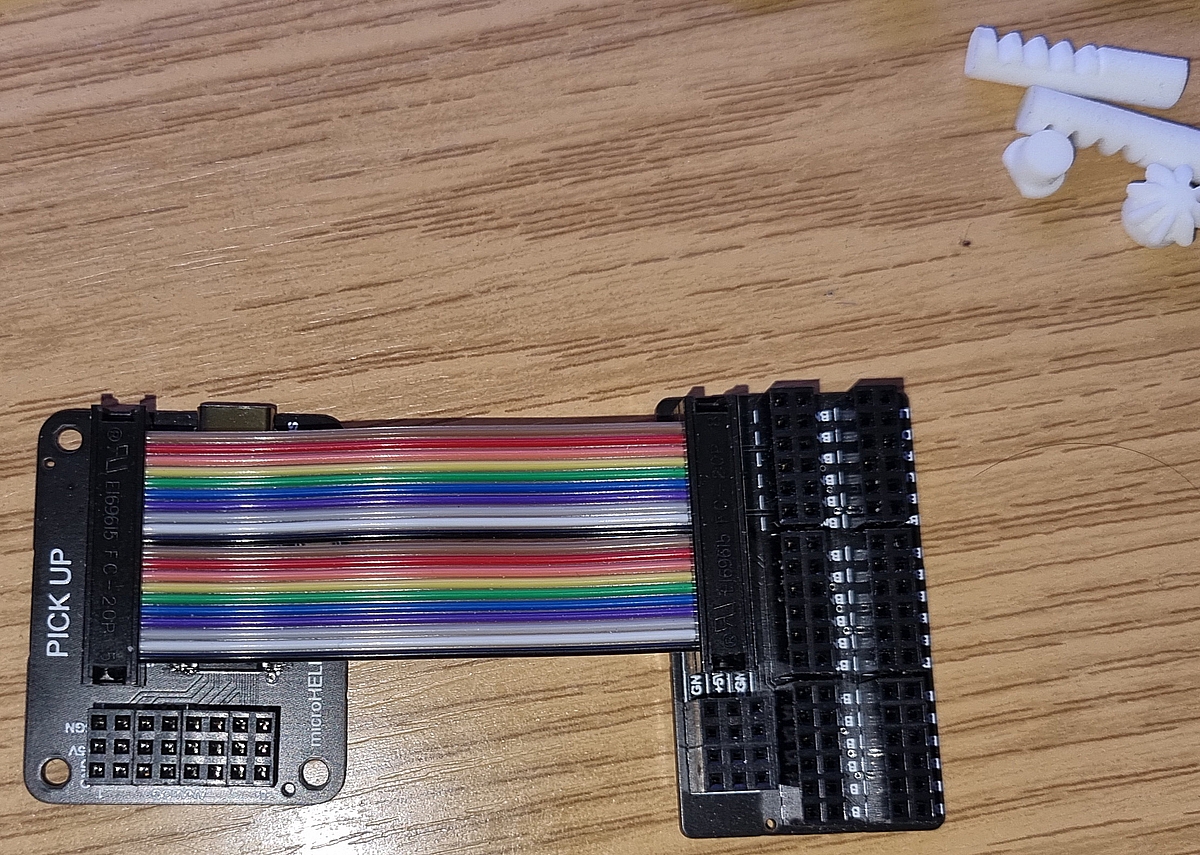

This is great, i wish these had 64 inputs per board. Is it possible to connect flatband cables directly ?

[yogi149]

Hi,

vor 38 Minuten schrieb winghunter:

This is great, i wish these had 64 inputs per board. Is it possible to connect flatband cables directly ?

the 64 and a 128 type were also planned, but have been postponed for the time being due to a lack of available microcontrollers.

What do you mean with flatband cables? Should go, because the distance for the pins is 2,54 to 2,54 mm (as usual for my controller)

first 6 wire transfer the axis 1-4 to my spreadout board, 7+8 could be empty but complete 20 pole is easier to connect.

For my collectives I use 18x0,14 shielded industrial cable to connect the control-stick with 1 connector.
