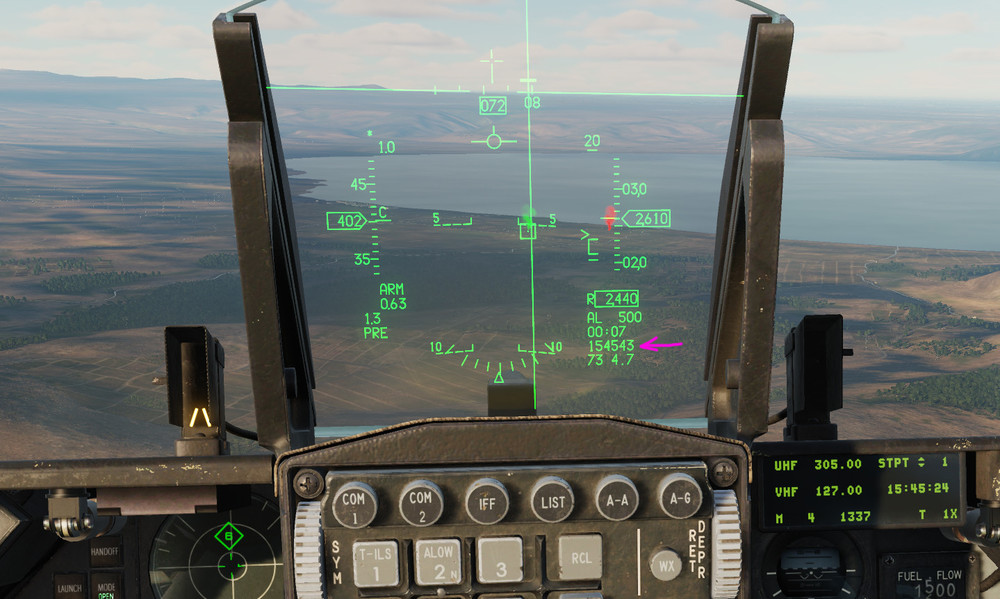

Keight Posted July 11, 2022 Posted July 11, 2022 Hi. I am studying the Viper and didn't find in the manuals. what are those numbers representing? Shouldn't there time to target be indicated? Thanks
_SteelFalcon_ Posted July 11, 2022 Posted July 11, 2022 (edited) 30 minutes ago, Keight said: Hi. I am studying the Viper and didn't find in the manuals. what are those numbers representing? Shouldn't there time to target be indicated? Thanks Weapon time on target or time over steerpoint, if you compare it with your DED you see that it indicates time in certain ways. it basically indicates some sort of time related to the steerpoint/spi and weapon you got selected and delivery mode (Pre/vis), i think Edited July 11, 2022 by _SteelFalcon_ 1

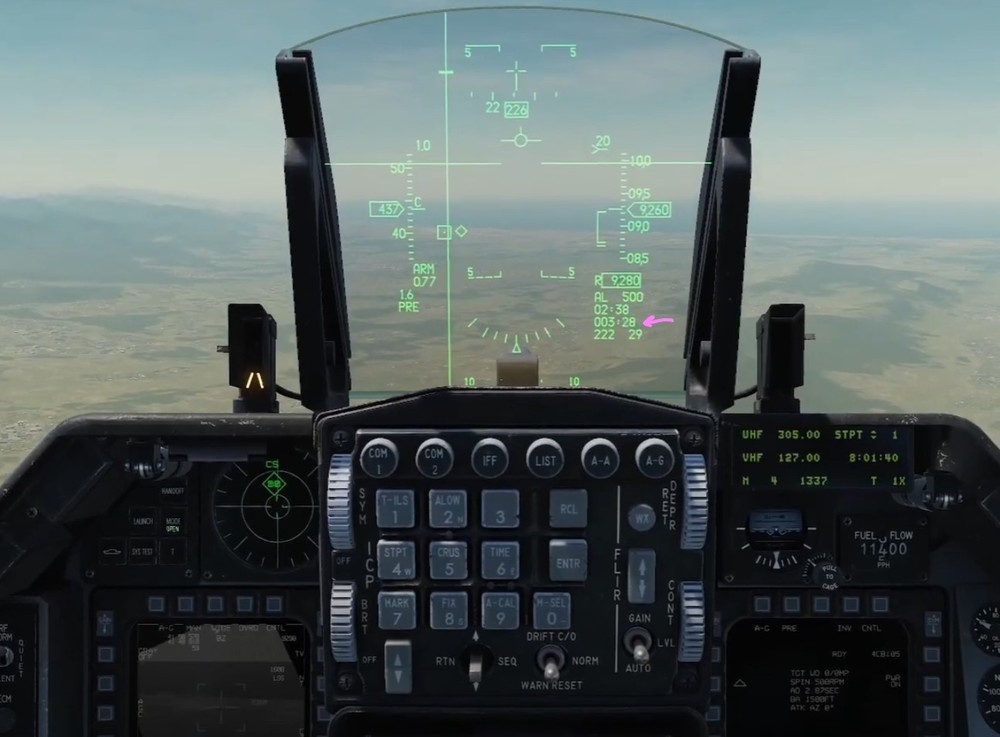

Keight Posted July 11, 2022 Author Posted July 11, 2022 (edited) 10 hours ago, _SteelFalcon_ said: Weapon time on target or time over steerpoint, if you compare it with your DED you see that it indicates time in certain ways. it basically indicates some sort of time related to the steerpoint/spi and weapon you got selected and delivery mode (Pre/vis), i think today observed the same with GBU24. yes it definitely is time over instead of time to countdown. Here is the screenshot from yt video and there one can see the time to target indication with the same weapon and its mode. is it a bug or there is a condition that triggers this indication? Edited July 11, 2022 by Keight
_SteelFalcon_ Posted July 11, 2022 Posted July 11, 2022 2 hours ago, Keight said: today observed the same with GBU12. yes it definitely is time over instead of time to countdown. Here is the screenshot from yt video and there one can see the time to target indication with the same weapon and its mode. is it a bug or there is a condition that triggers this indication? afaik the time indication is correct but i'm no expert, it depends on the weapon and/or master mode. sometimes even the weapon delivery submode like for example PRE or VIS for INS weapons like JDAM, WCMD and JSOW.
Frederf Posted July 12, 2022 Posted July 12, 2022 The three lines of text should be for JSOW: Window 10, Sensor code letter and range (horizontal range for PRE, slant range for VIS) Window 13, Time over target* (PRE) or blank (VIS) in H M S Window 14, Time to Rmax2 outside Rmax2, blank inside Rmax2, time to impact after release (PRE) or steerpoint number and distance before designate (VIS) and then as in PRE after designate *TOT indicates the system time at predicted impact (plus time to get inside Rmax2 if not currently). The contents of windows 10, 13, 14 should are harmonized for JDAM, JSOW, WCMD, and PWIII. It looks like DCS is showing something like CCRP still so it's not quite right. In any case "154543" is saying that something is going to happen at 3:45pm and 43 seconds. It should be weapon impact but it might be currently in DCS entering Rmax2 or it might be release or it might be flying over the steerpoint. 2 4
