BallistaMilsim Posted January 30, 2023 Share Posted January 30, 2023 Hi, I would like to share a MFD I built to fly in VR. The buttons have small ridges (homing bars) that help to locate them by touch. https://github.com/ballista-milsim/MFD.F16 This is a work in progress of F16 similar MFD suitable for VR. Printed with Anycubic Cobra. Uses 1x Arduino Pro Micro (atmega32u4) with a micro USB wire, 28x standard 6mm momentum push buttons. Standard coated wire and paper clips for wiring. 10x mini screws to hold the box and 2x 8mm bolts for the table mount. On the screenshot below is WIP version with Arduino reset button in the center. 4 Link to comment Share on other sites More sharing options...

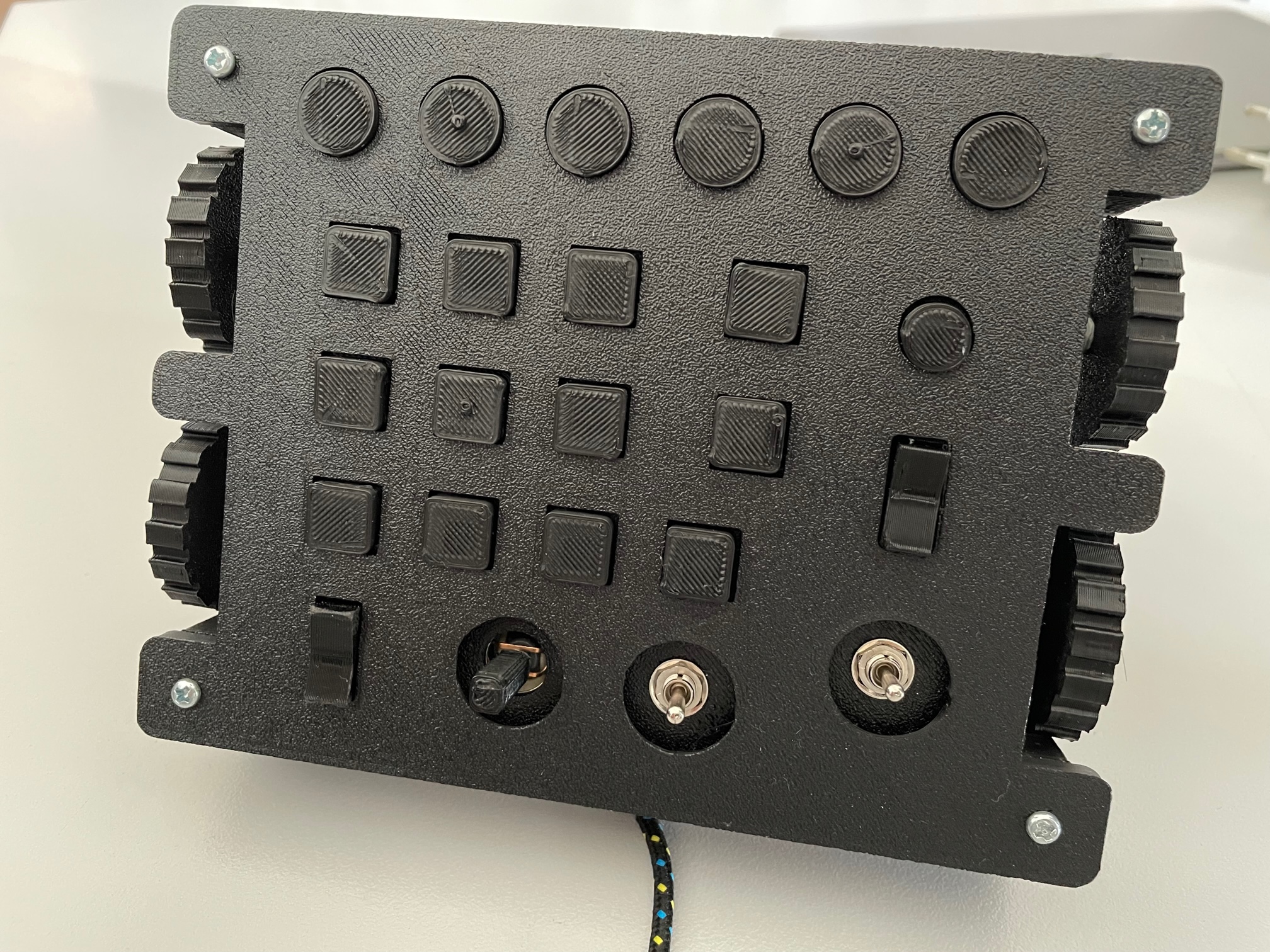

BallistaMilsim Posted February 16, 2023 Author Share Posted February 16, 2023 (edited) Something else I'm currently testing. Do you recognize it? Edited February 16, 2023 by BallistaMilsim 5 Link to comment Share on other sites More sharing options...
rfrogman Posted March 5, 2023 Share Posted March 5, 2023 (edited) I am also working on a 3D-printed ICP for my F-16 cockpit. I have found several versions, and I selected one that will use a Teensy 4.0 board, but no one has a wiring diagram. The best I found was the code file for programming the Teensy. Can you show us how you wired yours up? Edited March 5, 2023 by rfrogman Link to comment Share on other sites More sharing options...
BallistaMilsim Posted April 7, 2023 Author Share Posted April 7, 2023 I don’t have the wiring scheme. It’s a simple button matrix. Here’s the photo. https://imgur.com/a/I6xWaUZ Link to comment Share on other sites More sharing options...
Droning_On Posted May 8, 2023 Share Posted May 8, 2023 looking good ..... im looking at 3D printed ICP too.. Spoiler AMD Ryzen 5 5600x [OC_4700Mhz 1.27v All Core], AMD Rx6700XT 12GB, 32Gb DDR4_3200 CL16, M.2_NVMe(OS) + 1TB M.2 SSD for DCS install , Delan opentrack IR, QHD 1440p@75Mhz 32" HDR Monitor. Hotas heavy modded T.Flight Hotas One - 3D printed Mods. 3D Printed Pedals 3D prinded Delan Clip, Future mods…Upgrade T.flight to Hall sensors…more switches….F-16 ICP, Spitfire/Mossie switch labels and future Athentikit Spit Mk iX controls. Link to comment Share on other sites More sharing options...
eatthis Posted September 9, 2023 Share Posted September 9, 2023 On 1/30/2023 at 1:59 PM, BallistaMilsim said: Hi, I would like to share a MFD I built to fly in VR. The buttons have small ridges (homing bars) that help to locate them by touch. https://github.com/ballista-milsim/MFD.F16 This is a work in progress of F16 similar MFD suitable for VR. Printed with Anycubic Cobra. Uses 1x Arduino Pro Micro (atmega32u4) with a micro USB wire, 28x standard 6mm momentum push buttons. Standard coated wire and paper clips for wiring. 10x mini screws to hold the box and 2x 8mm bolts for the table mount. On the screenshot below is WIP version with Arduino reset button in the center. do i need to arduino reset button? On 2/16/2023 at 1:40 PM, BallistaMilsim said: Something else I'm currently testing. Do you recognize it? do you have the stl (or cad file) for the pot knobs pretty please 7700k @5ghz, 32gb 3200mhz ram, 2080ti, nvme drives, valve index vr Link to comment Share on other sites More sharing options...
BallistaMilsim Posted October 9, 2023 Author Share Posted October 9, 2023 (edited) On 9/9/2023 at 6:50 PM, eatthis said: do i need to arduino reset button? I rarely use it. It was only for test version. On 9/9/2023 at 6:50 PM, eatthis said: do you have the stl (or cad file) for the pot knobs pretty please https://github.com/ballista-milsim/ICP.F16 https://github.com/ballista-milsim/ICP.F16/blob/main/src/ICP/ICP.v2.step Edited October 9, 2023 by BallistaMilsim 1 Link to comment Share on other sites More sharing options...
eatthis Posted October 13, 2023 Share Posted October 13, 2023 On 10/9/2023 at 10:04 PM, BallistaMilsim said: I rarely use it. It was only for test version. https://github.com/ballista-milsim/ICP.F16 https://github.com/ballista-milsim/ICP.F16/blob/main/src/ICP/ICP.v2.step thanks alot 7700k @5ghz, 32gb 3200mhz ram, 2080ti, nvme drives, valve index vr Link to comment Share on other sites More sharing options...
