Kneeboards for F-15E Strike Eagle for air-to-air missile, guided/unguided bomb employment.

609_Relentov

By 609_Relentov
in F-15E

 Share

Recommended Posts

609_Relentov

609_Relentov

Posted
Posted (edited)

I put together some simple procedural kneeboards for the F-15E, placed in the User Files section.

https://www.digitalcombatsimulator.com/en/files/3331735/

As stated, these are not official procedures, just what I've put together as a quick reminder on how to employ various weapons on the F-15E (after not flying it for a while, or in this case, it's new).  Kneeboards included:

F-15ESE - AIR-TO-AIR ACM AIM-9.png
F-15ESE - AIR-TO-AIR BVR ACM AIM-120-1.png
F-15ESE - AIR-TO-AIR BVR ACM AIM-120-2.png
F-15ESE - CBU-97 CDIP TPOD-LN-1.png
F-15ESE - CBU-97 CDIP TPOD-LN-2.png
F-15ESE - GBU-12 TPOD-LN-1.png
F-15ESE - GBU-12 TPOD-LN-2.png
F-15ESE - GBU-38 WMM TPOD-LN-1.png
F-15ESE - GBU-38 WMM TPOD-LN-2.png
F-15ESE - GBU-38 WMM UFC COORDS-1.png
F-15ESE - GBU-38 WMM UFC COORDS-2.png
F-15ESE - UPDATING PACS AFTER REARMING.png
F-15ESE - USING UFC TO CREATE MARK POINTS FOR TPOD.png

The F-15E Strike Eagle kneeboards need to be placed in the F-15E Kneeboard folder, for example:

C:\Users\<your name>\Saved Games\DCS.openbeta\Kneeboard\F-15ESE

Enjoy!
AKA_Relent
(ED forums: 609_Relentov)


Edited by 609_Relentov
Updated list of kneeboards
  • Like 4
  • Thanks 6
Sydy

Sydy

Posted
Posted

Hi Relentov,

Pretty nice set of pages! Thanks. I’m using it as a supplement to my own Quick Checklist.

All the best,

Sydy

  • Thanks 1
609_Relentov

609_Relentov

Posted
  • Author
Posted

Thanks Sydy - your quick checklist kneeboards are very nice as well.



I updated the the following F-15E kneeboards:

F-15ESE - GBU-12 TPOD-LN-1.png
F-15ESE - GBU-12 TPOD-LN-2.png

Changes are as follows:
- When setting GBU-12 delivery parameters, using STEP instead of 1/STA made it easier, allowing the use of one program (PROG x) in PACS/armament screen; updated the steps accordingly (page 1)
- Added an optional step to undesignate the target in the LANTIRN via Boat Switch AFT (page 2)

Added a new 2-page kneeboard for using CBU-97s, as I was initially challenged to figure out all of the fusing and delivery parameters:
F-15ESE - CBU-97 CDIP TPOD-LN-1.png
F-15ESE - CBU-97 CDIP TPOD-LN-2.png


  • Like 1
silverdevil

silverdevil

Posted
Posted
13 hours ago, 609_Relentov said:

Thanks Sydy - your quick checklist kneeboards are very nice as well.



I updated the the following F-15E kneeboards:

F-15ESE - GBU-12 TPOD-LN-1.png
F-15ESE - GBU-12 TPOD-LN-2.png

Changes are as follows:
- When setting GBU-12 delivery parameters, using STEP instead of 1/STA made it easier, allowing the use of one program (PROG x) in PACS/armament screen; updated the steps accordingly (page 1)
- Added an optional step to undesignate the target in the LANTIRN via Boat Switch AFT (page 2)

Added a new 2-page kneeboard for using CBU-97s, as I was initially challenged to figure out all of the fusing and delivery parameters:
F-15ESE - CBU-97 CDIP TPOD-LN-1.png
F-15ESE - CBU-97 CDIP TPOD-LN-2.png


good work Rel! glad you are on my team 🙂

  • Like 1

AKA_SilverDevil Join AKA Wardogs Email Address My YouTube

“The MIGS came up, the MIGS were aggressive, we tangled, they lost.”

- Robin Olds - An American fighter pilot. He was a triple ace.

The only man to ever record a confirmed kill while in glide mode.

  • 2 weeks later...
609_Relentov

609_Relentov

Posted
  • Author
Posted

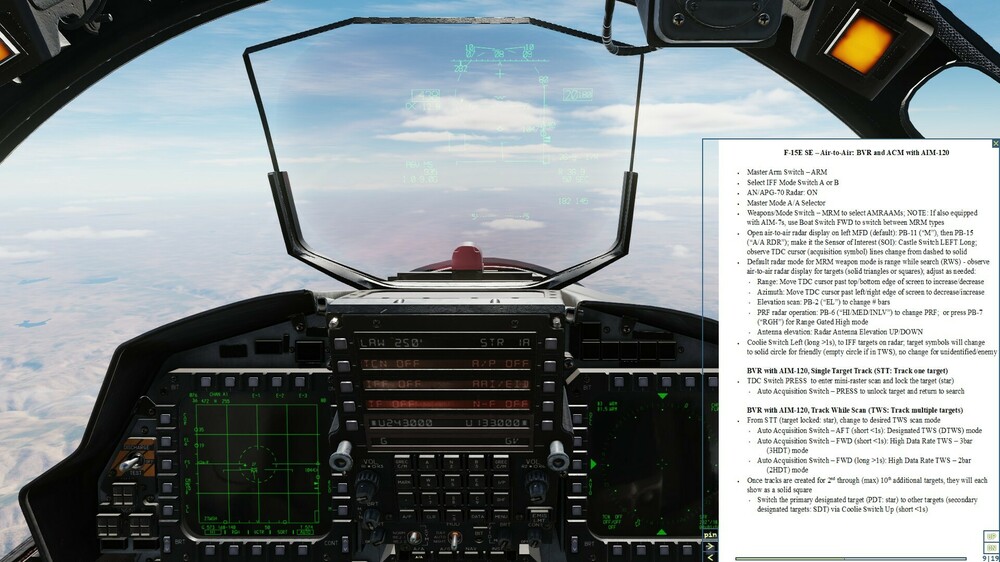

I updated the following F-15E kneeboards:

F-15ESE - AIR-TO-AIR BVR ACM AIM-120-1.png
F-15ESE - AIR-TO-AIR BVR ACM AIM-120-2.png

After reading more of the user manual, and doing some more testing, I made the following changes:

- In the section "BVR with AIM-120, Track While Scan (TWS: Track multiple targets)":
      * One of the TWS mapping steps (AAS fwd long) was for the back seat stick, so I removed it
      * Expanded the TWS sub mode mapping steps from DTWS/2TWSH and HD TWS/3HDT, as a reminder of more TWS options

  • Like 1
609_Relentov

609_Relentov

Posted
  • Author
Posted

I updated one kneeboard and added a new one.

Minor update to the following kneeboard page (forgot to add a step to turn on the LANTIRN TPOD from the WSO position):

F-15ESE - CBU-97 CDIP TPOD-LN-2.png

After some challenges finding ground targets using the LANTIRN TPOD in snowplow mode, I added the following kneeboard, to create mark points using the UFC, to be used as steer points or as a cue source for the LANTIRN TPOD:

F-15ESE - USING UFC TO CREATE MARK POINTS FOR TPOD.png

  • Like 1
  • 609_Relentov changed the title to Kneeboards for F-15E Strike Eagle for air-to-air missile, guided/unguided bomb employment.
609_Relentov

609_Relentov

Posted
  • Author
Posted

I updated one kneeboard and added two JDAM related kneeboards.

Minor update to the following kneeboard to incorporate the new coordinates pop-up dialog in the F10 menu:

F-15ESE - USING UFC TO CREATE MARK POINTS FOR TPOD.png

Added a new 2-page kneeboard for using GBU-38 JDAMS in weapon memory mode using the LANTIRN TPOD to obtain target coordinates:

F-15ESE - GBU-38 WMM TPOD-LN-1.png
F-15ESE - GBU-38 WMM TPOD-LN-2.png

Added a new 2-page kneeboard for using GBU-38 JDAMS in weapon memory mode using the UFC to enter target coordinates:

F-15ESE - GBU-38 WMM UFC COORDS-1.png
F-15ESE - GBU-38 WMM UFC COORDS-2.png

  • Thanks 1
clanitho

clanitho

Posted
Posted
12 hours ago, 609_Relentov said:

I updated one kneeboard and added two JDAM related kneeboards.

Minor update to the following kneeboard to incorporate the new coordinates pop-up dialog in the F10 menu:

F-15ESE - USING UFC TO CREATE MARK POINTS FOR TPOD.png

Added a new 2-page kneeboard for using GBU-38 JDAMS in weapon memory mode using the LANTIRN TPOD to obtain target coordinates:

F-15ESE - GBU-38 WMM TPOD-LN-1.png
F-15ESE - GBU-38 WMM TPOD-LN-2.png

Added a new 2-page kneeboard for using GBU-38 JDAMS in weapon memory mode using the UFC to enter target coordinates:

F-15ESE - GBU-38 WMM UFC COORDS-1.png
F-15ESE - GBU-38 WMM UFC COORDS-2.png

Very good job, do you have a pdf version ?

  • Thanks 1

MSI Z97 Gaming 5 - Intel I7 4790K - Artic cooling freezer 7 pro rev 2 - GSKILL 32 Go - SSD Crucial M5 120 go - SSD Crucial 2To - HDD western digital caviar blue 1 TO - Gigabyte GTX 1070 Gaming G1 - Windows 10 home 64 bits

609_Relentov

609_Relentov

Posted
  • Author
Posted (edited)

Hi clanitho - thanks, no, I just create individual PNG images for each kneeboard page, to be viewed in-game of course.  I suppose I could create PDFs, assuming as a separate document to use outside of in-game?  Let me know your thoughts on this, thanks.

Edited by 609_Relentov
clanitho

clanitho

Posted
Posted

If you have the opportunity to do so, thank you.

MSI Z97 Gaming 5 - Intel I7 4790K - Artic cooling freezer 7 pro rev 2 - GSKILL 32 Go - SSD Crucial M5 120 go - SSD Crucial 2To - HDD western digital caviar blue 1 TO - Gigabyte GTX 1070 Gaming G1 - Windows 10 home 64 bits

silverdevil

silverdevil

Posted
Posted
23 hours ago, 609_Relentov said:

Hi clanitho - thanks, no, I just create individual PNG images for each kneeboard page, to be viewed in-game of course.  I suppose I could create PDFs, assuming as a separate document to use outside of in-game?  Let me know your thoughts on this, thanks.





11 hours ago, clanitho said:

If you have the opportunity to do so, thank you.

helping out my squad mate

https://pcwiseman.com/downloads_files/F-15E_Kneeboards_by_AKA_Relent_2023-11-23.pdf

  • Thanks 1

AKA_SilverDevil Join AKA Wardogs Email Address My YouTube

“The MIGS came up, the MIGS were aggressive, we tangled, they lost.”

- Robin Olds - An American fighter pilot. He was a triple ace.

The only man to ever record a confirmed kill while in glide mode.

  • 4 weeks later...
609_Relentov

609_Relentov

Posted
  • Author
Posted (edited)

Minor update - after testing using AGM-154 JSOWs, I updated the following two kneeboards, adding a note at the end of each page that deploying a JSOW is identical to deploying a JDAM.
F-15ESE - GBU-38 WMM TPOD-LN-2.png
F-15ESE - GBU-38 WMM UFC COORDS-2.png

Edited by 609_Relentov
