Rotary knob axis only half range utilized


Go to solution Solved by imacken,

Recommended Posts

Posted (edited)

On rotary knobs like HUD Brightness only the second half on an axis is used. I tried multiple input device (Virpil CM2 throttle and Total Control MFBB). If an axis is mapped to the HUD Bribhtness knob axis the knob only starts turning when the knob or lever (both axis devices) has already been moved halfway. It makes no difference if the Axis Tune has "Slider" checked or not.

For example, DCS recognizes an axis as -100 to 100 and HUD Brightness only turns and does something in the range from 0 to 100. Now checking "Slider" in the "Tune Combo Axis" changes the input range to 0 to 100, which should match perfectly, but now the knob only turns from 50 to 100.

The same controls work as expected in other modules and I tried multiple input devices. This seems to be a bug with the F-15E?

Edited by F29Retaliator
Posted
On 6/30/2023 at 2:18 PM, F29Retaliator said:

The same controls work as expected in other modules and I tried multiple input devices. This seems to be a bug with the F-15E?

Lots of other modules have the same issue with lighting rotaries, like the A-10C. So who knows if its a core issue the SDK. It will eventually be fixed I'm positive.

Cheers!

Posted

This is a very common issue when you create an axis using information from "clickabledata.lua", and in that case you can't complain because you have customized the function.
But if this happens on an axis in the stock file it's a bug and should be treated as such.

  • Like 1

LeCuvier

Windows 10 Pro 64Bit | i7-4790 CPU |16 GB RAM|SSD System Disk|SSD Gaming Disk| MSI GTX-1080 Gaming 8 GB| Acer XB270HU | TM Warthog HOTAS | VKB Gladiator Pro | MongoosT-50 | MFG Crosswind Pedals | TrackIR 5

  • Solution
Posted

Yes, there are one or two modules that are like this with stock files and they have been reported some time ago to ED. Nothing has happened about it though.

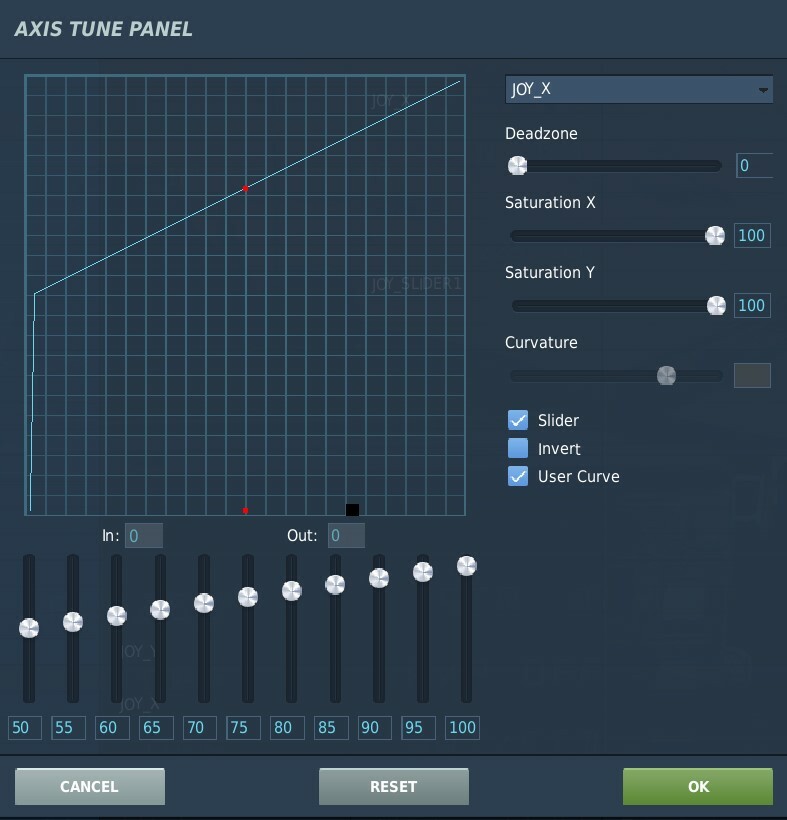

A quick workaround for this issue is to put in custom curves like below.


  • Like 1

Intel i7 12700K · MSI Gaming X Trio RTX 4090 · ASUS ROG STRIX Z690-A Wi-Fi · MSI 32" MPG321UR QD · Samsung 970 500Gb M.2 NVMe · 2 x Samsung 850 Evo 1Tb · 2Tb HDD · 32Gb Corsair Vengance 3000MHz DDR4 · Windows 11 · Thrustmaster TPR Pedals · Tobii Eye Tracker 5 · Thrustmaster F/A-18 Hornet Grip · Virpil MongoosT-50CM3 Base · Virpil Throttle MT-50 CM3 · Virpil Alpha Prime Grip · Virpil Control Panel 2 · Thrustmaster F-16 MFDs · HTC Vive Pro 2 · Total Controls Multifunction Button Box

Posted
On 7/3/2023 at 11:22 PM, LeCuvier said:

This is a very common issue when you create an axis using information from "clickabledata.lua", and in that case you can't complain because you have customized the function.
But if this happens on an axis in the stock file it's a bug and should be treated as such.

That's interesting. Since you know how this works, could there be an update to the "clickabledata.lua" from ED in the future that would remedy this?

Cheers!

Posted
3 hours ago, MAXsenna said:

That's interesting. Since you know how this works, could there be an update to the "clickabledata.lua" from ED in the future that would remedy this?

Cheers!

ED could certainly fix this. I suspect wold not be in "clickabledata.lua" but in the software that uses it.

  • Like 1

LeCuvier

Windows 10 Pro 64Bit | i7-4790 CPU |16 GB RAM|SSD System Disk|SSD Gaming Disk| MSI GTX-1080 Gaming 8 GB| Acer XB270HU | TM Warthog HOTAS | VKB Gladiator Pro | MongoosT-50 | MFG Crosswind Pedals | TrackIR 5

Posted
ED could certainly fix this. I suspect wold not be in "clickabledata.lua" but in the software that uses it.
So, how would I phrase this if I was to make a wish?

Sent from my MAR-LX1A using Tapatalk

Posted
On 7/2/2023 at 6:37 PM, MAXsenna said:

Lots of other modules have the same issue with lighting rotaries, like the A-10C. So who knows if its a core issue the SDK. It will eventually be fixed I'm positive.

Cheers!

Thank you, I just got a Total Controls MFBB and thus never noticed this issue before.



On 7/3/2023 at 11:22 PM, LeCuvier said:

This is a very common issue when you create an axis using information from "clickabledata.lua", and in that case you can't complain because you have customized the function.
But if this happens on an axis in the stock file it's a bug and should be treated as such.

The file is indeed stock.



On 7/5/2023 at 10:02 AM, imacken said:

Yes, there are one or two modules that are like this with stock files and they have been reported some time ago to ED. Nothing has happened about it though.

A quick workaround for this issue is to put in custom curves like below.


Thank you very much, this workaround works just fine!
