Crystal very bad black in night or sunset.

[Dovivan]

Hey..

i have crystal few days and today i have first fly in night. Im very disapointed. Night si grayed, cockpit is greyed.. looks like run only in 6 bit colors or less. Especiali in gradient from sunset to dark. tryed play with contrast and brightnes in Pimax App and gama in DCS, but image still looks bad. My previos headset was G2 and night image was much much better... what is wrong? in day everything looks good and perfect.

Edited April 19, 2024 by Dovivan

[j9murphy]

you have to adjust the local dimming.  The default creates a glow/fog/halo effect around the backlights especially.   Once you adjust local dimming and turn the brightness knobs down, it will look better.  Not OLED quality, but much better than you see now.  Note that you can turn down the local dimming further in the config file below than you can in pimax play.

Look for C:\Users\"your username"\AppData\Local\Pimax\runtime\profile.json

Change local_dimming_black_level to .005   (or something else that's suitable for you.)

Edited April 19, 2024 by j9murphy

[Dovivan]

On 4/19/2024 at 5:47 PM, j9murphy said:

you have to adjust the local dimming.  The default creates a glow/fog/halo effect around the backlights especially.   Once you adjust local dimming and turn the brightness knobs down, it will look better.  Not OLED quality, but much better than you see now.  Note that you can turn down the local dimming further in the config file below than you can in pimax play.

Look for C:\Users\"your username"\AppData\Local\Pimax\runtime\profile.json

Change local_dimming_black_level to .005   (or something else that's suitable for you.)



Thx man for response, but this is not what i talking about, Everone on YT talking about super black on pimex, but this is much worse like G2. I try played witch COntrast, Brightness and gamma.. but is not posible peak good image.. Blacks is grayed or light gradient is destroyed. Looks like low color space. Image preview on monitor is ok.  SOmething must be wrong. This is unplayable.

[j9murphy]

I'll take a look at mine later this week and see if I have some ideas. I don't night fly much in dcs, but I don't remember it looking like that and it definitely doesn't look like that in my civilian sims at night.

[Dovivan]

here is simple mission just for quick look. Just play time from 17:00 to 17:30.

pimax black.miz

[Nedum]

In the name of all known gods, please give us some screens of your DCS and PIMAX settings.

It's no fun to try to help you if you hide all the important things for us.

[Dovivan]

17 hours ago, Nedum said:

In the name of all known gods, please give us some screens of your DCS and PIMAX settings.

It's no fun to try to help you if you hide all the important things for us.

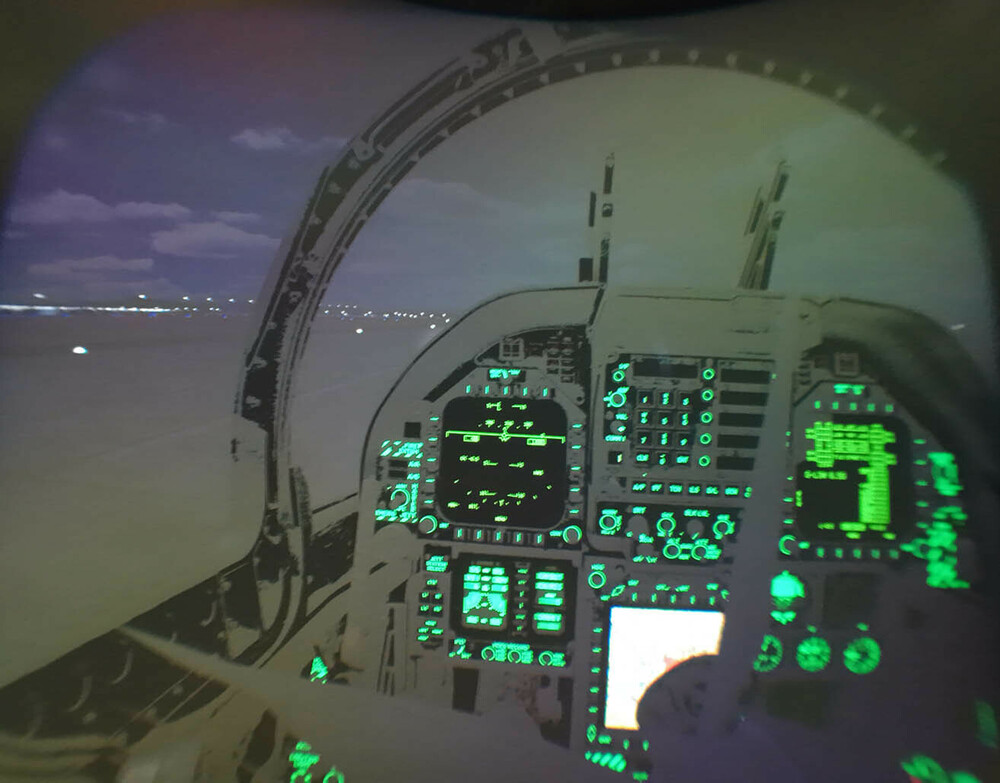

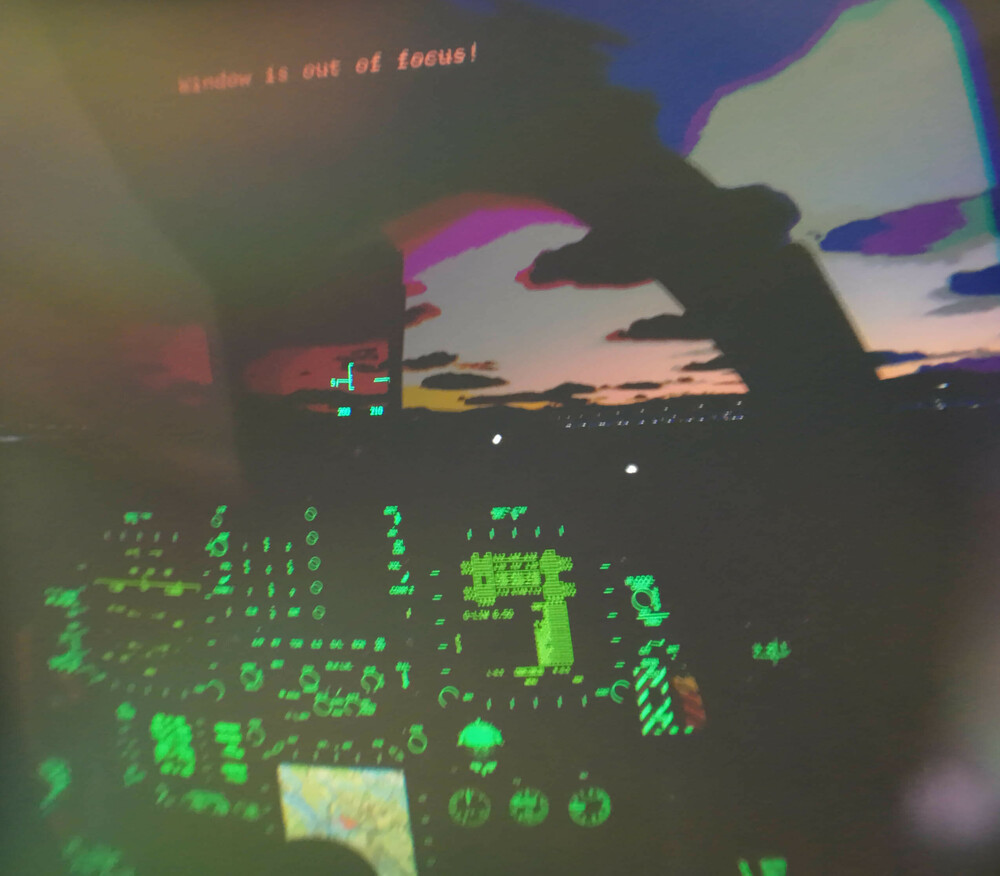

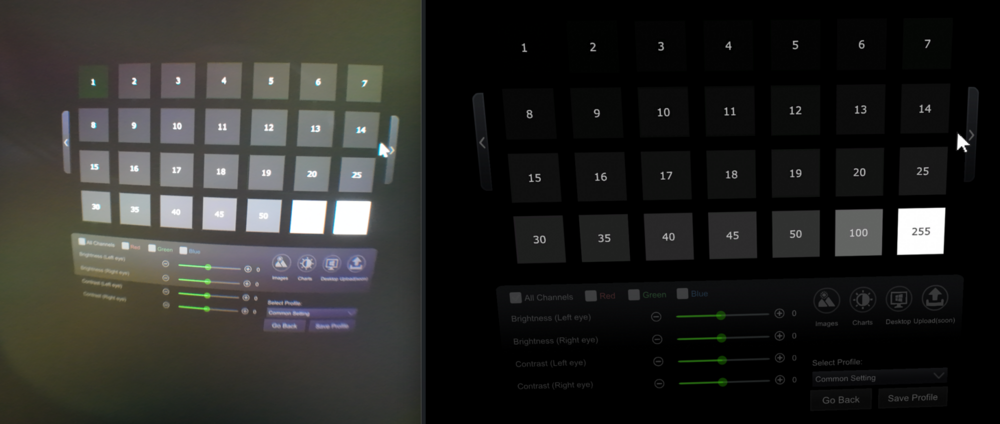

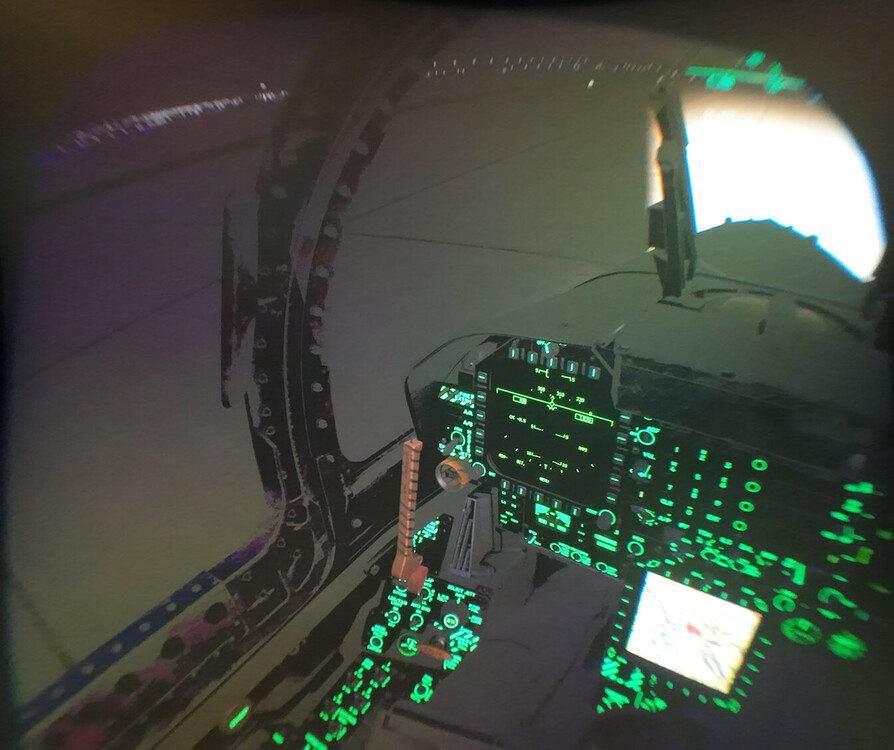

you dont need them dute, this is not about settings in DCS or in Pimax. And dont want saturate this topic with things with i already tried.  this problem is on default values too and of course i spent many time playing with contrast, brightness in Pimax Play and Gama on DCS. I need somebody who try night mission and confirm or deny this issue. and send compare screen. My pimex dont show good black even in AIO mode.. so not conected to PC, no DCS etc. this is not about settings. This is sceen through lenses (LEFT) compare with creen from preview PIMAX window on monitor (RIGHT). You can see bad black level liike very high gama, but i cant reduce it. I can moving with contrast and brightnes in Pimax, but dont resolve this problem.

[j9murphy]

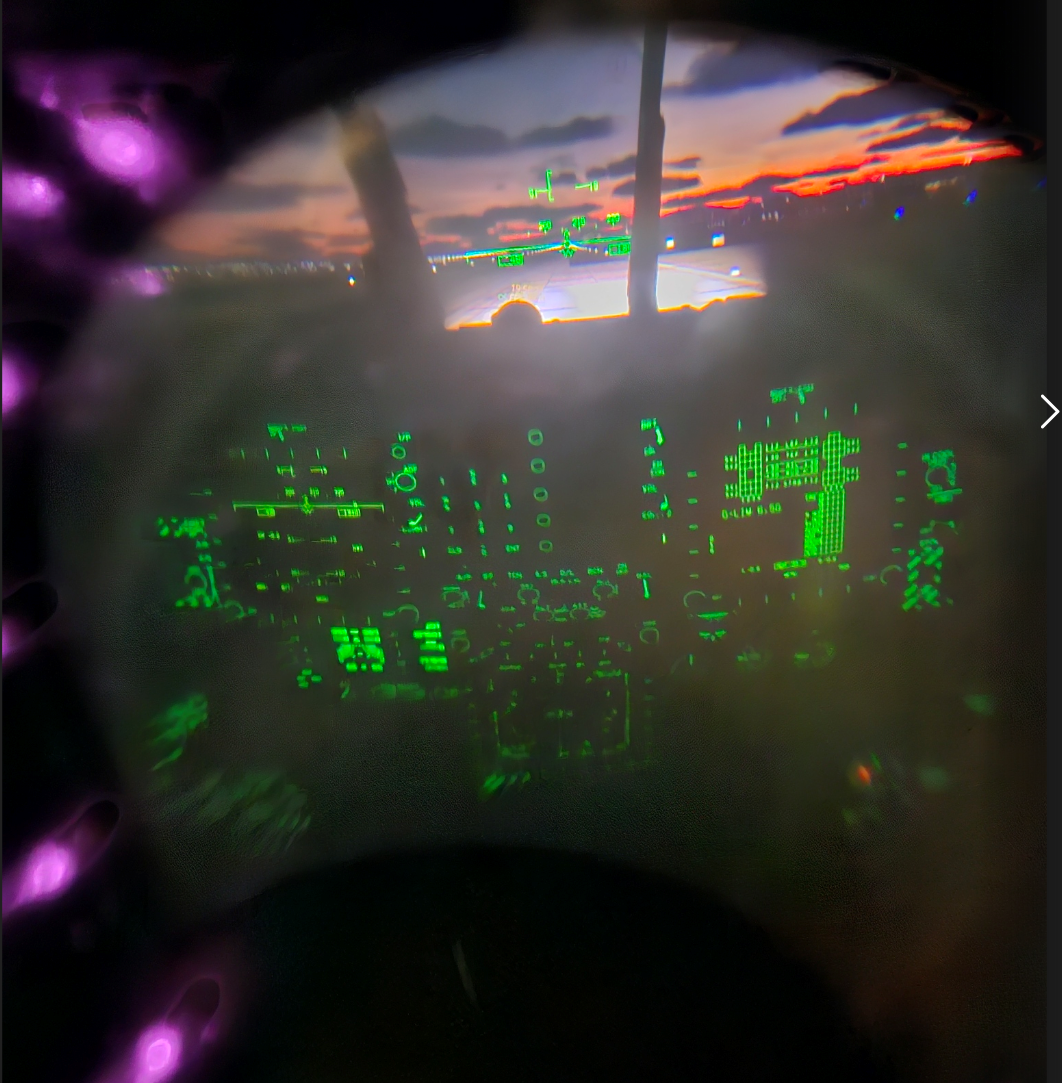

so this is a lousy picture through the lens, but I clearly dont have the issue that you are having.  Mine looks really good at night. maybe take a look at your profile.jspon?  mine is attached.  this line helped me:

      "local_dimming_black_level" : 0.005



profile.json

Edited April 24, 2024 by j9murphy

[Calvin.Pimax]

You might want to configure the profile.json like this:

"local_dimming_black_level": 0.001

I have this setting and it works well for me.

[Nedum]

On 4/23/2024 at 1:50 PM, Dovivan said:



you dont need them dute, this is not about settings in DCS or in Pimax. And dont want saturate this topic with things with i already tried.  this problem is on default values too and of course i spent many time playing with contrast, brightness in Pimax Play and Gama on DCS. I need somebody who try night mission and confirm or deny this issue. and send compare screen. My pimex dont show good black even in AIO mode.. so not conected to PC, no DCS etc. this is not about settings. This is sceen through lenses (LEFT) compare with creen from preview PIMAX window on monitor (RIGHT). You can see bad black level liike very high gama, but i cant reduce it. I can moving with contrast and brightnes in Pimax, but dont resolve this problem.



What's so complicated to make some screens of your Pimax Client and DCS settings? I need seconds to do this.

YOU have asked for help. If it's too much for you to make some screens, it's ok, but bro, that's no fun.

I don't get it?

Edited April 26, 2024 by Nedum

[Dovivan]

On 4/24/2024 at 2:06 AM, j9murphy said:

so this is a lousy picture through the lens, but I clearly dont have the issue that you are having.  Mine looks really good at night. maybe take a look at your profile.jspon?  mine is attached.  this line helped me:

      "local_dimming_black_level" : 0.005



profile.json 913 B · 0 downloads





Thx murphy for your time

i tried your JSON, but not help. I have best result vith Local Dimming on 0 (very similar like 0.005). but image still bad. this problem is not about local diming i thing.

please i have request for you. can you compare two settings with me?

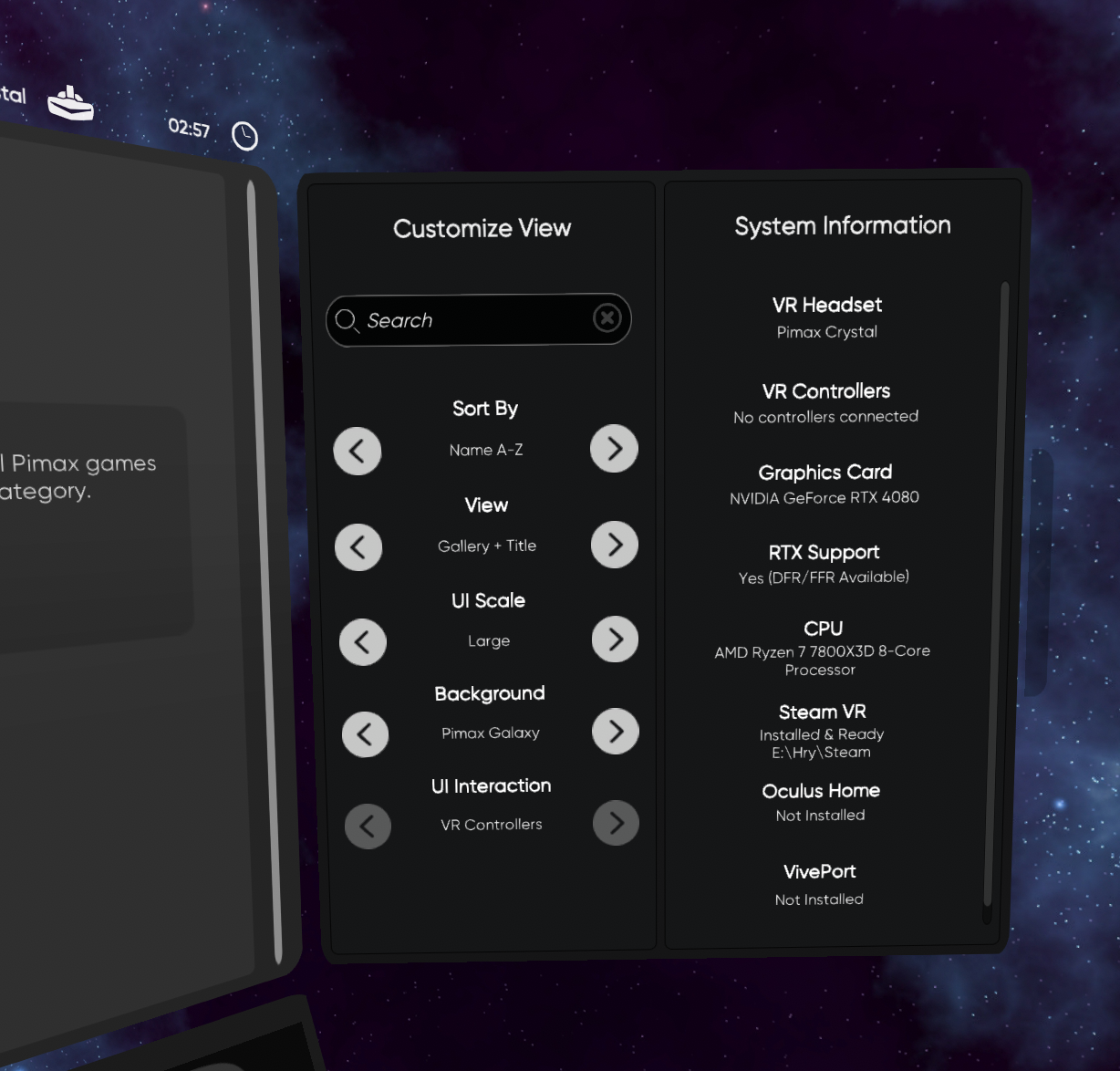

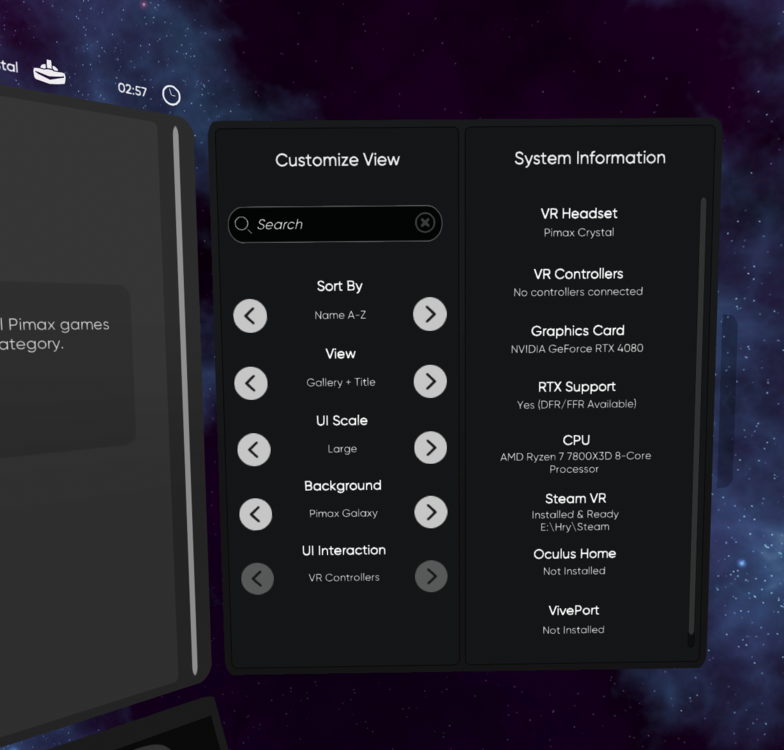

1. After pimax start,  check on EXPERIENCE HOME under GENERAL







2. on right side in Experience Home, select PIMAX GALAXY BACKGROUND





3. ON left side set up Both BRIGHTNESS and CONTRAST to default 0, compare with me and if you can, try take image from lenses.





4. SET BOTH Brigthness and Contrast TO MAXIMU MNEGATIVE VALUE -5. Compare with me and if you can, try take image from lenses.

thank you, this help me a lot.



Edited April 30, 2024 by Dovivan

[Dovivan]

On 4/26/2024 at 5:41 PM, Nedum said:







What's so complicated to make some screens of your Pimax Client and DCS settings? I need seconds to do this.

YOU have asked for help. If it's too much for you to make some screens, it's ok, but bro, that's no fun.

I don't get it?

it is not complicated, I know you trying help and thank you, but I'm not sure if you understand that I have a problem on default settings. i restarted PIMAX, tryed AIO mode without cables, another PC wit diferent GPU,  playing days with settings.. problem still here. I dont start thread about this, until I tried all options of Local diming, all setings about contrast and brigthnes and so on. if you want really help me, try what is described above. thats will help a lot. thx man,

[Papercut]

I have the exact same problem with my Crystal Light as Dovivan. No amount of reducing local dimming helps. Reducing brightness does improve things a little, but the result is still quite horrible, and certainly not as intended. Dovivan did you ever get it solved?

[Tom Kazansky]

13 minutes ago, Papercut said:

I have the exact same problem with my Crystal Light as Dovivan. No amount of reducing local dimming helps. Reducing brightness does improve things a little, but the result is still quite horrible, and certainly not as intended. Dovivan did you ever get it solved?

@Dovivan

I'm curious about that too.

[Papercut]

Ok, I figured out my problem. Whenever I change the local dimming value in the Pimax Client setting the profile.json file gets updated with the value "local_dimming_black_level" : 0.9980000257492065. In order words the local dimming gets maxed out, even if I set the value to 0.001 in the Pimax Client.

As long as I do not play with the local dimming value in the Pimax Client, and instead edit the profile.json file it works as it should.

[Peedee]

3 hours ago, Papercut said:

Ok, I figured out my problem. Whenever I change the local dimming value in the Pimax Client setting the profile.json file gets updated with the value "local_dimming_black_level" : 0.9980000257492065. In order words the local dimming gets maxed out, even if I set the value to 0.001 in the Pimax Client.

As long as I do not play with the local dimming value in the Pimax Client, and instead edit the profile.json file it works as it should.

Thanks, where is this file located normally?

[Papercut]

C:\Users\[username]\AppData\Local\Pimax\runtime

However, I noticed that this did just make the problem less visible at times, but it did not solve the issue. There is still horrible banding in darker colors. Tried it on another computer as well, with a much older version of DCS installed, and the same results. Also with the same weirdness with the profile.json file. I can also see the banding in the default Pimax backgrounds, so it seems to be a headset issue rather than a DCS issue.

[Calvin.Pimax]





16 hours ago, Papercut said:

C:\Users\[username]\AppData\Local\Pimax\runtime

However, I noticed that this did just make the problem less visible at times, but it did not solve the issue. There is still horrible banding in darker colors. Tried it on another computer as well, with a much older version of DCS installed, and the same results. Also with the same weirdness with the profile.json file. I can also see the banding in the default Pimax backgrounds, so it seems to be a headset issue rather than a DCS issue.

Kindly submit a support ticket detailing this issue. The technical support team will provide further assistance shortly.
