How I Fixed Micro Stutters (Pimax Crystal Light)

[Rebel28]

On 4/14/2025 at 5:52 AM, onib89 said:

Guys I have built a beast and I suffer of these stutters...AMD Ryzen 9950X3D, ROG ASTRAL 5090 OC, 64GB RAM 6000 CL32 2X32, PF1 ARGB 1200W Platinum , rog ruyijin 360 iii extreme, Samsung 9100 pro 2tb, 990 evo plus 4tb. Samsung g8 oled 34". On my monitor 175hz 175fps stable and stuttering,  on pimax crystal light 90hz 90fps stable and stuttering , so many people with different systems have the same issues, I mean.. what the heck man..it's Nvidia drivers?? I tried all settings from low to highest and it's the same thing. I tried all refresh rates in vr , everything I saw in YouTube from guides to fixes and nothing.. it's just frustrating..I'm not into commercial flights but I'm thinking seriously buying mfs  2020 or 24 to test if stutters there..

In the Nvidia control panel try setting Vsync to OFF for DCS. This worked for me. My rig is very close to what you are running.

[MarkyMarkUK]

1 hour ago, Rebel28 said:

In the Nvidia control panel try setting Vsync to OFF for DCS. This worked for me. My rig is very close to what you are running.

No difference for me I'm afraid.

I'm currently sticking to Half Frame Rate in the Pimax client, that seems to fix stutters best for me ATM.

[nephilimborn]

On 5/9/2025 at 2:08 AM, MarkyMarkUK said:

No difference for me I'm afraid.

I'm currently sticking to Half Frame Rate in the Pimax client, that seems to fix stutters best for me ATM.

Same here - i spent weeks messing about with this and XRFrametools data - half frame rate in the pimax client was the ONLY option that minimised stutters

Edited May 10 by nephilimborn

[Dangerzone]

On 4/14/2025 at 6:15 AM, Blackhawk163 said:

When I upgraded to the 5080 I was still getting the micro stutters out the side. Then I decided to actually tax the you and not the cpu. First DLSS/DLAA had to go, and then my Pimax custom settings that I had used on the 4080 super (.85 resolution ) had to be increased to native. 120hz (no capping at half).


I don’t mind QV, and FFR. All modules save for the F4 phantom (which cuts down to 32 fps for some reason) run smooth with no stutters at 60 capped in DCS and OPXRTK. I usually test this over The BFM mission over tarinkot (just shoot down the mig right away) and then fly circles over the airfield as the density of objects go from low to high and then low again.

Are you saying that DLSS/DLAA taxes the CPU, and that it's better to have these off for those who are CPU bound?

I don't mind QV either, but my problem is that my CPU is being hammered single thread, and I get stutters at around 68-71 FPS. (Just under the native 72hz of the Pimax). This is solely CPU related. I found that using QV made it worse - as it seems QV increases the demand on the CPU in the main DCS Render thread.

I tried 120 locked at half for 60fps, which definitely helps with the cpu stutters (as it's under that threshold), but I get the other artifacts that come in (blur, and consistent minor stutters out the side).

Is this something that Vulcan is supposed to help with when it comes? Reducing the demand on the CPU with additional threading? I'm running a 13900K and the crazy part is, I can run at 5.5Ghz, or 5.8Ghz and it seems to make no difference - as though something else is jumping in and interrupting the core that the DCS main thread is using to create the stutters.

I've done all the usual tricks. Rebar enabled, NVIDIA Power to max performance, Park Control off, Process Lasso - P Core only, Disabled Tacview, Windows Power to Ultimate, No gaming mouse / polling rates to turn down, Disabled Microsoft Device Association Root Enumerator, XBOX Game bar off, Game Mode off, no_device_hotplug = true, disable_write_track = true, ran "logman stop HolographicShell -ets", VSync off, Thread optimization off, Prerender threads up to 3, windows power to ultimate, etc. Nothing seems to get the CPU to operate at a level that will give me smooth uninterrupted 72fps in VR.  I can turn graphics down to minecraft level and still CPU bound.

Is there a tool that can inspect anything that's interrupting on the same thread(s) that DCS uses just incase there is a windows function or other process creating issues?

[Blackhawk163]

On 5/22/2025 at 9:25 PM, Dangerzone said:

Are you saying that DLSS/DLAA taxes the CPU, and that it's better to have these off for those who are CPU bound?

I don't mind QV either, but my problem is that my CPU is being hammered single thread, and I get stutters at around 68-71 FPS. (Just under the native 72hz of the Pimax). This is solely CPU related. I found that using QV made it worse - as it seems QV increases the demand on the CPU in the main DCS Render thread.

I tried 120 locked at half for 60fps, which definitely helps with the cpu stutters (as it's under that threshold), but I get the other artifacts that come in (blur, and consistent minor stutters out the side).

Is this something that Vulcan is supposed to help with when it comes? Reducing the demand on the CPU with additional threading? I'm running a 13900K and the crazy part is, I can run at 5.5Ghz, or 5.8Ghz and it seems to make no difference - as though something else is jumping in and interrupting the core that the DCS main thread is using to create the stutters.

I've done all the usual tricks. Rebar enabled, NVIDIA Power to max performance, Park Control off, Process Lasso - P Core only, Disabled Tacview, Windows Power to Ultimate, No gaming mouse / polling rates to turn down, Disabled Microsoft Device Association Root Enumerator, XBOX Game bar off, Game Mode off, no_device_hotplug = true, disable_write_track = true, ran "logman stop HolographicShell -ets", VSync off, Thread optimization off, Prerender threads up to 3, windows power to ultimate, etc. Nothing seems to get the CPU to operate at a level that will give me smooth uninterrupted 72fps in VR.  I can turn graphics down to minecraft level and still CPU bound.

Is there a tool that can inspect anything that's interrupting on the same thread(s) that DCS uses just incase there is a windows function or other process creating issues?

Sorry for the very late reply. I'm sorry that I can't answer the technical aspects of your question, as I'm not well versed in it all. I just do a lot of trial-and-error type experimentation. I never really liked DLSS even in its newer state, it helps, but I don't like the softer look to the game. Also look to reduce some settings in DCS. I know that when I had the 4080/5080 (just upgraded to the 5090) I set clouds to normal and textures (not ground textures) to medium as well as LOD to .4 as well as other tweaks. I played around with all this until I could look outside either side of the aircraft and observe the scenery moving smoothly. Once there I started to add some settings back in until it started to stutter.



Sorry that I can't get into the technical weeds.

[Qcumber]

2 hours ago, Blackhawk163 said:

Sorry for the very late reply. I'm sorry that I can't answer the technical aspects of your question, as I'm not well versed in it all. I just do a lot of trial-and-error type experimentation. I never really liked DLSS even in its newer state, it helps, but I don't like the softer look to the game. Also look to reduce some settings in DCS. I know that when I had the 4080/5080 (just upgraded to the 5090) I set clouds to normal and textures (not ground textures) to medium as well as LOD to .4 as well as other tweaks. I played around with all this until I could look outside either side of the aircraft and observe the scenery moving smoothly. Once there I started to add some settings back in until it started to stutter.



Sorry that I can't get into the technical weeds.

Could I please ask you to send me a track of your data? I have similar spec PC to you and am trying to gather data on VR. Ideally several tracks with different settings with a a subjective review of the stutter experience. I just need the XRFrametool log. I can convert this and analyse.

Cheers







[WipeUout]

On 5/22/2025 at 9:25 PM, Dangerzone said:

I've done all the usual tricks. Rebar enabled, NVIDIA Power to max performance, Park Control off, Process Lasso - P Core only, Disabled Tacview, Windows Power to Ultimate, No gaming mouse / polling rates to turn down, Disabled Microsoft Device Association Root Enumerator, XBOX Game bar off, Game Mode off, no_device_hotplug = true, disable_write_track = true, ran "logman stop HolographicShell -ets", VSync off, Thread optimization off, Prerender threads up to 3, windows power to ultimate, etc. Nothing seems to get the CPU to operate at a level that will give me smooth uninterrupted 72fps in VR.  I can turn graphics down to minecraft level and still CPU bound.

Have you tried setting your GPU MSI mode ''on'' and prioritized it?

Try the little utility attached.

1. Open ''MSI_util_v3.exe'' as administator

2. Find your GPU and turn on MSI mode if supported

3. Set prioity to high

4. Apply and restart

It might help also to set everything else's priority to ''undefined'' and only keep the GPU on high.

MSI_util_v3.zip

[Dangerzone]

7 hours ago, WipeUout said:

Have you tried setting your GPU MSI mode ''on'' and prioritized it?

Try the little utility attached.

1. Open ''MSI_util_v3.exe'' as administator

2. Find your GPU and turn on MSI mode if supported

3. Set prioity to high

4. Apply and restart

It might help also to set everything else's priority to ''undefined'' and only keep the GPU on high.

MSI_util_v3.zip 18.56 kB · 0 downloads

Thanks WipeUOut. I checked MSI. My GPU was selectd for MSI, however the interrupt priority was undefined. I've changed that to High now, so will be keen to see if this helps!

Cheers

DZ

[Panny]

Very strangely setting Pimax quality to high and then adjusting pixel count to a similar average value as before(when in medium) made the game vastly smoother. Very strange

[MarkyMarkUK]



Quote

adjusting pixel count to a similar average value as before

HI @Panny, can you explain what exactly you mean by the above please, thanks

[Panny]

8 minutes ago, MarkyMarkUK said:



HI @Panny, can you explain what exactly you mean by the above please, thanks

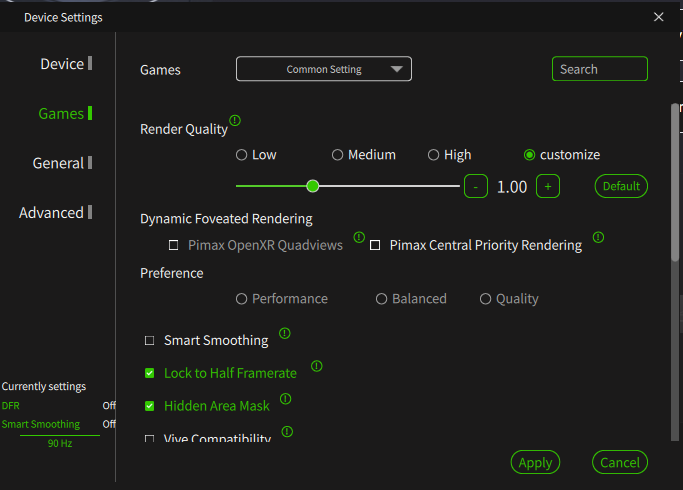

OK so when opening Pimax Play, device settings, and then games, you have the option to set render quality. Basically this is how many pixels the GPU has to render. So with OG Crystal that's 2880x2880 for each eye. So with render quality at high - the headset is asking for a pixel for each, meaning 16,128,000 need to be rendered. However, by using Tallymouse's Quadviews Companion tool we can adjust that. So for the foveated area I have 170% (so let's say that covers 1/3 of what has to be rendered by the GPU), that section alone is now asking for 8,225,280. However, I have set the peripheral resolution to 15%, which covers the remaining 2/3 of my view, I need to render 1,596,672 there, making a total count of 9,821,952 that have to be rendered in my headset.

null

Before when I had render quality set to medium, the headset asks for fewer pixels to be rendered than what the headset actually has, at 75% - so by default it is asking 12,096,000. I used to have foveate resolution at 200%, and peripheral at 30% to make up for this. Foveated asked for 7,983,360, while peripheral resulted in 2,431,296, for a grand total of 10,414,656.

So ironically with my new settings my pixel count is slightly lower, but because the base resolution the headset is asking for is the same, it feels clearer.



Why my stutters largely disappeared changing from medium to high - I have no idea. The GPU workload according to MSI afterburner is largely the same.

null

[avgyst]

В 14.04.2025 в 12:52, onib89 сказал:

Ребята, я собрал зверя и страдаю от этих подтормаживаний... AMD Ryzen 9950X3D, ROG ASTRAL 5090 OC, 64 ГБ ОЗУ 6000 CL32 2X32, PF1 ARGB 1200 Вт Platinum, rog ruyijin 360 iii extreme, Samsung 9100 pro 2 ТБ, 990 evo plus 4 ТБ. Samsung g8 oled 34". На моем мониторе 175 Гц 175 кадров в секунду стабильно и с заиканиями, на pimax crystal light 90 Гц 90 кадров в секунду стабильно и с заиканиями, у многих людей с разными системами одни и те же проблемы, я имею в виду... Что за черт, чувак... Это драйверы Nvidia?? Я перепробовал все настройки от низких до самых высоких, и все то же самое. Я перепробовал все частоты обновления в VR, все, что я видел на YouTube, от руководств до исправлений, и ничего... это просто раздражает... Я не увлекаюсь коммерческими полетами, но я серьезно думаю купить mfs 2020 или 24, чтобы проверить, будут ли там заикания...

Good day, maybe not quite on topic, but you have similar equipment to mine. I bought 5090 and when playing audio in crystal light headphones there were clicks, on 4090 there was no such thing. I tried reinstalling drivers and swapped cables, it does not help. Maybe I had to deal with this problem? Thanks in advance.

[Dangerzone]

10 hours ago, Panny said:

OK so when opening Pimax Play, device settings, and then games, you have the option to set render quality. Basically this is how many pixels the GPU has to render. So with OG Crystal that's 2880x2880 for each eye. So with render quality at high - the headset is asking for a pixel for each, meaning 16,128,000 need to be rendered. However, by using Tallymouse's Quadviews Companion tool we can adjust that. So for the foveated area I have 170% (so let's say that covers 1/3 of what has to be rendered by the GPU), that section alone is now asking for 8,225,280. However, I have set the peripheral resolution to 15%, which covers the remaining 2/3 of my view, I need to render 1,596,672 there, making a total count of 9,821,952 that have to be rendered in my headset.

null

Before when I had render quality set to medium, the headset asks for fewer pixels to be rendered than what the headset actually has, at 75% - so by default it is asking 12,096,000. I used to have foveate resolution at 200%, and peripheral at 30% to make up for this. Foveated asked for 7,983,360, while peripheral resulted in 2,431,296, for a grand total of 10,414,656.

So ironically with my new settings my pixel count is slightly lower, but because the base resolution the headset is asking for is the same, it feels clearer.



Why my stutters largely disappeared changing from medium to high - I have no idea. The GPU workload according to MSI afterburner is largely the same.

null

Hmm... does this mean there's less overhead / CPU working within the Pimax app, because there's a 1:1 relationship with the image resolution it's being sent and what it has to display? Is it possible that part of the issue is double-CPU work. QVFR is using the CPU to change upscale/downscale, but then Pimax is also using the CPU to upscale/downscale, and by reducing Pimax out of the equasion, things run much more efficient on the CPU as a result, even though the resolution setting in Pimax is higher?

[Peedee]

11 hours ago, Panny said:

OK so when opening Pimax Play, device settings, and then games, you have the option to set render quality. Basically this is how many pixels the GPU has to render. So with OG Crystal that's 2880x2880 for each eye. So with render quality at high - the headset is asking for a pixel for each, meaning 16,128,000 need to be rendered. However, by using Tallymouse's Quadviews Companion tool we can adjust that. So for the foveated area I have 170% (so let's say that covers 1/3 of what has to be rendered by the GPU), that section alone is now asking for 8,225,280. However, I have set the peripheral resolution to 15%, which covers the remaining 2/3 of my view, I need to render 1,596,672 there, making a total count of 9,821,952 that have to be rendered in my headset.

null

Before when I had render quality set to medium, the headset asks for fewer pixels to be rendered than what the headset actually has, at 75% - so by default it is asking 12,096,000. I used to have foveate resolution at 200%, and peripheral at 30% to make up for this. Foveated asked for 7,983,360, while peripheral resulted in 2,431,296, for a grand total of 10,414,656.

So ironically with my new settings my pixel count is slightly lower, but because the base resolution the headset is asking for is the same, it feels clearer.



Why my stutters largely disappeared changing from medium to high - I have no idea. The GPU workload according to MSI afterburner is largely the same.

null

First off - thanks for looking in to this.

But, you start off your calculations with the wrong numbers. Pimax Crystal OG rendering resolution at 100% (“High” or 1.0 in Pimax Play settings)  is 4312x5104 - per eye!
75% (“Balanced” or0.75) is 3,234x3,828 - per eye.

You are correct in that the physical resolution of the panels are 2880x2880 per eye. But the rendering resolution is much higher - like I wrote above. The reason is to adjust for barrel distortion.



[Panny]

3 hours ago, Peedee said:

First off - thanks for looking in to this.

But, you start off your calculations with the wrong numbers. Pimax Crystal OG rendering resolution at 100% (“High” or 1.0 in Pimax Play settings)  is 4312x5104 - per eye!
75% (“Balanced” or0.75) is 3,234x3,828 - per eye.

You are correct in that the physical resolution of the panels are 2880x2880 per eye. But the rendering resolution is much higher - like I wrote above. The reason is to adjust for barrel distortion.



Yes you are right - I completely forgot about that. Then that would likely suggest with my adjusted values having render quality set to high would have a higher total render resolution.



4 hours ago, Dangerzone said:

Hmm... does this mean there's less overhead / CPU working within the Pimax app, because there's a 1:1 relationship with the image resolution it's being sent and what it has to display? Is it possible that part of the issue is double-CPU work. QVFR is using the CPU to change upscale/downscale, but then Pimax is also using the CPU to upscale/downscale, and by reducing Pimax out of the equasion, things run much more efficient on the CPU as a result, even though the resolution setting in Pimax is higher?

I think, in context of @Peedee's correction what you suggest could well be the case. For what it's worth I have generally tried to not get too engrossed with VR optimisation and maybe double check it once a year so I generally try to stay away getting too bogged down in FPS overlays and frametimes. I will check to see what they are presently as and when I have the time. It's a shame that the DCS fps overlay isn't the most useful. Either way, the tinkering has made for a much more enjoyable experience in which the visual experience is much improved and significantly smoother. Sounds dumb on my end to have missed this, but still an interesting note

3 hours ago, Peedee said:

First off - thanks for looking in to this.

But, you start off your calculations with the wrong numbers. Pimax Crystal OG rendering resolution at 100% (“High” or 1.0 in Pimax Play settings)  is 4312x5104 - per eye!
75% (“Balanced” or0.75) is 3,234x3,828 - per eye.

You are correct in that the physical resolution of the panels are 2880x2880 per eye. But the rendering resolution is much higher - like I wrote above. The reason is to adjust for barrel distortion.



Yes you are right - I completely forgot about that. Then that would likely suggest with my adjusted values having render quality set to high would have a higher total render resolution.



4 hours ago, Dangerzone said:

Hmm... does this mean there's less overhead / CPU working within the Pimax app, because there's a 1:1 relationship with the image resolution it's being sent and what it has to display? Is it possible that part of the issue is double-CPU work. QVFR is using the CPU to change upscale/downscale, but then Pimax is also using the CPU to upscale/downscale, and by reducing Pimax out of the equasion, things run much more efficient on the CPU as a result, even though the resolution setting in Pimax is higher?

I think, in context of @Peedee's correction what you suggest could well be the case. For what it's worth I have generally tried to not get too engrossed with VR optimisation and maybe double check it once a year so I generally try to stay away getting too bogged down in FPS overlays and frametimes. I will check to see what they are presently as and when I have the time. It's a shame that the DCS fps overlay isn't the most useful. Either way, the tinkering has made for a much more enjoyable experience in which the visual experience is much improved and significantly smoother. Sounds dumb on my end to have missed this, but still an interesting note.

My performance in dogfighting has definitely vastly improved. Because of the near constant juddering it was much harder to track the aspect of the hostile and react accordingly. I did notice quite abruptly that against the AI it suddenly became trivial again

[Thorns]

Panny, would please show the rest of Pimax Play screen shots. Thx!

Edited June 26 by Thorns

[WipeUout]

19 hours ago, Peedee said:

But, you start off your calculations with the wrong numbers. Pimax Crystal OG rendering resolution at 100% (“High” or 1.0 in Pimax Play settings)  is 4312x5104 - per eye!
75% (“Balanced” or0.75) is 3,234x3,828 - per eye.

You are correct in that the physical resolution of the panels are 2880x2880 per eye. But the rendering resolution is much higher - like I wrote above. The reason is to adjust for barrel distortion.

Not sure about that, I believe that barrel distortion correcting is done through shaders, not rendering.  In other words, the computer generates the image at the native resolution, then shaders are applied to increase image size (or resolution) in the shape of a barrel to compensate for the pinching effect of lenses.  the barrel shaped image has to be bigger in order to fill completely the panel in your HMD, thus exceeding native resolution but the panel in your HMD will never display more pixels than native because it is physicaly impossible.  Transforming image by using shaders is much faster than generating an actual rendering and GPUs are very good at this with thousands of computing units to apply the shaders.  At least that is my understanding.

[Panny]

14 hours ago, Thorns said:

Panny, would please show the rest of Pimax Play screen shots. Thx!

Hi Thorns - what other information are you looking for specifically?

[Thorns]

Just the Device, General, and Advanced if you would please. PCL, 13900K, 4090, 64gb DDR 5, M.2 drive. Can't seem to get rid of the stutters and terrain stutters. Thx.

[Hartsblade]

Hey guys.

Just a point of reference and information.   I recently followed TallyMouse's setup guide in the attached video and my performance in DCS has never been better. Not ghosting or stuttering that I've noticed.





Note about my PC specs.  My sig needs updating.  My current PC is a 9800x3d and a 4090.  I'll update my sig shortly.

Edited June 29 by Hartsblade
PC Specs in the Sig are now up-to-date

[Panny]

On 6/28/2025 at 5:34 AM, Thorns said:

Just the Device, General, and Advanced if you would please. PCL, 13900K, 4090, 64gb DDR 5, M.2 drive. Can't seem to get rid of the stutters and terrain stutters. Thx.

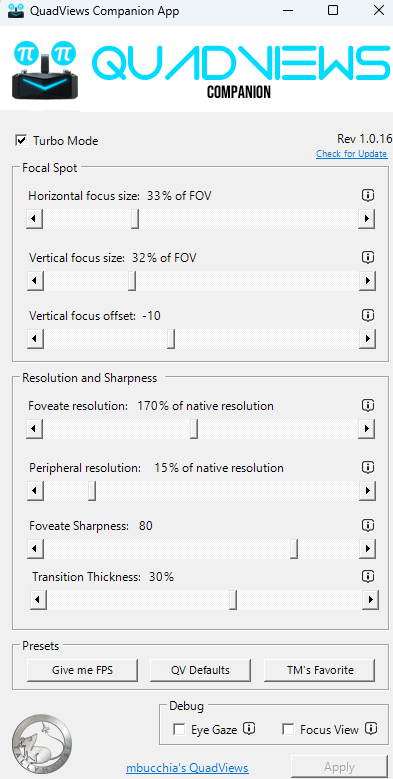

Truthfully, some of the largest gains I got is from dynamic foveated rendering. If you're using a Pimax Crystal Light you're missing out on some pretty massive performance gains and have to settle for lower FPS due to the lack of DFR to be honest. It's what I found oxymoronic about the headset - yes it's much cheaper to get but to run it properly you need an extremely expensive GPU and for the likes of DCS it still struggles even with the best hardware

[Nedum]

On 6/29/2025 at 9:48 PM, Hartsblade said:

Hey guys.

Just a point of reference and information.   I recently followed TallyMouse's setup guide in the attached video and my performance in DCS has never been better. Not ghosting or stuttering that I've noticed.





Note about my PC specs.  My sig needs updating.  My current PC is a 9800x3d and a 4090.  I'll update my sig shortly.

There is one thing in this guide that's not necessary and will trigger a bug with XRNeckSafer.

In the VR-Options there is no need to enable Eye Tracking. Does nothing for me. The Pimax Eye Tracking will work without it.

What it does if enabled is, it will disable the Eye Tracking at the point XRNeckSafer starts to work.

So, if you want to use XRNeckSafer you better never enable the DCS Eye Tracking!

Till today I am not knowing for what this option is good for. Is there any VR-Headset that needs this special option?



[PaulXKRS]

On 7/7/2025 at 2:04 PM, Nedum said:

There is one thing in this guide that's not necessary and will trigger a bug with XRNeckSafer.

In the VR-Options there is no need to enable Eye Tracking. Does nothing for me. The Pimax Eye Tracking will work without it.

What it does if enabled is, it will disable the Eye Tracking at the point XRNeckSafer starts to work.

So, if you want to use XRNeckSafer you better never enable the DCS Eye Tracking!

Till today I am not knowing for what this option is good for. Is there any VR-Headset that needs this special option?



That’s interesting. I’ve not noticed that thus far, I had problems with centering using the Pi Tools XR and quad views, but switching back to mbuccia cured that, although you do need to have the headset on and centred when DCS starts or you could have centering issues ( spent several frustrating days sorting that one out last year).  Just spent a day chasing VR settings in DCS. I had it running extremely well but foolishly didn’t note my settings. Schoolboy error. I moved my install to a new larger drive and had problems with continual crashes in VR so started tweaking the settings. Sorting the pagefile solved the crashes and the I spent the next 2 days trying to regain the clarity I recalled that I had in VR. Eventually I got back to where I was. Not sure what others have experienced but with shadows set to anything but flat the whole experience for me is one of blurry and shimmering ground textures. With flat enabled the ground textures are incredibly sharp. I too followed the tally mouse settings, he produces some excellent stuff. Not a hope in hell I could 90FPS using the settings in his video. I can only assume it’s the 5090 that’s allowing that as I have a more powerful CPU but with a 4090 and a Pimax Crystal. I was using MSAA x2, but am now in the DLAA and DLSS camp. Using his settings and running at 120hz capped to 60 was very stable but the ground textures with shadows to default setting doesn’t do it for me. Switching to flat just makes the whole VR experience more enjoyable. I recalled that when I switched to flat shadows the first time in VR it was a bit of a eureka moment.  I use quad VR and Pimax XR with settings at native res and 150% in QV, I run the Crystal at 72Hz. Generally no stutters unless flying over very large cities like Cairo  or the Marianas map at low level.  The latter was particularly bad using my old MSAA setting but has improved noticeably with DLAA and DLSS.

Edited July 9 by PaulXKRS

[Thorns]

On 7/7/2025 at 5:09 AM, Panny said:

Truthfully, some of the largest gains I got is from dynamic foveated rendering. If you're using a Pimax Crystal Light you're missing out on some pretty massive performance gains and have to settle for lower FPS due to the lack of DFR to be honest. It's what I found oxymoronic about the headset - yes it's much cheaper to get but to run it properly you need an extremely expensive GPU and for the likes of DCS it still struggles even with the best hardware

I have a 13900K and 4090 with 64gb DDR 5. So you are telling me that because I bought a PCL, that I bought STUTTERING and JITTERING, and there is no way to get rid of it? I've had the PCL for quite some time now (almost over a year?) and this stuttering and jittering seems like it started about a month ago... I had a G2 and upgraded to the PCL because Pimax pushed it as an upgrade. The G2 never stutters or had jitters. I have lowered the PCL to the lowest settings and it still STUTTERS and JITTERS. Something wrong here. Note: The PCL runs fine and perfect with no stutters or jitters in IL-2...so who's at fault here Pimax or DCS? And how can they fix this...Look, all I'm looking for is smooth gameplay. If that means lowering all settings (which I've done) to get smooth gameplay I'm all for it, as you take the "hit" on what the game looks like through the lens, but I have done that and still have stuttering and jitters.

[MarkyMarkUK]

4 hours ago, Thorns said:

I have a 13900K and 4090 with 64gb DDR 5. So you are telling me that because I bought a PCL, that I bought STUTTERING and JITTERING, and there is no way to get rid of it? I've had the PCL for quite some time now (almost over a year?) and this stuttering and jittering seems like it started about a month ago... I had a G2 and upgraded to the PCL because Pimax pushed it as an upgrade. The G2 never stutters or had jitters. I have lowered the PCL to the lowest settings and it still STUTTERS and JITTERS. Something wrong here. Note: The PCL runs fine and perfect with no stutters or jitters in IL-2...so who's at fault here Pimax or DCS? And how can they fix this...Look, all I'm looking for is smooth gameplay. If that means lowering all settings (which I've done) to get smooth gameplay I'm all for it, as you take the "hit" on what the game looks like through the lens, but I have done that and still have stuttering and jitters.

Hi @Thorns

I'm the thread author and have been watching all the replies with interest. Like you, I have a good setup and get good performance on all games except DCS. I had a G2, then a PICO 4 and now a PCL, and I found the performance on all of them great except for the PCL, in DCS.

My most recent findings have led me to the following (this is for DCS single player):

• Nvidia settings as default
• Pimax Play default except for Quality at Medium (you can still read dials etc. in the cockpit)
• DCS on MAX graphics settings with DLSS Quality
  • Set DCS FPS to N (watch your FPS for a bit first and set this setting to about 10 or 15 FPS lower than the lowest dip eg. I get around 80-90 FPS so I set mine to 70 FPS)
    • This is the most important setting for me that got rid of 95% of my jittering over towns / buildings etc.

I tried loads of different settings and followed loads of different guides but none got rid of the low flying stutters over buildings EXCEPT for the FPS limiting in DCS. It seemed to be around large frametimes rather than actual FPS.

Anyway, hope that helps.

BTW, I can confidently say I have spent more time experimenting with DCS / PC configs than actually playing the f*ck!ng game!

Regards

Mark
