Possible Panel Run

[TomDK]

Thank you .. ordered :)



As I understood you, the monitors will be connected directly to the pc and the exports will be exported to this area than.

Maybe you can show us your monitor.lua ....

[linden]

I have only play around and tested the export so i do not have the file, but its realy easy to make the export whit peterP´s fil.



http://files.digitalcombatsimulator.com/en/208103/

[MTFDarkEagle]

Thank you .. ordered :)



As I understood you, the monitors will be connected directly to the pc and the exports will be exported to this area than.

Maybe you can show us your monitor.lua ....



Yes as linked by linden, it's just another export just like your MFCD's :)



OT:

LED's and LED holders ordered. Head buzzing with cockpit building :D

[Whisky One]

Great quility work Linden,



i'll PM you with my order!!!

thanks for offering this to the community.

[Manuel]

Just ordered my UFC! :) Thank you!!!:)

[Kubi]

Just ordered my UFC, thanks linden!

[Jimbo]

My wife is going to slaughter me...... PM inbound!

[linden]

Hehe:megalol:

[linden]

The panelrun is now closed.



Thanks for your orders!!

[MTFDarkEagle]

Can't wait to get the caution panel man! :D

[TomDK]

Dear David



today arrived my monitors from the peoples republic ... hell .. UPS asked for customs fees nearly the ammount I have paid for the 2 screens :(



However ....

Can you describe how to mount and install the monitors ? The larger one has a vga-plug, the smaller one only video chinch.



How to setup the monitor.lua / helios ... or whatever.



I am looking forward for the panels. But have no idea how to get the monitors to work. There is also no manual for the monitors .. no idea which voltage they need.



Would be nice to read some kind of instructions ... Thanks

Tom

[linden]

The lcd´s are made so you will put them between the backplate and in the middle plate, when you see the panels you will for sure see it how its done.



I have only tested the lcd´s whit PeterP´s files:

http://files.digitalcombatsimulator.com/en/208103/

http://forums.eagle.ru/showthread.php?t=89282



Im not good at this but after reading PeterP´s thread and used his files i made them work.



As the panels will take some time you can try this files and im sure you will make them work.

You will need a card that has "S video out" for the 4" or you can try a converter, Svideo to vga, i have not try a converter and to not know if it works.



Maby someone here knows how it works.?



For power i use 12v=2a, be sure that the + and - are the same as the lcd plug.



Not mutch of instructions but this is how i did it, if you cant make the lcd´s work in the game please let me know and i can try to make a monitor.lua for you.

[TomDK]

Thank you for the overview !



I use already PeterP´s files for mainmonitor and tocuscreen with HELIOS. Will try it ... so the 2 new monitors will be added to main resolution, the displays export will be exported to this monitors .. will see if and how it works.



Thanks

Tom

[linden]

Yes, add the resolution and your on your way:)

[TomDK]

Anybody an idea how to convert DVI or HDMI to a single VGA chinch connector ?!



I have a GFX 680 with 2 DVI and 2 HDMI connectors. I use for my 2 monitors the DVI connectors.



I ordered one DVI to VGA connector for the smaller china-monitor.



But there are no active converter/adapters out for connecting the larger monitor with only chinch vga input.



I have also a buid in GPU which comes with 1 DVI and 1 VGA connector, but also no idea how to bring the chinch VGA monitor to work.





So I will wait for the adapater and try the first china-monitor.

[Jimbo]

Something like this may do the job.



http://www.matrox.com/graphics/en/press/artwork/Mura_MPX_Series/3/med/Matrox_Mura_MPX44_composite_dvi_adapter.htm



Never tried it before though so cant guarantee it.



Or failing that, this looks like it'd do the job.



http://www.aliexpress.com/item/HDMI-DVI-1080P-to-AV-CVBS-Composite-Mini-Converter-Support-PAL-NTSC-480i-576i-For-TV/595956865.html

Edited January 18, 2013 by Jimbo

[TomDK]

Thank you !



Try to get this Matrox-One if it works also on my build in GPU !!



:thumbup:

[TomDK]

No luck so far ... I send a adapter back due it was no active compnent, same to tha adapter mentioned by Jimbo ... not active , only converting the wires but not the signal itself.



I started a new thread to keep linden´s thread "cleaner".



http://forums.eagle.ru/showthread.php?p=1659763#post1659763



Thanks

Tom

[linden]

I have make some changes to the ILS,TACAN,CMSP to fit the electronics better.

I have update the first post whit links to the

electronics.

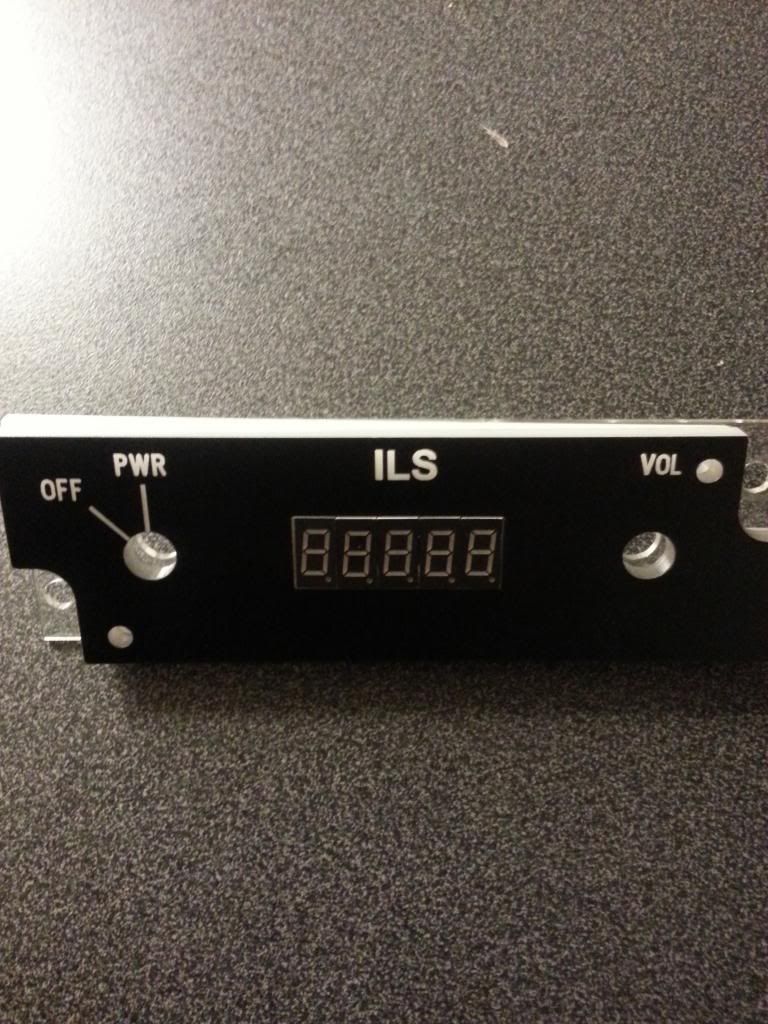

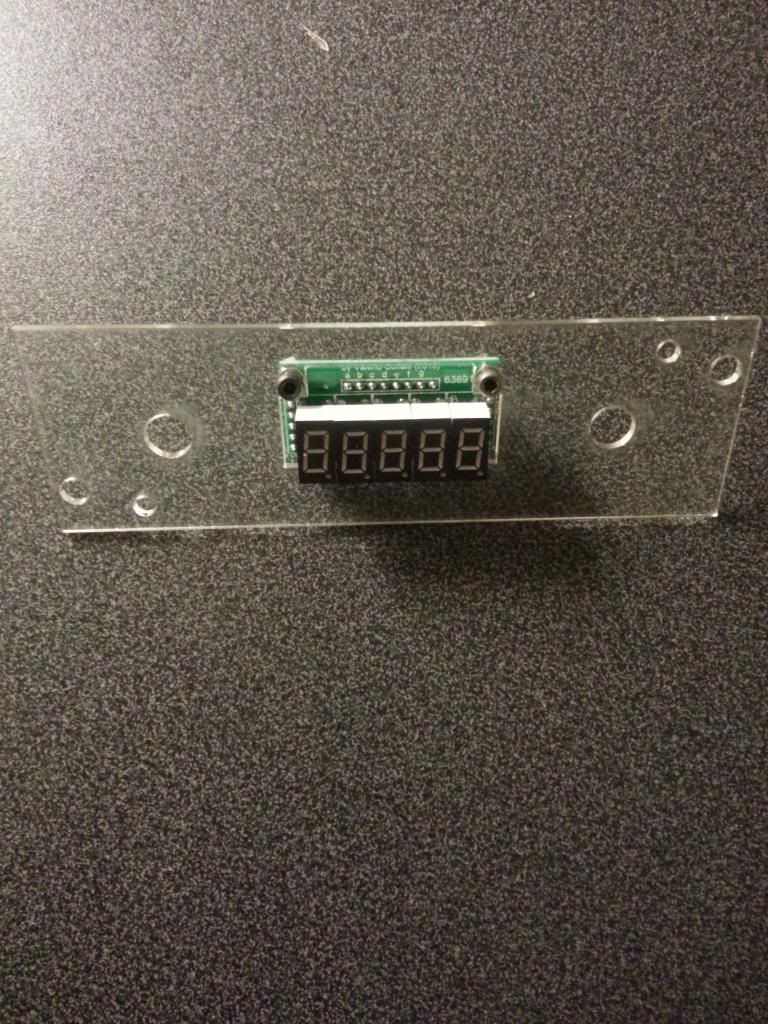

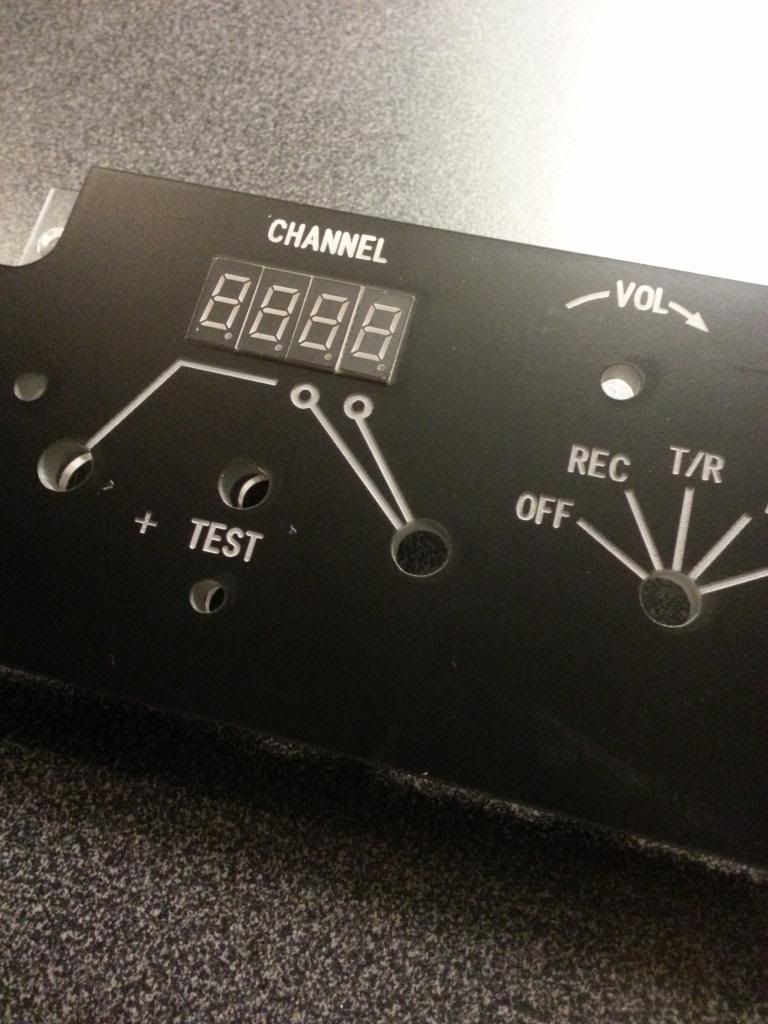

ILS:

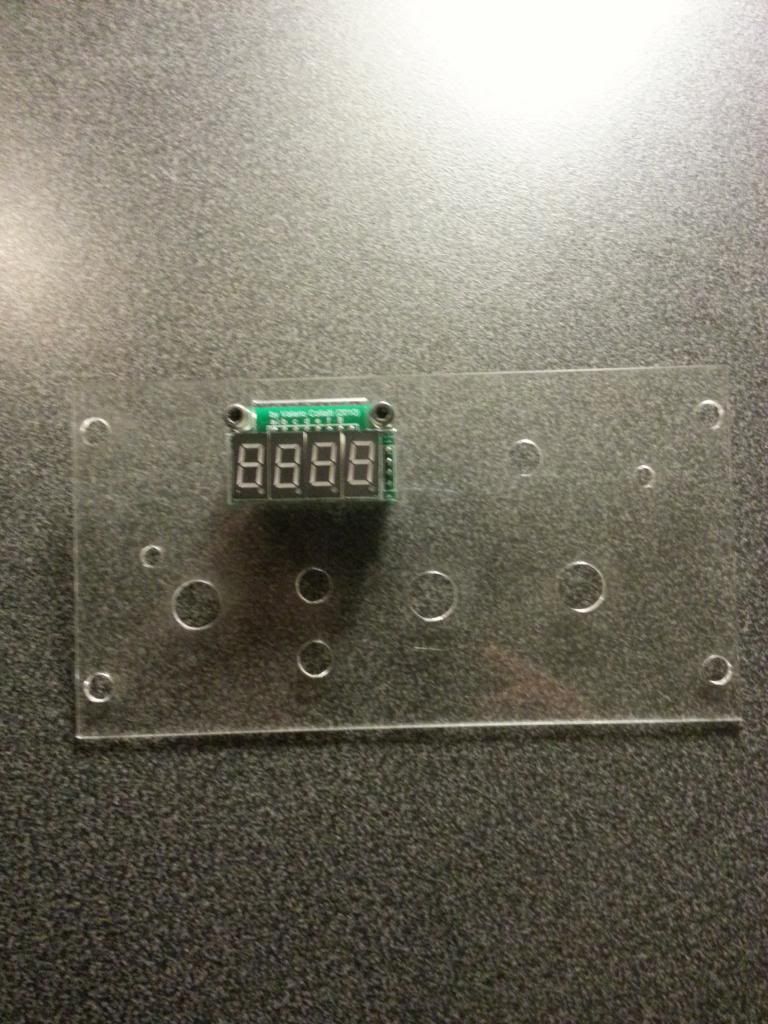

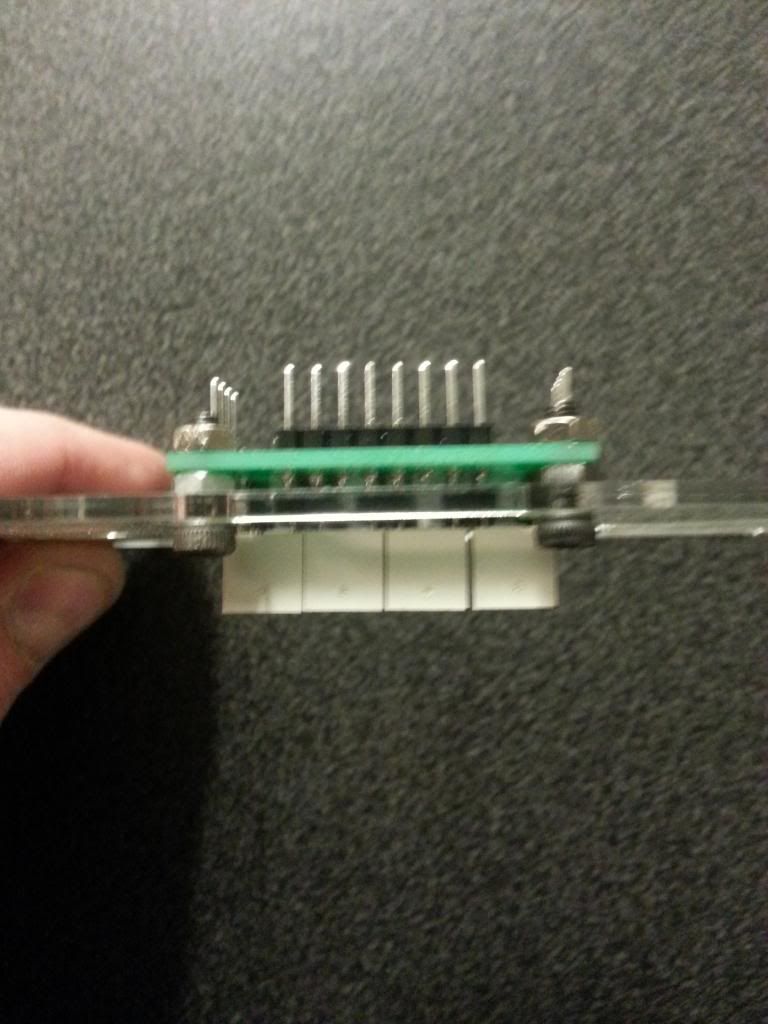

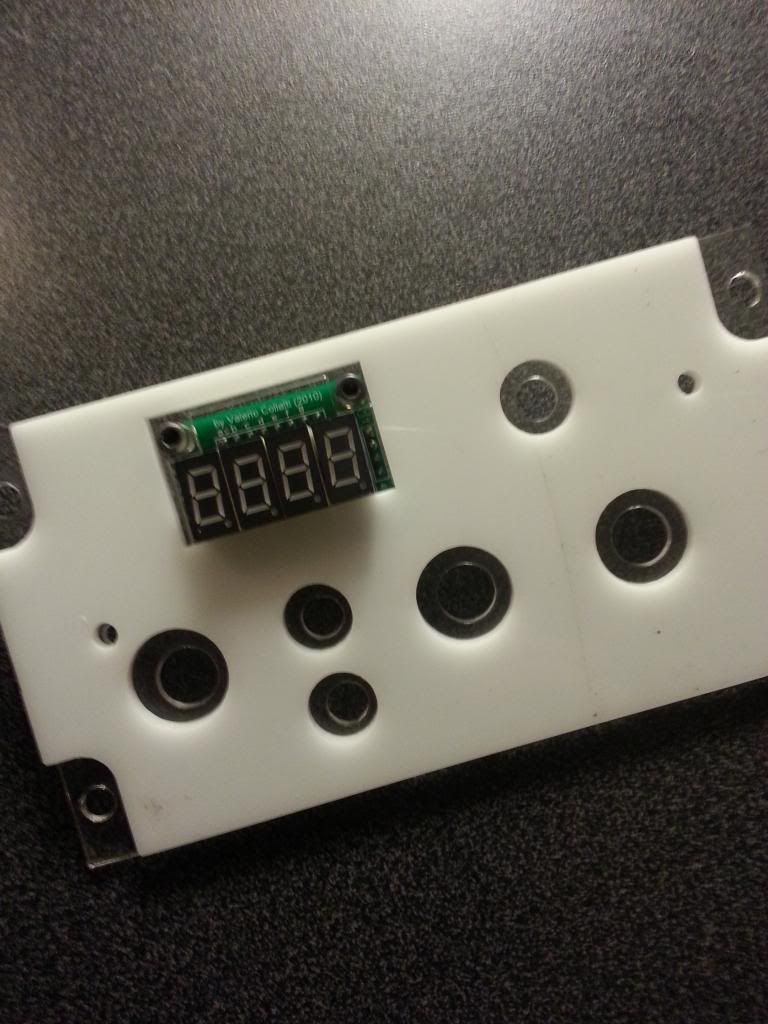

TACAN:

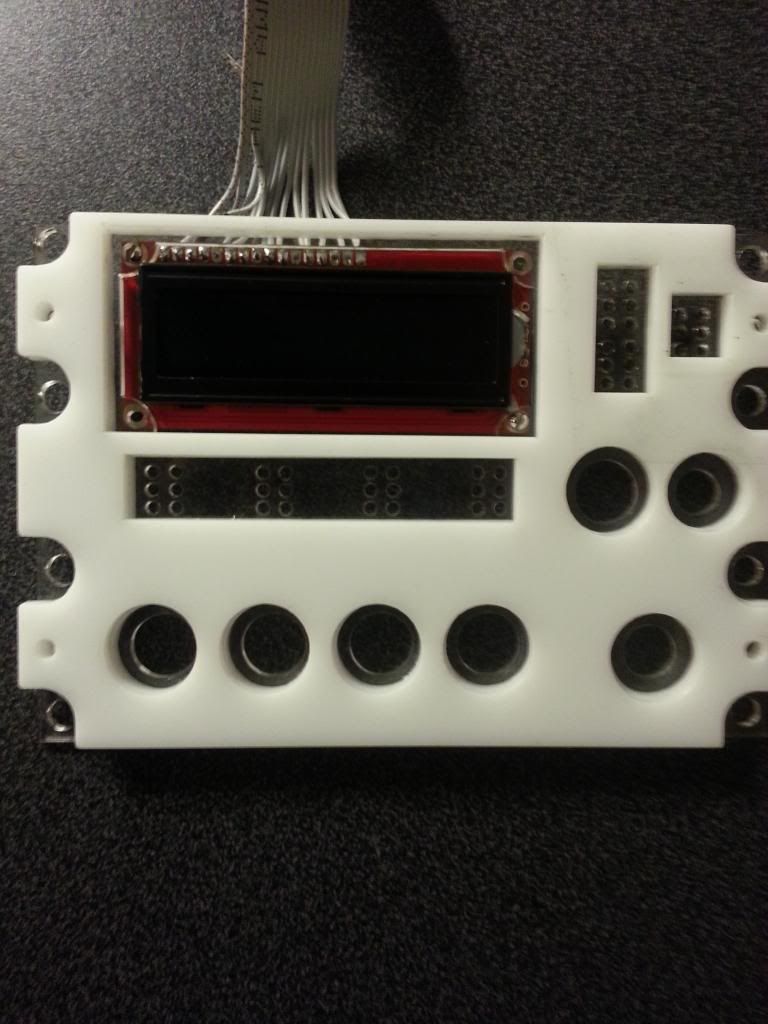

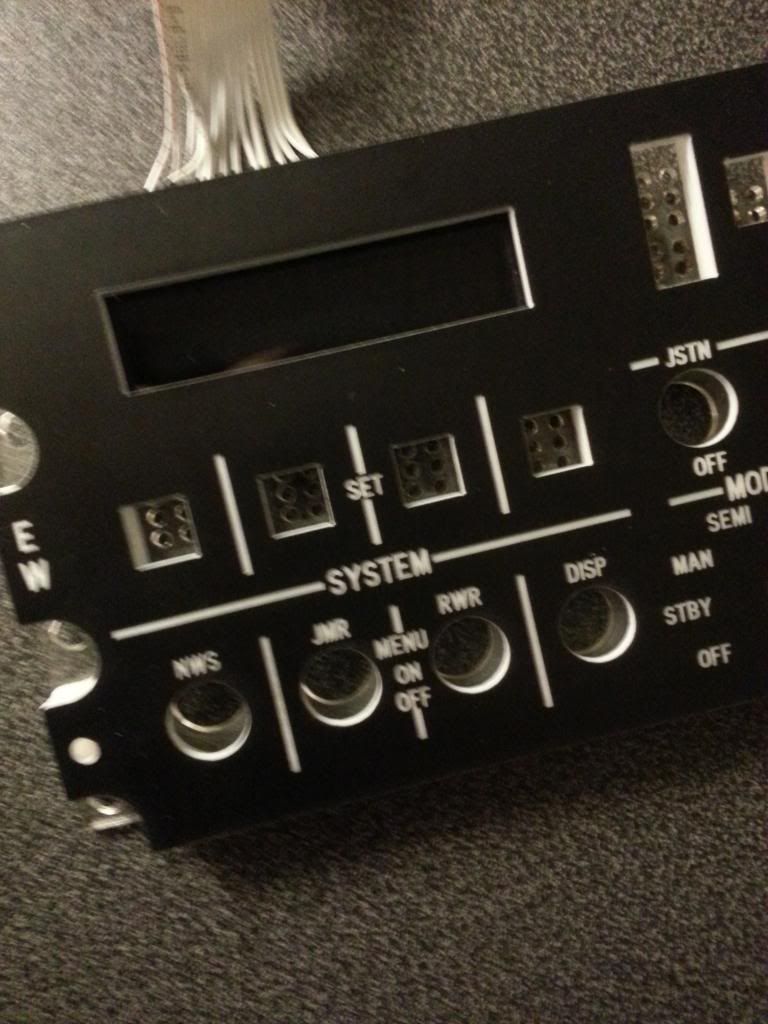

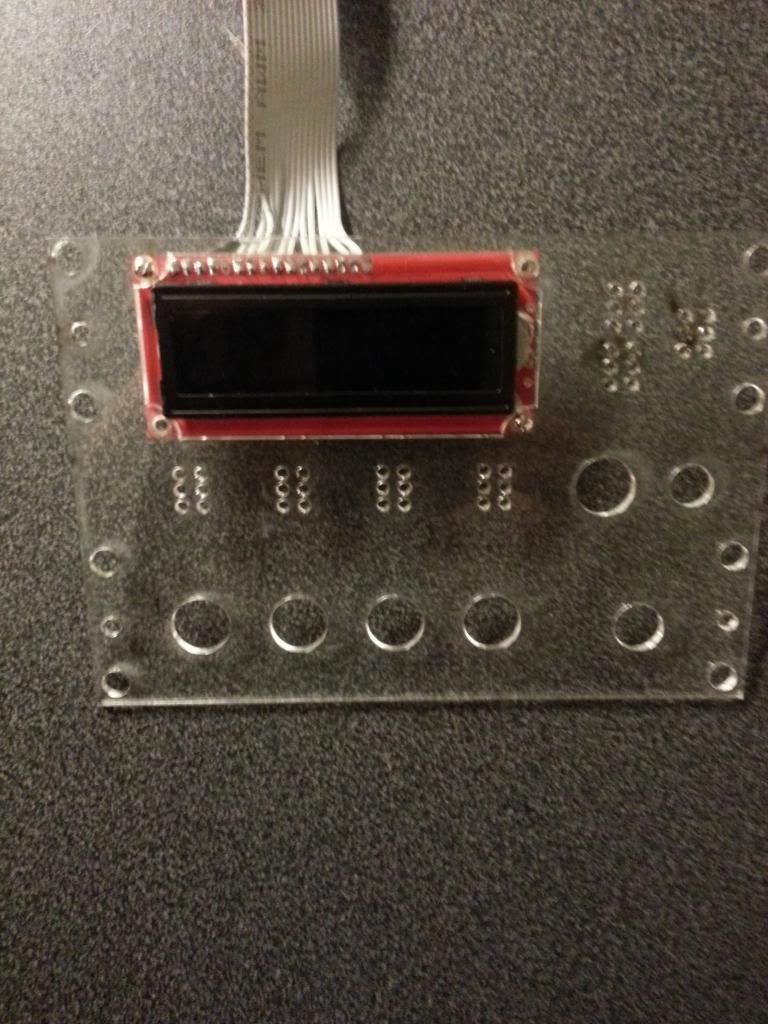

CMSP:

[Dachs]

Looking real good there Linden.

Now, buttons and screen exports for LCD's I get, but I have absolutely no idea how to drive these segmented? displays.

Do you by chance plan to do a short howto on the subject later on, or maybe sell displays all ready to hook up?

[linden]

Actually, I have not a clue:)



I got my opencockpit cards today and gonna huck them up this weekend.

This is the first time im using this cards and sioc so a need some time to figure it out.

But i dont think it will be a problem.

[Dachs]

Haha, cool

Well, one certainly learns a lot messing around with this stuff.

What about your caution panel and indicators, will those also be driven from Open Cockpit cards or a Phidgets board?



Now, off to read up on OC cards... :book:

[linden]

I will use the Phidget for the caution and other lights.

[linden]

Panelrun update:



All the materials has now arrived, so i will paint this weekend and then send it to the lasercompany.
