CDU Back lighting


predator-nz
 Share

Recommended Posts

Hi

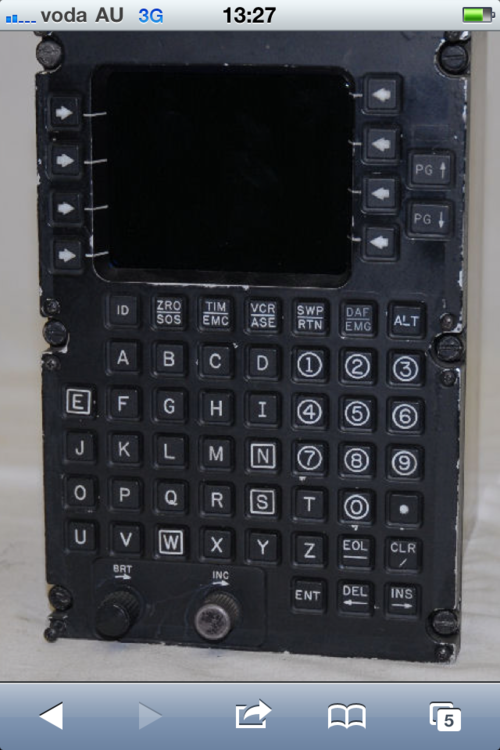

I have managed to get a old CDU out of a F14 I think?? and I am going to interface it in to my cockpit which I have managed to do with a Leo card.

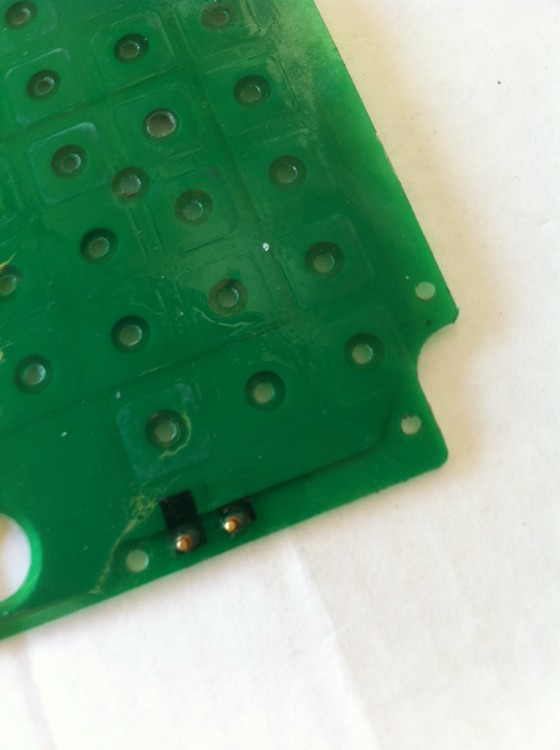

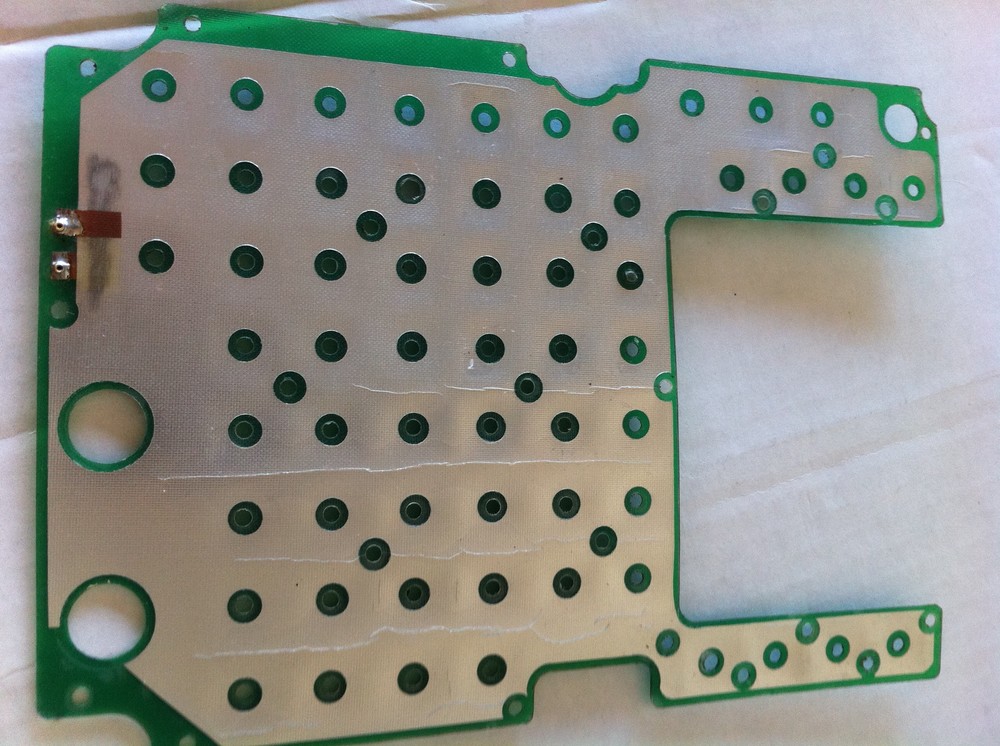

My problem is a can not get the back lighting to work.

Has anyone managed to get something like this to work before.So far I have tryed 5V and 12V on the + - terminals.




Link to comment
Share on other sites

You are aware of the fact that you can't simply apply a DC voltage to Electroluminiscence sheet to make it light up? EL sheets are usually driven by an AC voltage (60V@350Hz for example) provided by an inverter. You should try to find a manual or someone who can tell you the exact spec for this.



Cheers,

Stefan
