Posted

Looking at various loose translations of MIG29 and SU27 manuals it would appear that the HUD/MFD acquisition cursours are slightly different. this I guess to act as a reminder or cue to the pilot what sensor he is using.



Can anyone confirm that the Radar Acquisition cursor is a Horizontally oriented rectangle (as we see in FC3) and the EOS is a vertically oriented rectangle.

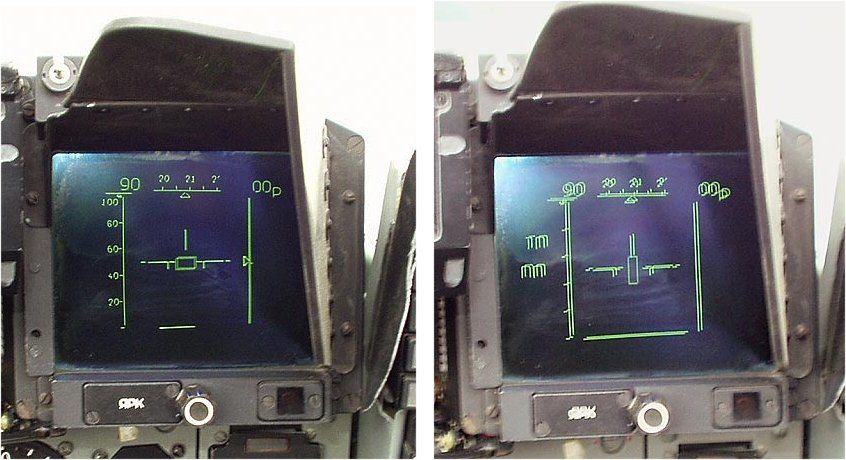

In the MIG29 images below (of MFD serving as a HUD repeater) the left MFD is I think showing the Radar Acquisition Cursor

The right MFD is showing the EOS Acquisition cursour ?




Posted

"In the MIG29 images below (of MFD serving as a HUD repeater) the left MFD is I think showing the Radar Acquisition Cursor

The right MFD is showing the EOS Acquisition cursour ?"



Will ask some pilot later, but i guess its right.

[sIGPIC][/sIGPIC]

  • 2 years later...
Posted

So is it true?

Visibility of image is really nice on those MFDs.

Reminder: Fighter pilots make movies. Bomber pilots make... HISTORY! :D | Also to be remembered: FRENCH TANKS HAVE ONE GEAR FORWARD AND FIVE BACKWARD :D

ಠ_ಠ



  • 3 months later...
Posted

where i can find those manuals? thx
