Xtorris

This right here. The negative AOA "The F-14 exhibits positive dihedral effect throughout the positive AOA envelope (tending to roll away from sideslip), but negative dihedral effect at negative AOA." ~F-14B NATOPS 11.5.2 Dihedral Effect "At negative AOA, dihedral effect is negative such that a right rudder input will produce a left roll." ~F-14B NATOPS 11.5.2 Dihedral Effect

Just received my invoice for the #2 control panel. Keep an eye out, if you ordered one.

Thank you, for that. Just e-mailed the CAD file for a reply with a quote, and then it's on to fabrication.

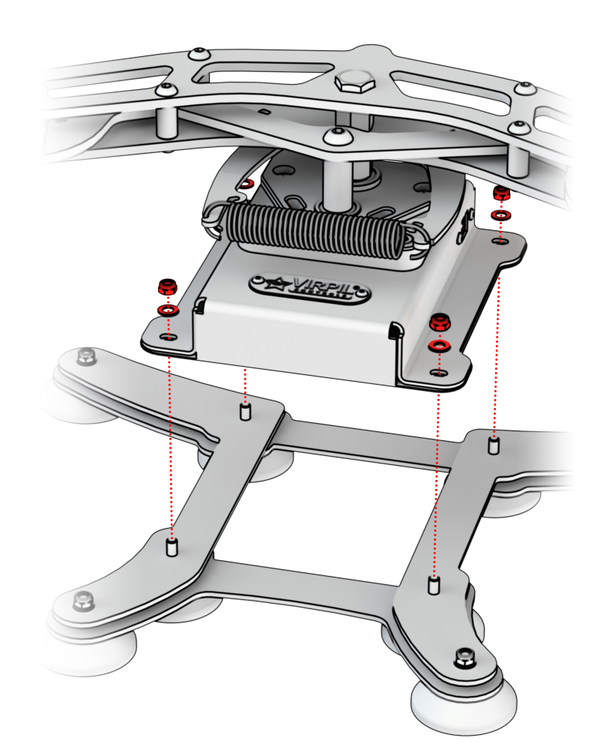

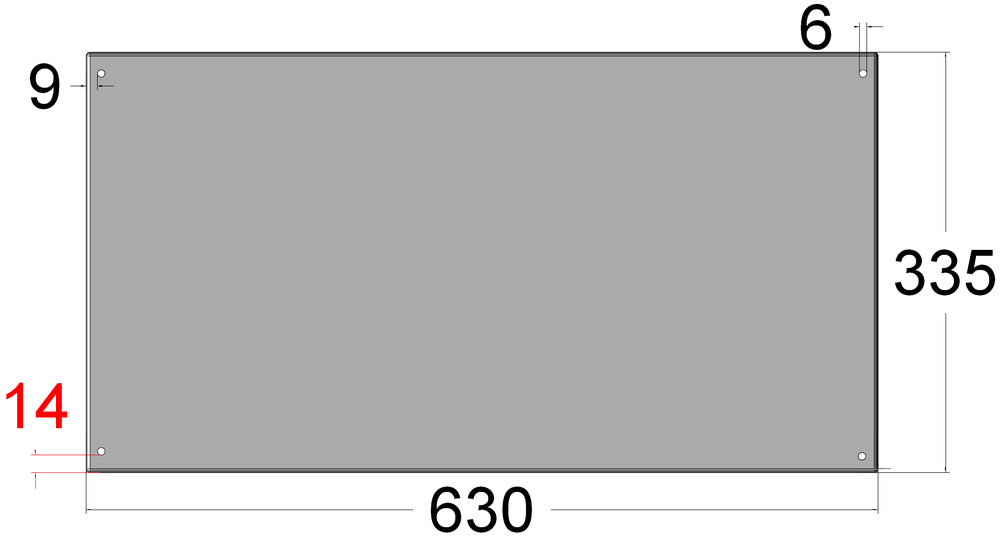

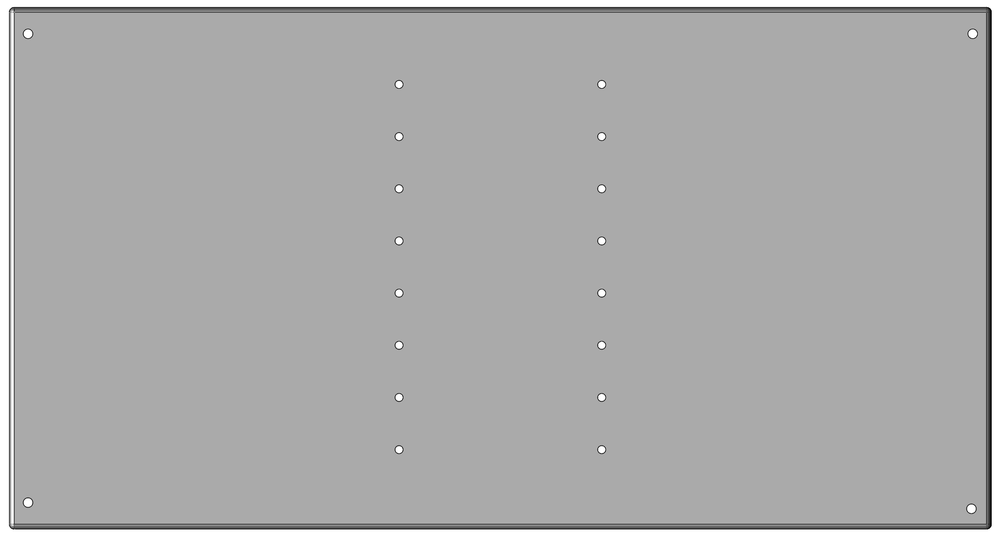

Anyone with a pair of Virpil pedals able to check, or happen to know the bolt diameter, of the four bolts shown below (not worried about the highlighted nuts/washers)? There's a local company who does CNC work, and I plan on sending them a CAD with the required dimensions. The aluminum plate will bolt to my Monstertech pit, and the rudder pedals will bolt to the plate.

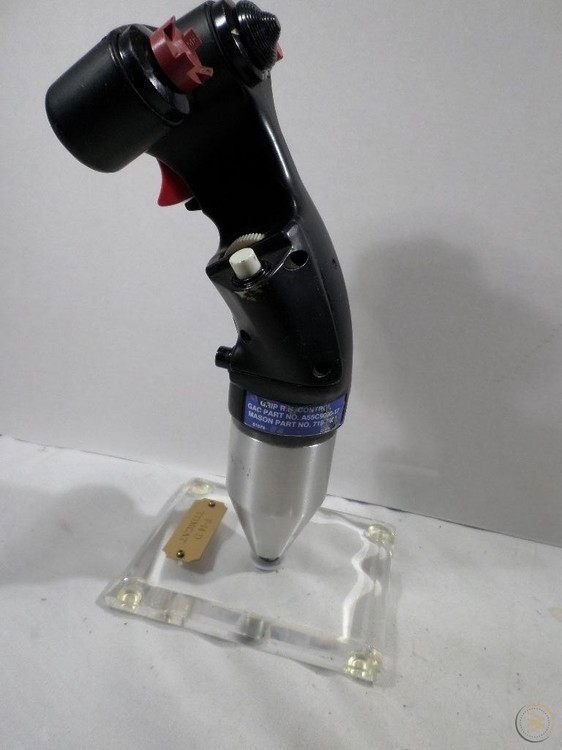

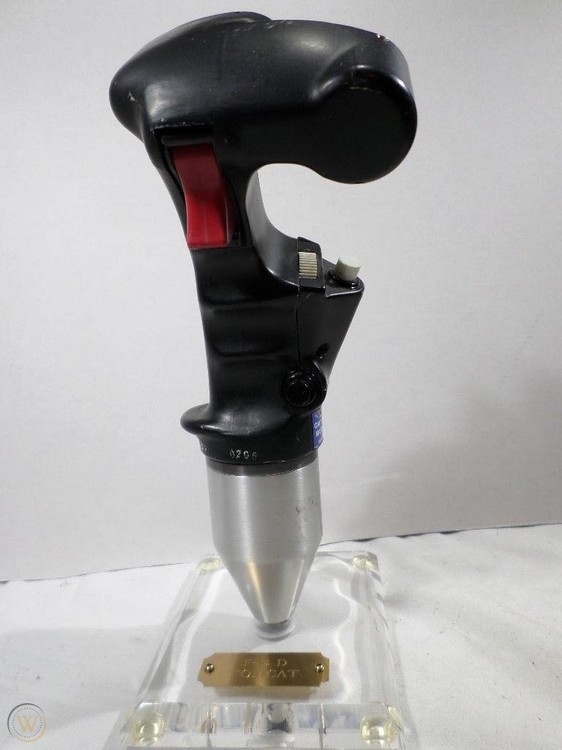

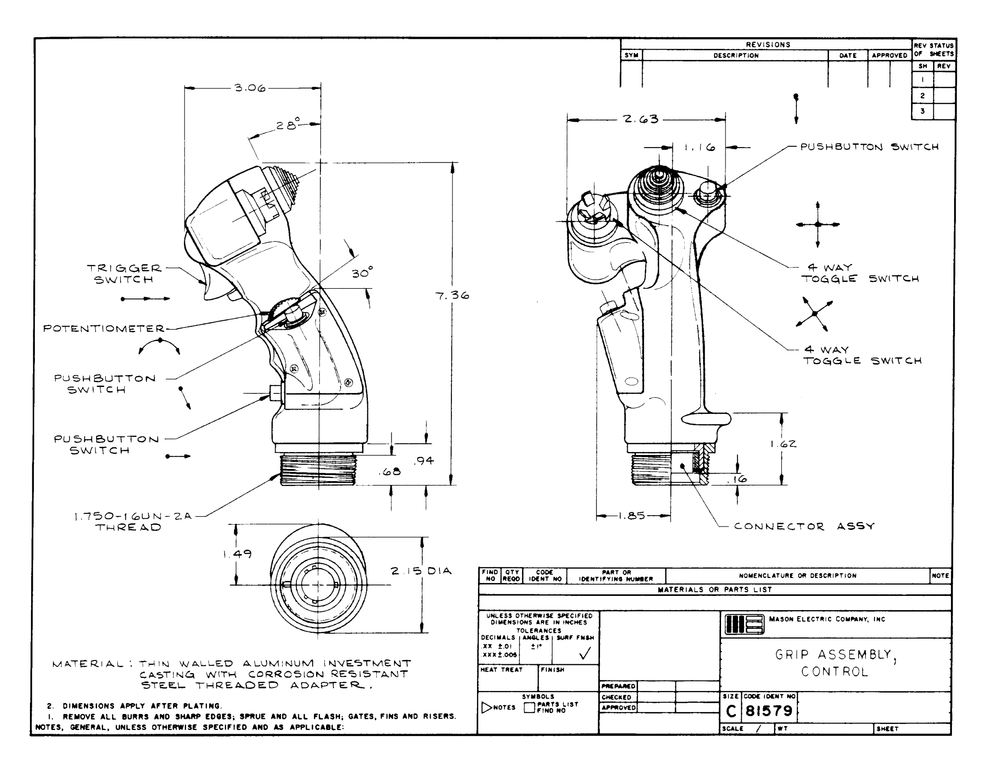

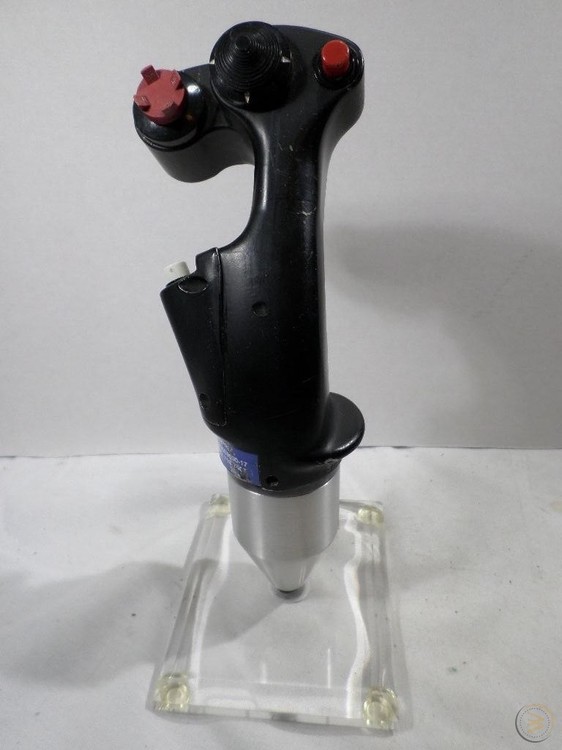

I was able to track these numbers down from the blue sticker, in the first picture I linked: MFG SKU CAGE Manufacturer 719-7407 81579 Mason Electric Company A55C9000-17 26512 Northrop Grumman Systems Corporation Grip Assembly, Controller, Aircraft: https://www.parttarget.com/1680-01-411-3386_1680014113386_719-7407.html/-D4A2F537-7ABF-496B-BE1E-A619819FAE69

Found this atleast...

No clue. It's just info/pics, I was able to grab off of the web.

Yes. The options are as follows: LR Selects Phoenix missiles. MR Selects Sparrow missiles. SR Selects Sidewinder missiles. GN Selects gun https://www.worthpoint.com/worthopedia/14d-tomcat-jet-fighter-plane-joy-1883160892
