Hi guys,

i intensivly searched the forum but could not find an answer...:cry:

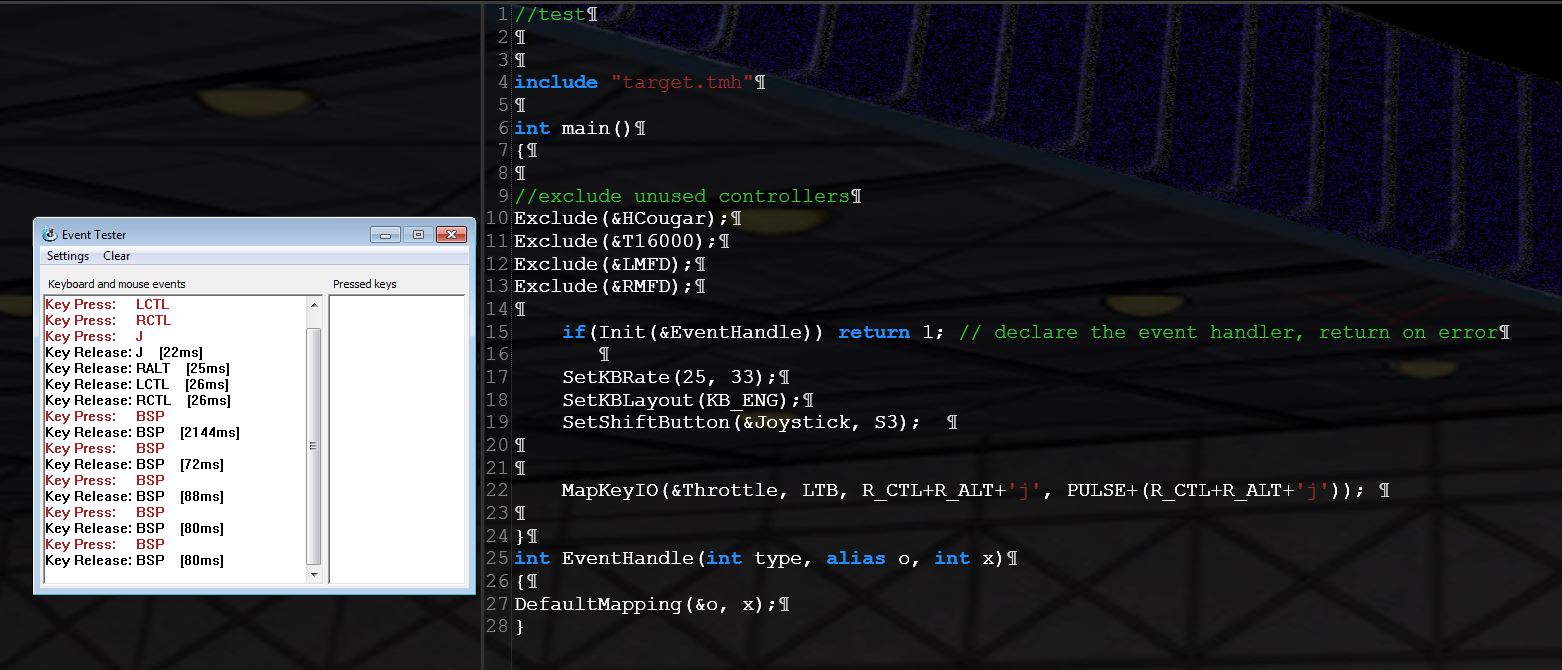

so problem is that in an very simple script i get a additional LCTL in the event-tester although this key is NOT programmed /used at all in that script. I tried different switches on my WH with same result. see details in attached jpg.



it is strange... i initially found that error when i tested morhines profile and strange things happend in BS2. i tracked that down to above/attached issue.



any hint is most welcome as i am totally lost :helpsmilie:



thx flex


Link to comment
Share on other sites

Just a quick guess:



Why do you have the parens around the second (O function) command



PULSE + (R_CTL + R_ALT + 'j')



I have never seen/done it that way and that could be the cause of the problem.



NOTE: Since the 'O' state is the default. Your test appears to only show that half of the command. You did not use the parens on the first half.


Edited by cichlidfan

ASUS ROG Maximus VIII Hero, i7-6700K, Noctua NH-D14 Cooler, Crucial 32GB DDR4 2133, Samsung 950 Pro NVMe 256GB, Samsung EVO 250GB & 500GB SSD, 2TB Caviar Black, Zotac GTX 1080 AMP! Extreme 8GB, Corsair HX1000i, Phillips BDM4065UC 40" 4k monitor, VX2258 TouchScreen, TIR 5 w/ProClip, TM Warthog, VKB Gladiator Pro, Saitek X56, et. al., MFG Crosswind Pedals #1199, VolairSim Pit, Rift CV1 :thumbup:

Link to comment
Share on other sites

Have you tried putting a PULSE in front of the R_CTL?

Don B

My VKB Gunfighter MK III Pro L Review

EVGA Z390 Dark MB | i9 9900k CPU @ 5.1 GHz | EVGA RTX 3090 FTW3 Ultra | 32 GB G Skill Trident Z 3200 MHz CL14 | Corsair H150i Pro Cooler |VKB GF MK III Pro L Ultimate Grip| Virpil CM3 Throttle | VPC Rotor TCS Base w/ Alpha-L Grip| Point Control V2|Varjo Aero|

Link to comment
Share on other sites

same problem with keyboard use



new test setup.

WH is completely connected but i used my keyboard only.



i pressed these keys in that order on my keyboard:

1. "R_ALT"

2. "R_CTL"

3. "R_CTL"



output on event_tester is

1."R_ALT"

2."L_CTL" :huh:

3."R_CTL"

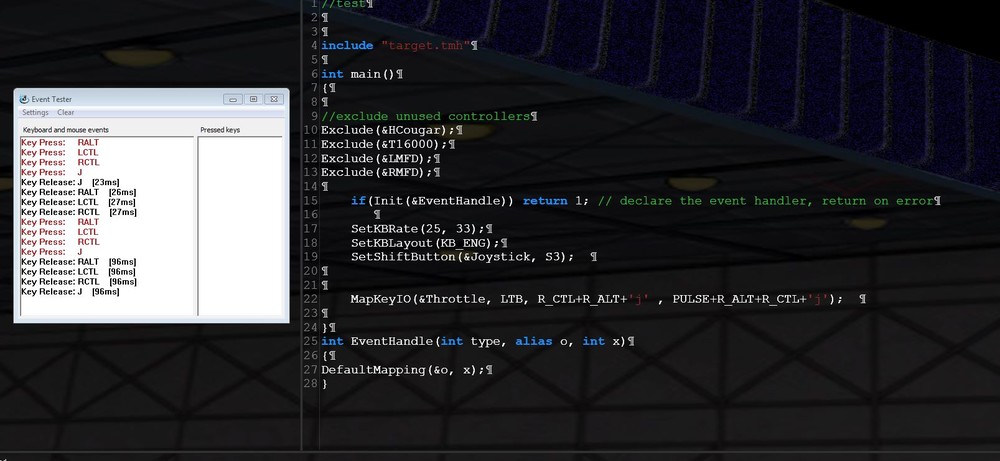

see attached screenshot.....



WTF is going on here....:cry:

thx flex

p.s. i've tried ENG and GER keyboard in the script... same result


Link to comment
Share on other sites

That is weird.

It does that output even when not running a script?

What keyboard do you have?

Don B

My VKB Gunfighter MK III Pro L Review

EVGA Z390 Dark MB | i9 9900k CPU @ 5.1 GHz | EVGA RTX 3090 FTW3 Ultra | 32 GB G Skill Trident Z 3200 MHz CL14 | Corsair H150i Pro Cooler |VKB GF MK III Pro L Ultimate Grip| Virpil CM3 Throttle | VPC Rotor TCS Base w/ Alpha-L Grip| Point Control V2|Varjo Aero|

Link to comment
Share on other sites

I am beginning to wonder if this not a Target issue at all. I can say that, after using Target on three different machines and with at least six different keyboards (all American unfortunately), I have never seen this happen.



EDIT: Including running XP, Win 7-64 and Win 8.1

ASUS ROG Maximus VIII Hero, i7-6700K, Noctua NH-D14 Cooler, Crucial 32GB DDR4 2133, Samsung 950 Pro NVMe 256GB, Samsung EVO 250GB & 500GB SSD, 2TB Caviar Black, Zotac GTX 1080 AMP! Extreme 8GB, Corsair HX1000i, Phillips BDM4065UC 40" 4k monitor, VX2258 TouchScreen, TIR 5 w/ProClip, TM Warthog, VKB Gladiator Pro, Saitek X56, et. al., MFG Crosswind Pedals #1199, VolairSim Pit, Rift CV1 :thumbup:

Link to comment
Share on other sites

I am running w7-64 Ultimate. Keyboard is a logitech G15.



@d.burnette: i will give it a try to use event tester without running a script. Not sure if this is possible



@cichlidfan: any idea how to track that down? Maybe using any editor which can make R_Ctl and similar key presses visibly? To be honest i am lost . . .



Thx flex

Link to comment
Share on other sites

@cichlidfan: any idea how to track that down? Maybe using any editor which can make R_Ctl and similar key presses visibly? To be honest i am lost . . .



I have been pondering that question and nothing has come to mind, yet.

ASUS ROG Maximus VIII Hero, i7-6700K, Noctua NH-D14 Cooler, Crucial 32GB DDR4 2133, Samsung 950 Pro NVMe 256GB, Samsung EVO 250GB & 500GB SSD, 2TB Caviar Black, Zotac GTX 1080 AMP! Extreme 8GB, Corsair HX1000i, Phillips BDM4065UC 40" 4k monitor, VX2258 TouchScreen, TIR 5 w/ProClip, TM Warthog, VKB Gladiator Pro, Saitek X56, et. al., MFG Crosswind Pedals #1199, VolairSim Pit, Rift CV1 :thumbup:

Link to comment
Share on other sites

I am running w7-64 Ultimate. Keyboard is a logitech G15.



@d.burnette: i will give it a try to use event tester without running a script. Not sure if this is possible



Yes, you can run event tester in Target without a script running - try it without, if it works as it should when just pressing the keys on the keyboard, then there is something in the script causing the behavior.

I use a G19 keyboard.

Don B

My VKB Gunfighter MK III Pro L Review

EVGA Z390 Dark MB | i9 9900k CPU @ 5.1 GHz | EVGA RTX 3090 FTW3 Ultra | 32 GB G Skill Trident Z 3200 MHz CL14 | Corsair H150i Pro Cooler |VKB GF MK III Pro L Ultimate Grip| Virpil CM3 Throttle | VPC Rotor TCS Base w/ Alpha-L Grip| Point Control V2|Varjo Aero|

Link to comment
Share on other sites

attached is what my W7 onscreen-keyboard shows: seems that RCTRL and LCTRL will be pressed simultaniously...

Target can seperate LCTRL and RCTRL if pressed separatly. but RALT and RCTRL will produce a LCTRL instead of a RCTRL..



thx

flex


Link to comment
Share on other sites

see attached screen shot. i switched the language of W7 (see lower right side) to EN. event test then shows correct key presses RALT followed by RCTRL....



i currently do not know what problems this might have to other parts of my script as keyboard layout then changes dramatically.



unfortunately using the target keyboard layout command seems to be of no help.



thx flex


Link to comment
Share on other sites
