Mt5_Roie Posted September 19, 2015 Posted September 19, 2015 So here's my specs now: 3.4 ghz Intel I7-2600k OC to 4.0 ghz, ASUS P8Z68-V LX motherboard (which only goes up to PCIe 2.0), 16 gigs of ram. I originally had a GeForce 960 which I love and works great. But recently got the Oculus Rift DK2 and am going to get the release version when it comes out. It will require at least a 970...so figured I'd go ahead and get me a 980 SC. So it came in today and I installed it no problems. Downloaded latest driver version and began to test it. In GTA V I started getting some issues right off the bat. There was a forum post on how to fix it (requires to under clock the GPU a bit) and that did fix the issues. In FSX things went ok, but that sim is mostly CPU based. In my main flight sim (DCS World) it had big issues. I would load up a mission and initially it would get about 120 fps or more....but then it blacks out...sometime it would come back for a second or two before blacking out again. I tried under clocking the GPU, but that didn't help. So my question is - can my motherboard even handle this card? It's a 4 year old system at this point and I'm working on getting it upgraded. But would I ever be able to get this card working right with the current specs? I'm in the process of speccing out a new build with either Devil's Canyon or Skylark i7 in it, but probably won't be able to afford all the parts for another year. So whats your opinion? Should I go back to the GeForce 960 which worked fine for now, or should I try to figure out the issues with the 980? Do you guys have any idea where to start fixing it? Coder - Oculus Rift Guy - Court Jester
cichlidfan Posted September 19, 2015 Posted September 19, 2015 See my sig, and I have no issues. So I don't think it is your mobo. ASUS ROG Maximus VIII Hero, i7-6700K, Noctua NH-D14 Cooler, Crucial 32GB DDR4 2133, Samsung 950 Pro NVMe 256GB, Samsung EVO 250GB & 500GB SSD, 2TB Caviar Black, Zotac GTX 1080 AMP! Extreme 8GB, Corsair HX1000i, Phillips BDM4065UC 40" 4k monitor, VX2258 TouchScreen, TIR 5 w/ProClip, TM Warthog, VKB Gladiator Pro, Saitek X56, et. al., MFG Crosswind Pedals #1199, VolairSim Pit, Rift CV1 :thumbup:
Mt5_Roie Posted September 19, 2015 Author Posted September 19, 2015 See my sig, and I have no issues. So I don't think it is your mobo. Looks like you have a 850w PSU...I think my current rig has a 700w PSU in it. Is there any application that could check to see if its a power issue vs a driver issue? Coder - Oculus Rift Guy - Court Jester
cichlidfan Posted September 19, 2015 Posted September 19, 2015 The sig is actually incorrect there. A while back I was working on a machine for someone and swapped out my PSU for a spare 750 watt unit. It is running fine and 980 is also quite efficient so I doubt power is the problem (unless you have a questionable PSU). I'm not sure the best way to test that though. ASUS ROG Maximus VIII Hero, i7-6700K, Noctua NH-D14 Cooler, Crucial 32GB DDR4 2133, Samsung 950 Pro NVMe 256GB, Samsung EVO 250GB & 500GB SSD, 2TB Caviar Black, Zotac GTX 1080 AMP! Extreme 8GB, Corsair HX1000i, Phillips BDM4065UC 40" 4k monitor, VX2258 TouchScreen, TIR 5 w/ProClip, TM Warthog, VKB Gladiator Pro, Saitek X56, et. al., MFG Crosswind Pedals #1199, VolairSim Pit, Rift CV1 :thumbup:
boedha68 Posted September 19, 2015 Posted September 19, 2015 How mucb is your psu? I think psu 750 watt is minimum Newest system: AMD 9800X3d, Kingsting 128 GBDDR5, MSI RTX 5090(ready for buying), Corsair 150 Pro, 3xSamsung 970 Pro, Logitech X-56 HOTAS, Pimax Crystal Light (Super is purchased) ASUS 1200 Watt. New system:I9-9900KS, Kingston 128 GB DDR4 3200Mhz, MSI RTX 4090, Corsair H150 Pro RGB, 2xSamsung 970 EVO 2Tb, 2xsamsung 970 EVO 1 TB, Scandisk m2 500 MB, 2 x Crucial 1 Tb, T16000M HOTAS, HP Reverb Professional 2, Corsair 750 Watt. Old system:I7-4770K(OC 4.5Ghz), Kingston 24 GB DDR3 1600 Mhz,MSI RTX 2080(OC 2070 Mhz), 2 * 500 GB SSD, 3,5 TB HDD, 55' Samsung 3d tv, Trackir 5, Logitech HD Cam, T16000M HOTAS. All DCS modules, maps and campaigns:pilotfly:
cichlidfan Posted September 19, 2015 Posted September 19, 2015 A stock GTX 980 should only draw about 165w. Nvidia specifies a minimum of a 500w PSU. ASUS ROG Maximus VIII Hero, i7-6700K, Noctua NH-D14 Cooler, Crucial 32GB DDR4 2133, Samsung 950 Pro NVMe 256GB, Samsung EVO 250GB & 500GB SSD, 2TB Caviar Black, Zotac GTX 1080 AMP! Extreme 8GB, Corsair HX1000i, Phillips BDM4065UC 40" 4k monitor, VX2258 TouchScreen, TIR 5 w/ProClip, TM Warthog, VKB Gladiator Pro, Saitek X56, et. al., MFG Crosswind Pedals #1199, VolairSim Pit, Rift CV1 :thumbup:
Mt5_Roie Posted September 19, 2015 Author Posted September 19, 2015 So opened my case to look at the PSU (I bought the computer whole back in the day...). The PSU is a Xtreme Gear XG-P700 700W which doing a quick search on shows it's not the best PSU. Plus it's only rated for 700 either way. I do have a 850w PSU that I was using for an old bitcoin rig which is missing most of the cables, but I know it has the video cable since thats what the rig was using. Would it be safe to hook up the 980 to that PSU by itself and have the Xtreme Gear XG-P700 700W ATX PSU power everything else? Because if that works, then it would show that it's truly the PSU and nothing else...but not sure how safe it is to run a GPU with its own power by itself. Coder - Oculus Rift Guy - Court Jester
cichlidfan Posted September 19, 2015 Posted September 19, 2015 (edited) Well, there is no question that low end PSUs can be a weak spot in a system, particularly when pushed. As for the issue of running two PSUs, I can't think of a reason why that would cause a problem but then I changed from Electrical to Mechanical Engineering after my first year of college so my opinion might not have much merit. ;) EDIT: Actually, there is an issue with two PSU's. Most require a signal from the mobo to turn on. This signal is on the main mobo connection cable. So your second PSU might not even turn on when you hook it up. Some can be fooled into thinking there is a mobo signal but that varies with the supply brand. Edited September 19, 2015 by cichlidfan ASUS ROG Maximus VIII Hero, i7-6700K, Noctua NH-D14 Cooler, Crucial 32GB DDR4 2133, Samsung 950 Pro NVMe 256GB, Samsung EVO 250GB & 500GB SSD, 2TB Caviar Black, Zotac GTX 1080 AMP! Extreme 8GB, Corsair HX1000i, Phillips BDM4065UC 40" 4k monitor, VX2258 TouchScreen, TIR 5 w/ProClip, TM Warthog, VKB Gladiator Pro, Saitek X56, et. al., MFG Crosswind Pedals #1199, VolairSim Pit, Rift CV1 :thumbup:
Mt5_Roie Posted September 19, 2015 Author Posted September 19, 2015 Yeah there is a trick to turning them on. I've done it before. Basically connect the green wire to the black wire and it'll turn. Will test tonight and report back. Coder - Oculus Rift Guy - Court Jester
cichlidfan Posted September 19, 2015 Posted September 19, 2015 Good luck with it. ASUS ROG Maximus VIII Hero, i7-6700K, Noctua NH-D14 Cooler, Crucial 32GB DDR4 2133, Samsung 950 Pro NVMe 256GB, Samsung EVO 250GB & 500GB SSD, 2TB Caviar Black, Zotac GTX 1080 AMP! Extreme 8GB, Corsair HX1000i, Phillips BDM4065UC 40" 4k monitor, VX2258 TouchScreen, TIR 5 w/ProClip, TM Warthog, VKB Gladiator Pro, Saitek X56, et. al., MFG Crosswind Pedals #1199, VolairSim Pit, Rift CV1 :thumbup:
Sporg Posted September 19, 2015 Posted September 19, 2015 (edited) So opened my case to look at the PSU (I bought the computer whole back in the day...). The PSU is a Xtreme Gear XG-P700 700W which doing a quick search on shows it's not the best PSU. Plus it's only rated for 700 either way. I do have a 850w PSU that I was using for an old bitcoin rig which is missing most of the cables, but I know it has the video cable since thats what the rig was using. Would it be safe to hook up the 980 to that PSU by itself and have the Xtreme Gear XG-P700 700W ATX PSU power everything else? Because if that works, then it would show that it's truly the PSU and nothing else...but not sure how safe it is to run a GPU with its own power by itself. I would not do that. You risk getting weird problems, or worse, with uncontrolled return currents between the two PSUs. Imagine one PSU running a slightly different voltage than the other for instance? Which way, and where will the currents go? This is a very real problem with electronics design, even on a single power supply. My suggestion is that you either purchase or borrow another PSU that is sufficiently powerful, and test with that one. Edited September 19, 2015 by Sporg System specs: Gigabyte Aorus Master, i7 9700K@std, GTX 1080TI OC, 32 GB 3000 MHz RAM, NVMe M.2 SSD, Oculus Quest VR (2x1600x1440) Warthog HOTAS w/150mm extension, Slaw pedals, Gametrix Jetseat, TrackIR for monitor use

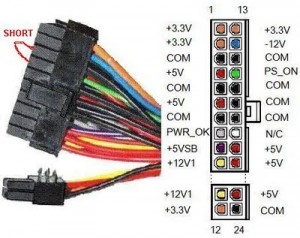

Demon_ Posted September 19, 2015 Posted September 19, 2015 (edited) Turn "on" a psu unit: Short the green wire (ps-on) to the black (com). Edited September 19, 2015 by Demon_ Attache ta tuque avec d'la broche.
Mt5_Roie Posted September 20, 2015 Author Posted September 20, 2015 So a little update. I have a Thermaltake PSU that is 850w and I used it to power the 980 card with the built in PSU running everything else. Results were good, no crashes or issues. So I spent some time tonight and replaced the old 700w PSU with the 850w one and so far things appear ok. I tested DCS and did the instant action mission both using HDMI and DVI and was getting FPS from 85-120 depending on what I was doing. Before with the old PSU as soon as I hit the A/G button on the Targeting Pod it would go blank...so thats good. I did about a 15 minute flight with no issues. Next I tested GTA V and played for about 30 minutes with no hiccups. So thats good. Ran a stress test on the GPU and worked well. So it's looking better, but I'm hoping to do a longer flight tomorrow to make sure. My normal flights range from around 1-2 hours normally so I'll do one of those. Thanks for all the help guys! Coder - Oculus Rift Guy - Court Jester
cichlidfan Posted September 20, 2015 Posted September 20, 2015 Good deal. This is a prime example of why I always stress getting a good PSU for any system. Another reason is that warranties on better PSUs last longer than many people keep most of their other components. ASUS ROG Maximus VIII Hero, i7-6700K, Noctua NH-D14 Cooler, Crucial 32GB DDR4 2133, Samsung 950 Pro NVMe 256GB, Samsung EVO 250GB & 500GB SSD, 2TB Caviar Black, Zotac GTX 1080 AMP! Extreme 8GB, Corsair HX1000i, Phillips BDM4065UC 40" 4k monitor, VX2258 TouchScreen, TIR 5 w/ProClip, TM Warthog, VKB Gladiator Pro, Saitek X56, et. al., MFG Crosswind Pedals #1199, VolairSim Pit, Rift CV1 :thumbup:
Gladman Posted September 20, 2015 Posted September 20, 2015 I had to buy a larger PSU when I went SLI GTX780's. Mine very simply shut off and had to be restarted. i9 9900K @ 5.1Ghz - ASUS Maximus Hero XI - 32GB 4266 DDR4 RAM - ASUS RTX 2080Ti - 1 TB NVME - NZXT Kraken 62 Watercooling System - Thrustmaster Warthog Hotas (Virpil Base) - MFG Crosswind Pedals - Pimax 5K+ VFA-25 Fist Of The Fleet [sigpic]http://forums.eagle.ru/signaturepics/sigpic99190_2.gif[/sigpic] Virtual Carrier Strike Group 1 | Discord
