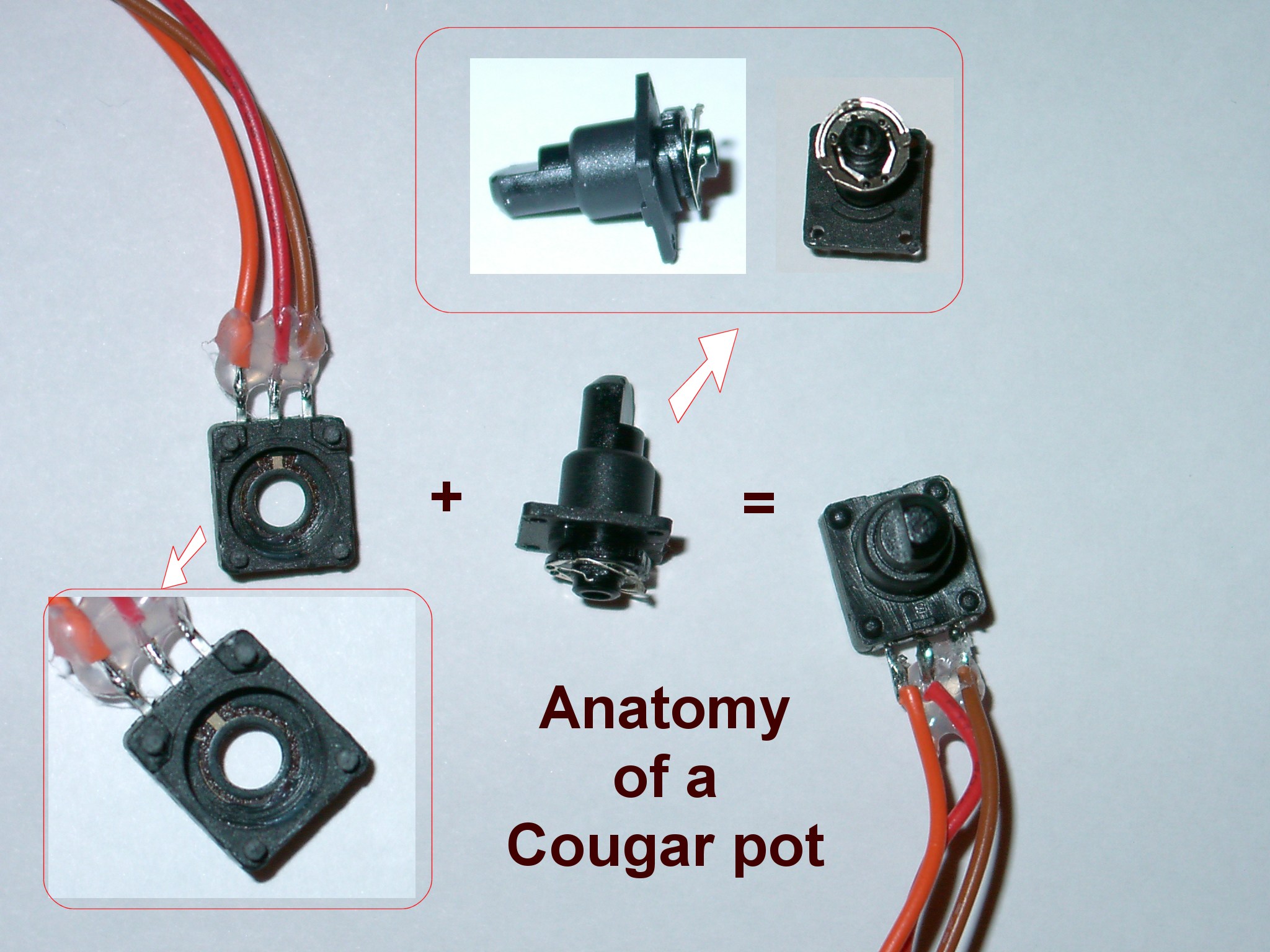

Maverick_NL Posted August 19, 2016 Posted August 19, 2016 (edited) Hello, I am searching for potmeters for the hotas cougar. Does anyone know what KOhm Value the pots have? Or where i can orde the right pots in the Netherlands? should be nice if i can get an internet link of it.. See attachments of the pots where i am searching for.. you may also PM me with information. Thanks..... Edited August 19, 2016 by Maverick_NL MrMaverick Pilot in the RAZBAM Harrier DIsplay Team Mavericks Youtube: My Youtube Channel Discord: https://discord.gg/MRU8m5m
Sokol1_br Posted August 19, 2016 Posted August 19, 2016 (edited) Your best choice to find replacement is contact Thrustmaster support. The original model is CTS251B15F104B2NB Or contact CTS The case is that potentiometer for joystick has a exclusive electric travel (30~60 degrees), and you don't find then for buy in electronics shops (Digikey, Mouser). Always there's the option to do DIY HALL sensor assembly or buy MilesD read to use kits: http://forums.eagle.ru/showthread.php?t=160613 Edit - find CTS 251 series datasheet: http://www.ctscorp.com/wp-content/uploads/2015/11/Series-251.pdf CTS251B15F104B2NB Value is 100k (104) Effective electrical angle - the number 2 before NB - is not listed, probable between 40 and 60 degrees, made under order for Thrustmaster. Edited August 30, 2016 by Sokol1_br
Maverick_NL Posted August 19, 2016 Author Posted August 19, 2016 Cheers MrMaverick Pilot in the RAZBAM Harrier DIsplay Team Mavericks Youtube: My Youtube Channel Discord: https://discord.gg/MRU8m5m
Maverick_NL Posted August 23, 2016 Author Posted August 23, 2016 i Asked Thrustmaster, they dont have those potmeters in stock any more. Are there another potmeters that i can use for it? instead of the Standard CTS? MrMaverick Pilot in the RAZBAM Harrier DIsplay Team Mavericks Youtube: My Youtube Channel Discord: https://discord.gg/MRU8m5m
CyStryker Posted August 23, 2016 Posted August 23, 2016 Potmeters Sir: I have two sets for the Cougar stick and one set for the TQS. I removed them to install Miles' magnetic sensors in one stick and one to install the UB2NXT by Ian Johnson out of Australia . Go with Miles' items they are worth the price. Roland
Sokol1_br Posted August 23, 2016 Posted August 23, 2016 (edited) Are there another potmeters that i can use for it? instead of the Standard CTS? Problem #1 - find a pot with same axis length, diameter, D recess position, same case size (LxWxH). Problem #2 - find a pot with above characteristic with 40~60 degrees of electrical travel - normally find only in "joystick potentiometer". Possible source of suitable pot' - micro-stick PS3 like, need unsolder. Have you heard of... HALL sensor? :D Edited August 23, 2016 by Sokol1_br
Maverick_NL Posted August 23, 2016 Author Posted August 23, 2016 Yeah i heard of the hall sensor, its to expansive, i found the right potmeter by mouser, thanks anyway.. MrMaverick Pilot in the RAZBAM Harrier DIsplay Team Mavericks Youtube: My Youtube Channel Discord: https://discord.gg/MRU8m5m
Sokol1_br Posted August 23, 2016 Posted August 23, 2016 Good. Post the link for potentiometer you find in Mouser, can be useful for other people. :thumbup:
Maverick_NL Posted August 24, 2016 Author Posted August 24, 2016 The link to the potmeter is: http://nl.mouser.com/Search/m_ProductDetail.aspx?CTS%2f251B12T104A2NB%2f&qs=6E8igxPflKdliaNMymwp6A%3d%3d MrMaverick Pilot in the RAZBAM Harrier DIsplay Team Mavericks Youtube: My Youtube Channel Discord: https://discord.gg/MRU8m5m
Sokol1_br Posted August 24, 2016 Posted August 24, 2016 251B15F104B2NB 251B12T104A2NB The only differences is in axis length and "D" recess - nothing critical. :)
droopy114 Posted August 25, 2016 Posted August 25, 2016 The link to the potmeter is: http://nl.mouser.com/Search/m_ProductDetail.aspx?CTS%2f251B12T104A2NB%2f&qs=6E8igxPflKdliaNMymwp6A%3d%3d Thanks, useful for me to :thumbup:
Maverick_NL Posted August 30, 2016 Author Posted August 30, 2016 (edited) Thanks, useful for me to :thumbup: The d shaft is to small "diameter" doesn't fit I'll contact mouser again Edited August 30, 2016 by Maverick_NL 1 MrMaverick Pilot in the RAZBAM Harrier DIsplay Team Mavericks Youtube: My Youtube Channel Discord: https://discord.gg/MRU8m5m
Sokol1_br Posted August 30, 2016 Posted August 30, 2016 And if use adhesive tap for increase the pot axis diameter, the difference is ~1mm.? Similar to what done there: http://cougar.flyfoxy.com/images/cougar/Hall_and_OEM_pot.jpg
Maverick_NL Posted August 31, 2016 Author Posted August 31, 2016 (edited) And if use adhesive tap for increase the pot axis diameter, the difference is ~1mm.? Similar to what done there: http://cougar.flyfoxy.com/images/cougar/Hall_and_OEM_pot.jpg The diameter is to small the whole won't turn the pin.. 1mm diff I'll think I'm gonna contact milesd Edited August 31, 2016 by Maverick_NL MrMaverick Pilot in the RAZBAM Harrier DIsplay Team Mavericks Youtube: My Youtube Channel Discord: https://discord.gg/MRU8m5m
LTC. Android Posted October 9, 2016 Posted October 9, 2016 10K or 100K? Dyin' ain't much of a livin' Boy -----Josey Wales
Sokol1_br Posted October 10, 2016 Posted October 10, 2016 http://www.ctscorp.com/wp-content/uploads/2015/11/Series-251.pdf CTS251B15F104B2NB Code 104 means 100k .
freemind_fly Posted January 5, 2018 Posted January 5, 2018 Would this one work? https://www.mouser.de/productdetail/grayhill/68parn-020c?qs=sGAEpiMZZMtWuggIubTlf%2F3cWNfqJkdk3GioW4%2FSKP0%3D
Sokol1_br Posted January 5, 2018 Posted January 5, 2018 With all this wires in interface, difficult. This work - but require mechanical adaptation, due the size: https://www.digikey.com/product-detail/en/tt-electronics-bi/6127V1A360L.5FS/987-1393-ND/2620662 Attention to model angle, you need 30 or 60 degrees, only. And to in shaft diameter. Sample of use:
