Approach Mode HUD

[dresoccer4]

i'm using Chuck's guide to practice landing, and the screenshots he uses of Approach Mode don't seem to look like mine. when i select Approach Moade, the entire top line of the HUD (airspeed, heading, waypoint, etc) drops down the middle of the HUD which makes things hard to see.



is there a reason this is happening to me but not to Chuck? thanks!



[ATTACH]180119[/ATTACH]

[Deano87]

Your HUD looks perfectly normal to me.



Some people raise their seat so they can see better over the nose.

[dresoccer4]

Your HUD looks perfectly normal to me.



Some people raise their seat so they can see better over the nose.



so the top line is supposed to drop down to the middle of the HUD, and you're supposed to raise your seat till it's back at the top of the HUD? is that the SOP?

[Deano87]

I don't know if that's the SOP but it's what I and lots of other people do. The landing attitude of the mirage is pretty extreme at times.

[dresoccer4]

I don't know if that's the SOP but it's what I and lots of other people do. The landing attitude of the mirage is pretty extreme at times.



gotcha, thanks. ill give it a try

[dresoccer4]

oh yeah it works great now thanks

[myHelljumper]

I think it's SOP.



In DCS it's needed if you want to see the runway at 14° AoA

[jojo]

so the top line is supposed to drop down to the middle of the HUD, and you're supposed to raise your seat till it's back at the top of the HUD? is that the SOP?



Yes. The landing AoA is 14°. So rise the seat (or view point) until you can see the tip of Pitot tube down in the HUD.:thumbup:

[Vatikus]

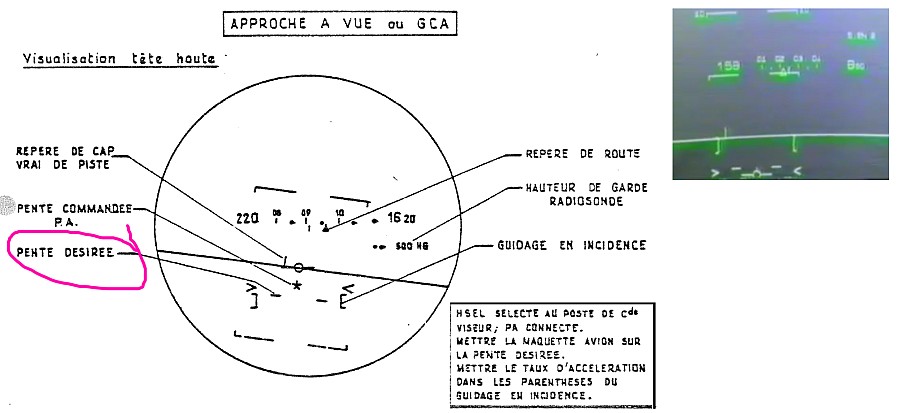

It would been nice also to get the HUD fix for glideslope indication ...

[myHelljumper]

It would been nice also to get the HUD fix for glideslope indication ...



It's linked to the PD parameter on the PCN



Edit: My mistake, was thinking about the PCN and not the PCA.

Edited March 1, 2018 by myHelljumper

[Deano87]

It's linked to the PD parameter on the PCA



In APP mode it should appear though?





Also what is the correct glideslope angle for the M2000? I know the Viper uses 2.5 degree approach if the airport allows it (obstructions etc) is the m2000 similar?

Edited March 1, 2018 by Deano87

[myHelljumper]

In APP mode it should appear though?



See edit, you would have to set the desired slope on the CP/PD parameter on the PCN for it to show in APP mode.

[Deano87]

See edit, you would have to set the desired slope on the CP/PD parameter on the PCN for it to show in APP mode.



Ok. So is it currently possible within DCS? And are there any guides showing how to set that?

[Vatikus]

In APP mode it should appear though?

Indeed, and it does not in DCS.



As for usual GS value... I only know that french use 3.7 for carrier landings. Not as solid info about mainland. Could be from 2.5-3.

[jojo]

Also what is the correct glideslope angle for the M2000? I know the Viper uses 2.5 degree approach if the airport allows it (obstructions etc) is the m2000 similar?



Yes, it will be fine. 2.5° to 3°

[myHelljumper]

Ok. So is it currently possible within DCS? And are there any guides showing how to set that?



No, it does not work yet.

[Deano87]

No, it does not work yet.



Ah cool. I was unsure if you meant it should work now in DCS or not. Thanks for clarifying :)

[myHelljumper]

Ah cool. I was unsure if you meant it should work now in DCS or not. Thanks for clarifying :)



Yeah, I didn't explained it very well, sorry 'bout that :doh:.
