Sorry for the (maybe) Dumb Question; ..........

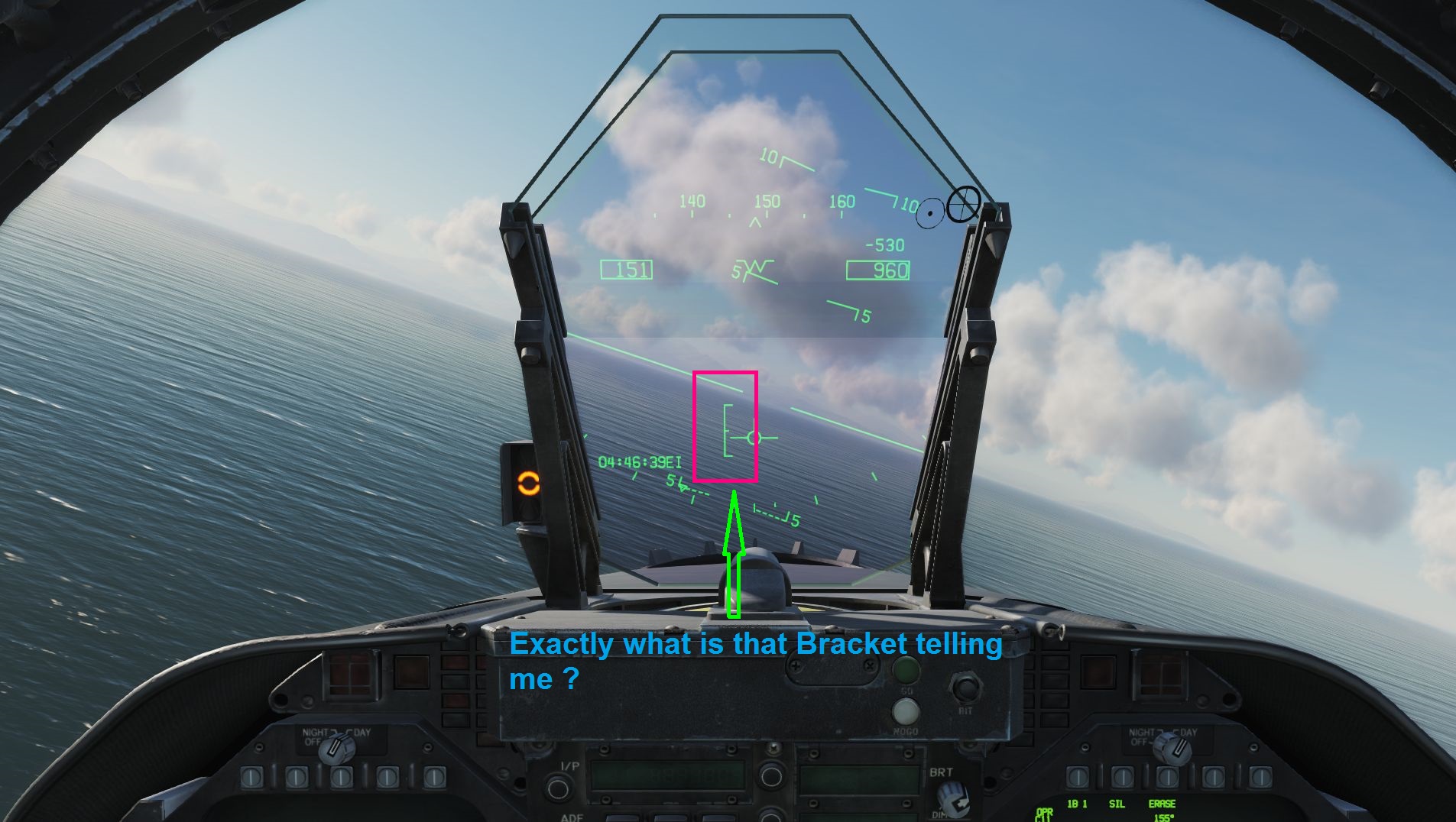

............ But what does that Bracket (in HUD) do, what is it telling me ?



In terms of:



- Airspeed (AoA)



- Pitch Trim



- Power Setting



- AoA Indexer





I've read references to it in the Forum and Flight Manual, but still don't quite grasp what it's telling me. Does it know something I don't from just eye-balling it ?



THANX !


Posted (edited)

Learn all about how the hornet lands using on speed AOA in this thread here



Be sure to watch the first video in that thread by a former F-18 pilot that will explain how the navy lands aircraft using on speed AOA.



The O donut (angle of attack indicator) to the left is the same thing as the hud E bracket.



In other words. You are on speed in that pic and it's also to help you trim the aircraft correctly for on speed.

Edited by David OC

i7-7700K OC @ 5Ghz | ASUS IX Hero MB | ASUS GTX 1080 Ti STRIX | 32GB Corsair 3000Mhz | Corsair H100i V2 Radiator | Samsung 960 EVO M.2 NVMe 500G SSD | Samsung 850 EVO 500G SSD | Corsair HX850i Platinum 850W | Oculus Rift | ASUS PG278Q 27-inch, 2560 x 1440, G-SYNC, 144Hz, 1ms | VKB Gunfighter Pro

Chuck's DCS Tutorial Library

Download PDF Tutorial guides to help get up to speed with aircraft quickly and also great for taking a good look at the aircraft available for DCS before purchasing. Link

Posted
Why does the AOA value in the HUD disappear?





Because you are then using the E bracket to manage it
