Command binding missing. Increase/Decrease RPM

[xavnl]

I cannot assign this control to my joystick (cells are "greyed-out").

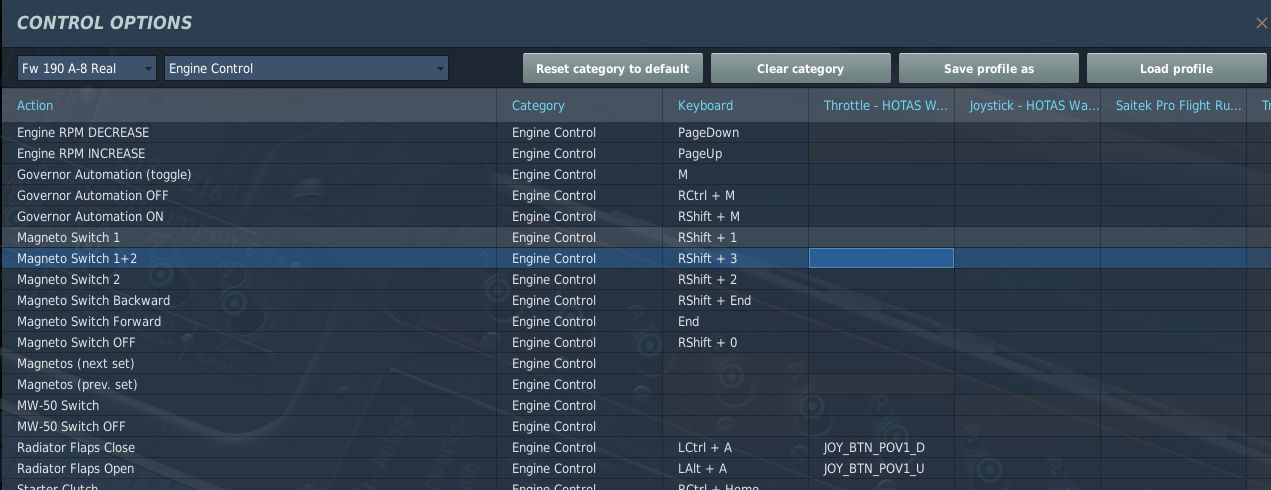

Screenshot attached.

[fjacobsen]

+1

[71st_Mastiff]

Yep first thing I noticed, can not take her into manual mode.

[fjacobsen]

You can assign Governor automatic On/Off (btw - the function is mixed around), but You cannot assign incr/decr to controllers. Default keyboard assignment for that is PgUp/PgDn

[xavnl]

You can assign Governor automatic On/Off (btw - the function is mixed around), but You cannot assign incr/decr to controllers. Default keyboard assignment for that is PgUp/PgDn



Correct, I would like to be able to assign it to my controller though, keyboard is too far away.

[LeCuvier]

Propeller Pitch Command



The switch on the throttle is named "Drehzahl" = Rev. Rate, and I guess pitch and rev. rate are directly related in that a reduced propeller pitch results in increased rev. rate. The missing command for Engine RPM was omitted in the files "default.lua" and "Throttle - HOTAS Warthog.lua" in the folder "...\DCS World OpenBeta\Mods\aircraft\FW-190A8\Input\FW-190A8\joystick". I'm sure ED will add it very soon; but in the meantime we can add it ourselves by inserting these two lines of code in the files:

{down = device_commands.Button_14, up = device_commands.Button_14, cockpit_device_id = devices.ENGINE_SYSTEM, value_down = -1.0, value_up = 0.0, name = _('Input.Bf109K4.pitch_plus'), category = _('Engine Control')},
{down = device_commands.Button_14, up = device_commands.Button_14, cockpit_device_id = devices.ENGINE_SYSTEM, value_down = 1.0, value_up = 0.0, name = _('Input.Bf109K4.pitch_minus'), category = _('Engine Control')},

They should be inserted near the top of the file, but below this line:

keyCommands = {

If you intend to use the command with the TM WH Throttle they must be inserted in the file "Throttle - HOTAS Warthog.lua" (not "Throttle - HOTAS Warthog.diff.lua"!!!). Else they are only needed in the "default.lua".

These edits should be made with the free Notepad++.

[xavnl]

Wow!

Thanks.
