Mr_Burns Posted June 29, 2019 Posted June 29, 2019 Gday all. I have see a couple of pits now with the Wing Fold / Hold / Spread and just wondering what people are doing for it. It seems to need a push pull action (is this a two position or three, i.e. pull to turn release to lock) whereby I could use a simple push button switch. Then 3 positions. Honestly for the amount of use it will get I may just do something like the hook with just fold and spread and a push button to lock/unlock. Has any Code been written for DCS Bias, does anyone know what commands that is looking for to operate the lever? Thanks :helpsmilie:
jimiC Posted June 29, 2019 Posted June 29, 2019 I'm using a rotary encoder with pushbutton Sent from my SM-G960F using Tapatalk
alt10k Posted June 29, 2019 Posted June 29, 2019 2 pole 6 way rotary switch works for me. I'm not after the "IRL pit", just easy and cheap solutions. Need a bit wire tinkering the have wanted switching order correct. Asus X99 Deluxe II|Intel i7 6850K @4.2GHz|G.Skill 64GB Trident Z DDR4 3200MHz|Noctua NH-D15 and 4x NF-A14 PWM|Corsair HX850i Win10 Pro 64 @M.2 512GB 950 PRO|DCS @M.2 250GB 960 EVO ASUS GTX 1070 STRIX OC 8GB GDDR5|ASUS PG348Q - LG 25UM58 @3440x2520 Corsair Strafe RGB MX Silent|TM Hotas Warthog 7.5cm ext & 3x MFD Cougars|MFG Crosswind|TrackIR 5 A-10C|AJS-37|AV-8B|BS2|F/A-18C|FC3|Mi-8MTV2|PG NE NO SY maps|Tacview.
Mr_Burns Posted June 29, 2019 Author Posted June 29, 2019 I'm using a rotary encoder with pushbutton Sent from my SM-G960F using Tapatalk How? Please!
DDSSTT Posted June 29, 2019 Posted June 29, 2019 4-way Arcade Joystick, https://www.arcadespareparts.com/arcade_parts/joysticks/arcade_joystick_controller/13328.html Up/Down = Pull/Stow Left/Right = Rotate Left/Right I use the 4 of these for Gear, Hook, Parking Brake, and Wing Fold... For the Hook and Gear I use it in the 2-way configuration for Up/Down only. [sIGPIC][/sIGPIC] http://www.csg-2.net/
Mr_Burns Posted June 30, 2019 Author Posted June 30, 2019 4-way Arcade Joystick, https://www.arcadespareparts.com/arcade_parts/joysticks/arcade_joystick_controller/13328.html Up/Down = Pull/Stow Left/Right = Rotate Left/Right I use the 4 of these for Gear, Hook, Parking Brake, and Wing Fold... For the Hook and Gear I use it in the 2-way configuration for Up/Down only. Good idea, inexpensive too!
mikemadmax20 Posted June 30, 2019 Posted June 30, 2019 Hi Mr B I'm using the Logitech GT3 which has a mini joystick along with it's various keys I've programmed for other cockpit functions. For my Landing Gear, I'm using Saitek Switch Panel.

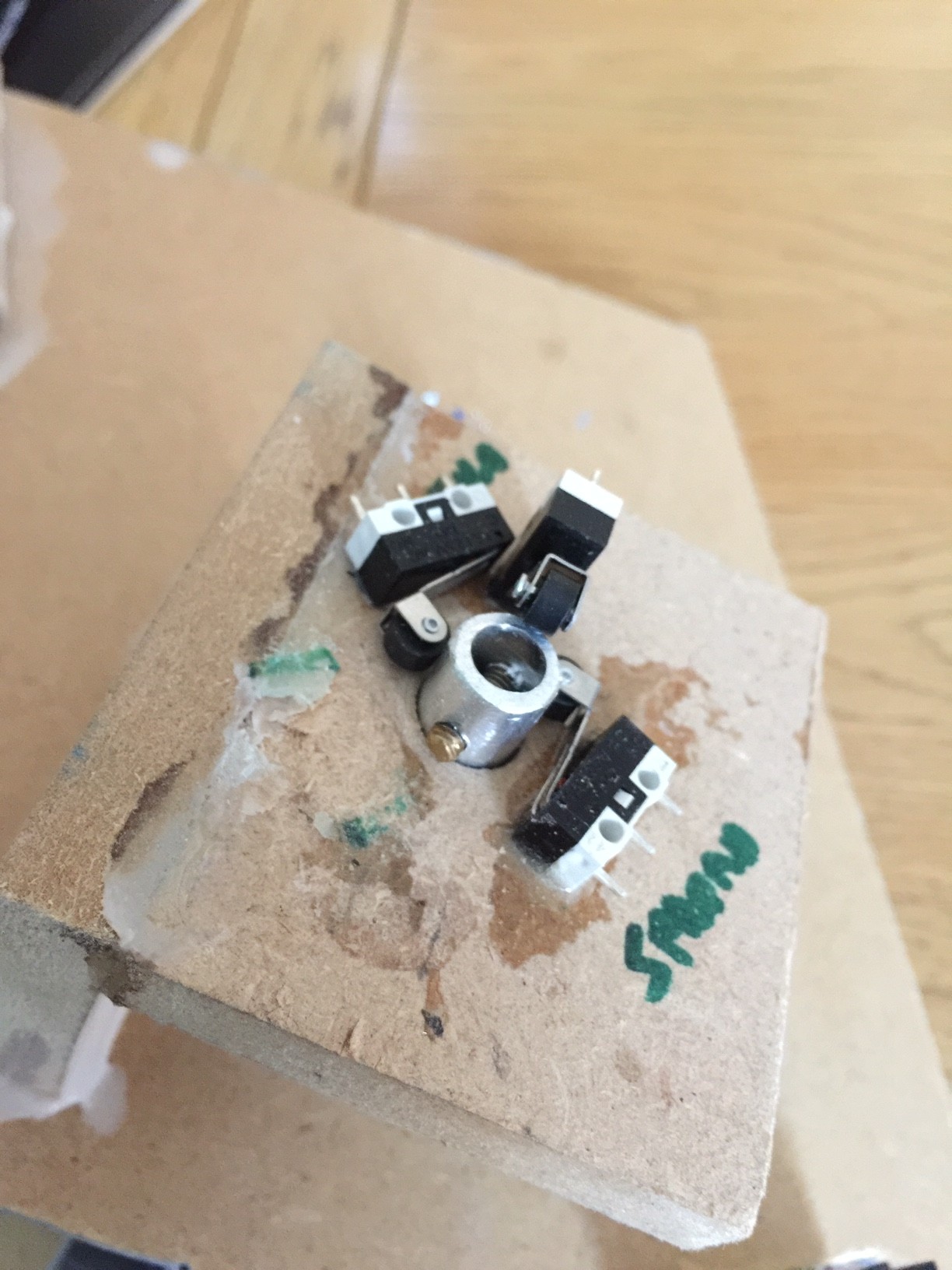

Shadow912 Posted July 1, 2019 Posted July 1, 2019 (edited) Hi Mr B. I've made mine using microswitches. I have a piece of aluminium tube with a small round headed screw which activates a microswitch as the handle for the lock is pulled or pushed. Then another pair of microswitches can be activated when the handle is rotated. I have attached a picture of the push/pull switch. If you like I can send more pics? Dave https://forums.eagle.ru/showthread.php?t=243783 Edited July 1, 2019 by Shadow912 Sinclair ZX81 - 1K RAM - 16K Wobbly Ram Pack - Tape Drive - Kempston Joystick :helpsmilie:
Mr_Burns Posted July 2, 2019 Author Posted July 2, 2019 Hi Mr B. I've made mine using microswitches. I have a piece of aluminium tube with a small round headed screw which activates a microswitch as the handle for the lock is pulled or pushed. Then another pair of microswitches can be activated when the handle is rotated. I have attached a picture of the push/pull switch. If you like I can send more pics? Dave https://forums.eagle.ru/showthread.php?t=243783 Hey mate, I saw yours and wondered what you did behind the panel! Would you mind posting a few more close ups of behind the panel please?
Shadow912 Posted July 2, 2019 Posted July 2, 2019 Hey mate, I saw yours and wondered what you did behind the panel! Would you mind posting a few more close ups of behind the panel please? Hi again Mr B. I took a couple more pics.. 'a picture paints a thousand words' :smilewink: (There are some more on my VR SIMPIT thread - It wont let me upload them twice...:doh:) https://forums.eagle.ru/showthread.php?t=243783 Dave 'Shadow912' Sinclair ZX81 - 1K RAM - 16K Wobbly Ram Pack - Tape Drive - Kempston Joystick :helpsmilie:
