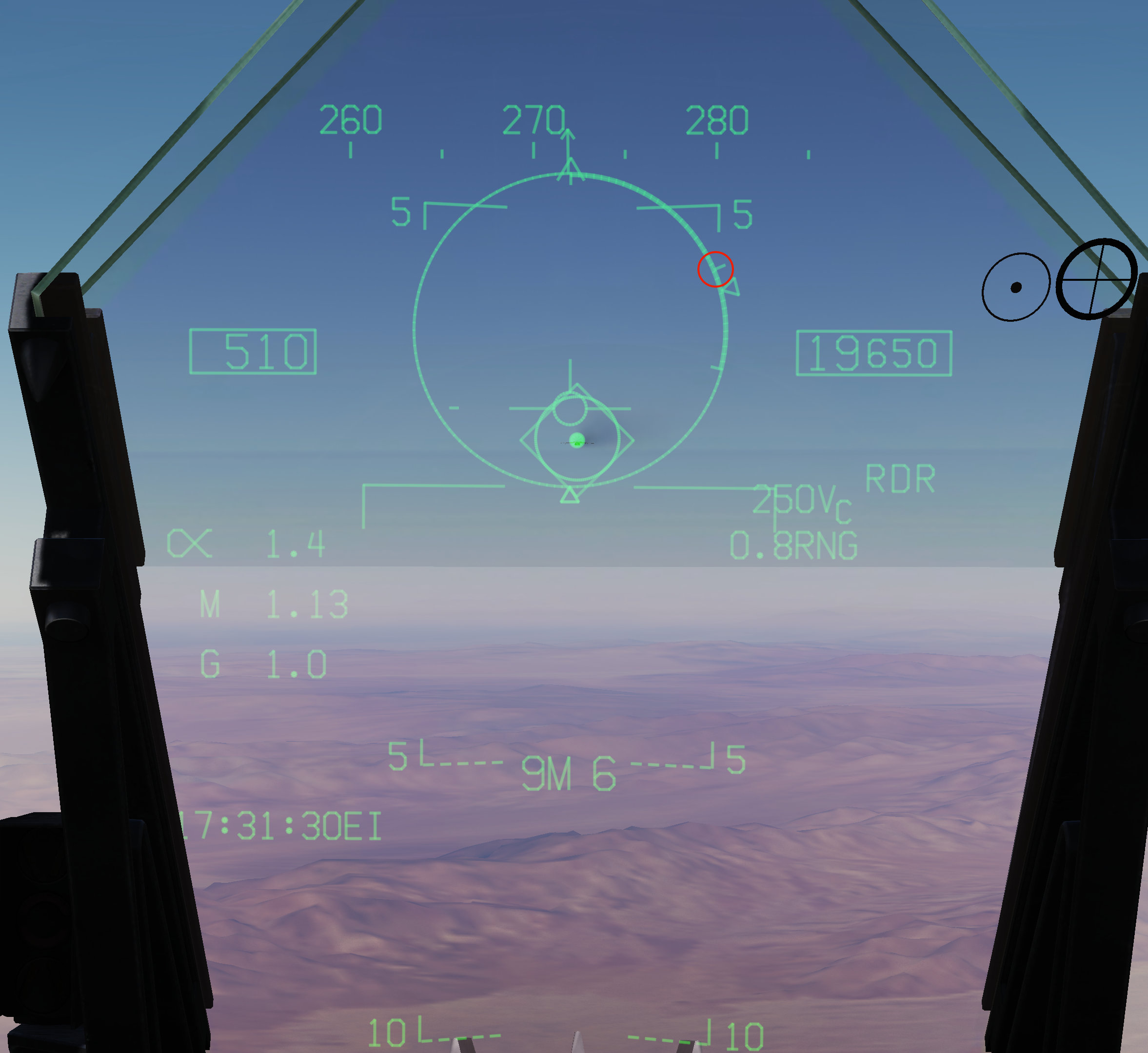

imacken Posted June 4, 2020 Posted June 4, 2020 What is the mark (red circle) in the attached on the AIM-9 HUD? I don't see it mentioned in manuals. Could it be a gun range indicator? Intel i7 12700K · MSI Gaming X Trio RTX 4090 · ASUS ROG STRIX Z690-A Wi-Fi · MSI 32" MPG321UR QD · Samsung 970 500Gb M.2 NVMe · 2 x Samsung 850 Evo 1Tb · 2Tb HDD · 32Gb Corsair Vengance 3000MHz DDR4 · Windows 11 · Thrustmaster TPR Pedals · Tobii Eye Tracker 5 · Thrustmaster F/A-18 Hornet Grip · Virpil MongoosT-50CM3 Base · Virpil Throttle MT-50 CM3 · Virpil Alpha Prime Grip · Virpil Control Panel 2 · Thrustmaster F-16 MFDs · HTC Vive Pro 2 · Total Controls Multifunction Button Box
Furiz Posted June 4, 2020 Posted June 4, 2020 According to the hud symbology that is the minimum range it can be fired as far as I know, everything closer than that it shouldnt work, or you are too close so the blast can dmg you too if it hits.
imacken Posted June 4, 2020 Author Posted June 4, 2020 Thanks, but no, Rmin is the triangle next to my ringed mark. Intel i7 12700K · MSI Gaming X Trio RTX 4090 · ASUS ROG STRIX Z690-A Wi-Fi · MSI 32" MPG321UR QD · Samsung 970 500Gb M.2 NVMe · 2 x Samsung 850 Evo 1Tb · 2Tb HDD · 32Gb Corsair Vengance 3000MHz DDR4 · Windows 11 · Thrustmaster TPR Pedals · Tobii Eye Tracker 5 · Thrustmaster F/A-18 Hornet Grip · Virpil MongoosT-50CM3 Base · Virpil Throttle MT-50 CM3 · Virpil Alpha Prime Grip · Virpil Control Panel 2 · Thrustmaster F-16 MFDs · HTC Vive Pro 2 · Total Controls Multifunction Button Box
Furiz Posted June 4, 2020 Posted June 4, 2020 Thanks, but no, Rmin is the triangle next to my ringed mark. Ah you are right, I completely subbed them... nvm Did you had your HUD caged?
imacken Posted June 4, 2020 Author Posted June 4, 2020 No, but why would that matter? Intel i7 12700K · MSI Gaming X Trio RTX 4090 · ASUS ROG STRIX Z690-A Wi-Fi · MSI 32" MPG321UR QD · Samsung 970 500Gb M.2 NVMe · 2 x Samsung 850 Evo 1Tb · 2Tb HDD · 32Gb Corsair Vengance 3000MHz DDR4 · Windows 11 · Thrustmaster TPR Pedals · Tobii Eye Tracker 5 · Thrustmaster F/A-18 Hornet Grip · Virpil MongoosT-50CM3 Base · Virpil Throttle MT-50 CM3 · Virpil Alpha Prime Grip · Virpil Control Panel 2 · Thrustmaster F-16 MFDs · HTC Vive Pro 2 · Total Controls Multifunction Button Box
Furiz Posted June 4, 2020 Posted June 4, 2020 No, but why would that matter? When HUD is caged you don't have any wind direction indicator, maybe it shows wind direction, just a guess.
imacken Posted June 4, 2020 Author Posted June 4, 2020 Thanks, but that is not the answer. Intel i7 12700K · MSI Gaming X Trio RTX 4090 · ASUS ROG STRIX Z690-A Wi-Fi · MSI 32" MPG321UR QD · Samsung 970 500Gb M.2 NVMe · 2 x Samsung 850 Evo 1Tb · 2Tb HDD · 32Gb Corsair Vengance 3000MHz DDR4 · Windows 11 · Thrustmaster TPR Pedals · Tobii Eye Tracker 5 · Thrustmaster F/A-18 Hornet Grip · Virpil MongoosT-50CM3 Base · Virpil Throttle MT-50 CM3 · Virpil Alpha Prime Grip · Virpil Control Panel 2 · Thrustmaster F-16 MFDs · HTC Vive Pro 2 · Total Controls Multifunction Button Box
DDSSTT Posted June 4, 2020 Posted June 4, 2020 Gun Maximum Range See pages 275-276 of the Hornet Early Access Guide [sIGPIC][/sIGPIC] http://www.csg-2.net/
imacken Posted June 4, 2020 Author Posted June 4, 2020 (edited) Gun Maximum Range Yep, that's what I guessed in the first post. Do you know that for sure, or are you just guessing? Not seen that mark shown anywhere in manuals or guides for the AIM-9. It is mentioned in the EA guide as you said on p275-276, but that is for the AIM-7. Nothing on the AIM-9 on p266., but presumably it is the same thing, just themanual needs updating. Edited June 4, 2020 by imacken Intel i7 12700K · MSI Gaming X Trio RTX 4090 · ASUS ROG STRIX Z690-A Wi-Fi · MSI 32" MPG321UR QD · Samsung 970 500Gb M.2 NVMe · 2 x Samsung 850 Evo 1Tb · 2Tb HDD · 32Gb Corsair Vengance 3000MHz DDR4 · Windows 11 · Thrustmaster TPR Pedals · Tobii Eye Tracker 5 · Thrustmaster F/A-18 Hornet Grip · Virpil MongoosT-50CM3 Base · Virpil Throttle MT-50 CM3 · Virpil Alpha Prime Grip · Virpil Control Panel 2 · Thrustmaster F-16 MFDs · HTC Vive Pro 2 · Total Controls Multifunction Button Box
Majik Posted June 5, 2020 Posted June 5, 2020 According to the video by Wags, it's the range to the target -
imacken Posted June 5, 2020 Author Posted June 5, 2020 According to the video by Wags, it's the range to the target Thanks, but sorry, but you're looking at the wrong mark. You're talking about the one on the inside at around 3 o'clock in my image. We are talking about the one ringed in red on the outside. We've established that it is gun range. Intel i7 12700K · MSI Gaming X Trio RTX 4090 · ASUS ROG STRIX Z690-A Wi-Fi · MSI 32" MPG321UR QD · Samsung 970 500Gb M.2 NVMe · 2 x Samsung 850 Evo 1Tb · 2Tb HDD · 32Gb Corsair Vengance 3000MHz DDR4 · Windows 11 · Thrustmaster TPR Pedals · Tobii Eye Tracker 5 · Thrustmaster F/A-18 Hornet Grip · Virpil MongoosT-50CM3 Base · Virpil Throttle MT-50 CM3 · Virpil Alpha Prime Grip · Virpil Control Panel 2 · Thrustmaster F-16 MFDs · HTC Vive Pro 2 · Total Controls Multifunction Button Box
Majik Posted June 5, 2020 Posted June 5, 2020 Thanks, but sorry, but you're looking at the wrong mark. You're talking about the one on the inside at around 3 o'clock in my image. We are talking about the one ringed in red on the outside. We've established that it is gun range. You're right, I was confused myself as I just went back to watch it, and realised he was already at Rmin. Thought it was a seperate cue for missile to target range. -
