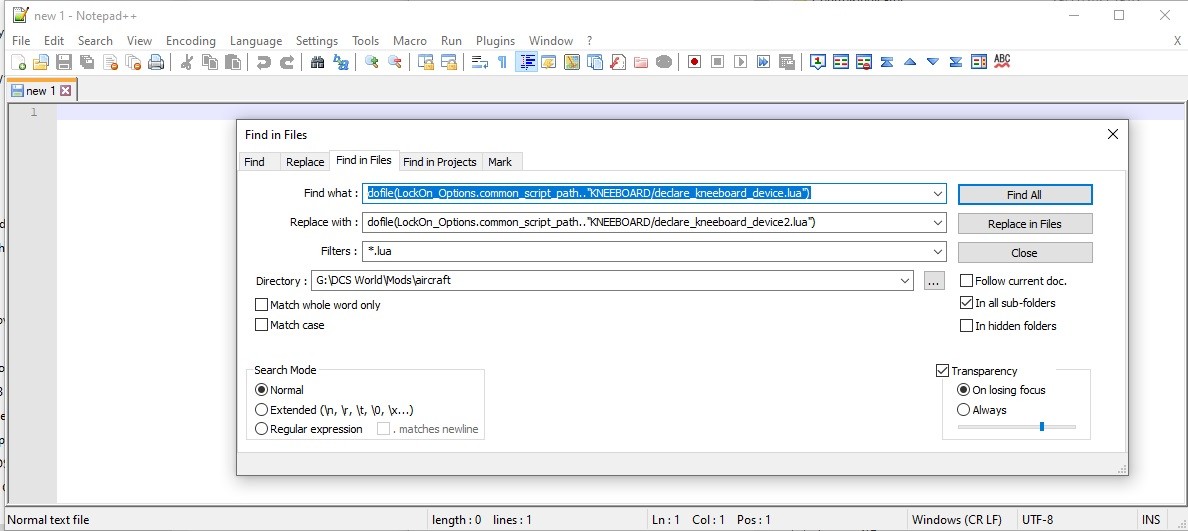

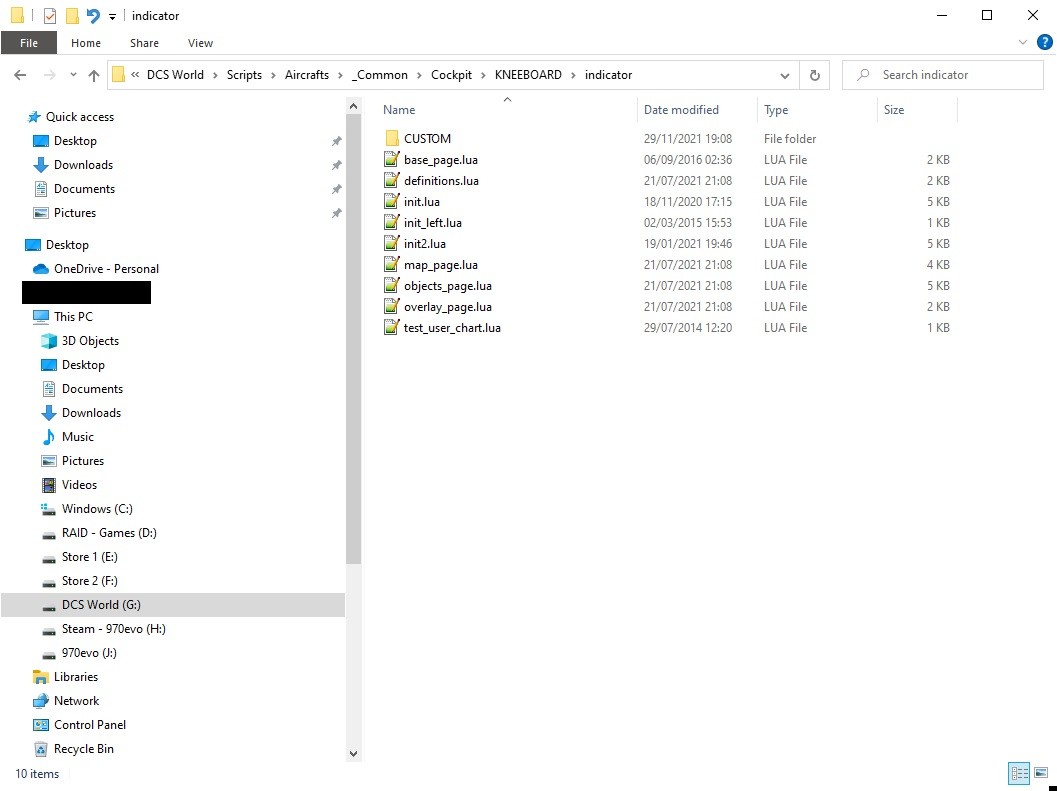

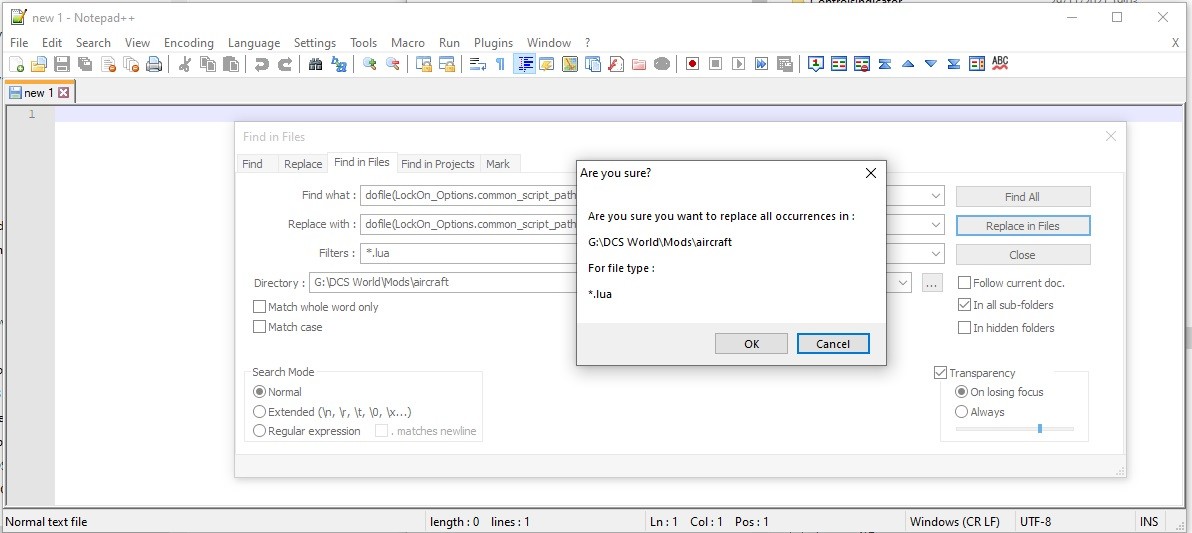

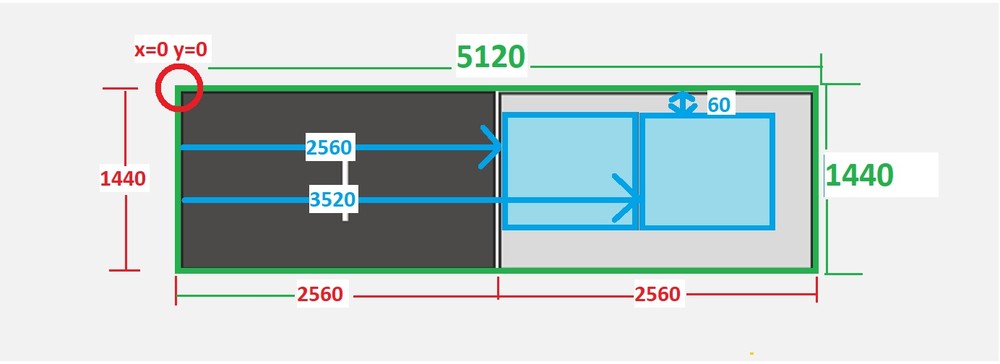

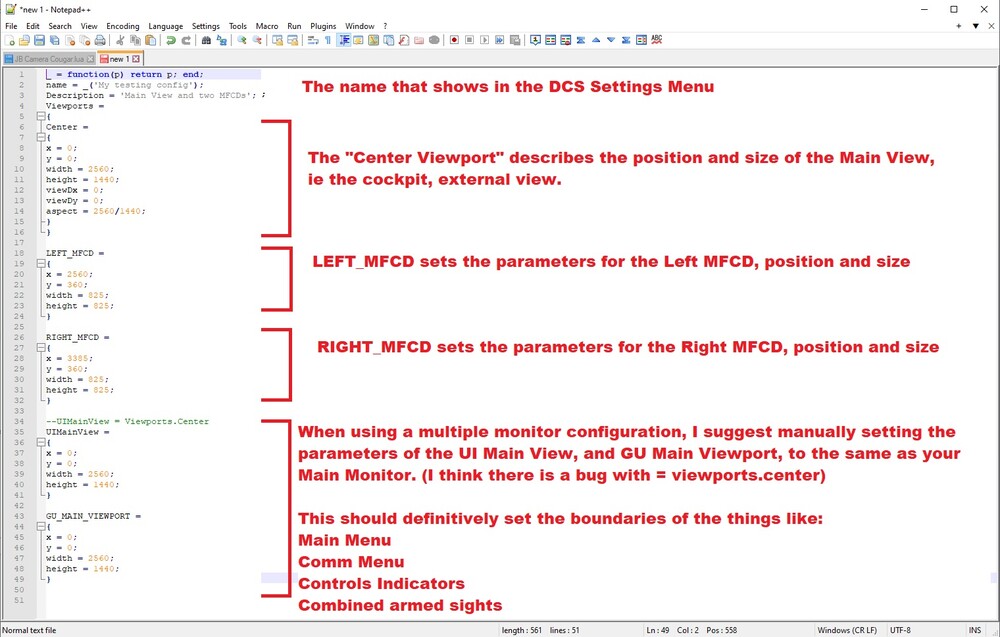

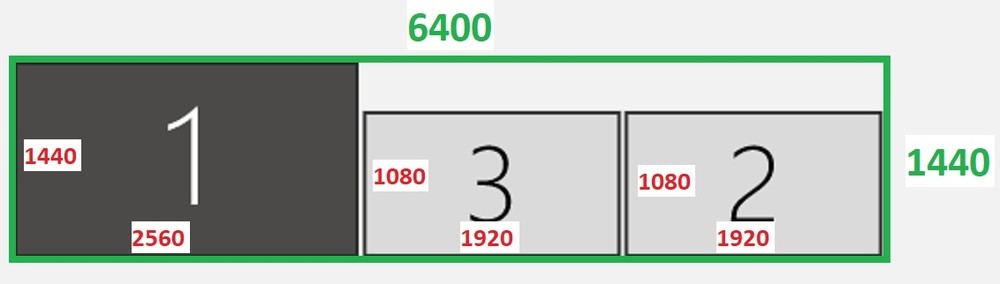

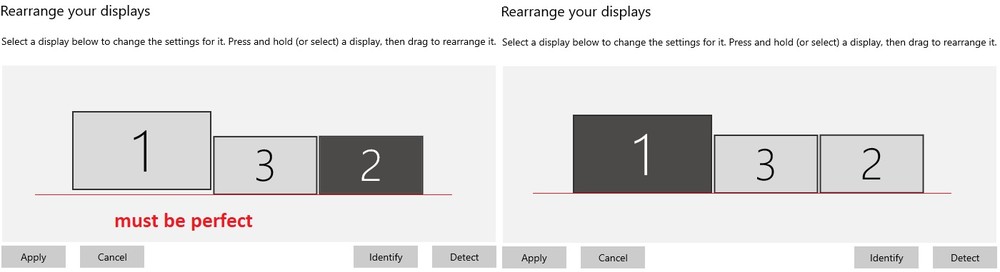

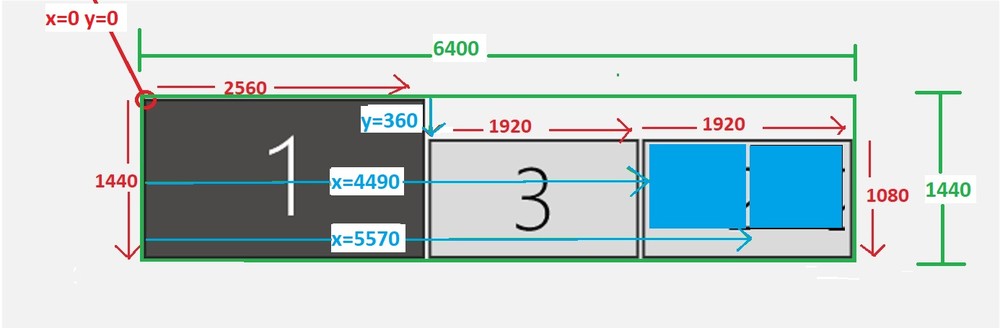

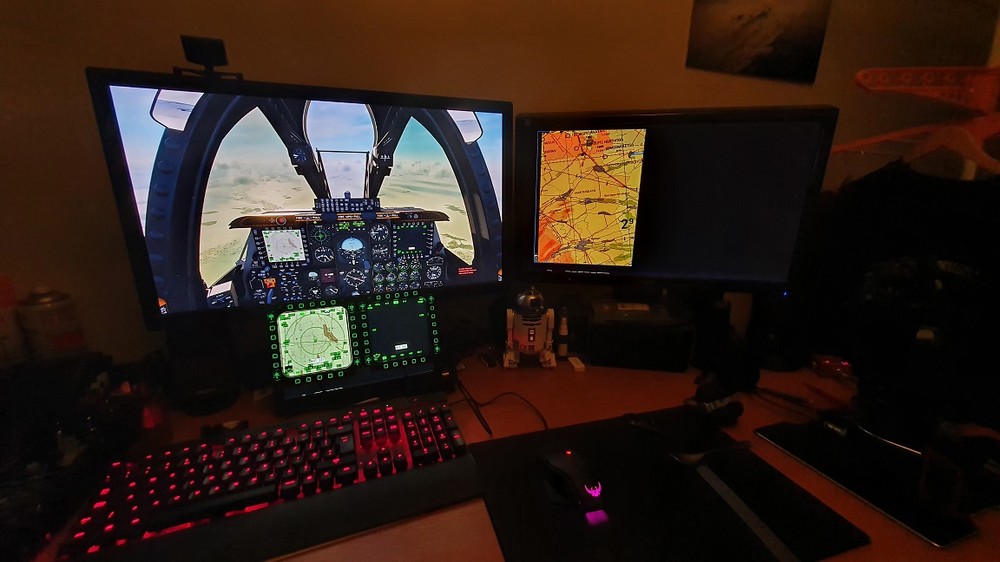

jonsky7 Posted January 13, 2021 Posted January 13, 2021 (edited) IMPORTANT - THIS GUIDE IS SPLIT OVER TWO POSTS, YOU MUST APPLY STEP 4 IN THE SECOND POST. Here is my attempt at explaining how to get DCS running with a main view, and MFCDs exported to a second or third display. I also believe following this guide in the same order as the steps provided will reduce frustration and problems. On this page you can find out information on: 1. How to export MFDs to another monitor or several monitors. 2. How to move the kneeboard opening position (does not currently pass Integrity check on pure scripts servers) 3. How to make exports aircraft specific (different size/location depending on aircraft) 4. How to make a displays table and alter some application settings. (useful for displays left/above your main display, or stop DCS making screens black if you don't want DCS to include them) 5. How to move "Indicators" (Crew status etc), couple of posts down. Step 1. - Configure your monitors correctly in Windows You must first make sure that your monitors are correctly configured in Windows Display Settings, right click anywhere on your desktop and select display settings ----------------------------------------------------------------------------------------------------------------------------------------------- You may setup your monitors in the display settings to be side by side or stacked one above the other. MAKING YOUR LEFT MONITOR THE MAIN MONITOR WILL ELIMINATE MANY POTENTIAL PROBLEMS or see a few posts below about displays tables and appsettings.lua. Note: You do not have to set up your displays in windows the same as you physically have your monitors setup on your desk. All this does is change how your mouse pointer moves from one screen to the next. For example, my monitor (2) below, is physically under my monitor (1). To get my mouse pointer onto monitor (2), I have to move it off the right edge of (1), then off the right edge of (3), instead of off the bottom of (1) I have also found that having a display in the bottom right is better due to the placement of some DCS "screens", the HUEY crew display and NS430 GPS pop out window for example. This issue mainly arises if your monitors have different resolutions, or are stacked in Display Settings. This is my setup, I have a 27inch 1440p as my main monitor (1), a 24inch 1080p monitor (3) and a 11inch 1080p monitor (2) --------------------------------------------------------------------------------------------------------------------------------------- Make sure your main monitor has the Make this my main monitor check box ticked, and all of your displays have Extend desktop to this display selected in the drop down box ----------------------------------------------------------------------------------------------------------------------------------------------------- The display edges must be perfectly aligned to aid with exported display positioning, drag both your main monitor and other monitors around until the edges are perfectly aligned. If the displays are not aligned perfectly, you can have the issue of the TaskBar not hiding on your other monitors. -------------------------------------------------------------------------------------------------------------------------------------------------------- Step 2. - Calculate your in game resolution Your in game resolution is calculated by adding up all of your screen resolutions. edit, or at least the screens you want DCS to use as gaming space For me, my in-game resolution is 6400x1440 2560+1920+1920=6400 1440 is my tallest monitor in pixels Some other examples A 1440p panel and a 1080p panel 3640x1440 Two 1080p panels 3840x1080 A 1080p and one 1024x768 7" display 1920x1848 a 1080p panel and 2 lilliput displays 1920x1680 Hold onto to that number for now ------------------------------------------------------------------------------------------------------------------------------------------------------- 3. Configure a DCS monitor setup file We now need to configure a monitor setup file. Notepad++ is a free editing tool and can be downloaded here https://notepad-plus-plus.org/downloads/ Some issues have been reported while editing .lua files with Windows Notepad The files are located in two locations. The default monitor config files are located: eg C:/Program files/DCS World/Config/MonitorSetup note: these files may be overwritten during updates or repair Your personal monitor config files are located: Saved Games/DCS/Config/MonitorSetup note: these are NOT overwritten during updates or repair "Windows Saved Game" folder can be found by searching for Saved Games in the start menu search function. If you don't yet have the folder Saved Games/DCS/Config/MonitorSetup/ You can just create one. I have included a very basic monitor config .lua file here --------------------------> My testing config.lua It is based on a two monitor configuration, both with 2560x1440 resolution So lets have a look at a monitor setup file: First, I suggest you change the name inside the file to something memorable. (line 2) This is the name shown within the DCS settings menu. DCS uses a system of "Viewports", and Viewports are basically "windows" within DCS. In the monitor setup file, we tell DCS where to put the Viewports, and what size they should be. When we give a Viewport a position, we are telling DCS where the top left corner of that viewport will be. The x and y coordinates. To set the size we use the width and height settings. DCS works on a left to right system for x in pixels, and it works on a top to bottom system for y in pixels. Breaking down the above example: The Center viewport is: x = 0 ---- this describes where we want the left edge of the viewport to be, in this case zero, it will be all the way to the left Y = 0 ---- this describes where we want the top edge of the viewport to be, in this case zero, it will be at the top. width = 2560 ----it will be 2560 pixels wide, counting from the left height = 1440 ---- it will be 1440 tall, counting from the top viewDx and viewDy are offsets used when you want to split up the cockpit view over many monitors, not covered in this MFD guide. Aspect = 2560/1440 ---- This is simply width divided by height. the Left MFCD is x = 2560 ---- 2560 pixels from the far left of the total resolution, this will put it on the left edge of the second monitor y = 60 ---- 60 pixels from the top, from the top of the very top left corner of the entire resolution width = 825 it will be a 825 pixels wide height =825 and 825 pixels tall, making a square. the Right MFCD is x = 3385 ---- 3385 pixels from the far left of the total resolution, this will put it 825 pixels in from the left edge of the second monitor 2560+825=3385 which in this case will be touching the Left MFCD y = 60 ---- 60 pixels from the top, from the top of the very top left corner of the entire resolution width = 825 it will be a 825 pixels wide height =825 and 825 pixels tall, making a square. UIMainView and GU_MAIN_VIEWPORT The UIMainView is normally equal to viewports.center. That should be fine, but, I have seen multiple people with the issue of the Comms menu not being confined to the main screen, or the controls indicators are weirdly placed, or the F10 mouse pointer has some sort of offset (made be a cubesim only issue?), or the gunsights in combined arms vehicles are split across screens. By manually setting the parameters of the UIMainView and adding the GU_MAIN_VIEWPORT, and setting them both to the same as your main view, at least some of the issues are fixed. This diagram shows how that works out Although monitors have bezels, there is no pixel gap, the next screen is the next pixel. The GREEN shows the total resolution, the numbers we use for DCS The DARK GREY box is the center view. 2560x1440 The BLUE is the MFCDs The RED is the individual screen resolutions Lets have a look at another example when using monitors with different resolutions. This is my setup. so for me, above, my center viewport is: x = 0 ---- this describes where we want the left edge of the viewport to be, in this case zero, I want it to be all the way to the left Y = 0 ---- this describes where we want the top edge of the viewport to be , in this case zero, I want it to be at the top. width = 2560 ---- I want it to cover my whole main monitor screen, left to right height = 1440 ---- I want it to cover my whole main monitor screen, top to bottom viewDx and viewDy are offsets used when you want to split up the cockpit view over many monitors, not covered in this MFD guide. Aspect = 6400/1440 my Left MFCD is x = 4490 ---- 4490 pixels from the far left, this is because my main screen is 2560, the next screen is 1920, and I want it to be on my third screen, but 10 pixels in from the edge, 2560+1920+10 = 4490 y = 360 ---- 360 pixels from the top, this is because my main screen is 1440 pixels tall, but my third screen is only 1080, and the top of third screen is 360 pixels below the top of my main screen. 1440-1080=360 width = 825 how wide I want my MFD to be in pixels from left to right height = 825 how tall I want my MFD to be in pixels from top to bottom my Right MFCD is x =5570 ---- 5570 pixels from the far left, this is because my main screen is 2560, the next screen is 1920, and I want it to be on my third screen, but 1090 pixels in from the edge, 2560+1920+1090 = 5570 y = 360 ---- 360 pixels from the top, this is because my main screen is 1440 pixels tall, but my third screen is only 1080, and the top of third screen is 360 pixels below the top of my main screen. 1440-1080=360 width = 825 how wide I want my MFD to be in pixels from left to right height = 825 how tall I want my MFD to be in pixels from top to bottom Alternatively you can specify x and y like this take my Right MFCD for example x = 2560+1920+1090 ---- 5570 pixels from the far left, this is because my main screen is 2560, the next screen is 1920, and I want it to be on my third screen, but 1090 pixels in from the edge, 5570=2560+1920+1090 y = 360 ---- 360 pixels from the top, this is because my main screen is 1440 pixels tall, but my third screen is only 1080, and the top of third screen is 360 pixels below the top of my main screen. 1440-1080=360 width = 825 how wide I want my MFD to be in pixels from left to right height = 825 how tall I want my MFD to be in pixels from top to bottom This small program can help with finding coordinates, thanks @Pipe You can drag the window around and resize it, and it will report the position and size of the window, very handy. http://breakthrusoftware.com/html/onlinedocs/kb/installkb/ScreenCoordTool.html Edited January 15 by jonsky7 5 6

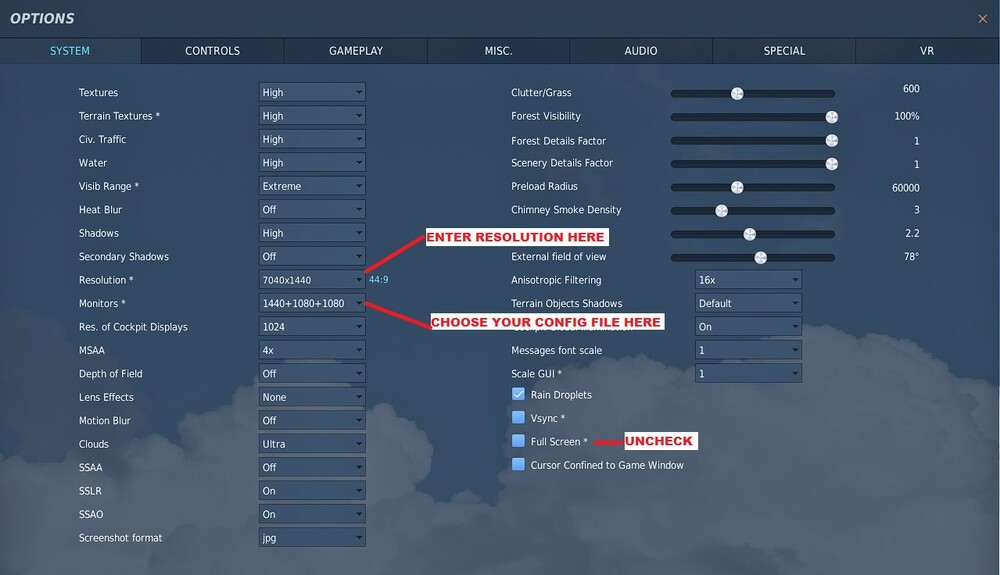

jonsky7 Posted January 13, 2021 Author Posted January 13, 2021 (edited) 4. Enter the resolution into DCS and choose your config file Open DCS and enter the total calculated resolution into the settings window, Your resolution may not be in the drop down list, try the very bottom of the list. If not, you can just type it in the box Choose your config file, this is the name given in the code of the config file, and NOT the filename of the config file Also, uncheck Full Screen, this prevents DCS from starting squashed onto one monitor. When you click OK, DCS will restart. EDIT: You can only manually enter the resolution in the in-game settings menu, you can not manually enter the resolution in the DCS Launcher. --------------------------------------------------------------------------------------------------------------------------------------------------------------------- Known Issues Like mentioned earlier, I find it best to align your monitors at the bottom edge. If your monitors are different resolutions like mine are, then there's no avoiding that there is some un-displayable space that DCS might still use. It is part of the resolution, but there is physically no screen there to display it. eg. If DCS aligns any of the auxiliary displays, like controls indicators, crew status windows, IFLOLS pop up, NS430 window etc, to the top right of the resolution, and are within the undisplayed space, then even though they have opened you won't be able to see or interact with them. Likewise if you align your monitors in windows to the top edge, any of the auxiliary displays that start in the bottom right will be un-seen. Some of the start positions of these displays can be moved, but it is more complicated than the process for exporting an MFCD. More of these windows are aligned to the bottom right of the resolution than they are top right. Maybe one day ED will give us option to choose where these displays appear, here's hoping. null Some of the auxiliary displays are movable and remember where you left them. If a display is missing, you can temporarily move the monitor in windows display settings, go back into DCS, grab and move the indicator to your main screen, then put the monitor back where it was in display settings so as not to mess up your config. For example IFLOLS initially aligned to top right and in undisplayed space. Move display in Windows, Run DCS, drag IFLOLS display to main monitor, exit DCS Move display back to original position in Windows, Run DCS, IFLOLS display should be on main monitor where you left it. Fullscreen Squash If you wish, you can still run DCS in fullscreen mode. However, you may find that when you start DCS, it is all squashed onto your Main monitor. To get round this, simply left click anywhere on your secondary monitor and DCS will resize correctly. Pressing LeftALT+Enter is reported to also work. I personally see no benefit in framerate etc running in fullscreen mode. --------------------------------------------------------------------------------------------------------------------------------------------------------------- Changing the default opening position of the kneeboard The kneeboard by default opens in the bottom right corner, that's fine when you are only using a single monitor. Now you've added multiple monitors, it will open in the bottom right of your "game resolution" as described above. This may be on a smaller screen that you're using for MFD's, with TM Cougars etc. You can live with it sure, as you can drag the kneeboard around now it's not so bad. If however you play DCS often, you may get tired of doing this. Below is a mod that allows you to specify the location that the kneeboard will open in, and what size it will be. It works for most aircraft modules, however it does not work for Razbam's AV8BNA and Mirage 2000C. Razbam are using their own kneeboard it seems, most other aircraft use the default DCS kneeboard. This zip file contains some mod files, you can either use a mod manager like OVGME, or copy them manually into DCS World\Scripts\ --The main DCS install directory, eg C:\Program Files\DCS World\Scripts...... NOT "saved games" Kneeboard.zip Below is the same mod files, updated for open.beta 2.8.2.35759 Kneeboard2.zip The Mod adds 3 files, IT DOES NOT REPLACE ANY ORIGINAL FILES!!!!!!!!!!!!! Though their filenames are very similar !!!!!!!!!! Whichever method you choose check the folders to make sure the files have copied correctly. DCS World\Scripts\Aircrafts\_Common\Cockpit\ should contain the file ViewportHandling-resize.lua and ViewportHandling.lua should remain -------------------------------------------------------------------------------------------------------------------------------- DCS World\Scripts\Aircrafts\_Common\Cockpit\KNEEBOARD should contain the file declare_kneeboard_device2.lua and declare_kneeboard_device.lua should remain -------------------------------------------------------------------------------------------------------------------------------- and DCS World\Scripts\Aircrafts\_Common\Cockpit\KNEEBOARD\indicator should now contain the file init2.lua and init.lua should remain -------------------------------------------------------------------------------------------------------------------------------- For the next steps you will need notepad++ https://notepad-plus-plus.org/downloads/ Go back to DCS World\Scripts\Aircrafts\_Common\Cockpit\ and open the file ViewportHandling-resize.lua <--- NOTE the -resize in filename!! This is where will configure where we want the kneeboard to open. Line 33 says dedicated_viewport = {0,0,default_width,default_height} This is already modified in the above download and will open the kneeboard on the top left at the default size. You can however replace all the text with numbers, eg: dedicated_viewport = {1000,360,600,800} where dedicated_viewport = {position-X coordinate, position-Y coordinate, width in pixels, height in pixels} much like configuring your MFDs, see above MFD export guide! The original line reads dedicated_viewport = {default_x,default_y,default_width,default_height} -------------------------------------------------------------------------------------------------------------------------------- We now need to change the aircraft files to look for the newly installed mod files above. The easiest way is to use notepad++ to do this automatically. Open notepad++ Click on the Search button Click on Find in files -------------------------------------------------------------------------------------------------------------------------------- Enter the following, make sure to copy the entry listed in bold in full including quotation marks and brackets: Find what: "KNEEBOARD/declare_kneeboard_device.lua") Replace with: "KNEEBOARD/declare_kneeboard_device2.lua") Filters: *.lua Directory: G:\DCS World\Mods\aircraft (you will have to change this to your install directory) edit: some aircraft have a space in the line dofile(LockOn_Options.common_script_path.."KNEEBOARD/declare_kneeboard_device2.lua") and some do not, so this instruction is slightly different to the one included in the text file that is in the zip file. -------------------------------------------------------------------------------------------------------------------------------- Click on "Replace in files" and click OK -------------------------------------------------------------------------------------------------------------------------------- Notepad++ will replace the text in all of your installed aircraft files -------------------------------------------------------------------------------------------------------------------------------- When complete, the number here should be pretty much how many aircraft you have installed. On the next DCS update, you should only have to do the steps to replace the text in the aircraft files. Advanced editing by aircraft type, Thanks to @scrupeus For this information and example. It is currently possible (29-July-2023) to set up your exports to be aircraft specific. What does that mean? Well you may want your MFCDs exports to be a different configuration for different aircraft. example, you fill a screen with two MFCDs for the A10C, but you want to fit three MFCDs on that screen for the FA-18 or Apache. This method will also pass integrity check, as long as you use the default exports as listed below, and don't add other exports like the RWR which are not enabled by default. We do this by adding a function to our monitor config files. The function "listens" to DCS for the unit type (aircraft being flown), and sets up the exports depending on the unit type. We add an "else" function towards the end to allow for a default location for the exports. If you do not specify a particular aircraft for reconfiguration, it's exports will be shown in the "else" location We can also use an "or" to group aircraft together, see A10C below. Example: Quote function reconfigure_for_unit(unit_type) if unit_type == "A-10C" or unit_type == "A-10C_2" then LEFT, RIGHT, etc elseif unit_type == "AH-64D_BLK_II" then LEFT, RIGHT, TEDAC etc elseif unit_type == "F-16C_50" then LEFT, RIGHT, EHSI etc else LEFT, RIGHT, etc end Example config file Quote _ = function(p) return p; end; name = _('my export config'); Description = 'exports by aircraft type'; Viewports = { Center = { x = 0; y = 0; width = 2560; height = 1440; viewDx = 0; viewDy = 0; aspect = 2560/1440; } } --///////////////////////////////////// --A10C --///////////////////////////////////// function reconfigure_for_unit(unit_type) if unit_type == "A-10C" or unit_type == "A-10C_2" then LEFT_MFCD = { x = 5130; y = 360; width = 825; height = 825; } RIGHT_MFCD = { x = 6210; y = 360; width = 825; height = 825; } --///////////////////////////////////// --AH64D --///////////////////////////////////// elseif unit_type == "AH-64D_BLK_II" then LEFT_MFCD = { x = 5130; y = 360; width = 825; height = 825; } RIGHT_MFCD = { x = 6210; y = 360; width = 825; height = 825; } TEDAC = { x = 2560; y = 280; width = 1620; height = 1400; } --///////////////////////////////////// --F-16C --///////////////////////////////////// elseif unit_type == "F-16C_50" then LEFT_MFCD = { x = 5130; y = 360; width = 900; height = 900; } RIGHT_MFCD = { x = 6300; y = 360; width = 900; height = 900; } EHSI = { x = 2560; y = 280; width = 825; height = 825; } --/////////////////////////////////////// --EVERYTHING ELSE --/////////////////////////////////////// else LEFT_MFCD = { x = 5130; y = 360; width = 825; height = 825; } RIGHT_MFCD = { x = 2560; y = 360; width = 1720; height = 1080; } end end GU_MAIN_VIEWPORT = { x = 0; y = 0; width = 2560; height = 1440; } --UIMainView = Viewports.Center UIMainView = { x = 0; y = 0; width = 2560; height = 1440; } In the above example, the A10C, Apache, and F-16C have defined MFCD export locations, and any other aircraft's MFCD export will be shown in the "else" location This is a list of the unit types Quote A-10A A-10C A-10C_2 AH-64D_BLK_II AJS37 AV8BNA CH-47Fbl1 F-14A-135-GR F-14B F-15C F-15ESE F-16C_50 FA-18C_hornet Hercules (Hercules Mod) JF-17 Ka-50 Ka-50_3 L-39 L-39C L-39ZA M-2000C Mi-8MT Mi-24P MiG-21Bis MiG-29 Mirage-F1BE Mirage-F1CE Mirage-F1EE P-51D P-51D-30-NA SA342L SA342M SA342Minigun Su-25 Su-25T Su-27 Su-33 TF-51D UH-1H And these are the Default MFCD Export names Quote A-10C, A-10C_2 LEFT_MFCD, RIGHT_MFCD AH64-D LEFT_MFCD, RIGHT_MFCD, TEDAC or CENTER_MFCD An entry for TEDAC in your monitor config file takes priority over a CENTER_MFCD entry, so if you have both, the TEDAC will be shown in the TEDAC position. AV8BNA LEFT_MFCD, RIGHT_MFCD CH-47Fbl1 RIGHT_MFCD F-5 RIGHT_MFCD F-14 F14_VDI, F14_HSD, F14_TID, F14_DDD, F14_ECMD, F14_UHF_ARC159, F14_VHF_ARC182 Pilot upper display, Pilot lower display, RIO lower display, RIO upper display, RIO right display (by right knee), Radio Freq displays x2 F-15E Front Seat LEFT_MFCD, CENTER_MFCD, RIGHT_MFCD, UFC. Back Seat OUTER_LEFT_MFCD, LEFT_MFCD, RIGHT_MFCD, OUTER_RIGHT_MFCD, UFC. F-16 LEFT_MFCD, RIGHT_MFCD, EHSI FA-18 LEFT_MFCD, RIGHT_MFCD, CENTER_MFCD JF-17 JF17_LEFT_MFCD, JF17_RIGHT_MFCD, JF17_CENTER_MFCD, JF17_CLOCK_WIN1, JF17_CLOCK_WIN2, JF17_RADIO, JF17_UFCP_1, JF17_UFCP_2, JF17_UFCP_3, JF17_UFCP_4 or LEFT_MFCD, RIGHT_MFCD, CENTER_MFCD, CLOCK_WIN1, CLOCK_WIN2, RADIO, UFCP_1, UFCP_2, UFCP_3, UFCP_4 (if you have JF17_LEFT_MFCD defined in your config file, the LEFT MFCD of the JEFF will be displayed in that position, otherwise it will be shown in the LEFT_MFCD position. The upper line here takes priority over the lower line, this enables you to have the display export a different size or location to the LEFT_MFCD position, helpful because the JEFF screens are not square.) Ka-50 and Ka-50_3 Shkval, ABRIS or LEFT_MFCD, RIGHT_MFCD (again, if you define ABRIS in your config file, the ABRIS will be shown in that position, otherwise it will be displayed in the RIGHT_MFCD position.) M-2000C VTB displays in RIGHT_MFCD position MIG-21bis RP22 or RIGHT_MFCD MIRAGE F1 LEFT_MFCD, RIGHT_MFCD FC3 LEFT_MFCD, RIGHT_MFCD (can not be changed) Cheers Jon Edited January 15 by jonsky7 11 4
minar Posted February 24, 2021 Posted February 24, 2021 (edited) I tried getting this to work all day but failed, So I am running a main 2560x1440p 32" monitor and I would like to use the dcs moving map or something on my 2nd monitor to the left of my main screen which is a 1600x900 22" I did setup screen in dcs to 4160x1440 which was 2560+1600 added up to 4160 and then my main screen height. I played around with settings in lua but often the screen would be cut and I would have to ctrl-alt-del to get out and reset the config file because the buttons were cut from view. I tried the default .lua set up for camera and mfd as well but did'nt work. Does anyone have a simple .lua file for 2 screens in my sizes together? thanks in advance. Edited February 24, 2021 by minar

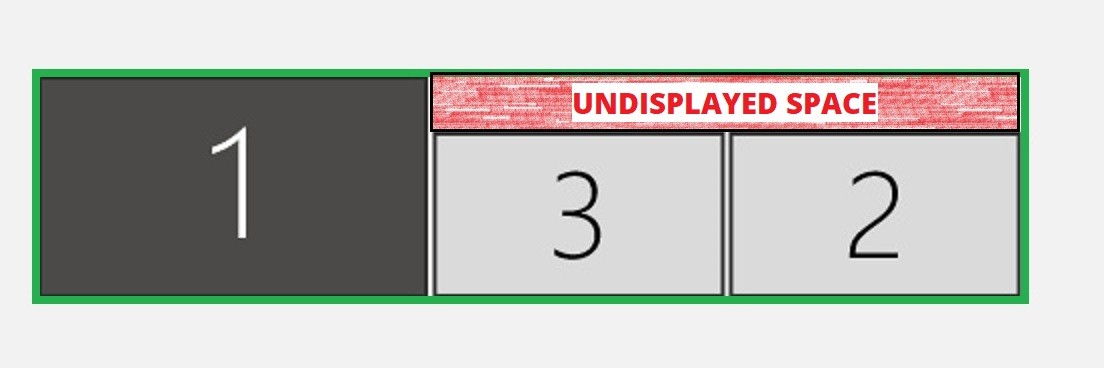

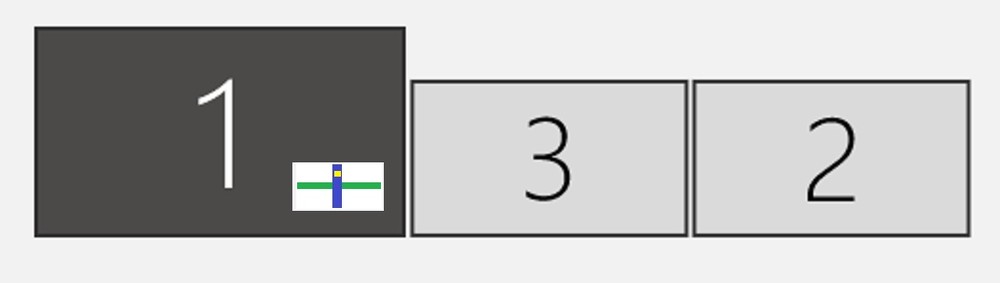

jonsky7 Posted February 26, 2021 Author Posted February 26, 2021 (edited) Displays Table and AppSettings.lua Some information I've been playing with and thought I would share with you. The information comes from one of the default monitor config files but didn't really explain (not to me anyway) what it was actually for and how to use it. From what I understand: Normally, DCS creates a displays table each time you run it and uses your Windows "Main Display" as the origin (X=0, Y=0). DCS DOES NOT seem to accept negative values for viewports or exports. We can however manually configure a "Displays table" in your monitor config file that tells DCS where ALL your monitors are in reference to your Windows "Main Display" It will then create a new display area that covers all of your monitors and then: The left edge of all your displays will be x=0 and the top edge of your displays will be y=0 So now there is no need for your main display to be the left and top most display. We can then use the monitor on the left, as all viewport and export positions will be positive. It seems from a bit of testing that monitors can be listed in any order and do not necessarily correspond to the numbers windows assigns your displays. As long as you define your monitors in reference to your "Main Display" The default display table created by DCS would result in something like: (2 is my main) and with the Display Table it would be or maybe you would prefer. This doesn't really solve a lot of issues, other than being able to export MFCD's etc to a monitor left, or above, your main display. Unfortunately, I don't think it will fix things like the opening position of the kneeboard and crew screens, George and Petrovich etc. and there are still areas of the resolution that there is no physical display to show anything output into those areas. Of course this means that your Center view and any exports will have to be modified to their new positions relative to the new x=0, y=0. I have put the displays table at the top of the monitor config file, and this seems to work. eg. Quote displays = { [1] = { x = 0, -- Main Display y = 0, width = 2560, height = 1440 }, [2] = { x = 2560, -- A monitor that is to the right of the Main Display y = 0, width = 2560, height = 1440 }, [3] = { x = -1920, -- A monitor positioned to the left of the main display (note the '-' sign) and aligned to the bottom edge y = 360, -- 1440-1080=360 width = 1920, height = 1080 }, } _ = function(p) return p; end; name = _('JB by type'); Description = 'Exports by Aircraft type'; Viewports = { Center = { x = 1920; -- Center View moved y = 0; width = 2560; height = 1440; viewDx = 0; viewDy = 0; aspect = 2560/1440; } } Appsettings.lua The appsettings.lua file is located Saved Games > DCS > Config > appsettings.lua It seems that this may be related to the displays table. Several users have edited this file to stop DCS turning screens black when they are not required by the user. I haven't done much testing with it at this time. Quote windowPlacement = { ["y"] = 0, ["x"] = 0, ["w"] = 7040, ["h"] = 1440, } monitors = { [1] = { ["rcMonitor"] = { ["top"] = 0, ["right"] = 5120, ["left"] = 2560, ["bottom"] = 1440, }, ["dwFlags"] = 0, ["rcWork"] = { ["top"] = 0, ["right"] = 5120, ["left"] = 2560, ["bottom"] = 1392, }, }, [2] = { ["rcMonitor"] = { ["top"] = 0, ["right"] = 2560, ["left"] = 0, ["bottom"] = 1440, }, ["dwFlags"] = 1, ["rcWork"] = { ["top"] = 0, ["right"] = 2560, ["left"] = 0, ["bottom"] = 1392, }, }, [3] = { ["rcMonitor"] = { ["top"] = 354, ["right"] = 7040, ["left"] = 5120, ["bottom"] = 1434, }, ["dwFlags"] = 0, ["rcWork"] = { ["top"] = 354, ["right"] = 7040, ["left"] = 5120, ["bottom"] = 1386, }, }, } Cheers Jon Edited October 30, 2024 by jonsky7 1 2
minar Posted February 26, 2021 Posted February 26, 2021 (edited) 9 hours ago, jonsky7 said: The problem you have is that your second screen is to the left of your main display. DCS does not like that! It seems to be working with the default .lua file which clearly states monitor on leftside so thts clearly not a problem anymore, I just would like to tweak it to get a f10 moving map on that 2nd screen. Edited February 26, 2021 by minar

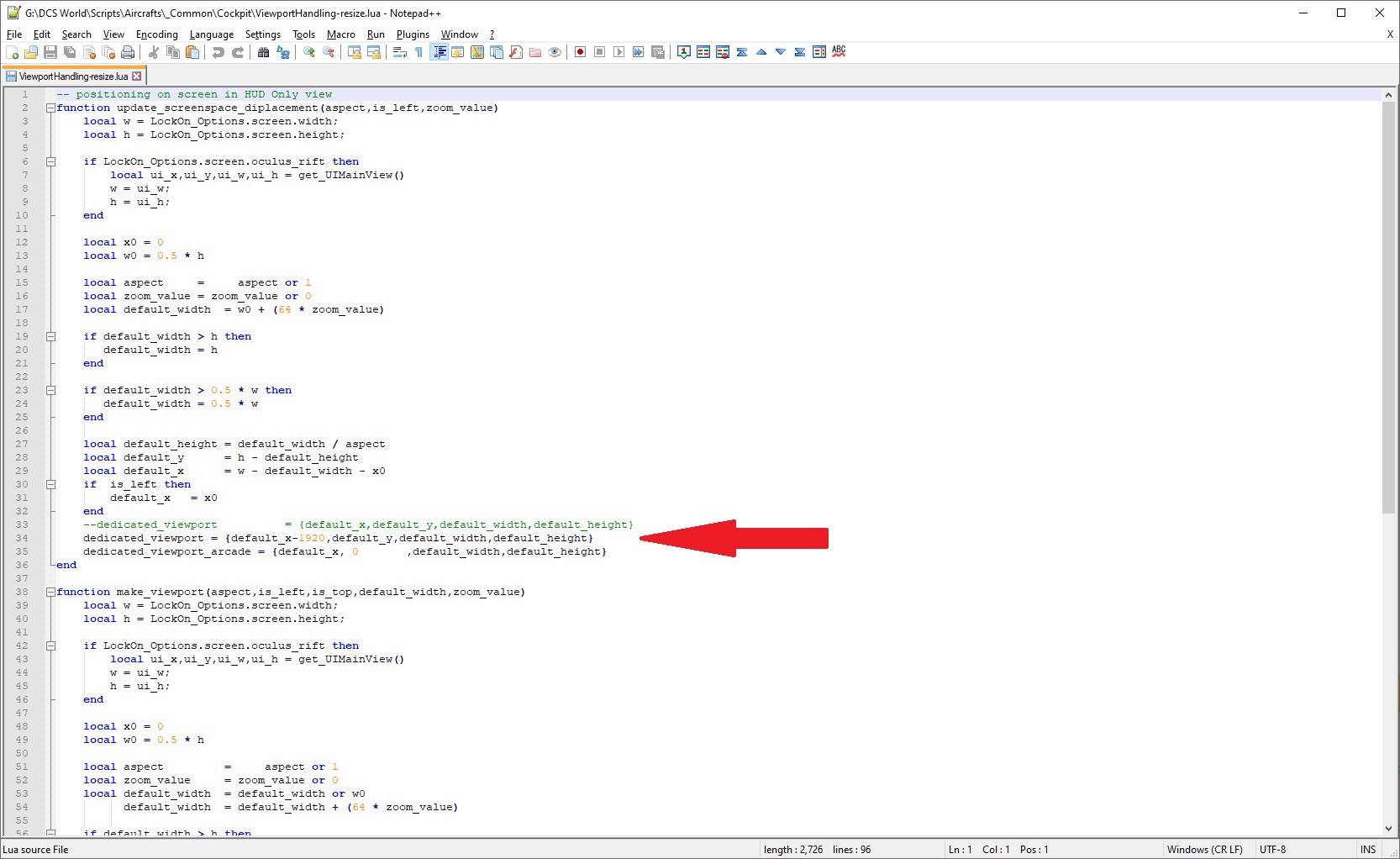

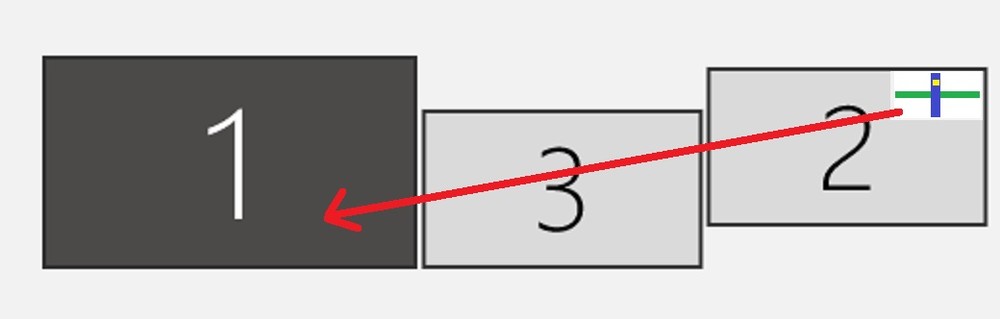

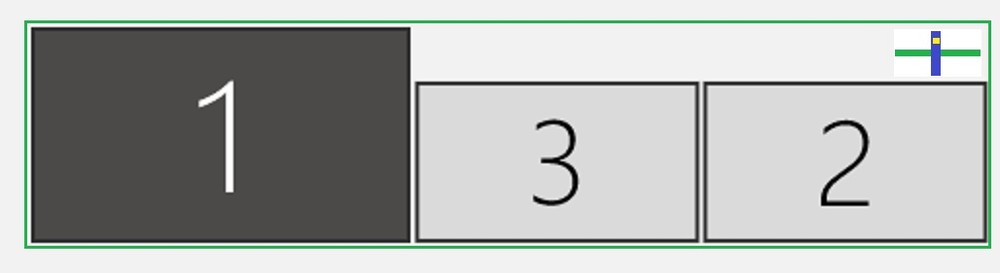

jonsky7 Posted February 27, 2021 Author Posted February 27, 2021 (edited) How to move "Indicators" Breaks "Pure Scripts" Integrity Check Not quite as easy as positioning exported displays, the position of these indicators is tied to the "total resolution" setting. Which is why they end up in odd places when using a multi-monitor setup. In this section you can find out how to move: 1. Controls Indicator 2. Crew Status Indicator 3. Autopilot Indicators 4. Cargo Indicators Controls Indicators The controls indicator file is normally located DCS > Mods > aircraft > *aircraft name* > Cockpit > Scripts > ControlsIndicator > ControlsIndicator_page.lua *CH-47F file is located in the GCBase folder, not CH-47F folder. In that file search for the line that starts with base.init_pos e.g. Apache Line 153 = base.init_pos = {-aspect + size_w_05 + margin, -(1 - size_h_05 - margin)} The first value (-aspect + size_w_05 + margin) controls the horizontal position. Increasing this value moves the indicator to the right, while decreasing it moves it to the left. The second value (-(1 - size_h_05 - margin)) controls the vertical position. Increasing this value moves the indicator upward, while decreasing it moves it downward. For example, if you want to shift the indicator slightly to the center, up and right from default, you might adjust it as follows: base.init_pos = {-aspect + size_w_05 + margin + 0.1, -(1 - size_h_05 - margin + 0.2)} Mi-8MTV2 The Mi-8MTV2 also has autopilot indicators, they are in the same file as the controls indicator DCS > Mods > aircraft > Mi-8MTV2 > Cockpit > Scripts > ControlsIndicator > ControlsIndicator_page.lua Line 276 = autopilot_base.init_pos = {0,(1 - autopilot_height)} Same method as the controls indicator Crew Status Indicator The Crew Status indicator file is normally located DCS > Mods > aircraft > *aircraft name* > Cockpit > Scripts > AI > ControlPanel > g_panel_page.lua *CH-47F file is located in the GCBase folder, not CH-47F folder. Again, in that file search for the line that starts with base.init_pos Same for the controls indicator above regarding moving the position (CH-47F) Line 62 = base.init_pos = {aspect + shift_X,firstLineY + shift_Y} I changed that to base.init_pos = {aspect + shift_X - 5.2,firstLineY + shift_Y + 1.6} and this moved it a lot left (2 screens), and quite a lot up (from bottom of screen to top) Cargo Indicators DCS > Mods > aircraft > *aircraft name* > Cockpit > Scripts > CargoIndicator > CargoIndicator_page.lua Original local aspect = LockOn_Options.screen.aspect Modified local aspect = -1 That's what I have done anyway, there is also base.init_pos = {aspect-box_width,1.0-box_height} I imagine altering that in the same way as the other types of indicator would work. Autopilot Indicators George/Petrovich George and Petrovic are now fixed and are based on the UIMainView setting in your monitor config file. I have included these instructions anyway, you may wish to move these indicators off the main screen. George - Apache DCS > Mods > aircraft > AH-64D > Cockpit > Scripts > AI > PrestonAI_page_common.lua The Weap_control_pos adjusts the position of the small round circle where you can tell the gunner to switch weapons etc The Compass_pos adjusts the compass position (pilot commands window) when in the gunners seat Line 24 = compass_pos = {-0.82, -0.7} Line 25 = weap_control_pos = {0.8, -0.75} The coordinate system used here seems to be normalized to the size of the screen or viewport, where the value ranges from -1 to 1: -1 is the leftmost (or bottommost) edge. 0 is the center of the screen. 1 is the rightmost (or topmost) edge. Values greater than 1 will move the indicator onto the next screen in whatever direction. Petrovich - Mi-24P DCS > Mods > aircraft > Mi-24P > Cockpit > Scripts > HelperAI > HelperAI_page_common.lua The compass position controls both Line 20 = compass_pos = {-0.75 , -0.5} Follow the same method as for George AI cheers Jon Edited November 19, 2024 by jonsky7 1
Spger40 Posted April 11, 2021 Posted April 11, 2021 (edited) Hello, Is there a way to move the upper left text to the middle? DCS 7680x2520 is currently running. So I want to display the text on the middle monitor. (2560x0) Thanks Edited April 11, 2021 by Spger40
jonsky7 Posted April 14, 2021 Author Posted April 14, 2021 (edited) On 4/11/2021 at 9:35 PM, Spger40 said: Hello, Is there a way to move the upper left text to the middle? DCS 7680x2520 is currently running. So I want to display the text on the middle monitor. (2560x0) Thanks Sorry, I don't know how to do that, or even if you can do that. EDIT: The entry UIMainView = Viewports.Center in the monitor config file, declares the position of the User interface. This controls the position of the Main Menu, the mission editor, and also the boundaries of the UI within the cockpit. So if we restrict those boundaries to your centre monitor, the comms messages should stay on your centre monitor too. So we can replace UIMainView = Viewports.Center with UIMainView = { x = 2560; y = 0; width = 2560; height = 1440; } I think these values will be correct for your setup. Edited January 29, 2023 by jonsky7 adding correct answer to previous post

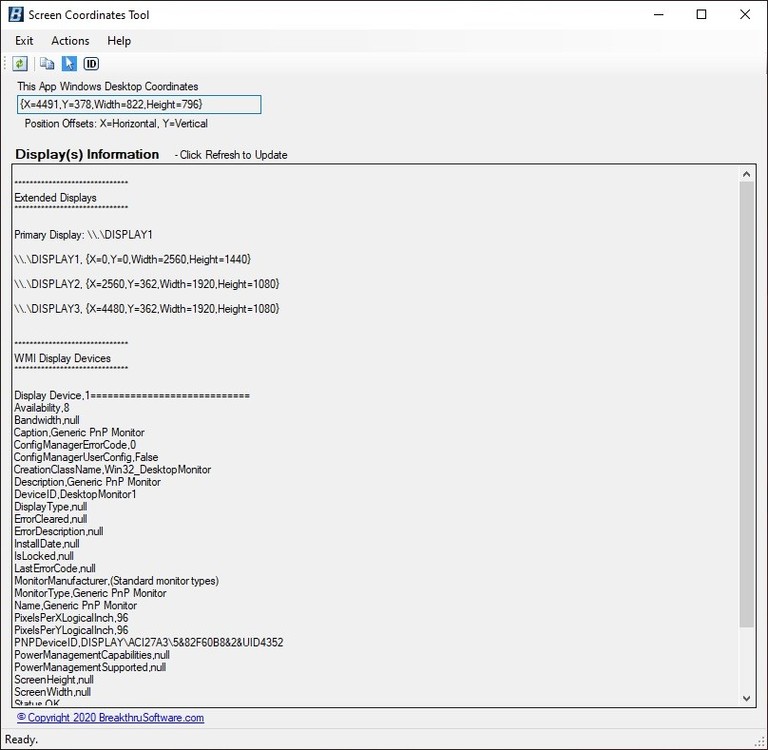

Pipe Posted April 17, 2021 Posted April 17, 2021 Thanks for this guide, I had my F16 set up running in less than hour. Second display setup to the right lower position. I also used this http://www.breakthrusoftware.com/downloads/Utils/ScreenCoord.exe to find desired coordinates. I did find that the DED, and RWR do not seem to export, EHSI however did export to where I wanted it. Also I tried to make a new lua. file for the F18 with 2 MFD, MPCD, this file does not show up in the setup screen? Should I have just modified one of the existing files? Thanks again for the guide 1 i7 4770k @ 4.5, asus z-87 pro, strix GTX 980ti directcu3oc, 32gb Kingston hyperX 2133, philips 40" 4k monitor, hotas cougar\warthog, track ir 5, Oculus Rift
jonsky7 Posted April 27, 2021 Author Posted April 27, 2021 (edited) On 4/17/2021 at 4:57 AM, Pipe said: Thanks for this guide, I had my F16 set up running in less than hour. Second display setup to the right lower position. I also used this http://www.breakthrusoftware.com/downloads/Utils/ScreenCoord.exe to find desired coordinates. I did find that the DED, and RWR do not seem to export, EHSI however did export to where I wanted it. Also I tried to make a new lua. file for the F18 with 2 MFD, MPCD, this file does not show up in the setup screen? Should I have just modified one of the existing files? Thanks again for the guide You're very welcome, glad you found it useful. That tool is pretty sweet too As for your F18 lua, you can use the same file as your F16, the F18 MPCD is called "CENTER_MFCD" If you want a separate file, Make sure you save it in saved games\DCS\Config\Monitorsetup Make sure it has an individual filename, and make sure the name in the code is unique. Alternatively, what I do, is rename the viewports in their respective lua's, and my monitor config file has separate entries for each aircraft. For example the F16 left MFD is %%%\DCS World\Mods\aircraft\F-16C\Cockpit\Scripts\Displays\MFD\indicator\MFD_left_init.lua Near the bottom of the code you will find try_find_assigned_viewport("LEFT_MFCD") and I change it to try_find_assigned_viewport("F16_LEFT_MFCD") I have included my modded files they are OvGME ready and pass integrity check, and my monitor config file if you care to have a look. You will need to modify the co-ordinates to suit you of course. I have another guide for RWR's etc Display Exports.zip Edited January 25, 2022 by jonsky7 1
Pipe Posted April 28, 2021 Posted April 28, 2021 thanks much, will take a look at your file i7 4770k @ 4.5, asus z-87 pro, strix GTX 980ti directcu3oc, 32gb Kingston hyperX 2133, philips 40" 4k monitor, hotas cougar\warthog, track ir 5, Oculus Rift
jetsimace Posted July 31, 2021 Posted July 31, 2021 Excellent guide, many thanks! I was also able to show the AMPCD (aka "CENTER_MFCD") in the bottom left of my single monitor. Unfortunately it seems that multiple "viewports" shown at the same monitor are not clearly visible as these will be shown like transparent overlays (e.g. center view is shining through).
jonsky7 Posted July 31, 2021 Author Posted July 31, 2021 (edited) From another forum page try changing line 52 in the file DCS World\Mods\aircraft\FA-18C\Cockpit\Scripts\Multipurpose_Display_Group\Common\indicator\BAKE\MPD_common_bake_page.lua from HUD_only_back.controllers = {{"render_purpose", render_purpose.HUD_ONLY_VIEW}} to --HUD_only_back.controllers = {{"render_purpose", render_purpose.HUD_ONLY_VIEW}} unfortunately, he hasn't said what was in line 52, but that is what is at line 52 for me now. Won't hurt to give it a try. Edited January 25, 2022 by jonsky7
skypickle Posted October 26, 2021 Posted October 26, 2021 Thank you for a clear write up. I did read however that many people are having an issue with their exported displays being too dark. How did you get around that issue? Also, I dont understand why people use Helios. Does it do something else? 4930K @ 4.5, 32g ram, TitanPascal
jonsky7 Posted October 26, 2021 Author Posted October 26, 2021 (edited) On 10/26/2021 at 2:38 AM, skypickle said: Thank you for a clear write up. I did read however that many people are having an issue with their exported displays being too dark. How did you get around that issue? Also, I dont understand why people use Helios. Does it do something else? Haven't really gotten around the issue, just live with it for now. You can play around with the gain and contrast controls on the MFCD to make it a bit better. The map at night is the worst, so I just turn it off. Helios can replicate the analogue gauges to be placed on your second monitor. You can't do that from dcs alone. Only the digital displays can be exported from within DCS. It also does switches that can be controlled with a touchscreen or similar and it interfaces with DCS. Edited January 25, 2022 by jonsky7
skypickle Posted October 26, 2021 Posted October 26, 2021 can the cdu be exported as well from within DCS or would you recommend helios? 4930K @ 4.5, 32g ram, TitanPascal
jonsky7 Posted October 26, 2021 Author Posted October 26, 2021 (edited) 2 hours ago, skypickle said: can the cdu be exported as well from within DCS or would you recommend helios? The cdu screen can yeah. https://forums.eagle.ru/topic/258735-how-to-export-displays-like-rwr-and-cmsp-set-up-guide-jan-2021/?tab=comments#comment-4807145 But if you want the whole unit with buttons, you will need helios. Edited October 26, 2021 by jonsky7
AngryEchoSix Posted October 26, 2021 Posted October 26, 2021 Was having a horrible time trying to do this on my own, at one point I even lost the F/A-18 model, and was just floating through the sky looking at superimposed displays and HUD. Then I found your post, downloaded the file you provided, edited it to meet my needs, and voila! Working as intended! The only issue I'm having is with the kneeboard export. I'm trying to have it appear on my left monitor (my setup from left to right is 1920x1080, 2560x1440, 800x600 (CubeSim). I input values for the export of the kneeboard to appear on the left monitor, but it keeps popping up at the bottom of my CubeSim screen. Not a deal breaker, because I can still click and drag it over to the left monitor, just takes some extra time, and I haven't even tested it with the IFLOLS yet, so that could end up being the same. Any advice?
jonsky7 Posted October 26, 2021 Author Posted October 26, 2021 2 hours ago, AngryEchoSix said: Was having a horrible time trying to do this on my own, at one point I even lost the F/A-18 model, and was just floating through the sky looking at superimposed displays and HUD. Then I found your post, downloaded the file you provided, edited it to meet my needs, and voila! Working as intended! The only issue I'm having is with the kneeboard export. I'm trying to have it appear on my left monitor (my setup from left to right is 1920x1080, 2560x1440, 800x600 (CubeSim). I input values for the export of the kneeboard to appear on the left monitor, but it keeps popping up at the bottom of my CubeSim screen. Not a deal breaker, because I can still click and drag it over to the left monitor, just takes some extra time, and I haven't even tested it with the IFLOLS yet, so that could end up being the same. Any advice? Yes, sorry, I should have removed the kneeboard part from the screenshot as that method no longer seems to work. There is another method which I use, it requires a bit of editing of some lua files, it can be a bit of a pain to maintain during updates as it modifies the device_init.lua file of each aircraft (basically the file that describes all the devices in an aircraft, like radar etc). So even with a mod manager, you still have check nothing else has changed in the file after DCS updates, but this can made easier with a plugin for notepad++ called compare. This allows you to open the original game file, then the modified file, click compare and it shows you where all the differences in the files are. There is also another, probably easier method, using notepad++ which is described in the readme, and indeed the original post. So this isn't my mod, but I have packaged it up, it has a readme for instructions. It is ovgme ready. You will need to make some adjustments for your setup. Kneeboard.zip As for the IFLOLS, that does seem to save it's position IIRC, I think I only moved it once using the method I described in the guide. The original post for the kneeboard move can be found here, drop a like or thanks if its useful to you. 1
AngryEchoSix Posted October 29, 2021 Posted October 29, 2021 I decided to just click and drag my Kneeboard over to my left monitor during startup, takes 2 seconds and then I can forget about it, easy day. Thank you though for the information on the Kneeboard mod, much appreciated. Not sure if you have encountered this issue though - Now that my exports are working as desired, my mission editor is now borked in the sense that where a unit is placed and my cursor aren't aligned. Clicking to place a unit and where the mouse cursor actually is on screen is about a 4 inch gap. Not sure what could be causing this, but it wasn't happening prior to the screen exports. There is also a giant blue "wall" off to the right side of the screen that is unusable space.
jonsky7 Posted October 29, 2021 Author Posted October 29, 2021 (edited) On 10/29/2021 at 2:56 PM, AngryEchoSix said: I decided to just click and drag my Kneeboard over to my left monitor during startup, takes 2 seconds and then I can forget about it, easy day. Thank you though for the information on the Kneeboard mod, much appreciated. Not sure if you have encountered this issue though - Now that my exports are working as desired, my mission editor is now borked in the sense that where a unit is placed and my cursor aren't aligned. Clicking to place a unit and where the mouse cursor actually is on screen is about a 4 inch gap. Not sure what could be causing this, but it wasn't happening prior to the screen exports. There is also a giant blue "wall" off to the right side of the screen that is unusable space. EDIT - It has since been found that this "bug" may be due to the SSAA setting. Does the start screen fill the same space? What resolution are your monitors? In your monitor config file saved games\DCS\Config\Monitorsetup\ try replacing UIMainView = Viewports.Center with UIMainView = { x = 0; y = 0; width = 2560; height = 1440; } but change the resolution of width and height to match your main monitor. Edited August 31, 2023 by jonsky7
AngryEchoSix Posted October 29, 2021 Posted October 29, 2021 (edited) 3 hours ago, jonsky7 said: Does the start screen fill the same space? What resolution are your monitors? The start screen, in this case the DCS "splash" box that appears before the main background and loading bar appear are actually offset a bit low and to the left on my main monitor, and then the main background and loading bar are also a bit offset low left, but once the main menu loads in, it is all centered up nicely on my main screen. Left monitor is 1920x1080, center (main screen) is 2560x1440, and my CubeSim (in Windows it's my far right screen) is 800x600. The attached screenshot is using the edited .LUA information of: UIMainView = { x = 1920; y = 0; width = 2560; height = 1440; } Edited October 29, 2021 by AngryEchoSix
jonsky7 Posted October 30, 2021 Author Posted October 30, 2021 (edited) 6 hours ago, AngryEchoSix said: The start screen, in this case the DCS "splash" box that appears before the main background and loading bar appear are actually offset a bit low and to the left on my main monitor, and then the main background and loading bar are also a bit offset low left, but once the main menu loads in, it is all centered up nicely on my main screen. Left monitor is 1920x1080, center (main screen) is 2560x1440, and my CubeSim (in Windows it's my far right screen) is 800x600. The attached screenshot is using the edited .LUA information of: UIMainView = { x = 1920; y = 0; width = 2560; height = 1440; } Can you either attach your monitor config file, or copy and paste its contents into your post so I can take a look? And take a screenshot of your display setup from windows. My DCS splash screen appears on my second monitor too, as long as the game runs fine I'm ok with it Edited October 30, 2021 by jonsky7
AngryEchoSix Posted October 30, 2021 Posted October 30, 2021 1 hour ago, jonsky7 said: Can you either attach your monitor config file, or copy and paste its contents into your post so I can take a look? And take a screenshot of your display setup from windows. My DCS splash screen appears on my second monitor too, as long as the game runs fine I'm ok with it Here is my monitor config file, as well as my Windows Monitor Setup screenshot. Camera + CubeSim_v2.lua
