Magnetic Compass help Question:

[DishDoggie]

In The UH-1H Huey the Magnetic Compass Question: As I have no Knowledge of Aviation Equipment, If I was to say take a heading of of "210" I as the Pilot would turn to 21 on the Magnetic Compass Correct? if No then what should I say to turn to Magnetic Compass heading of 21 as in a sentence of being told to "take a heading of 21 degrees from my location" or can it be said as "take a heading of two one zero from my location" ???? Thanks for your help.

[Northstar98]

Quote

In The UH-1H Huey the Magnetic Compass Question: As I have no Knowledge of Aviation Equipment, If I was to say take a heading of of "210" I as the Pilot would turn to 21 on the Magnetic Compass Correct?



Spot on.



The numbers on every compass or HSI (or at least nearly all of them) have the numbers divided by 10. So 21 on the compass means 210°, 3 = 30° and so on.

Edited May 17, 2021 by Northstar98

[cromhunt]

For a question of design space sometimes the numbers on a magnetic's compas are shorter.But to offer the ability to recognize your position there are the four cardinals points pointed as : N , E ,S ,W.
NORTH, EAST, SOUTH, WEST.
Thus when you see a number like 24 and this is close to W(for WEST),you know that is 240°.
Same if the number 6 is close to E(for EAST),you know that is 60°.

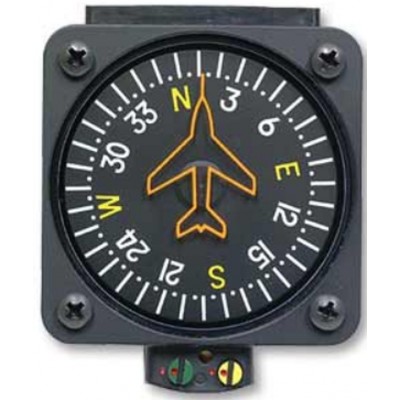

You have to keep in mind one of these pics,and think you are in the center.

To help you have the gyroscopic compas.

Once you know what is the direction you go,you will know in which direction you have to turn.

I hope it's help a bit.

Edited May 17, 2021 by cromhunt

[DishDoggie]

Thank you both yes I understand now it was a big help. Thank you

[draconus]

Just to add you should never use that short number in comms. "Heading 21" will always mean heading 021 or 21 degrees, never 210. HSI greatly helps in SA. Wherever your nose is pointing you just find the new direction on the wheel around your aircraft and see if it's on the left or the right side - now you know which way to turn.
