PTT Switch Function Reverses

MAXsenna · November 25, 2022

4 hours ago, PhoenixRising said:

Further up in the thread, I saw the comment about checking the "allow other commands to run" on my other commands. I tried that and it hasn't happened since. I haven't flown a lot, but it was happening regularly.

Sent from my moto g stylus 5G using Tapatalk

Well, when you reset anything in the VAICOM control panel, it will not change anything in VoiceAttack nor the VAICOM VoiceAttack profile.
In any case. Seems it is solved for you then, which is good, but there shouldn't be any need to change anything in the default profile.
Cheers!

Azmodan · January 10

Hello everyone,

the thread is already older, but if it helps anyone, here is my solution to the problem.

I also use the Warthog Throttle and have noticed that the radio switch sometimes triggers two key presses at the same time (e.g., when you rotate it quickly). When that happens, VA/VP gets out of sync.

Therefore, I added a safety check for the push-to-talk commands. It is important that for these commands, the simultaneous execution of other commands is disabled (so that the entire code is executed atomically and no race conditions can occur when checking the variable).

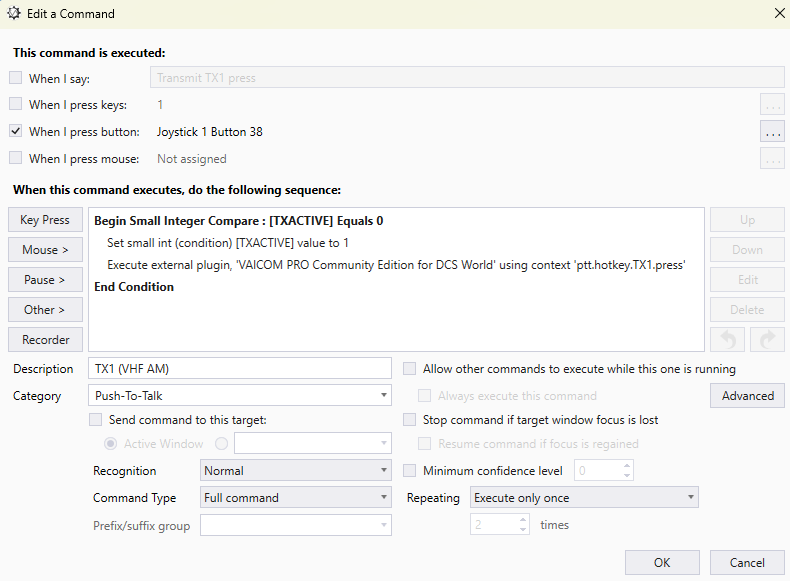

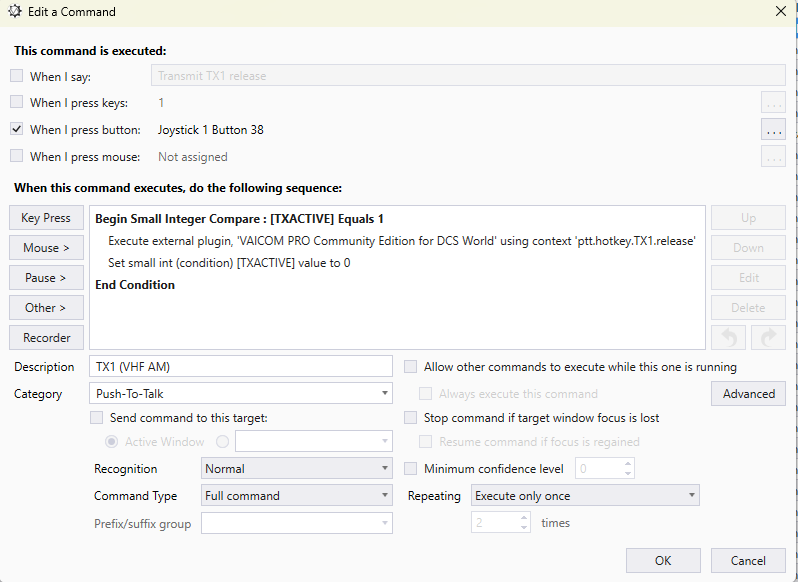

In the two screenshots, you can see an example for "press" and "release" respectively. This needs to be implemented accordingly for all used channels (adjust the variable value accordingly). The command sequence can be supplemented via "Other > Advanced". The variable TXACTIVE holds the channel that is currently being transmitted on (e.g., 3 for TX3). Thus, only one channel can be transmitted on at the same time.

This workaround works quite well for me. I hope it can also be useful for someone else.

Best regards,
Azmo

Edited January 10 by Azmodan

speed-of-heat · January 21

On 1/10/2025 at 11:07 PM, Azmodan said:

Hello everyone,

the thread is already older, but if it helps anyone, here is my solution to the problem.

I also use the Warthog Throttle and have noticed that the radio switch sometimes triggers two key presses at the same time (e.g., when you rotate it quickly). When that happens, VA/VP gets out of sync.

Therefore, I added a safety check for the push-to-talk commands. It is important that for these commands, the simultaneous execution of other commands is disabled (so that the entire code is executed atomically and no race conditions can occur when checking the variable).

In the two screenshots, you can see an example for "press" and "release" respectively. This needs to be implemented accordingly for all used channels (adjust the variable value accordingly). The command sequence can be supplemented via "Other > Advanced". The variable TXACTIVE holds the channel that is currently being transmitted on (e.g., 3 for TX3). Thus, only one channel can be transmitted on at the same time.

This workaround works quite well for me. I hope it can also be useful for someone else.

Best regards,
Azmo

I really hope this works this has been bugging me for ages thanks to @MAXsenna for pointing me in the right direction!!!!

speed-of-heat · January 21

@PeneCruzany way to include this as default ?

PeneCruz · January 21

22 minutes ago, speed-of-heat said:

@PeneCruzany way to include this as default ?

Probably as it's a Voice Attack profile setting, I'll have to look into it further. Let me know if it helps with your situation.

speed-of-heat · January 22

seems to have done! I'm always slightly cautious because proving something not happening is "hard"

speed-of-heat · January 22

So I have now done four big ish missions no comms lock outs any of them, I would have expected it at least once…

MAXsenna · January 22

So I have now done four big ish missions no comms lock outs any of them, I would have expected it at least once…

I'll try that nifty fix myself. Wil take some time as I've multiple TX entries for various modules.

Sent from my SM-A536B using Tapatalk

speed-of-heat · January 22

59 minutes ago, MAXsenna said:

I'll try that nifty fix myself. Wil take some time as I've multiple TX entries for various modules.

Sent from my SM-A536B using Tapatalk

How do you do that? Create different tx entries for different jets?

MAXsenna · January 22

24 minutes ago, speed-of-heat said:

How do you do that? Create different tx entries for different jets?

Exposed variables. I thought we had discussed this before.
Anyway, here's a link. I've written a tiny tutorial, and in one post there's an old profile of mine you can have a look at and just copy what you need from.

Cheers!

speed-of-heat · January 23

10 hours ago, MAXsenna said:

Exposed variables. I thought we had discussed this before.
Anyway, here's a link. I've written a tiny tutorial, and in one post there's an old profile of mine you can have a look at and just copy what you need from.

Cheers!

thanks ; and sorry if i asked the same thing twice... my memory is not what it used to be

MAXsenna · January 23

thanks ; and sorry if i asked the same thing twice... my memory is not what it used to be

Oh, no I didn't mean it that way. I just thought you were already using it!

Sent from my SM-A536B using Tapatalk

speed-of-heat · January 23

ahhh .. no alas not but i now have it in my one note! so it will get done!

PeneCruz · January 23

8 hours ago, speed-of-heat said:

ahhh .. no alas not but i now have it in my one note! so it will get done!

Out of interest what hardware are you using for you PTT device?

speed-of-heat · January 23

A four way hat + depress on my virpil cm3 throttle

PeneCruz · January 24

Ok Thanks, Just seeing if it was confined to the Warthog

speed-of-heat · January 24

No worries!

SuperKermit · February 3

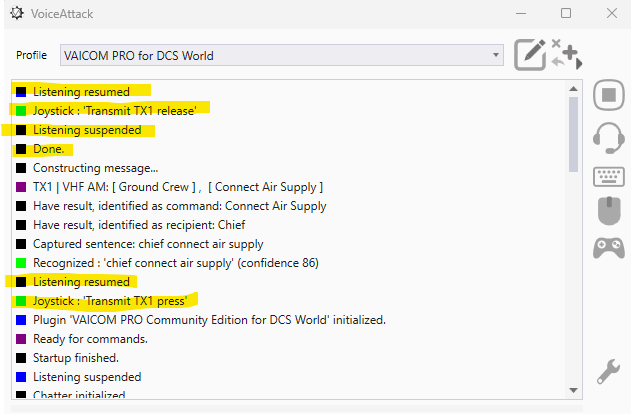

I experienced the same error, however the suggested fix here does not work. Here is what happens:

VC is waiting for a follow-up comand after "Chief"
The follow-up "connect air supply" is recognized
And THEN VC suspends listening by itself, before (!) I release the TX button
As soon as I release the TX button, TX is resumed again, opposed to suspending listening

speed-of-heat · February 3

would you show your "when this command is executed" windows for TX1 Press and release?

MAXsenna · February 3

would you show your "when this command is executed" windows for TX1 Press and release?

Quick question. Are you using default or VSPX processing?

Sent from my SM-A536B using Tapatalk

speed-of-heat · February 3

4 hours ago, MAXsenna said:

Quick question. Are you using default or VSPX processing?

Sent from my SM-A536B using Tapatalk

me VSPX

MAXsenna · February 3

me VSPX

I had a feeling.
@SuperKermit have you tried VSPX?

Sent from my SM-A536B using Tapatalk

SuperKermit · February 3

vor einer Stunde schrieb MAXsenna:

I had a feeling.
@SuperKermit have you tried VSPX?

Sent from my SM-A536B using Tapatalk

Not yet - but will try tonight!

vor 6 Stunden schrieb speed-of-heat:

would you show your "when this command is executed" windows for TX1 Press and release?

Wilco

Edited February 3 by SuperKermit

speed-of-heat · February 3

5 minutes ago, SuperKermit said:

Not yet - but will try tonight!

Wilco

you need to look here

the setup to fix it is in the linked post

you need to apply it to each TX button

for press and release

SuperKermit · February 4

Am 3.2.2025 um 17:53 schrieb speed-of-heat:

the setup to fix it is in the linked post

you need to apply it to each TX button

for press and release

Thx for the hint, but that does not help unfortunately.

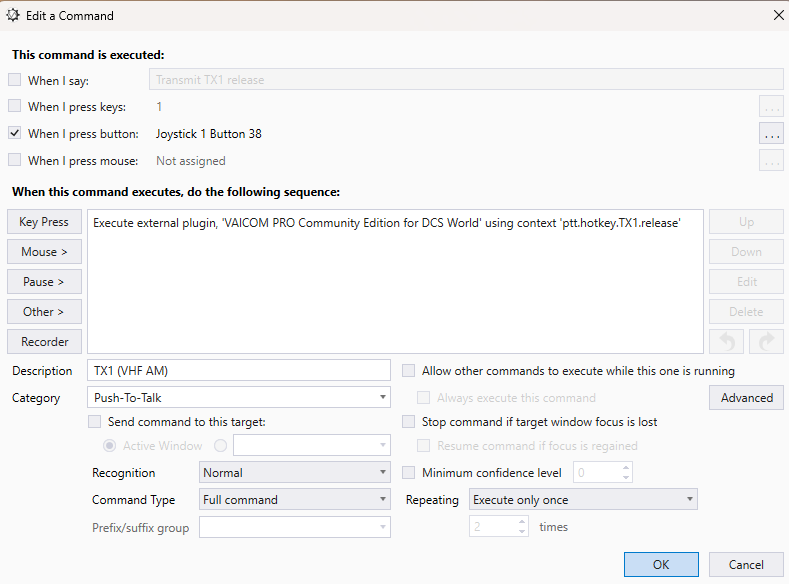

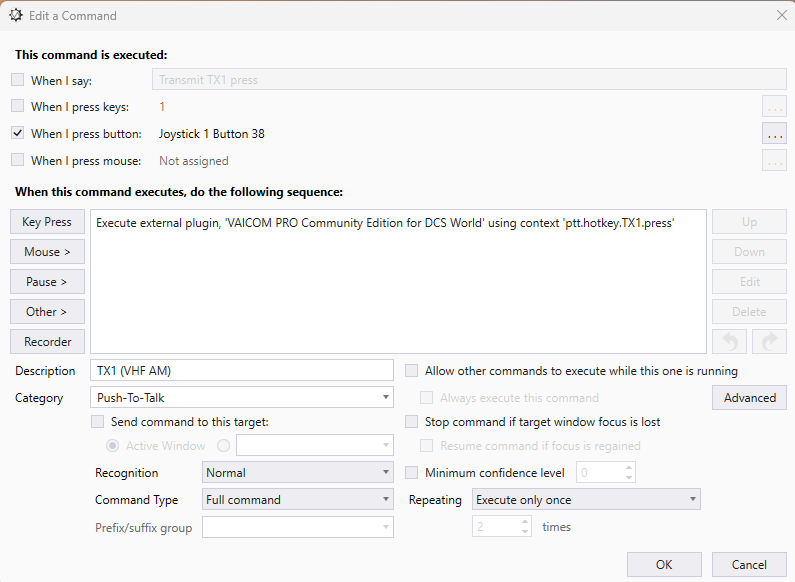

Here are my settings - and the result: same behavior as without. BTW I also switched to VSPX.

This is really frustrating as I know what great of a tool VCP can be!

Edited February 4 by SuperKermit
