Radio parameter name for X: COCKPIT PARAM IS EQUAL TO ANOTHER

[Leviathan667]

Hi,

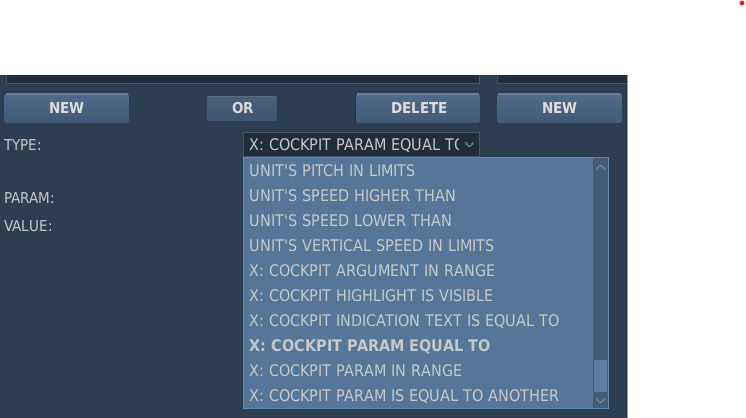

I'd like to know what is the name of the main and secondary radios (FR22/24) for use in the mission editor with the "Cockpit param equal to" condition (see images).

When I use Param: FR22, FR_22, Radio 1 or Radio 2, it does not work.

E.g. I'd like to a message show up when the main radio is set to 250.00 MHz.

Thank you



nullnull

Edited August 21, 2022 by Leviathan667

[Rudel_chw]

47 minutes ago, Leviathan667 said:

Hi,

I'd like to know what is the name of the main and secondary radios (FR22/24) for use in the mission editor with the "Cockpit param equal to" condition (see images).

When I use Param: FR22, FR_22, Radio 1 or Radio 2, it does not work.



Hi,

Unfortunately, as far as I know, the Viggen does not have Parameters for its radio's state. Its valid parameters are these:



0:0.000000\
2:0.000000\
ACCELERATION_X_W:0.000000\
ACCELERATION_Y_W:0.000000\
ACCELERATION_Z_W:0.000000\
ATTITUDE_HOLD:0.000000\
BASE_SENSOR_ALTIMETER_ATMO_PRESSURE_HG:0.000000\
BASE_SENSOR_AOA:0.080049\
BASE_SENSOR_AOS:0.000607\
BASE_SENSOR_BAROALT:5969.180856\
BASE_SENSOR_CANOPY_POS:0.000000\
BASE_SENSOR_CANOPY_STATE:0.000000\
BASE_SENSOR_FLAPS_POS:0.000000\
BASE_SENSOR_FLAPS_RETRACTED:1.000000\
BASE_SENSOR_FUEL_TOTAL:5483.002930\
BASE_SENSOR_GEAR_HANDLE:0.000000\
BASE_SENSOR_HEADING:6.048174\
BASE_SENSOR_HELI_COLLECTIVE:0.000000\
BASE_SENSOR_HELI_CORRECTION:0.000000\
BASE_SENSOR_HORIZONTAL_ACCEL:0.097053\
BASE_SENSOR_IAS:157.791880\
BASE_SENSOR_LATERAL_ACCEL:-0.001848\
BASE_SENSOR_LEFT_ENGINE_FAN_RPM:0.974954\
BASE_SENSOR_LEFT_ENGINE_FUEL_CONSUPMTION:0.000000\
BASE_SENSOR_LEFT_ENGINE_RPM:0.945705\
BASE_SENSOR_LEFT_ENGINE_TEMP_BEFORE_TURBINE:0.000000\
BASE_SENSOR_LEFT_GEAR_DOWN:0.000000\
BASE_SENSOR_LEFT_GEAR_UP:1.000000\
BASE_SENSOR_LEFT_THROTTLE_POS:0.000000\
BASE_SENSOR_LEFT_THROTTLE_RAW_CONTROL:0.000000\
BASE_SENSOR_MACH:0.677913\
BASE_SENSOR_MAG_HEADING:0.149205\
BASE_SENSOR_NOSE_GEAR_DOWN:0.000000\
BASE_SENSOR_NOSE_GEAR_UP:1.000000\
BASE_SENSOR_PITCH:-0.052503\
BASE_SENSOR_PITCH_RATE:-0.014406\
BASE_SENSOR_PROPELLER_PITCH:0.000000\
BASE_SENSOR_PROPELLER_RPM:0.000000\
BASE_SENSOR_PROPELLER_TILT:0.000000\
BASE_SENSOR_RADALT:5969.180856\
BASE_SENSOR_RELATIVE_TORQUE:0.000000\
BASE_SENSOR_RIGHT_ENGINE_FAN_RPM:0.000000\
BASE_SENSOR_RIGHT_ENGINE_FUEL_CONSUMPTION:0.000000\
BASE_SENSOR_RIGHT_ENGINE_RPM:0.000000\
BASE_SENSOR_RIGHT_ENGINE_TEMP_BEFORE_TURBINE:0.000000\
BASE_SENSOR_RIGHT_GEAR_DOWN:0.000000\
BASE_SENSOR_RIGHT_GEAR_UP:1.000000\
BASE_SENSOR_RIGHT_THROTTLE_POS:0.000000\
BASE_SENSOR_RIGHT_THROTTLE_RAW_CONTROL:0.000000\
BASE_SENSOR_ROLL:0.037985\
BASE_SENSOR_ROLL_RATE:0.005862\
BASE_SENSOR_RUDDER_NORMED:0.000000\
BASE_SENSOR_RUDDER_POS:0.000000\
BASE_SENSOR_SPEED_BRAKE_POS:0.000000\
BASE_SENSOR_STICK_PITCH_NORMED:0.000000\
BASE_SENSOR_STICK_PITCH_POS:0.000000\
BASE_SENSOR_STICK_ROLL_NORMED:0.000000\
BASE_SENSOR_STICK_ROLL_POS:0.000000\
BASE_SENSOR_TAS:214.553759\
BASE_SENSOR_VERTICAL_ACCEL:0.810091\
BASE_SENSOR_VERTICAL_SPEED:-28.348905\
BASE_SENSOR_WOW_LEFT_GEAR:0.000000\
BASE_SENSOR_WOW_NOSE_GEAR:0.000000\
BASE_SENSOR_WOW_RIGHT_GEAR:0.000000\
BASE_SENSOR_YAW_RATE:-0.002019\
BCKPALTIND10KM:5952.679276\
BCKPALTIND1KM:952.679276\
BCKPFVELIND:157.848797\
DEBUGMESSAGE:\"\"\
EDCOMPASSHEADING:0.000000\
EJECTION_BLOCKED_0:0.000000\
EJECTION_INITIATED_0:-1.000000\
ENGINE_MGMT:0.000000\
FDUALTIND10KM:5961.872490\
FDUALTIND1KM:961.872490\
FDUFVELIND:158.681803\
FLAPS_EXTENDED_ANGLE:30.000000\
FLAPS_RETRACTED_ANGLE:-4.000000\
FM_Params:\"0GEARSTATE;\"\
GEARSTATE:0.000000\
GRONA_TENTAKLER:0.000000\
HUD_KONSTHORIZ_X:-0.014231\
HUD_KONSTHORIZ_Y:0.051602\
NAV_COMMAND_MODE:0.000000\
NAV_COMMAND_NUMP:-1.000000\
NAV_COMMAND_ROT:0.000000\
NAV_COMMAND_ROTSEL:-1.000000\
NAV_COMMAND_WP:-1.000000\
NAV_CURRENTWP:\"B1\"\
NAV_SCRATCHPAD:\"413410\"\
SAS_BETA_CORRECTION_FACTOR_EXPONENT:0.000100\
SAS_BETA_CORRECTION_FACTOR_LINEAR:0.000000\
SAS_PITCH_DAMP_FACTOR_LINEAR:10.000000\
SAS_ROLL_DAMP_FACTOR_LINEAR:2.500000\
SAS_STICK_DISENGAGE:0.000000\
SAS_YAW_DAMP_FACTOR_LINEAR:35.000000\
STARTERSWITCH:\"0\"\
TRIM_CENTER:0.000000\
VHF_AM_FREQ:124.000000\


The last one is a standard DCS parameter that has no valid value on the Viggen. On the above list, the parameter name is the string up to but not including the colon, after the colon is the parameter value at the moment I took the screenshot.



47 minutes ago, Leviathan667 said:

E.g. I'd like to a message show up when the main radio is set to 250.00 MHz.



The only way to know that information that I can think of, is to check the position of each radio control knob, using the X:COCKPIT ARGUMENT IN RANGE condition.

[Leviathan667]

Thanks @Rudel_chw

I've made use of the X:COCKPIT ARGUMENT IN RANGE in a past life. It does work but it's quite a complex setup especially if you have to handle multiple frequency changes. So I was looking for something simple.

@IronMike Does a parameter exist for the radio state (to be used with "Cockpit param equal to")  and if not, can one be easily added (please  )?
