Predator-78 Posted June 12, 2023 Share Posted June 12, 2023 Hi all, has any of you ever edited a mission with more than one flight package, with different planes and inserting the respective kneeboards in the .miz file? I followed some instructions on the web, opened the .miz file with 7-Zip and created the KNEEBOARD folder inside. Inside the latter I have inserted another folder called IMAGES. By doing this I don't have the subdivisions between the kneeboards inserted between one plane and another. On another site instead I had read that inside the KNEEBOARD folder I had to insert the precise name of the module I want to use, for example F-16C_50 and then inside the latter put the IMAGES folder with all the graphic files of the kneeboard. Unfortunately I open the mission in single and multiplayer and I don't see the legpads. Can anyone help me? CPU: 12th Gen Intel(R) Core(TM) i7-12700K 3.60 GHz - DDR4 64,0 GB - MSI RTX3080ti - Win 11 64bit Link to comment Share on other sites More sharing options...
Rudel_chw Posted June 12, 2023 Share Posted June 12, 2023 Create inside the miz file the following directories (I use WinRAR for this, but probably the free 7-zip can do it also): KNEEBOARD\IMAGES KNEEBOARD\FA-18C_hornet\IMAGES KNEEBOARD\F-16C_50\IMAGES The image files on KNEEBOARD\IMAGES can be seen in both planes. The KNEEBOARD\F-16C_50\IMAGES can be seen only on the F-16. The ones at KNEEBOARD\FA-18C_hornet\IMAGES can be seen only on Hornets. Be careful with the upper and lower case, as the aircraft names are case-sensitive. 2 For work: iMac mid-2010 of 27" - Core i7 870 - 6 GB DDR3 1333 MHz - ATI HD5670 - SSD 256 GB - HDD 2 TB - macOS High Sierra For Gaming: 34" Monitor - Ryzen 3600 - 32 GB DDR4 2400 - nVidia RTX2080 - SSD 1.25 TB - HDD 10 TB - Win10 Pro - TM HOTAS Cougar Mobile: iPad Pro 12.9" of 256 GB Link to comment Share on other sites More sharing options...

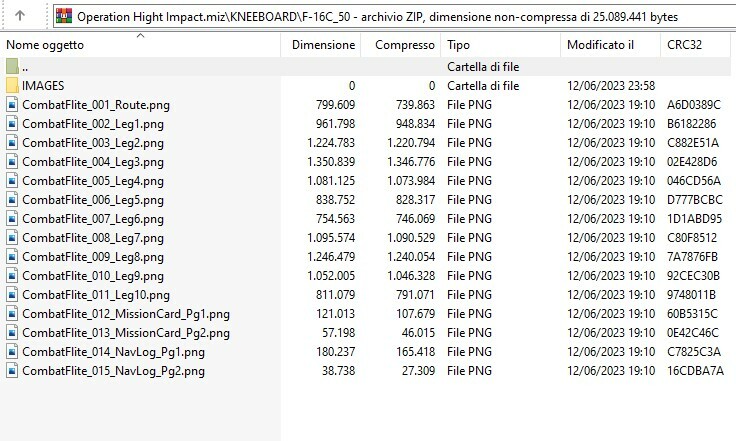

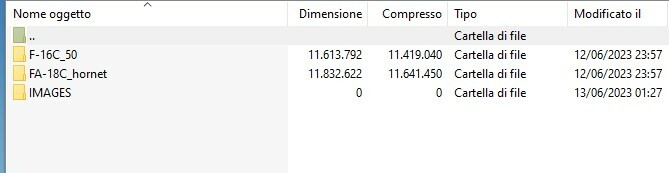

Predator-78 Posted June 12, 2023 Author Share Posted June 12, 2023 1 ora fa, Rudel_chw ha scritto: Create inside the miz file the following directories (I use WinRAR for this, but probably the free 7-zip can do it also): KNEEBOARD\IMAGES KNEEBOARD\FA-18C_hornet\IMAGES KNEEBOARD\F-16C_50\IMAGES The image files on KNEEBOARD\IMAGES can be seen in both planes. The KNEEBOARD\F-16C_50\IMAGES can be seen only on the F-16. The ones at KNEEBOARD\FA-18C_hornet\IMAGES can be seen only on Hornets. Be careful with the upper and lower case, as the aircraft names are case-sensitive. Thanks for your reply first of all. I followed the instructions but can't see them. In sequence, I'm posting here three screenshots of the steps I've done CPU: 12th Gen Intel(R) Core(TM) i7-12700K 3.60 GHz - DDR4 64,0 GB - MSI RTX3080ti - Win 11 64bit Link to comment Share on other sites More sharing options...
Solution Rudel_chw Posted June 13, 2023 Solution Share Posted June 13, 2023 (edited) 11 hours ago, Predator-78 said: I followed the instructions but can't see them. I Lets try with an example ... try the attached mission. There are three aircrafts: a Hornet, an F16, and a TF-51 .. all three should show the image that is at /KNEEBOARD/IMAGES, like this: In addition, the Hornet should be able to show the page that is at KNEEBOARD\FA-18C_hornet\IMAGES like this: and finally, only the F-16 should display the page at KNEEBOARD\F-16C_50\IMAGES Please be aware that the kneeboard is limited to 256 pages, and I suggest to use JPG rather than PNG to save space on the mission. Best regards, Eduardo Test KB.miz Edited June 13, 2023 by Rudel_chw Corrected page count limit 3 For work: iMac mid-2010 of 27" - Core i7 870 - 6 GB DDR3 1333 MHz - ATI HD5670 - SSD 256 GB - HDD 2 TB - macOS High Sierra For Gaming: 34" Monitor - Ryzen 3600 - 32 GB DDR4 2400 - nVidia RTX2080 - SSD 1.25 TB - HDD 10 TB - Win10 Pro - TM HOTAS Cougar Mobile: iPad Pro 12.9" of 256 GB Link to comment Share on other sites More sharing options...
Predator-78 Posted June 13, 2023 Author Share Posted June 13, 2023 Thanks I'll let you know! CPU: 12th Gen Intel(R) Core(TM) i7-12700K 3.60 GHz - DDR4 64,0 GB - MSI RTX3080ti - Win 11 64bit Link to comment Share on other sites More sharing options...
Predator-78 Posted June 13, 2023 Author Share Posted June 13, 2023 @Rudel_chw thanks for your help! I solved the problem, I used WinRar. 1 CPU: 12th Gen Intel(R) Core(TM) i7-12700K 3.60 GHz - DDR4 64,0 GB - MSI RTX3080ti - Win 11 64bit Link to comment Share on other sites More sharing options...
