Pimax Crystal Infinite Battery Power Mod

[Greekbull]

So I just made the switch from a Varjo Aero to a Pimax Crystal and the biggest issue for me was battery life. I think making this thing standalone was a very poor decision as the groups of people IMO that are willing to pay $1500 for a VR headset could care less about a standalone option.

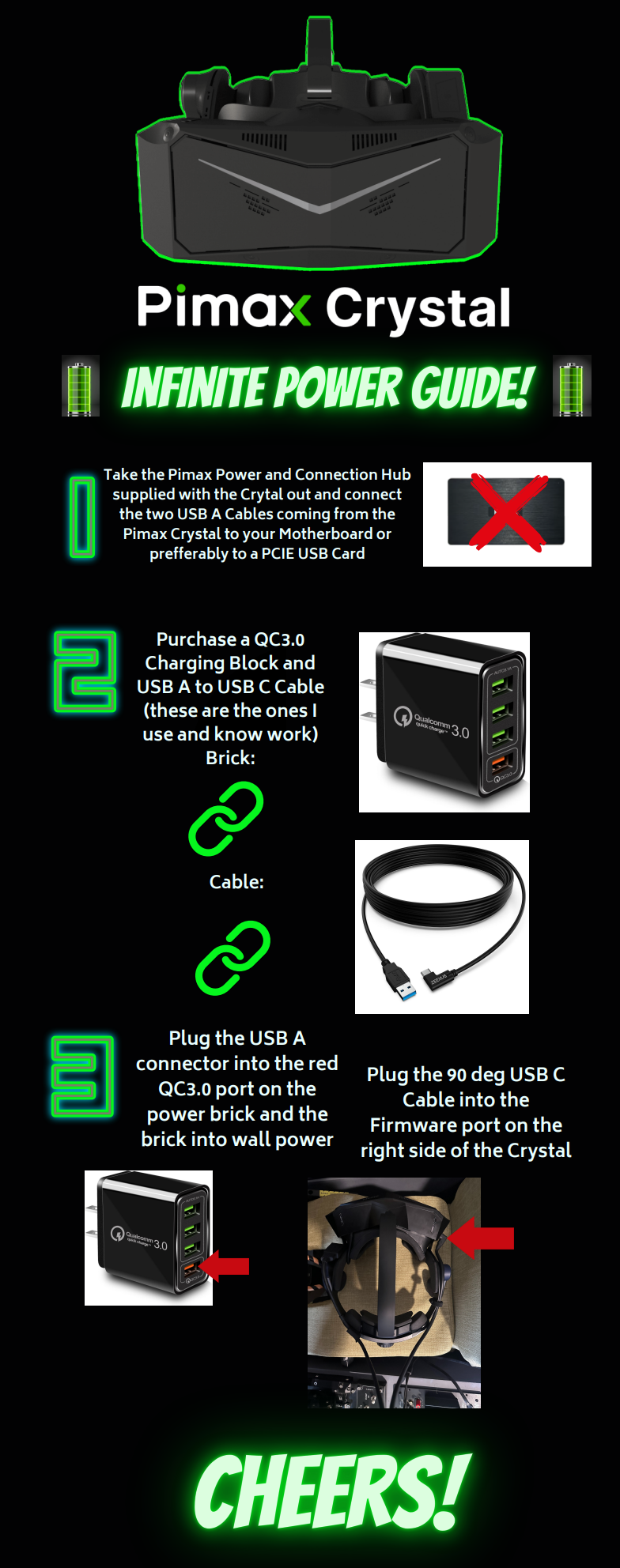

I tried a number of solutions and combinations before finally finding a solution that gives me pretty much Infinite flight time in DCS without having to worry about my battery drawing down.  I made a guide which I'll post here and give you the amazon links so you don't have to waste time or money finding the right combo.


Power Brick: https://www.amazon.com/dp/B0C2ZHS51Y?psc=1&ref=ppx_yo2ov_dt_b_product_details

Cord: https://www.amazon.com/dp/B0B7JQG2VK?psc=1&ref=ppx_yo2ov_dt_b_product_details





Edited August 16, 2023 by Greekbull

[A Hamburgler]

It’s weird because some people have an issue with their battery not charging in the headset. I have had the crystal for about a month now and have yet to replace the battery. It’s still fully charged and I have dumped many hours into dcs and other games testing the crystal. Needless to say still good option.

[Waxi]

Great hint. Thank you for sharing.

Off-topic, but I am to curious to hold back this question: Why did you change from the Aero to the Crystal, i.e., why were you unhappy with the Aero and are you satisfied with the Crystal?

[TheHog107]

Hi Greekbull,

I've been doing some tests as well.

I found this combination worked for me.

Power: https://www.amazon.ca/dp/B07YD9V3VZ?ref=ppx_yo2ov_dt_b_product_details&th=1

10 ft USB A to C Cable: https://www.amazon.ca/dp/B08GM3RCFK?ref=ppx_yo2ov_dt_b_product_details&th=1



However, when going to 16 ft, I read it was a good idea to use an active cable.

16 ft Active Cable: https://www.amazon.ca/dp/B08FVCNX14?psc=1&ref=ppx_yo2ov_dt_b_product_details

This cable didn't work as well and I noticed a slow discharge of the battery.



For sims like DCS, I'd recommend a smaller non-active cable of 10 ft.  Considering this cable is plugged into the power brick, it can be plugged into a wall socket closer to where you are setup to play.



Just my 2 cents!









[Greekbull]

On 8/17/2023 at 5:55 AM, Waxi said:

Great hint. Thank you for sharing.

Off-topic, but I am to curious to hold back this question: Why did you change from the Aero to the Crystal, i.e., why were you unhappy with the Aero and are you satisfied with the Crystal?

I loved the Aero but I wanted more FOV.  While atm the Crystal has about the same Horizontal FOV it has a much better Vertical FOV.  It also has better colors and blacks with the selective dimming.  If they nail the Wide FOV lenses that will be a big homerun.

[theskyisthelimit99]

What's the summary on this mod, need the 16ft active or it drains battery?   Do you leave the battery connected to the headset (silly question, but i assume yes you have to, plus weight would be out of wack)





Also. Is it OK to leave connected 24 7?

Edited November 12, 2023 by theskyisthelimit99

[Peedee]

On 8/16/2023 at 10:34 PM, A Hamburgler said:

It’s weird because some people have an issue with their battery not charging in the headset. I have had the crystal for about a month now and have yet to replace the battery. It’s still fully charged and I have dumped many hours into dcs and other games testing the crystal. Needless to say still good option.

The original USB hub coming with the headset I put in a drawer pretty much straight away…  didn’t work. So I used another powered USB hub I had from before. And, I’m pretty sure the battery didn’t charge in the headset cause I never saw an indicator light for charging. The headset did work, but the battery drained fast, like in 2 hours or so.

Today I bought a new powered USB hub, giving a max 15w out according to specs. Now I can see the yellow indicator light for charging is lit on the headset when I am not using it, so hopefully it is charging, and hopefully won’t drain the battery so fast either while I am flying. The old USB  I had that worked but drained battery fast, gave a max of 10w out, what specs for the original Pimax is I don’t know, never used it anyway cause it didn’t work.
