[FIXED WING] MIKOYAN-GUREVICH MiG-25P (DATA DUMP THREAD)

[SOLIDKREATE]

Good Afternoon Pilots. I have started my data mining campaign much like I did with the F-105 that some of you may be familiar with. Today I bring to you an English Copy of the MiG-25P Combat Employment Training Manual. I will continue to add any Engineering or Technical Data that I may find or purchase here in this thread in hope a developer will be enticed enough to make a MOD or an actual model. @Logan54



GOOGLEDRIVE, MiG-25P Combat Employment Training Manual: https://drive.google.com/file/d/1ox-Uy1T-RaiX3e26tZLEC-v40hXsKjoO/view?usp=sharing



COURTESY OF @F-2,



MiG-25PD (Iraqi) Combat Employment Manual: https://www.secretprojects.co.uk/MiG-25PD Flight and Combat Employment Training Manual-OCR.pdf

MiG-25 PD (PDS) Interception Complex: https://www.docdroid.com/TpeBRok/mig-25pd-pds-combat-employment-manual-pdf

• https://disk.yandex.ru/d/OEpxqudk47SN5A
• Aircraft MiG-25P. Technical description. Book II. Armament (1972)https://disk.yandex.ru/d/-VNMlXARKNYTCg
• Aircraft MiG-25P. Technical description. Book V: Electronic equipment (1972).https://apps.dtic.mil/sti/tr/pdf/ADA103123.pdfUSAF intelligence briefing https://www.fordlibrarymuseum.gov/library/document/0324/1553702.pdf
• briefing to president Ford.https://www.scribd.com/document/635909943/MIG-25RB aerodynamics manual RB



Edited January 15, 2024 by SOLIDKREATE

[Mike Force Team]

@SOLIDKREATEI wish you success in finding an interested person or company. Be patient while waiting.  History of success is very likely to repeat itaelf.

Mike Force Team

[F-2]

https://www.secretprojects.co.uk/MiG-25PD Flight and Combat Employment Training Manual-OCR.pdf


Iraqi PD manual 1980. Actually modestly superior to Soviet PD with addition of SPO-15 and KDS-155.



[SOLIDKREATE]

7 hours ago, F-2 said:

https://www.secretprojects.co.uk/MiG-25PD Flight and Combat Employment Training Manual-OCR.pdf


Iraqi PD manual 1980. Actually modestly superior to Soviet PD with addition of SPO-15 and KDS-155.







Added, and credited.

[F-2]

https://disk.yandex.ru/d/OEpxqudk47SN5A
Aircraft MiG-25P. Technical description. Book II. Armament (1972)

https://disk.yandex.ru/d/-VNMlXARKNYTCg
Aircraft MiG-25P. Technical description. Book V: Electronic equipment (1972).


https://apps.dtic.mil/sti/tr/pdf/ADA103123.pdf
USAF intelligence briefing



https://www.fordlibrarymuseum.gov/library/document/0324/1553702.pdf
briefing to president Ford



https://www.scribd.com/document/635909943/MIG-25RB
aerodynamics manual RB

[SOLIDKREATE]

Added, I'm seraching the individual avionics components now.



From Wiki:

• Smerch-A2 radar based on vacuum tube electronics, for early and late MiG-25P, with up to 120 km of radar scanning distance (40 / 80 / 120 km) (50–70 km tracking fighter-sized targets, up to 105 km for bomber-sized targets at high altitude). Operational starting from 500 meters. The first examples of the MiG-25 uses the Smerch-A1, and the final variant was the Smerch-A3 after Belenko's defection with improved reliability.^[146]
• Pulse-doppler RP-25M (Saphir-25) radar based on semiconductor electronics and developed from the RP-23ML of the MiG-23ML, for later MiG-25PD, with up to 110–120 km of detection range (depending on how good the tuning of the radar).^[147][146]
• A RV-UM or a RV-4 radar altimeter
• SPO-10M Sirena-3 RWR (SPO-15L Beryoza for MiG-25PDSG)^[146]
• 2 x BVP-50-60 chaff/flare dispensers with KDS-155 cassettes and 30 CM rounds each (PPR-50 chaff and/or PPI-50 flares) (MiG-25PDSG / MiG-25PDSL)^[146]
• Lazour datalink (BAN-75 for the MiG-25PD)
• SRZO-2M Transmitter and SRZM-2 Receiver (IFF set)
• Vozdukh-1 GCI
• TP-26Sh IRST (MiG-25PD), 25 km of lock-on range at low altitude against afterburning targets, 50 km+ at high altitude (depending on the size of the heat source). Can slave infrared missiles for sneak attacks.
• ARK-10 ADF
• RV-UM low-range radio altimeter
• R-832M + Prizma radios
• SAU-155P1 automatic control system
• KM-1 ejection seat (replaced by the KM-1M in later MiG-25P production examples)



[SOLIDKREATE]

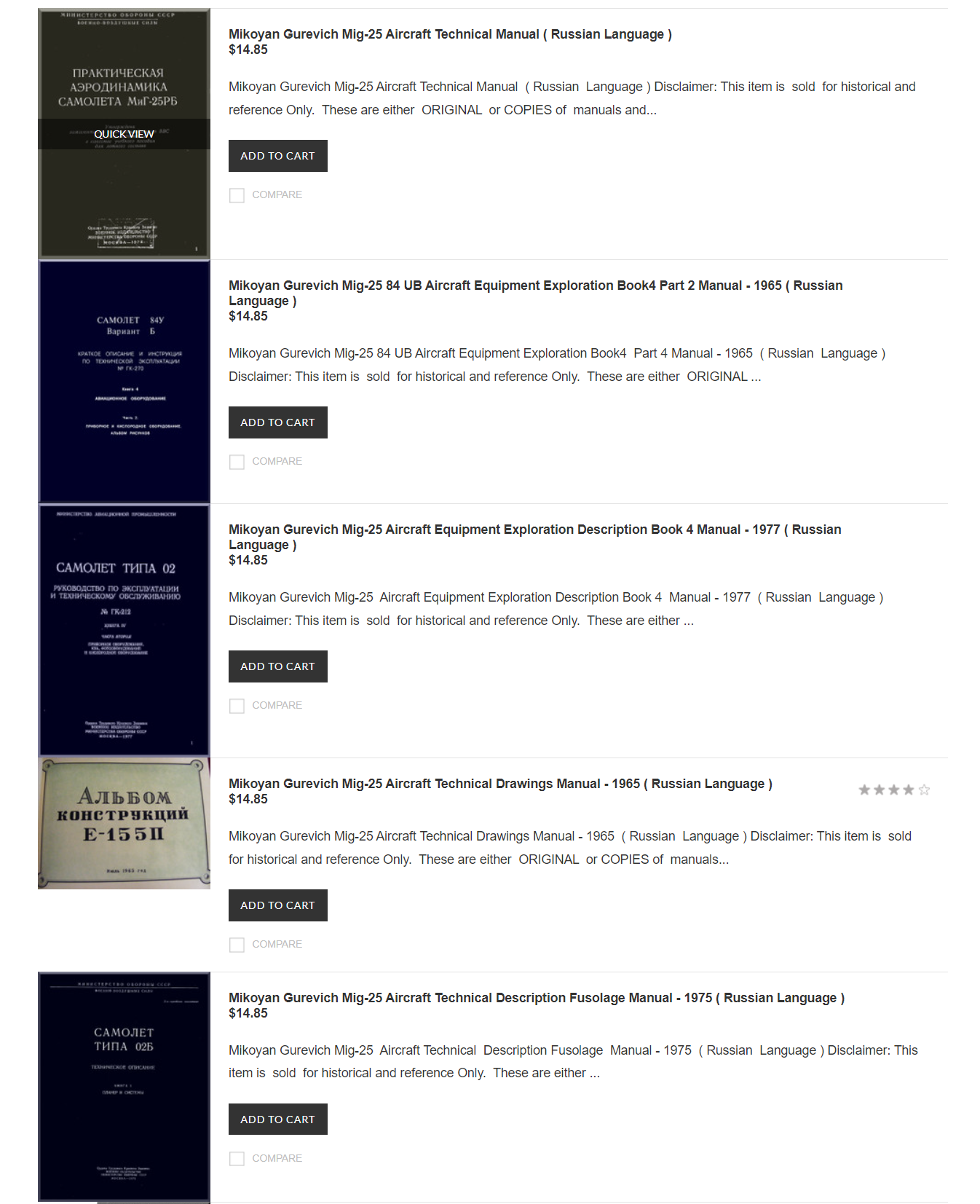

Found this stuff too. I'll have to wait until I get paid so I can buy a couple of these. Definitley getting the Technical Drawings book.



[SOLIDKREATE]

Found a great video however you may want to mute it. The OP completely messed it up with 1980's techno.





[F-2]

https://aviationarchives.blogspot.com/2024/01/mig-25pdpds-combat-employment-manual.html?m=1


MIG-25PD weapons employment

[Logan54]

Wish you luck witrh this thread. Hope someday we`ll see Foxbat on Coldwar DCS arena.

Aircraft Type 84. Technical description. Book 1. Airframe and systems. (from the free access Техническое описание Миг-25 : : Новости (scalemodels.ru)

Edited January 15, 2024 by Logan54

[SOLIDKREATE]

added

[NineLine]

Everything looks ok so far, BUT make sure you are careful to not share anything too new or that is still controlled. If you post something try and post the link to where it is allowed to be shared, ect. Just a friendly reminder

[SOLIDKREATE]

Okay sounds good, I'll be cognizant of that. Based on what I have seen there really isn't much more than what F-2 and I have shown. Maybe this can be a really good MOD like the A-4? I have SolidWorks Fluid SIM. So, I could get what  need aerodynamic -wise from a model. I know it's not SIMULIA but at least it is something =o). I just need to get good at Blender.

[SOLIDKREATE]

Hello all, I have not forgotten about this bird. I've just been busy is all. I did buy one of the technical manuals I posted a picture of. It's from the 70's and hand drawn in some cases. Overall pretty good book. I'll buy up the others and look at all of them. I'll send a DM to Nineline showing him what I have and if I can share images of it or not.

Edited April 26, 2024 by SOLIDKREATE

[Logan54]

В 13.04.2024 в 23:45, SOLIDKREATE сказал:

Overall pretty good book.

which one?
