HYD 2 failure

[dresoccer4]

Flying around and doing some bombing runs when I got a HYD 2 warning light. what does that mean exactly, and what should I do about it?

[IvanK]

Hydraulic System 2 Failure/Low pressure:

[dresoccer4]

8 hours ago, IvanK said:

Hydraulic System 2 Failure/Low pressure:



thanks for the response. but what I was more looking for was what does it mean to the pilot and the plane.

what ended up happening was the air brakes, flaps, and wheel brakes no longer worked. quite a surprise when coming in to land! really enjoyed the realism. a single stray bullet must have pierced my hyd 2 lines because i had only been lightly grazed. very fun interaction

[Loukuins]

9 hours ago, dresoccer4 said:

thanks for the response. but what I was more looking for was what does it mean to the pilot and the plane.

what ended up happening was the air brakes, flaps, and wheel brakes no longer worked. quite a surprise when coming in to land! really enjoyed the realism. a single stray bullet must have pierced my hyd 2 lines because i had only been lightly grazed. very fun interaction

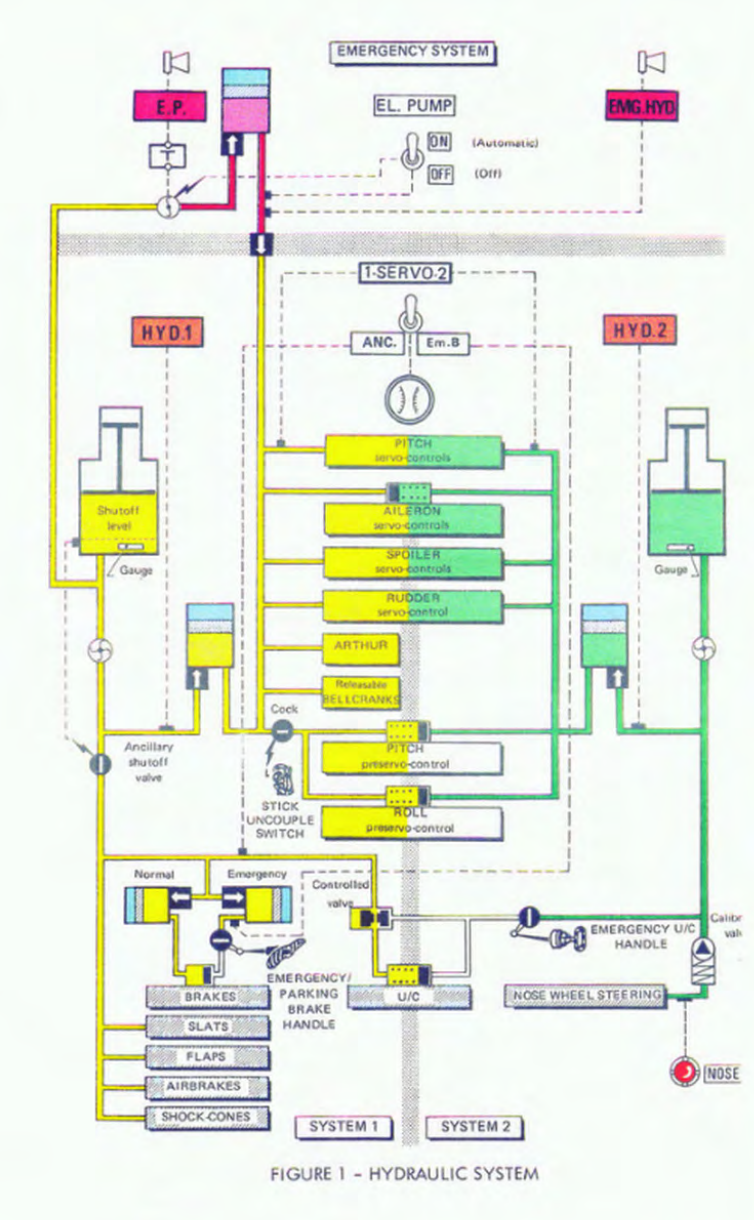

This is from the CZ manual out there, you can see that HYD 2 should not impact those systems, there is some differences in the hydraulic systems on other version but nothing that will change the behavior of the systems.

[IvanK]

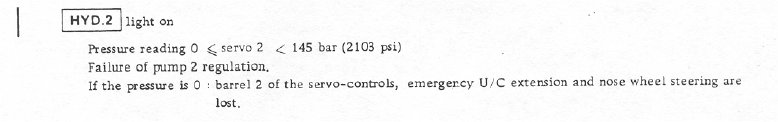

Again from the Cz manual:

[dresoccer4]

3 hours ago, Loukuins said:

This is from the CZ manual out there, you can see that HYD 2 should not impact those systems, there is some differences in the hydraulic systems on other version but nothing that will change the behavior of the systems.

even more interesting! only the HYD 2 light was on but I lost all of the system mentioned above.

[fausete]

Hi,

According to the code, everything is correct. The servitudes are fed by the hydraulic system 1. Do you happen to have a trk of the mission?



PS: Could also be that you received damage to both the servitudes and the main hydraulic 2 system at the same time.

Edited June 14, 2024 by fausete

[dresoccer4]

10 hours ago, fausete said:

Hi,

According to the code, everything is correct. The servitudes are fed by the hydraulic system 1. Do you happen to have a trk of the mission?



PS: Could also be that you received damage to both the servitudes and the main hydraulic 2 system at the same time.



could it be possible the warning lights were broken, is that modeled? unfortunately I don't have a track or screenshot as I didn't know what was going on at the time. I just know I had 1 warning light on that said HYD 2. i did get 1 light spray of AA during my bombing run that put a few holes in my belly before I broke away and flew home.

i'll run the mission again and see if I can reproduce

[fausete]

Hi, no, it's not the lights. There are some hit boxes that have a probability to get damage in both the hydraulic 2 system and the servitudes at the same time (or you can be hit in 2 different hit boxes, 1 for the hydraulic 2 and 1 for servitudes)
