Hello to everyone,



It's been about more than a year since I have wanted to make my own version of force controlled joystick.



With some incouragement of some friends - It has been back to the sketch board...



Here's are the resuts:

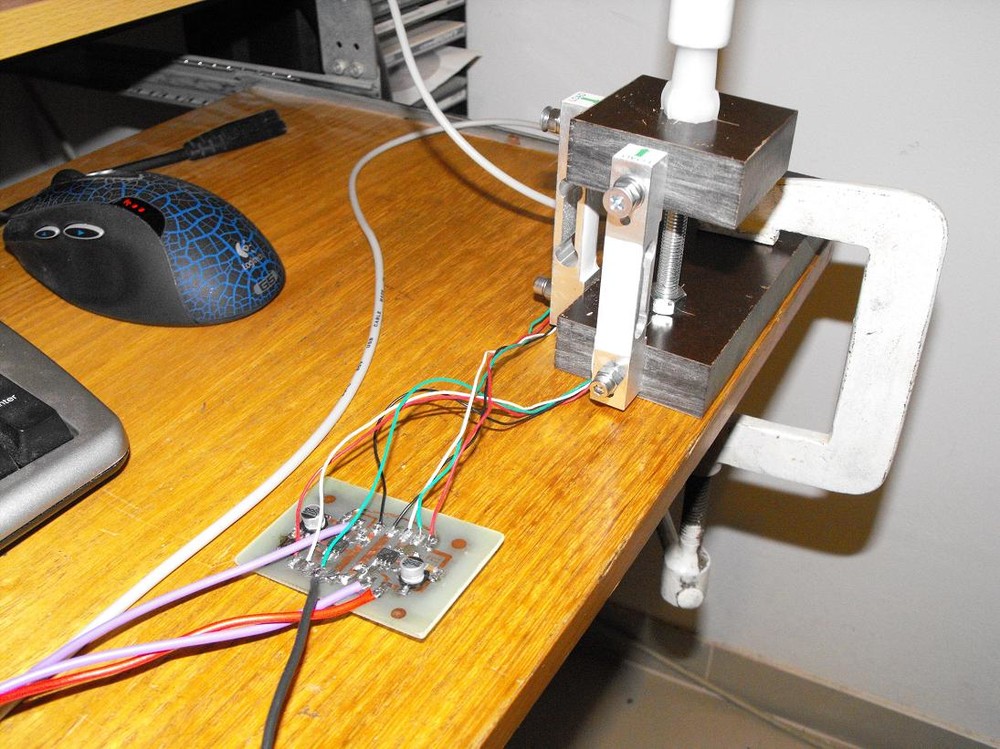

2 Prototypes:



Single axis and Dual axis configuration.



attached are files describing HowTo's and some pictures.



If ther's an interest- I'll further explain how its possible to make almost any joystick to become A force controlled one...



The coin in one of the pics is a NIS (NEW ISRAELI SHEKEL), It's diameter is 18 mm.



BTW

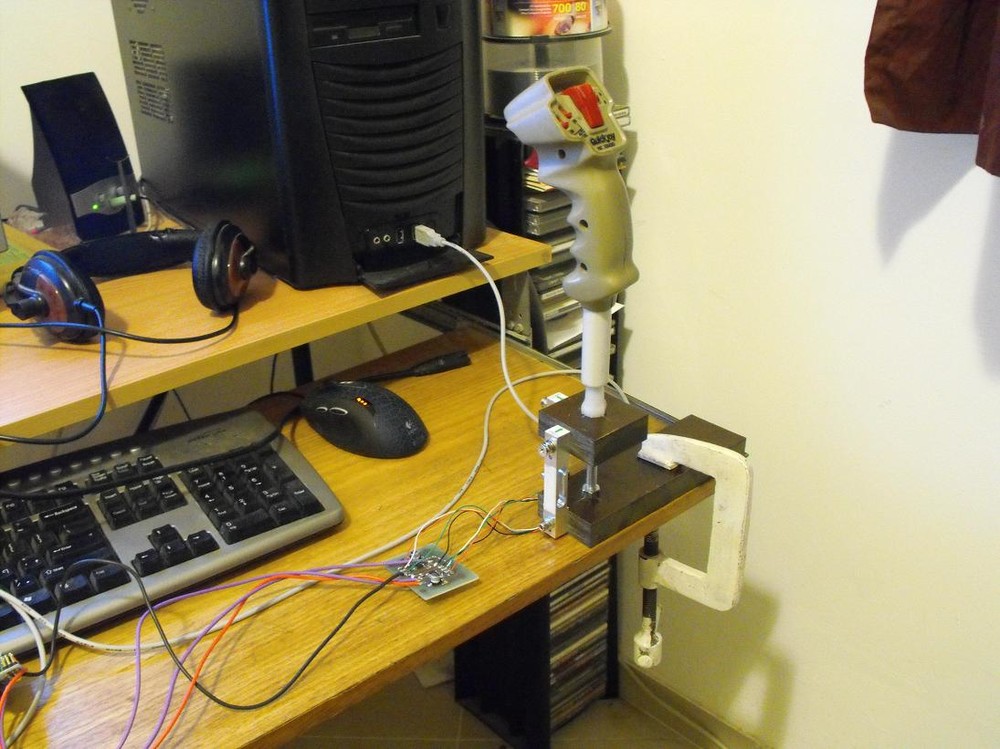

The stick grip in the pic is A VERY OLD stick that I had.

I definatly intend to replace it with a modern one...:thumbup:

LC2MC.pdf





Edited by Schredder
  • Like 5

Nir Bar

"Schredder"



"In the warrior code there's no surrender,

though his body says stop,his spirit cries...

NEVER !!!"

Posted

Cool. That is great work.

Ours is not to reason why, but rather to do and die.



A man walks into a zoo. The only animal in the entire zoo is a dog. It's a shitzu



Posted

so is this like *the* force were talking about? :)

Hornet, Super Carrier, Warthog & (II), Mustang, Spitfire, Albatross, Sabre, Combined Arms, FC3, Nevada, Gulf, Normandy, Syria AH-6J

i9 10900K @ 5.0GHz, Gigabyte Z490 Vision G, Cooler Master ML120L, Gigabyte RTX3080 OC Gaming 10Gb, 64GB RAM, Reverb G2 @ 2480x2428, TM Warthog, Saitek pedals & throttle, DIY collective, TrackIR4, Cougar MFDs, vx3276-2k

Combat Wombat's Airfield & Enroute Maps and Planning Tools




Posted

Very nice work!

I'll be trying this out.



Cheers,

Pogo

Intel I7 920 Std Clock - 6GB DDR3 RAM - 2 x GTX260 SLI - 10K 130GB Velociraptor Drive - Vista 64Bit - Saitek X52 Pro Hotas - Saitek Pro Rudder Pedals - TrackIR 5

Posted

Nicely done. It's a safe bet that there are people who are interested in this, so anything you have to add will be welcome!

[sIGPIC][/sIGPIC]

There's no place like 127.0.0.1

Posted

FINALLY..! c",)



At last someone took the plunge and started researcing a DIY force loading joystick.. My respect to you..!



... and I'll be watching this thread closely for updates..

"But (504)Brewber said they were'nt friendly.. So I took'em out.!"

[sIGPIC][/sIGPIC]



Posted

I'm happy to say that this configuration is totally usable.



It could use some fine tuning, but I dont really have the time now...

I finally started to build my new house. a bigger one that will allow me to have my own cockpit ...( and I even got my wife's "permission" signed by a lawyer...:thumbup:)



I'll keep updating every once in a while.



If anyone have specific questions - I probably have the answers so - shoot !



I intend to further develop this "project" so it would also have trimmers and sensitivity control.



If any comments and/or requests please feel free to share, as I believe that a good solution comes from the pepole who need and use it...



Cheers

Nir

Nir Bar

"Schredder"



"In the warrior code there's no surrender,

though his body says stop,his spirit cries...

NEVER !!!"

  • 3 months later...
Posted

Hi there...



I finally got to a tomporary residence... until my house will be built...

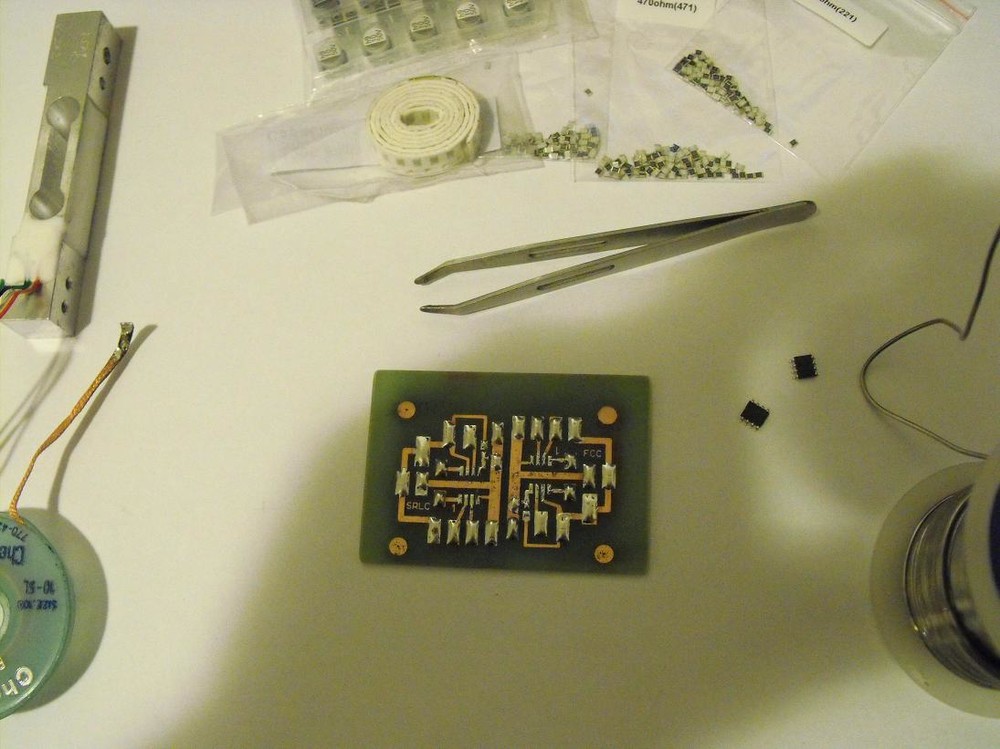

But the reason for this update is this tiny board.



It can be used as an independent module and as such can be fitted on many types of interfaces,such as , Mjoy , LEO's boards and many others...

You might even want to convert you current joystick that can be of any brand. (you need ofcourse to take care of the mechanical side...)

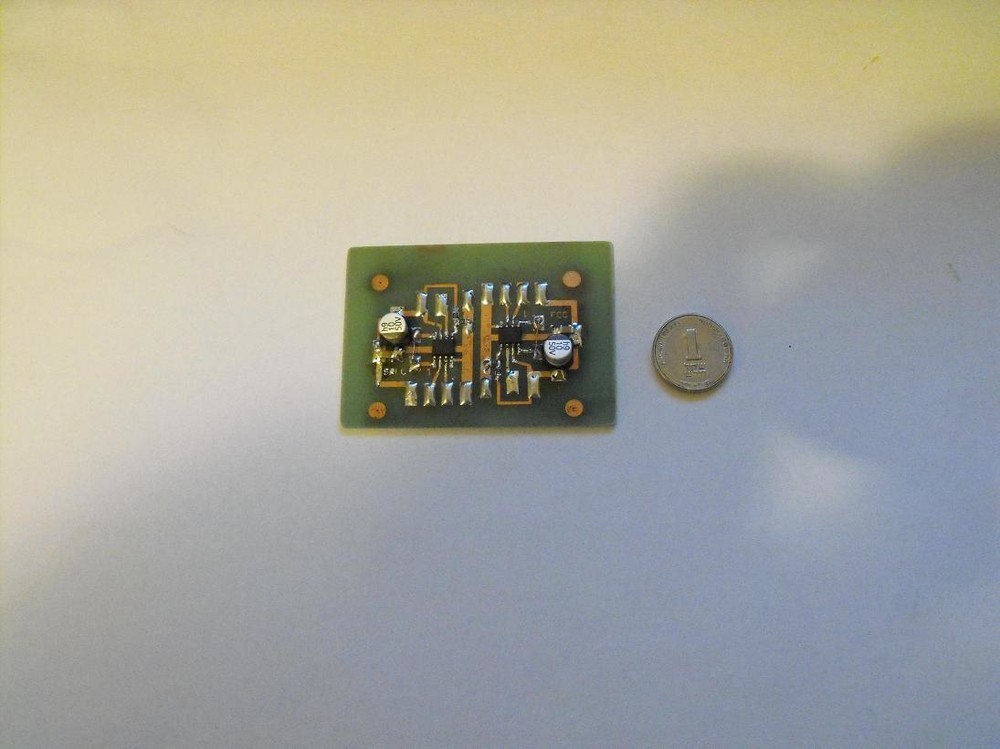

Here's a sample of the second version of the prototype.(the coins diameter is 18 mm)

When I'll get some time to arrange the layout and some documentation - ill post it...



I still wish to add some features as described on the comment above, yet, this setup is working you may use it freely...:thumbup:








Any comments and or suggestions are welcomed...



Nir

  • Like 1

Nir Bar

"Schredder"



"In the warrior code there's no surrender,

though his body says stop,his spirit cries...

NEVER !!!"

Posted

Wow this looks great and thank you for posting. Could you post a small demo video?
