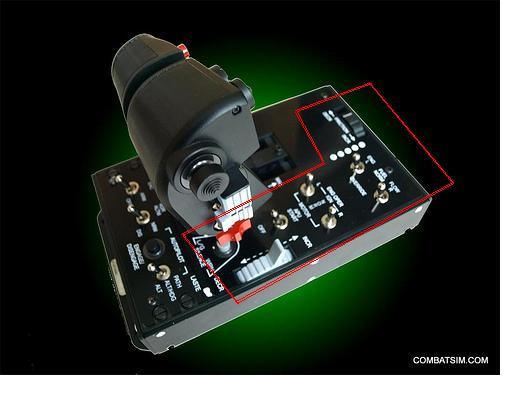

hreich Posted July 6, 2011 Posted July 6, 2011 (edited) Hi...does anybody have measurements of placemenet of upper portion throttle switches (that are placed before LASTE panel)? I would like to make a panel with cut-out for switches which I can use for other simulations that i play..Check pic.. Edited July 6, 2011 by hreich [sIGPIC][/sIGPIC] Pilot from Croatia
KLaFaille Posted July 7, 2011 Posted July 7, 2011 (edited) See attachment. Drawn by me, from this: Panels (2 of 23).jpg by KLaFaille, on Flickr RedThrottleLightPlate.PDF Edited July 11, 2011 by KLaFaille
hreich Posted July 7, 2011 Author Posted July 7, 2011 (edited) Thanks thats what i was looking for... Edited July 8, 2011 by hreich [sIGPIC][/sIGPIC] Pilot from Croatia
PanelBuilder Posted July 11, 2011 Posted July 11, 2011 See attachment. Drawn by me, from this: This drawing should be the standard IMHO. Colin
Deadman Posted July 11, 2011 Posted July 11, 2011 well ya considering it is from a real panel using calipers I think it was very kind of Red to post it:thumbup: https://www.shapeways.com/shops/a-10c-warthog-supplies https://forum.dcs.world/topic/133818-deadmans-cockpit-base-plans/#comment-133824 CNCs and Laser engravers are great but they can't do squat with out a precise set of plans.
Sokol1_br Posted July 14, 2011 Posted July 14, 2011 (edited) You have dimensions for LASTE panel - inf fact what the height. I find some MSxxxx document about .375 multiple, but how times? Sokol1 Edited July 16, 2011 by Sokol1_br
Deadman Posted July 18, 2011 Posted July 18, 2011 MS24659-31N throttle switch This is the number for the real Engine Operate Switches. MS24659-31N, NSN 5930-00-809-0173 https://www.shapeways.com/shops/a-10c-warthog-supplies https://forum.dcs.world/topic/133818-deadmans-cockpit-base-plans/#comment-133824 CNCs and Laser engravers are great but they can't do squat with out a precise set of plans.
