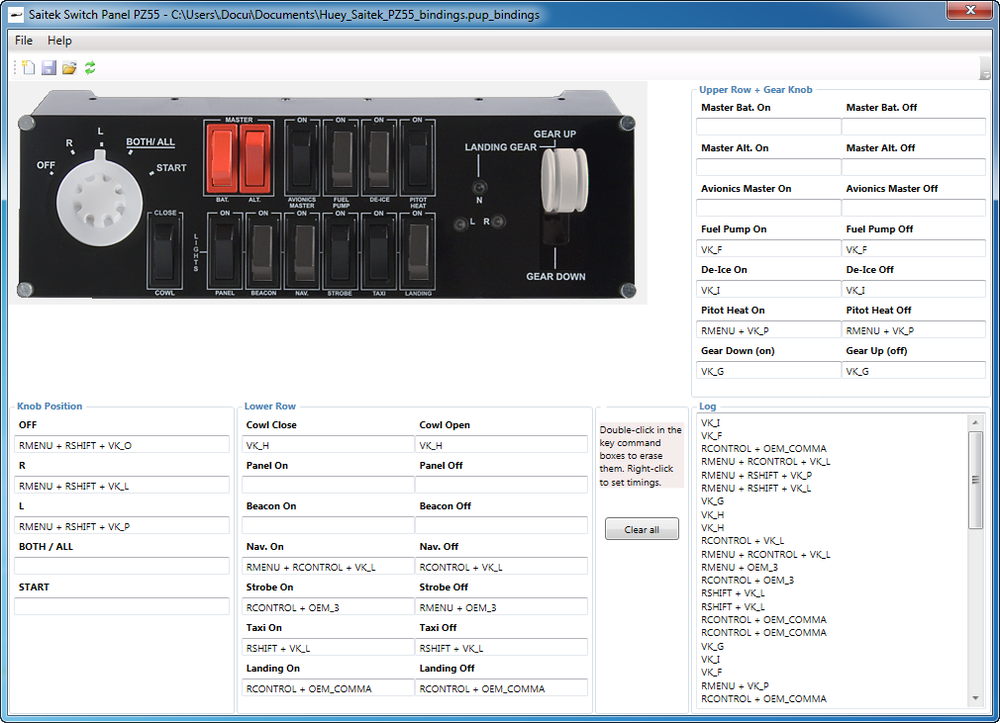

Guest Posted January 9, 2014 Posted January 9, 2014 (edited) OLD VERSION! Current thread here This application enables you to use the Saitek Pro Flight Switch Panel (PZ55) with Digital Combat Simulator Status = 100% working in DCS. Did you like this program? Give positive reputation to me and Raf and [FSF]Ian, thanks! Project is made in C#. Download files. Project homepage. Sourcecode, use as you please. -------------------------------------------------------------------------------------------------------------------------------------------------------- Installation -------------------------------------------------------------------------------------------------------------------------------------------------------- Unzip the files into the folder where you want to keep the program. You start the application by executing ProUsbPanels.exe -------------------------------------------------------------------------------------------------------------------------------------------------------- Short video explaining how to use the program (old version) -------------------------------------------------------------------------------------------------------------------------------------------------------- -------------------------------------------------------------------------------------------------------------------------------------------------------- Updating the application -------------------------------------------------------------------------------------------------------------------------------------------------------- Unzip new version over the old. If for some reason the profile files are changed, i.e. the structure in which the data is stored, delete or rename the old ones and create new profile files. I won't make it backward compatible etc, it takes only a few min to make a profile. New profile format will not happen often if at all anymore. (Just in case it happens) -------------------------------------------------------------------------------------------------------------------------------------------------------- Important notes -------------------------------------------------------------------------------------------------------------------------------------------------------- When opening the external text editor by clicking the button for the first time you get the the dialog "Windows can't open this file" dialog. That is because Windows is not familiar with the file type "*.pup_bindings". What you do is click "Select a program from a list of installed programs" and click "OK". From the next dialog choose "Notepad" and click "OK". This way Windows knows what to use next time you want to open a profile file. -------------------------------------------------------------------------------------------------------------------------------------------------------- For landing gear light support read this. -------------------------------------------------------------------------------------------------------------------------------------------------------- You need to install DCS-BIOS. Status today (11 Jan 2015) is that the A-10C and UH-1H are supported. Please download and read the Flight Panels & DCS-BIOS Guide. Edited August 3, 2015 by ArturDCS Spelling
Guest Posted January 9, 2014 Posted January 9, 2014 (edited) reserved Edited January 20, 2014 by ArturDCS reserved
Guest Posted January 10, 2014 Posted January 10, 2014 Anyone have any idea why e.g. LCONTROL doesn't work? If I send LCONTROL + F only F is received and the fuel switch is turned on/off. (UH-1H Huey) But when I am in OPTIONS -> CONTROLS it is properly received. VirtualKeyCodes as defined in http://msdn.microsoft.com/en-us/library/dd375731%28VS.85%29.aspx . KEYEVENTF_EXTENDEDKEY used as specified on MSDN. /*Extended-Key Flag The extended-key flag indicates whether the keystroke message originated from one of the additional keys on the * enhanced keyboard. * The extended keys consist of the * ALT and CTRL keys on the RIGHT HAND side of the keyboard; * The INS, DEL, HOME, END, PAGE UP, PAGE DOWN, and arrow keys in the clusters to the left of the numeric keypad; * the NUM LOCK key; the BREAK (CTRL+PAUSE) key; the PRINT SCRN key; and the divide (/) and ENTER keys in the numeric * keypad. The extended-key flag is set if the key is an extended key.*/ public static void SendKeys(VirtualKeyCode[] virtualKeyCodes) { var inputs = new WindowsAPI.INPUT[virtualKeyCodes.Count()]; var modifierCount = 0; foreach (var virtualKeyCode in virtualKeyCodes) { if (Common.IsModifierKey(virtualKeyCode)) { modifierCount++; } } //Add modifiers for (var i = 0; i < virtualKeyCodes.Count(); i++) { var virtualKeyCode = virtualKeyCodes[i]; if (Common.IsModifierKey(virtualKeyCode)) { inputs[i].type = WindowsAPI.INPUT_KEYBOARD; inputs[i].ki.time = 0; inputs[i].ki.dwFlags = WindowsAPI.KEYEVENTF_SCANCODE; if (Common.IsExtendedKey(virtualKeyCode)) { inputs[i].ki.dwFlags |= WindowsAPI.KEYEVENTF_EXTENDEDKEY; } inputs[i].ki.wVk = 0; inputs[i].ki.wScan = (ushort)WindowsAPI.MapVirtualKey((uint)virtualKeyCode, 0); inputs[i].ki.dwExtraInfo = WindowsAPI.GetMessageExtraInfo(); } i++; } //Add normal keys for (var i = modifierCount; i < virtualKeyCodes.Count(); i++) { var virtualKeyCode = virtualKeyCodes[i]; if (!Common.IsModifierKey(virtualKeyCode)) { inputs[i].type = WindowsAPI.INPUT_KEYBOARD; inputs[i].ki.time = 0; inputs[i].ki.dwFlags = WindowsAPI.KEYEVENTF_SCANCODE; inputs[i].ki.wVk = 0; inputs[i].ki.wScan = (ushort)WindowsAPI.MapVirtualKey((uint)virtualKeyCode, 0); inputs[i].ki.dwExtraInfo = WindowsAPI.GetMessageExtraInfo(); i++; } } IntPtr hwnd = WindowsAPI.FindWindow("DCS"); if (hwnd == IntPtr.Zero) { hwnd = WindowsAPI.FindWindow("Digital Combat Simulator"); } if (hwnd != IntPtr.Zero) { WindowsAPI.SetForegroundWindow(hwnd); WindowsAPI.SwitchWindow(hwnd); } WindowsAPI.SendInput((uint)inputs.Count(), inputs, Marshal.SizeOf(typeof(WindowsAPI.INPUT))); for (var i = 0; i < inputs.Count(); i++) { inputs[i].ki.dwFlags |= WindowsAPI.KEYEVENTF_KEYUP; } Array.Reverse(inputs); //Release same keys WindowsAPI.SendInput((uint)inputs.Count(), inputs, Marshal.SizeOf(typeof(WindowsAPI.INPUT))); } Any help appreciated!
jay43 Posted January 10, 2014 Posted January 10, 2014 Have a look here http://forums.eagle.ru/showthread.php?t=107949&highlight=saitek+panels+readerit may help you lots have tried to get these to work and some have had some success. Eagles may soar high but weasel's don't get sucked into jet engines. System Spec. Monitors: Samsung 570DX & Rift CV1 Mobo: MSI Godlike gaming X-99A CPU: Intel i7 5930K @ 3.50Ghz RAM: 32gb GPU: EVGA Nvidia GTX 980Ti VR Ready Cooling: Predator 360 Power Supply: OCZ ZX Series 80 Plus Gold Drives: Samsung SSD's 1tb, 500g plus others with OS Win10 64 bit
Guest Posted January 11, 2014 Posted January 11, 2014 Have a look here http://forums.eagle.ru/showthread.php?t=107949&highlight=saitek+panels+readerit may help you lots have tried to get these to work and some have had some success. Thanks, yes it was Raf's project that gave me the inspiration to do this one. Problem was USB programming and he showed it was relatively easy using LibUSB which I didn't know existed. So after reading that thread I bought myself this switch panel. Yes his project works and I have been trying to figure out how exactly the Java Robot class calls the window API for sending the key presses but I have not been able to find exact information. Either it is not possible or I am missing some small puzzle. Today I will try inside the Frogfot module and see whether that too reacts the same way. I will also implement long key presses (user setting) in my application and key binding profile save/save as/open to work properly.
Guest Posted January 12, 2014 Posted January 12, 2014 v0.2 available. Problem with LCONTROL/RCONTROL/LALT/RALT/LSHIFT/RSHIFT still unsolved. Added key binding profile handling and length key presses.
Guest Posted January 13, 2014 Posted January 13, 2014 Got it! Robot.keyPress uses the keybd_event API. The keyboard driver's interrupt handler calls the keybd_event function.Note This function has been superseded. Use SendInput instead.Why most posts I found pointed to using SendInput which is fully understandable. I will change it to keybd_event funtion and compile and upload v 0.3 today. :megalol: public static void SendKeys(VirtualKeyCode[] virtualKeyCodes, KeyPressLength keyPressLength) { /* //keybd_event http://msdn.microsoft.com/en-us/library/windows/desktop/ms646304%28v=vs.85%29.aspx // Simulate a key press WindowsAPI.keybd_event(VK_NUMLOCK, 0x45, KEYEVENTF_EXTENDEDKEY | 0, 0); // Simulate a key release WindowsAPI.keybd_event(VK_NUMLOCK, 0x45, KEYEVENTF_EXTENDEDKEY | KEYEVENTF_KEYUP, 0); */ IntPtr hwnd = WindowsAPI.FindWindow("DCS"); if (hwnd == IntPtr.Zero) { hwnd = WindowsAPI.FindWindow("Digital Combat Simulator"); } if (hwnd != IntPtr.Zero) { WindowsAPI.SetForegroundWindow(hwnd); WindowsAPI.SwitchWindow(hwnd); } //Press modifiers for (var i = 0; i < virtualKeyCodes.Count(); i++) { var virtualKeyCode = virtualKeyCodes[i]; if (Common.IsModifierKey(virtualKeyCode)) { Common.DebugP(Enum.GetName(typeof(VirtualKeyCode), virtualKeyCode) + " is MODIFIER = " + Common.IsExtendedKey(virtualKeyCode)); if (Common.IsExtendedKey(virtualKeyCode)) { WindowsAPI.keybd_event((byte)virtualKeyCode, (byte)WindowsAPI.MapVirtualKey((uint)virtualKeyCode,0),(int)WindowsAPI.KEYEVENTF_EXTENDEDKEY | 0,0); }else { WindowsAPI.keybd_event((byte)virtualKeyCode, (byte)WindowsAPI.MapVirtualKey((uint)virtualKeyCode, 0), 0, 0); } } } //Press normal keys for (var i = 0; i < virtualKeyCodes.Count(); i++) { var virtualKeyCode = virtualKeyCodes[i]; if (!Common.IsModifierKey(virtualKeyCode)) { WindowsAPI.keybd_event((byte)virtualKeyCode, (byte)WindowsAPI.MapVirtualKey((uint)virtualKeyCode, 0), 0, 0); } } if(keyPressLength != KeyPressLength.Zero) { var startMilliseconds = DateTime.Now.Ticks / TimeSpan.TicksPerMillisecond; var nowMilliseconds = DateTime.Now.Ticks / TimeSpan.TicksPerMillisecond; while(nowMilliseconds - startMilliseconds < (int)keyPressLength) { Common.DebugP("Will wait " + keyPressLength + " ms before releasing keys"); nowMilliseconds = DateTime.Now.Ticks / TimeSpan.TicksPerMillisecond; } } //Release normal keys for (var i = 0; i < virtualKeyCodes.Count(); i++) { var virtualKeyCode = virtualKeyCodes[i]; if (!Common.IsModifierKey(virtualKeyCode)) { WindowsAPI.keybd_event((byte)virtualKeyCode, (byte)WindowsAPI.MapVirtualKey((uint)virtualKeyCode, 0), (int)WindowsAPI.KEYEVENTF_KEYUP, 0); } } //Release modifiers for (var i = 0; i < virtualKeyCodes.Count(); i++) { var virtualKeyCode = virtualKeyCodes[i]; if (Common.IsModifierKey(virtualKeyCode)) { Common.DebugP(Enum.GetName(typeof(VirtualKeyCode), virtualKeyCode) + " is MODIFIER = " + Common.IsExtendedKey(virtualKeyCode)); if (Common.IsExtendedKey(virtualKeyCode)) { WindowsAPI.keybd_event((byte)virtualKeyCode, (byte)WindowsAPI.MapVirtualKey((uint)virtualKeyCode, 0), (int)(WindowsAPI.KEYEVENTF_EXTENDEDKEY | WindowsAPI.KEYEVENTF_KEYUP), 0); } else { WindowsAPI.keybd_event((byte)virtualKeyCode, (byte)WindowsAPI.MapVirtualKey((uint)virtualKeyCode, 0), (int)WindowsAPI.KEYEVENTF_KEYUP, 0); } } } }
Guest Posted January 13, 2014 Posted January 13, 2014 Version v0.3 is up. Commit: Changed Windows API from SendInput to keybd_event. After this LCONTROL, RCONTROL etc works in game & under OPTIONS -> CONTROLS. Added refresh button, to be used when editing the profile with text editor in the background. Proper About page. Please Observe! There are some funny stuff going on at least from my keyboard when reading key input. For example [Alt Gr] ends up as LCONTROL + RMENU which in turn doesn't work in game for a command which has "RAlt" specified. You can edit a "funny" profile using a ASCII editor and remove the "LCONTROL +" and save. Use the "Refresh" button to refresh the profile in the GUI and it should work.
goonybird Posted January 13, 2014 Posted January 13, 2014 Finally! I am able to use everything in my cockpit!... Thank you for your work! Will be giving this a full testing tomorrow, just had time to test the landing gear knob...the first problem I came across,though, was the graphic... the labeling was cut off: also, I haven't explored it fully, the letter "C"seems not to work with "LCont" Aside from the graphic, will give this a full "wring-out" tomorrow.... Thanks again!!! [sIGPIC][/sIGPIC]

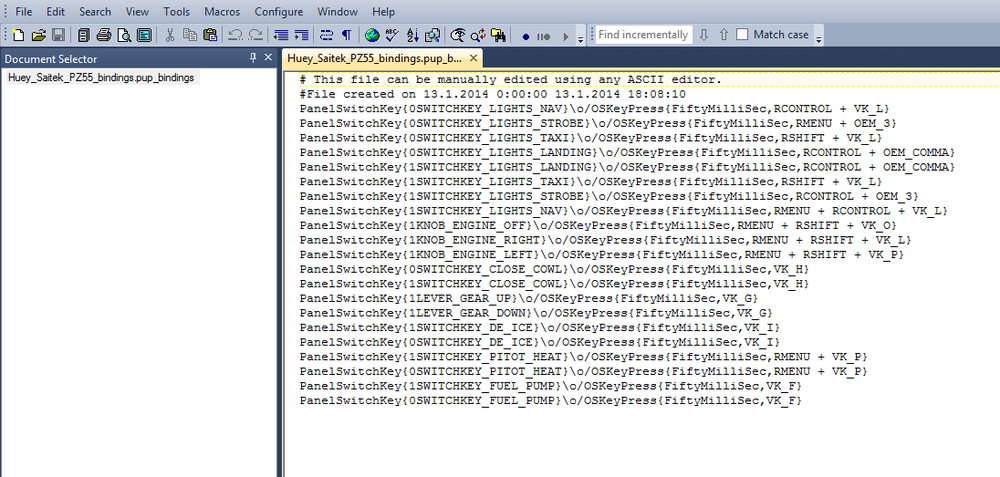

Guest Posted January 14, 2014 Posted January 14, 2014 Thank you for your work! Thank you for the feedback. the letter "C"seems not to work with "LCont" Correct, I have the same thing. What you have to do is : add the key "C" to that switch. Save the profile Open the profile in Notepad. Check the command for the switch, it should read OSKeyPress{FiftyMilliSec,VK_C} Edit it so it reads OSKeyPress{FiftyMilliSec,LCONTROL + VK_C}. Refresh the profile in the Flight Panels and you should be good to go. This is a special feature (CTRL + C, others too?) and I don't know why it is like that. I won't look into to it at this moment as there are other combinations/keys that gives "funny" or no readings in the GUI. The main this is that the profile can be edited manually and after that it works. the first problem I came across,though, was the graphic... the labeling was cut off: Thanks for the screenshot! Yesterday I experienced this when I changed a property in the Window (when programming) so I changed this back and it looks OK on my computer, funny you have something completely different. This must be something related to Microsoft WPF and I will look into it today. Here are the virtual key codes that are used when reading user input in the textboxes (some are not related to the keyboard and not in use): LBUTTON RBUTTON CANCEL MBUTTON XBUTTON1 XBUTTON2 BACK TAB CLEAR RETURN SHIFT CONTROL MENU PAUSE CAPITAL KANA HANGEUL HANGUL JUNJA FINAL HANJA KANJI ESCAPE CONVERT NONCONVERT ACCEPT MODECHANGE SPACE PRIOR NEXT END HOME LEFT UP RIGHT DOWN SELECT PRINT EXECUTE SNAPSHOT INSERT DELETE HELP VK_0 VK_1 VK_2 VK_3 VK_4 VK_5 VK_6 VK_7 VK_8 VK_9 VK_A VK_B VK_C VK_D VK_E VK_F VK_G VK_H VK_I VK_J VK_K VK_L VK_M VK_N VK_O VK_P VK_Q VK_R VK_S VK_T VK_U VK_V VK_W VK_X VK_Y VK_Z LWIN RWIN APPS SLEEP NUMPAD0 NUMPAD1 NUMPAD2 NUMPAD3 NUMPAD4 NUMPAD5 NUMPAD6 NUMPAD7 NUMPAD8 NUMPAD9 MULTIPLY ADD SEPARATOR SUBTRACT DECIMAL DIVIDE F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 F13 F14 F15 F16 F17 F18 F19 F20 F21 F22 F23 F24 NUMLOCK SCROLL LSHIFT RSHIFT LCONTROL RCONTROL LMENU RMENU BROWSER_BACK BROWSER_FORWARD BROWSER_REFRESH BROWSER_STOP BROWSER_SEARCH BROWSER_FAVORITES BROWSER_HOME VOLUME_MUTE VOLUME_DOWN VOLUME_UP MEDIA_NEXT_TRACK MEDIA_PREV_TRACK MEDIA_STOP MEDIA_PLAY_PAUSE LAUNCH_MAIL LAUNCH_MEDIA_SELECT LAUNCH_APP1 LAUNCH_APP2 OEM_1 OEM_PLUS OEM_COMMA OEM_MINUS OEM_PERIOD OEM_2 OEM_3 OEM_4 OEM_5 OEM_6 OEM_7 OEM_8 OEM_102 PROCESSKEY PACKET ATTN CRSEL EXSEL EREOF PLAY ZOOM NONAME PA1 OEM_CLEAR
Silver_Dragon Posted January 14, 2014 Posted January 14, 2014 You have plans in the future extend your work to other Saitek Pro Flight Panels? For Work/Gaming: 28" Philips 246E Monitor - Ryzen 7 1800X - 32 GB DDR4 - nVidia RTX1080 - SSD 860 EVO 1 TB / 860 QVO 1 TB / 860 QVO 2 TB - Win10 Pro - TM HOTAS Warthog / TPR / MDF
Guest Posted January 14, 2014 Posted January 14, 2014 (edited) Not thought about it. I only own the switch panel. BUT it would be nice if Saitek would release information on how to send information to their Pro Flight Panels. This and someone familiar with getting telemetry out from DCS with sockets & LUA and it wouldn't be too much work. Edited January 15, 2014 by ArturDCS clarification

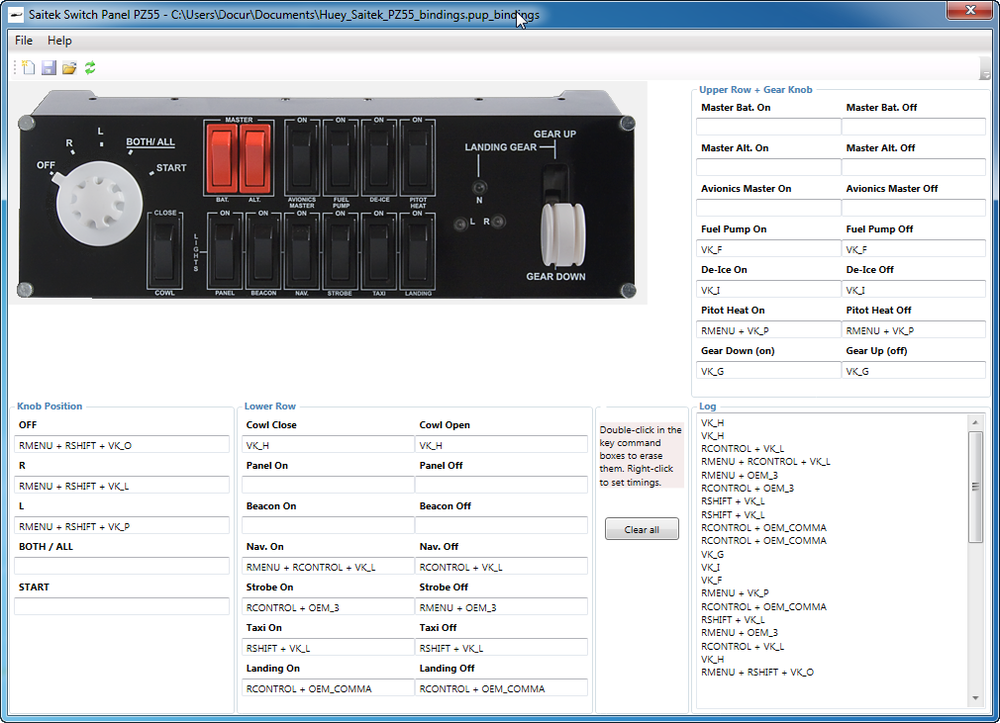

Guest Posted January 14, 2014 Posted January 14, 2014 v0.4 now uploaded. Commit: GUI revamp. Complete change of main window GUI, control placement. Now using Grid, Canvas, StackedPanel for alignment of Controls. Image of switch panel uses a Canvas. (100% XAML editing) --------------------------------------------------------------------------------- Please get back to me regarding the alignment of the buttons and knobs. Is it better now? ---------------------------------------------------------------------------------
nickmow Posted January 14, 2014 Posted January 14, 2014 Artur, love your work, however I'm a little stuck at the install. I maybe just being dumb. i have Vista pro 64 which files do i put were and how do I launch your application ? thanks again Nick
Guest Posted January 14, 2014 Posted January 14, 2014 (edited) Artur, love your work, however I'm a little stuck at the install. I maybe just being dumb. i have Vista pro 64 which files do i put were and how do I launch your application ? thanks again Nick Unzip the files into the folder where you want to keep the program. Open the folder LibUsbDotNet and execute the installer, i.e. install LibUsbDotNet Windows Button -> Search -> devmgmt.msc or Start Button -> Run -> devmgmt.msc (this will bring up the device manager) From the tree expand branch "Human Interface Devices" [HID] Locate the Saitek Switch Panel by checking the Properties of the HIDs. Right click the HID, click "Properties" and go to the "Details" tab. From the "Property" drop down list choose "Hardware Ids" It should look like "USB\VID_06A3&PID_0D67&REV_0110" VID_06A3 = Saitek PID_0D67=Switch Panel When you have found it, update the driver for this device. Click the "Driver" tab Click "Update Driver" button Click "Browse my computer for driver software" In the new dialog browse choose "Let me pick from a list of device drivers on my computer" In the new dialog, uncheck "Show compatible hardware" and click "Have Disk" button Browse to the location where you unzipped the files and open the folder Saitek_Pro_Flight_Switch_Panel Click "Open" in the file dialog (inf file? I've done this already and I do not remember exactly what file I chose) You will probably get warnings because Windows a) doesn't know who provided this driver b) doesn't think this is the best available driver for this device, either way just click yes or OK or what it asks, you want this driver installed You start the application by executing ProUsbPanels.exe This is one way to do it on my machine. I use Windows 7 Professional 64-bit. Windows Vista, shouldn't be too different. By the way, for those of you that got the Flightpanels software up and running, please help anyone having problems installing. :) Edited January 14, 2014 by ArturDCS added info
goonybird Posted January 14, 2014 Posted January 14, 2014 (edited) Graphic cleared up in v4... also found that those entries like "END", RALT", "LCONTROL", etc that don't enter together with the keystroke, or don't want to enter at all, can be gotten around by entering something that does enter, and going back with notepad in the profile created and entering it manually according to the key code list provided earlier in this thread. Edited January 14, 2014 by goonybird word omission [sIGPIC][/sIGPIC]
goonybird Posted January 14, 2014 Posted January 14, 2014 the new v4 GUI can't be minimized as were the previous versions [sIGPIC][/sIGPIC]
Guest Posted January 15, 2014 Posted January 15, 2014 v0.5 uploaded Commit: Added settings to store window location and size. Modified about page. Made window smaller (changes to layout grid). Added application icon. Added button to open profile in external text editor. Added tooltips for buttons. Now you can minimize the window. :)
Guest Posted January 15, 2014 Posted January 15, 2014 (edited) v0.6 uploaded Commit: Changed from TextBox.KeyDown to TextBox.PreviewKeyDown. This enables reading key presses like LCONTROL + END, LCONTROL + VK_C. Added support thread link to about page. Just by chance, I got the key detection working (I think & hope). I was using the wrong event handler. It should read most of the modifier keys. Left Alt (LMENU) does not work, might be others but a lot of other keys now work! http://www.youtube.com/watch?v=PdL627hLY_E&feature=youtu.be Edited January 15, 2014 by ArturDCS Added Youtube video link
goonybird Posted January 15, 2014 Posted January 15, 2014 (edited) In my enthusiasm over getting the switchpanel working for the first time I neglected to report other "odd things" (if they are indeed odd) that have occurred... I used versions 2, 3, 4 & 6 and they all work. 1- When I initially installed the GUI (v2), I extracted the downloaded zip into a folder on desktop and installed the LibUsbDotNet. 2- I then double-clicked the ProUsbPanel icon and brought up the GUI, which followed the motion of my controls in cockpit. I then loaded the keystrokes for the landing gear and it worked in-game. *first odd thing-- When I double-clicked on the ProUsbPanel icon this message came up: ...and it took 3 clicks on OK to bring up the GUI. 3- I then copied-and-pasted the v2 folder to its permanent residence on another drive and sent a ProUsbPanels shortcut to desktop from that folder's location. *GUI works the same with same sequence of that warning and clicks to get to the GUI. I then started creating profiles which brought me to the post of 1/13/14.* 4- When installing subsequent versions, all I did was delete the previous version folder, replace it with the new version and update the version number in the "start in" and "target" properties if the shortcut on desktop. 5- Now with v6, I did exactly the same thing, replacing the folders and updating the shortcut (then i saw you has a neat new one,so i sent it to desktop:smilewink:)---> Now when I double-click the shortcut, it takes 4 clicks to get through the same above warning, but on the 4th click, this warning and the the GUI come up simultaneously (hides behind the GUI) However, things still work. Sorry about the long write, but want to give you as full a picture as possible on what I did, right or wrong... Edited January 15, 2014 by goonybird hit submit accidentaly [sIGPIC][/sIGPIC]
Guest Posted January 15, 2014 Posted January 15, 2014 (edited) Thanks for the explanation. First, whenever you replace a version of the application make sure the location is the same. You do not need to re-install LibUSBDotNet. Just unzip into the folder. Second, I have made minor changes to the profile file structure and that may be the problem. -> nuke the old profiles and create a new one. Working? I'll re-read your post now and see what could be the problem. Yes, please make sure the location is the same as when you installed LibUSBDotNet and that you create fresh profiles. Do you still have this problem? I will add additional information in the error message. In my enthusiasm over getting the switchpanel working for the first time I neglected to report other "odd things" (if they are indeed odd) that have occurred... I used versions 2, 3, 4 & 6 and they all work. 1- When I initially installed the GUI (v2), I extracted the downloaded zip into a folder on desktop and installed the LibUsbDotNet. 2- I then double-clicked the ProUsbPanel icon and brought up the GUI, which followed the motion of my controls in cockpit. I then loaded the keystrokes for the landing gear and it worked in-game. *first odd thing-- When I double-clicked on the ProUsbPanel icon this message came up: ...and it took 3 clicks on OK to bring up the GUI. 3- I then copied-and-pasted the v2 folder to its permanent residence on another drive and sent a ProUsbPanels shortcut to desktop from that folder's location. *GUI works the same with same sequence of that warning and clicks to get to the GUI. I then started creating profiles which brought me to the post of 1/13/14.* 4- When installing subsequent versions, all I did was delete the previous version folder, replace it with the new version and update the version number in the "start in" and "target" properties if the shortcut on desktop. 5- Now with v6, I did exactly the same thing, replacing the folders and updating the shortcut (then i saw you has a neat new one,so i sent it to desktop:smilewink:)---> Now when I double-click the shortcut, it takes 4 clicks to get through the same above warning, but on the 4th click, this warning and the the GUI come up simultaneously (hides behind the GUI) However, things still work. Sorry about the long write, but want to give you as full a picture as possible on what I did, right or wrong... Edited January 15, 2014 by ArturDCS
Guest Posted January 15, 2014 Posted January 15, 2014 v0.7 is up. Commit: Added error codes where messages boxes are shown for Exceptions. Please use this version. I should be able to narrow down the problems with the new error codes. Please delete old profiles, create new ones. Unzip into same folder as before. No need to re-install LibUSBDotNet.
goonybird Posted January 15, 2014 Posted January 15, 2014 Tried to start from scratch on this one: 1- Downloaded v7 2- extracted v7 zip into folder on desktop 3- uninstalled LibUsbDotNet 4- copied&pasted v7 folder to permanent resident location 5- uninstalled switchpanel driver 6- plugged the switchpanel's USB and let windows recognize and install driver automatically: 7- installed LibUsbDotNet from v7 folder, full installation, all blocks checked (of course, "don't create start menu" remained unchecked) 8- sequence of warnings clicked "yes" on all: 9- next came to the filter installer: 10- @ the filter installer, could not find the device on the list, so I cancelled: 11- from v7 folder sent ProUsbPanels icon to desktop as shortcut. 12- experienced the came clicking sequence and same warnings as stated in previous post about v6. 13- However, GUI responds to real-world switch and knob movement. For now, I'm assuming the profiles will work until previous issues are explained of cleared... also GUI is missing menu items in upper left-hand corner: [sIGPIC][/sIGPIC]
Guest Posted January 16, 2014 Posted January 16, 2014 (edited) v0.8 is up. Commit: Added button images to application resources. They were referenced locally on the development computer. With the help of a friend I found the problem. He just unzipped the file and started the application without installing LibUSBDotNet. It was the images on the buttons that I had forgot to add to the application's resources. The application picked them locally from my harddrive where I have all the Windows icons and such. As I said, WPF is new to me... :music_whistling: Regarding the dialog "Windows can't open this file" dialog. Windows is not familiar with the file type "*.pup_bindings". What you do is click "Select a program from a list of installed programs" and click "OK". From the next dialog choose "Notepad" and click "OK". This way Windows knows what to use next time you want to open a profile file. Ok, goonybird if you use the application now what errors do you get? Are we getting there? Thanks for the debugging help! Can you use the application with DCS, i.e. switches works as desired in DCS? Edited January 16, 2014 by ArturDCS clarification
