pitbldr

Sale pending....

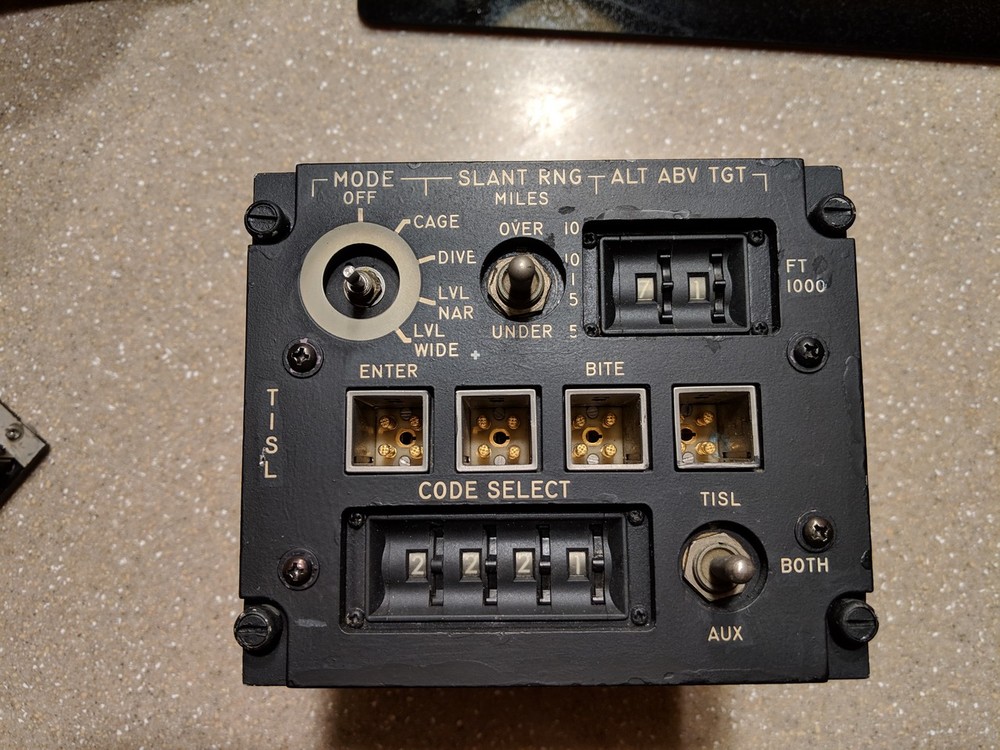

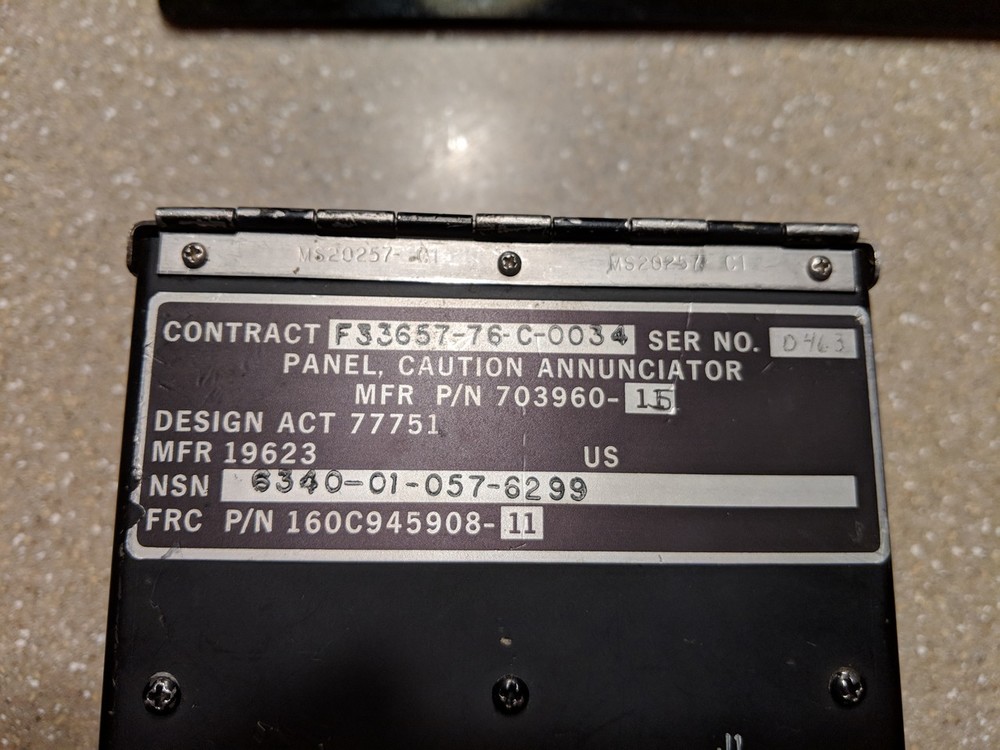

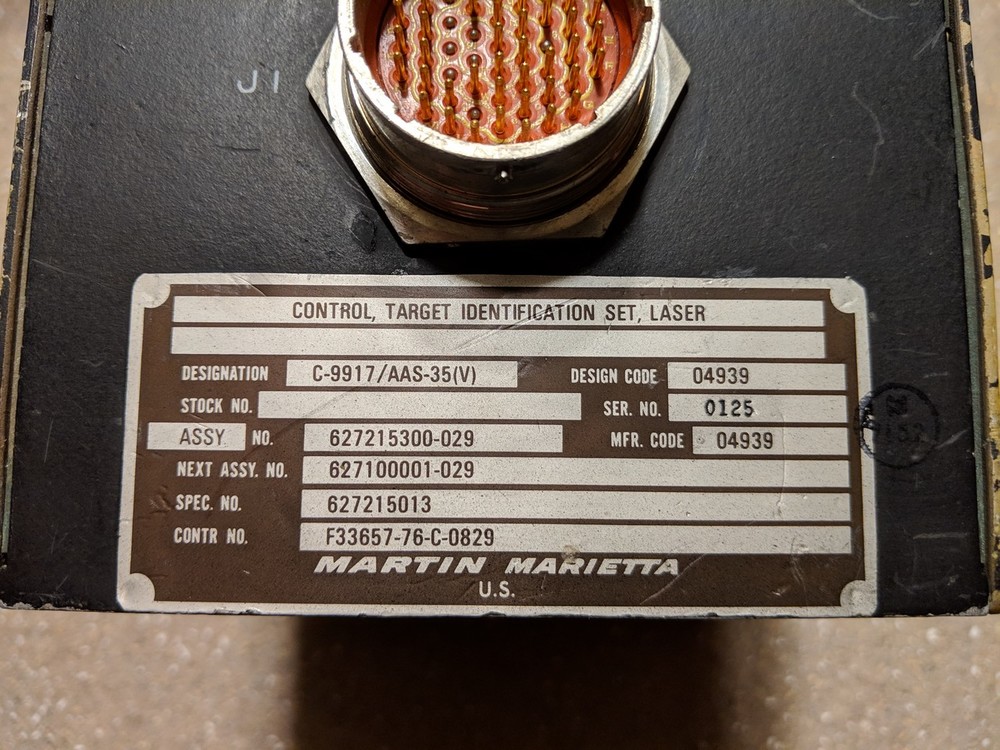

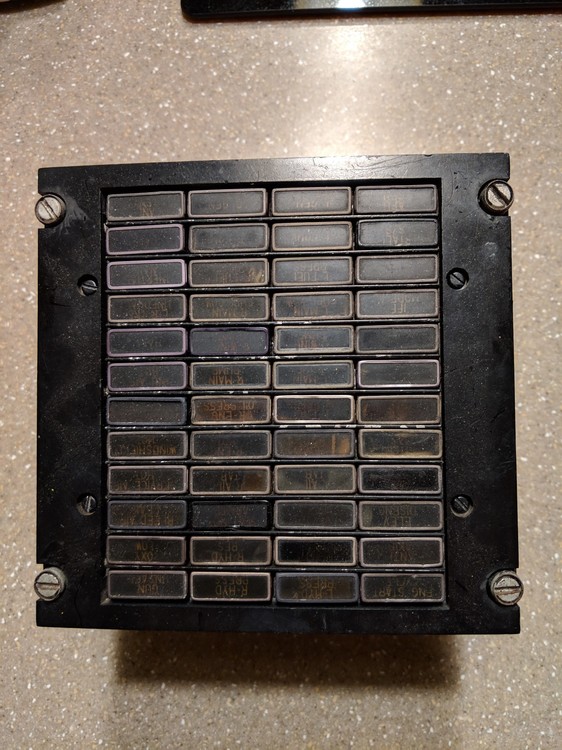

Just posting this here in case there's anyone who doesn't visit the for sale section. :) I have a caution panel and TISL for sale. https://forums.eagle.ru/showthread.php?t=231006

I have these two real instruments I got back when I was working on a Warthog pit but since I've moved away from that project I no longer need these. Asking $250each + shipping or $450 for both + shipping.

I did have one, but can't seem to find it at the moment. However, I made it by blowing up the NATOP drawing like you mentioned so that does work. If I can find the file, I'll pass it along.

Interesting... I'll have to keep my eye on what you come up with. :thumbup:

Awesome work! Do you have a monitor picked out that you'll use with the DDI?

Beautiful work on the Hornet ED! I'm not doing much but flying around and enjoying the views!

Very impressive work BB! :thumbup:

It is probably just the camera angle, but I will verify.

Here you go: A - 5 5/8" B - 4" C - 5" D - 11/32" E - 31/32" F - 1/16"

Haven't forgot about you Patriot, just have not found where I stored the panel. I think it's boxed away in storage, I just need to go find it.

Hey Patriot, I rarely visit the site these days as all my pit-building is on hold until the Hornet is released. I can dig this panel out and get the measurements for you though. Would you prefer them from the real panel or from the panel I made? Give me a couple days to find where I packed this up and I'll get back to you.

Frogger, I did that a couple years back and they had no problem finding the page and then setting it to 400%. However, if you do want to simplify the process, just print out that one page to a new pdf file. I have the Foxit Reader installed and it did that easily.

Well, I've always wanted to visit Australia! :smilewink:

Sorry you could not get that going. It does work. I've been doing that all week to start the plans for my pit. My results so far (very rough and very not done :))...

Good to know, thanks for sharing!

Let me know how it goes. It should work. I was just using it today to make some panels in solidworks and didn't run into any issues.

Should have also mentioned when you go to print choose "current view" and "custom scale" set to 400%.

CTRL-Y should open a magnification setting and let you pick 400%. Then you can pan around the page to find what you need. This is what I did.

Impressive work! I especially like your method for making the buttons. I struggled with a good technique and what I came up with worked, it just took a long time to assemble them. I may need to convert to your way! :D

Sure thing.

Thanks! It is probably the part I was proudest of. The Hornet has always been my favorite jet though. I served in the Navy for one (not tied to aviation unfortunately) and I love carrier ops. I would have loved an A-10 and F/A-18 sitting side by side, but I just don't have the space. No pics yet. Still in the planning/modeling phase. It's going more slowly than I would like, but there's a ton of other stuff going on right now. When I make some progress, I will definitely be posting some updates.

I only have the one of each. I was using these in my pit until I scrapped the A-10 plans. I've got a couple other people who have expressed interest if TigersharkBAS passes on them.

You can see the CP here: http://forums.eagle.ru/showthread.php?t=78487 And the UFC here: http://forums.eagle.ru/showpost.php?p=1180433&postcount=91 The UFC does not have the Master Caution button, but I think I could make one to fit.
