The colors for a USAF aircraft would be Federal Standard 595 Colors FS 37925 Flat Insignia White, 33538 Flat Yellow, 36231 Dark Gull Grey , 37038 Flat Black. the Zinc Chromate primer does not have an FS number as far as I know I found this on another form with Google The "recipe" of zinc chromate was spelled out in AN-TT-P-656. The natural color of zinc chromate primer is yellow (for lack of the exact term for the color). Jennings has already said that the coloration (untinted zinc chromate) was based on its chemical makeup, not because pigmentation was added. What's being discussed is the green color of tinted zinc chromate versus the MM color "zinc chromate green". I've already stated that the color of tinted zinc chromate varied with each manufacturer. Per Boeing B-17F E&R manual (T.O. 01-20EF-02 page 439) and B-17G E&R Manual (T.O. 01-20EG-02, page 422) "Wherever carbon black tinted primer is specified, it shall consist of or be equivalent to, 8 ounces of carbon black tinting paste (Fuller's No. 790 or equivalent) per gallon of zinc chromate primer." Carbon black tinted primer = interior green, Boeing style. Per Northrop P-61 E&R Manual: "All exposed interior surfaces of the gunner's, pilot's and radio operator's compartments shall be finished with Northrop Cockpit Green (12 oz. of black camouflage enamel AAF 14109 to one gallon of zinc chromate primer Spec.No. AN-TT-P-656)". Interior green, Northrop style. P-51D E&R manual (AN 01-60JE-2, pages 403-406): Various structural members: "zinc chromate primer per AN-TT-P-656". "Interior green "spec no. E-7 flat black to be used." Interior green, North American style.

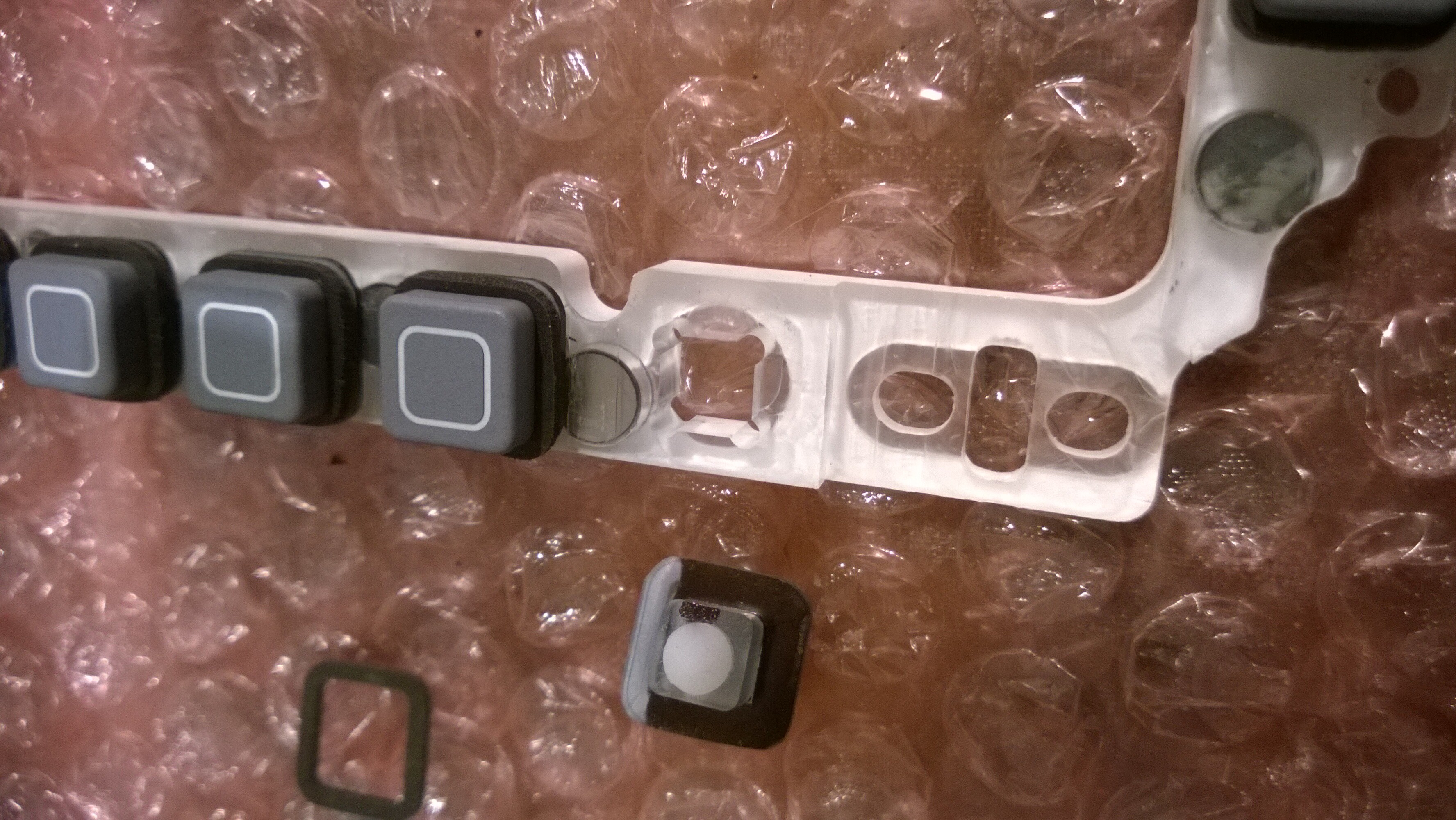

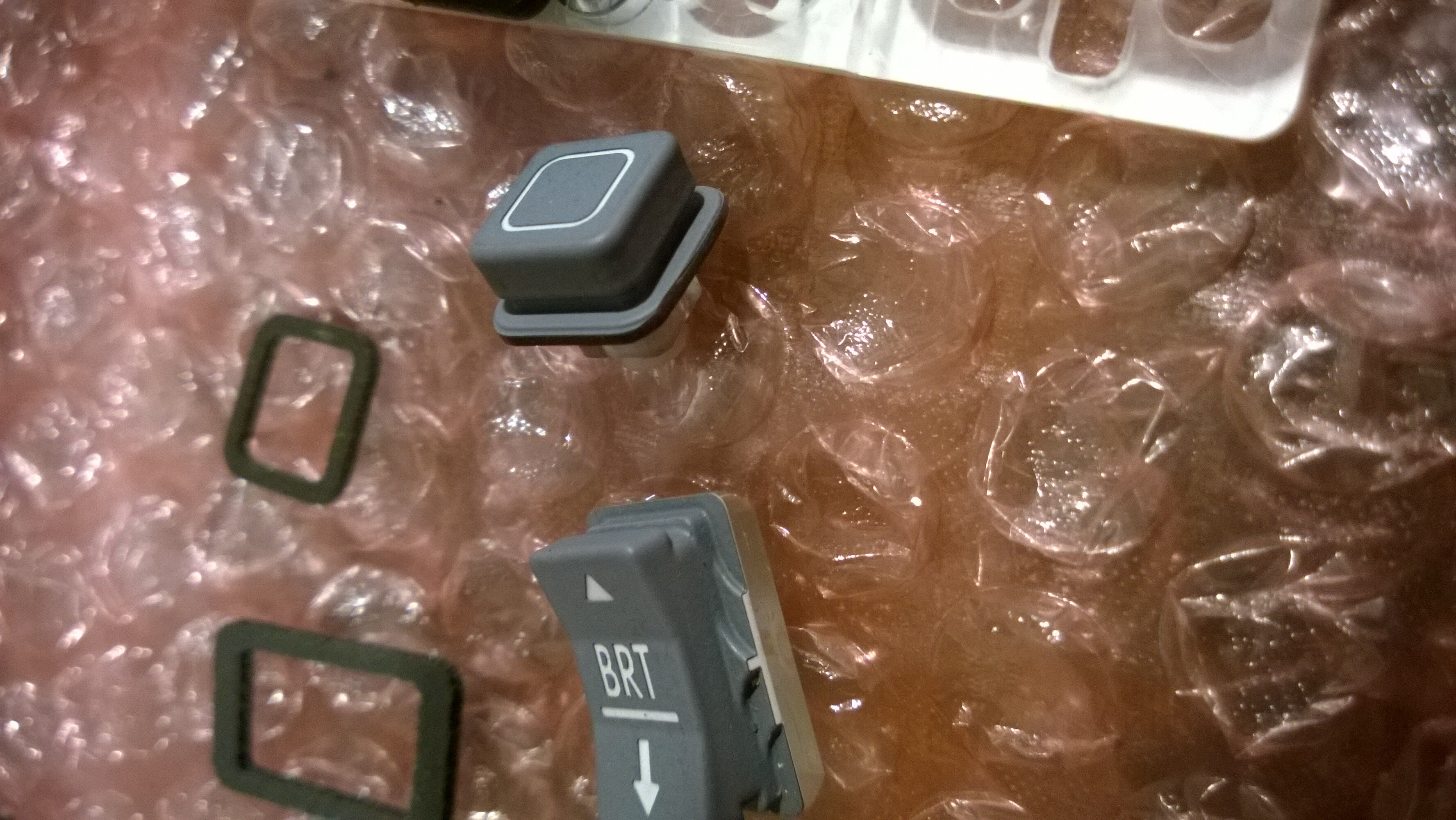

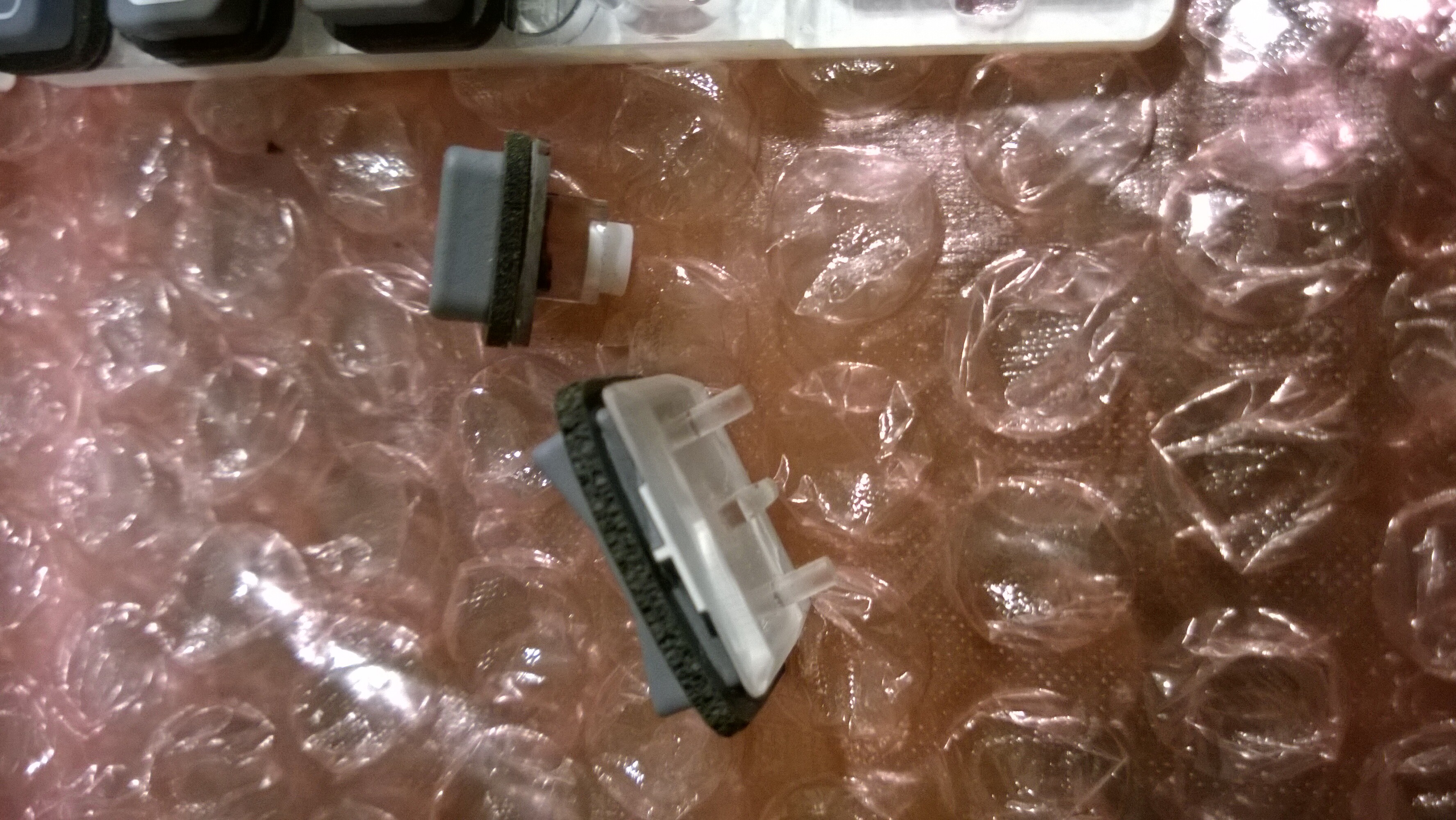

They are standard on bezels with those buttons and on panels i have with that type of button. Just found this and Lmao https://www.instagram.com/reel/C26xb4XO9qN/?utm_source=ig_web_copy_link

Well it has been and will be busy at work it may be a wile before i can add any updates.

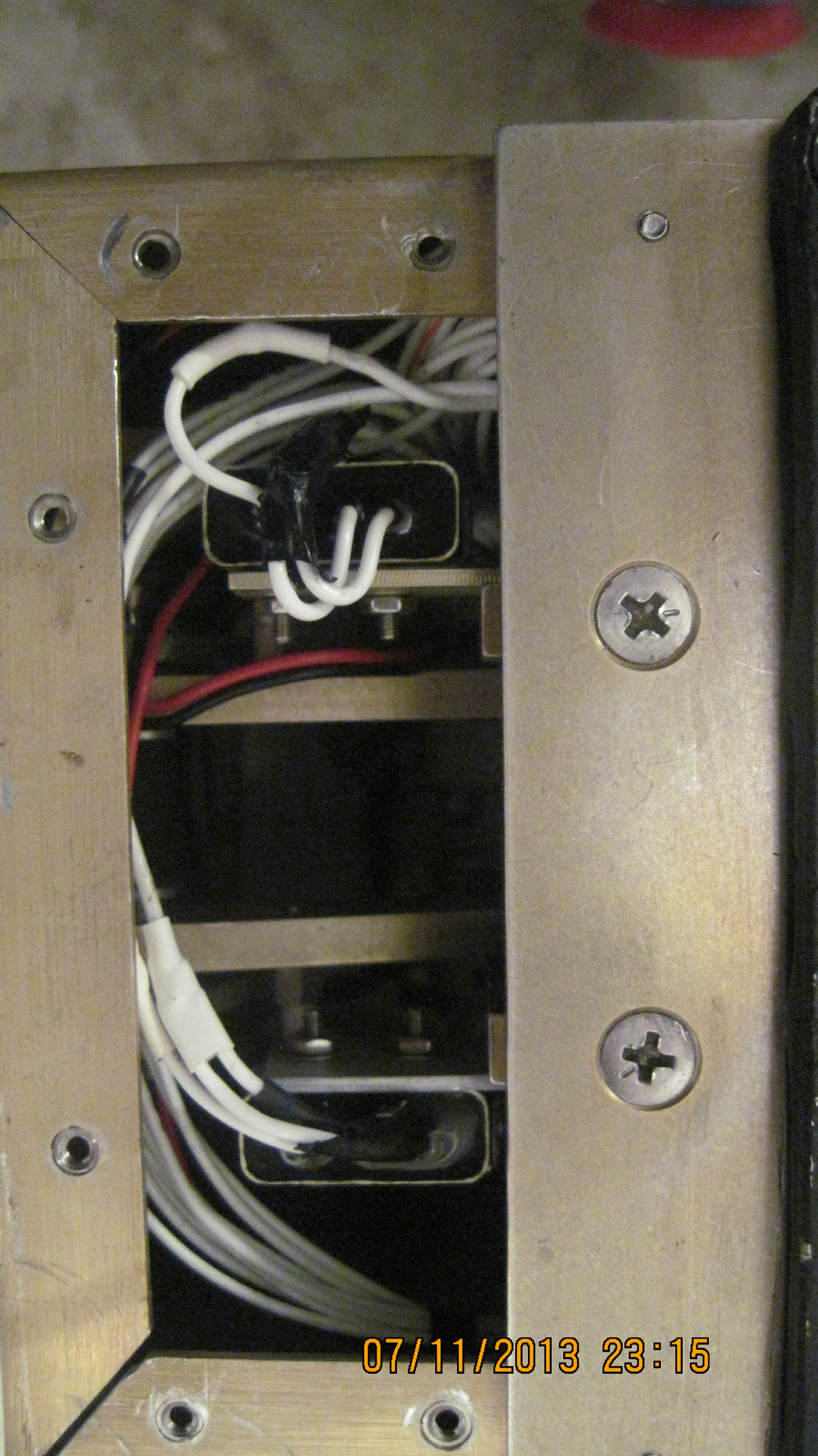

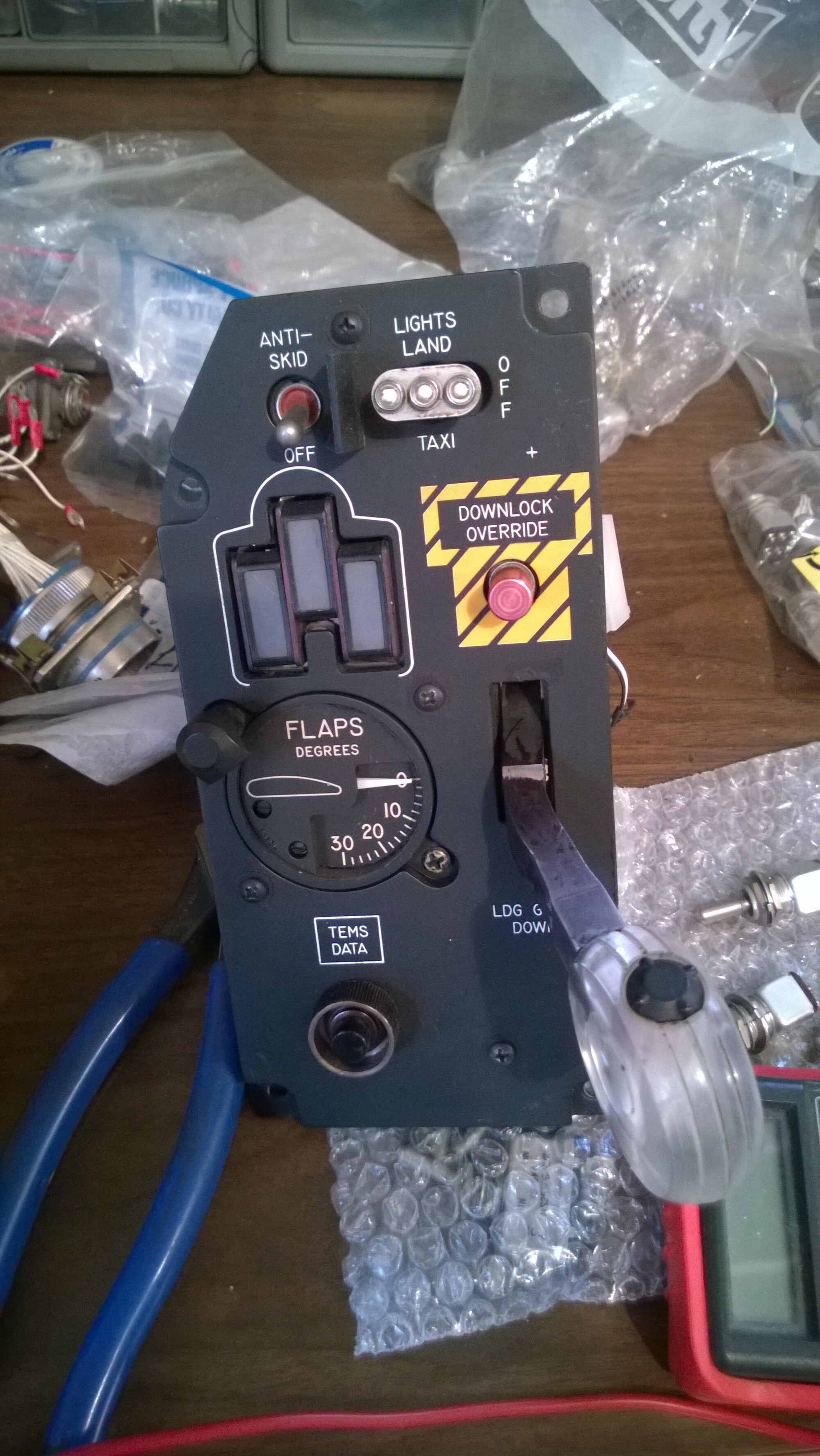

When I was gathering information on A-10 A and C panels. I found the Ed had to work off of very limited information and measurements so the goal was to make it look right in the simulator and not be biased on hard facts.

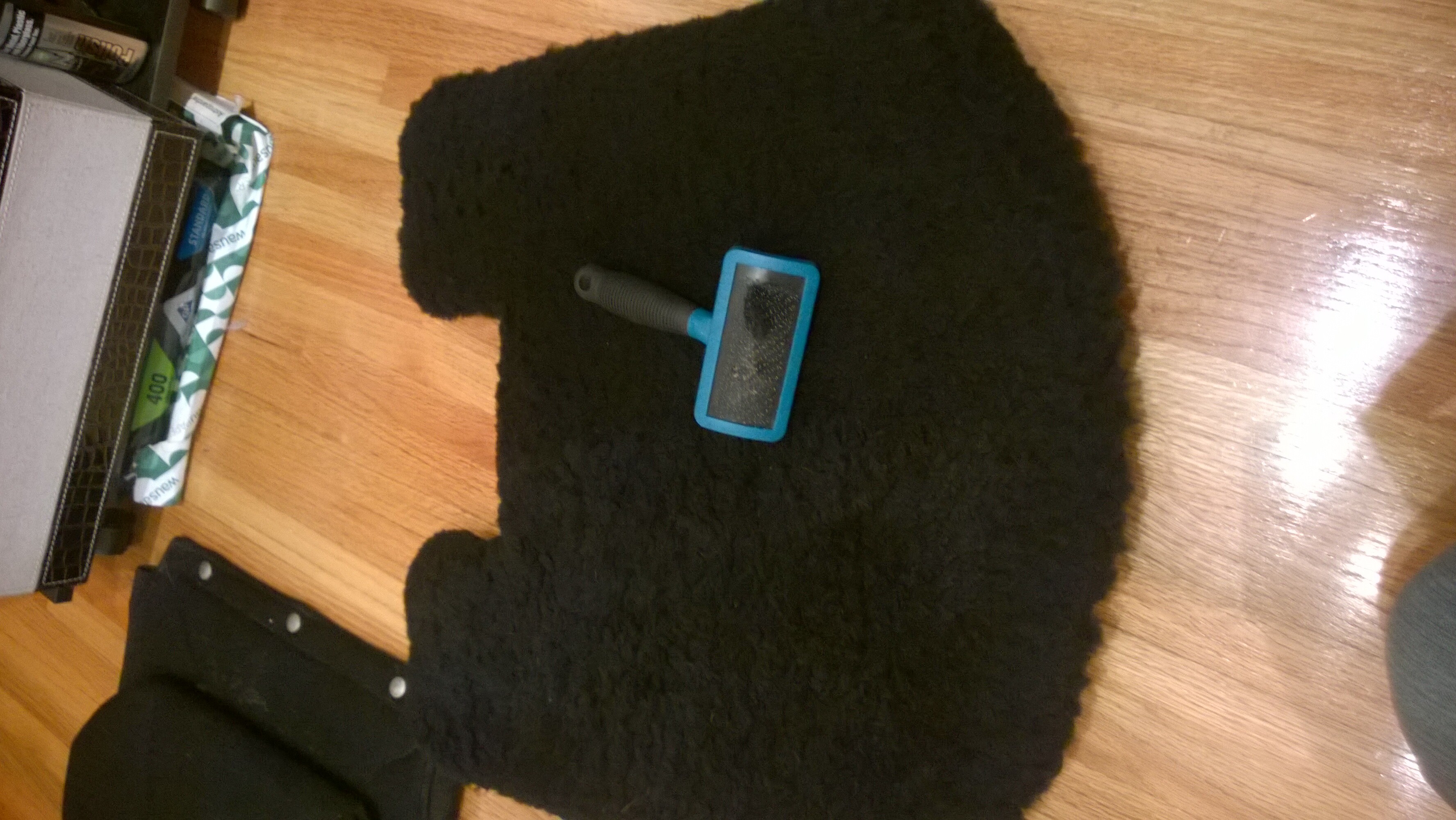

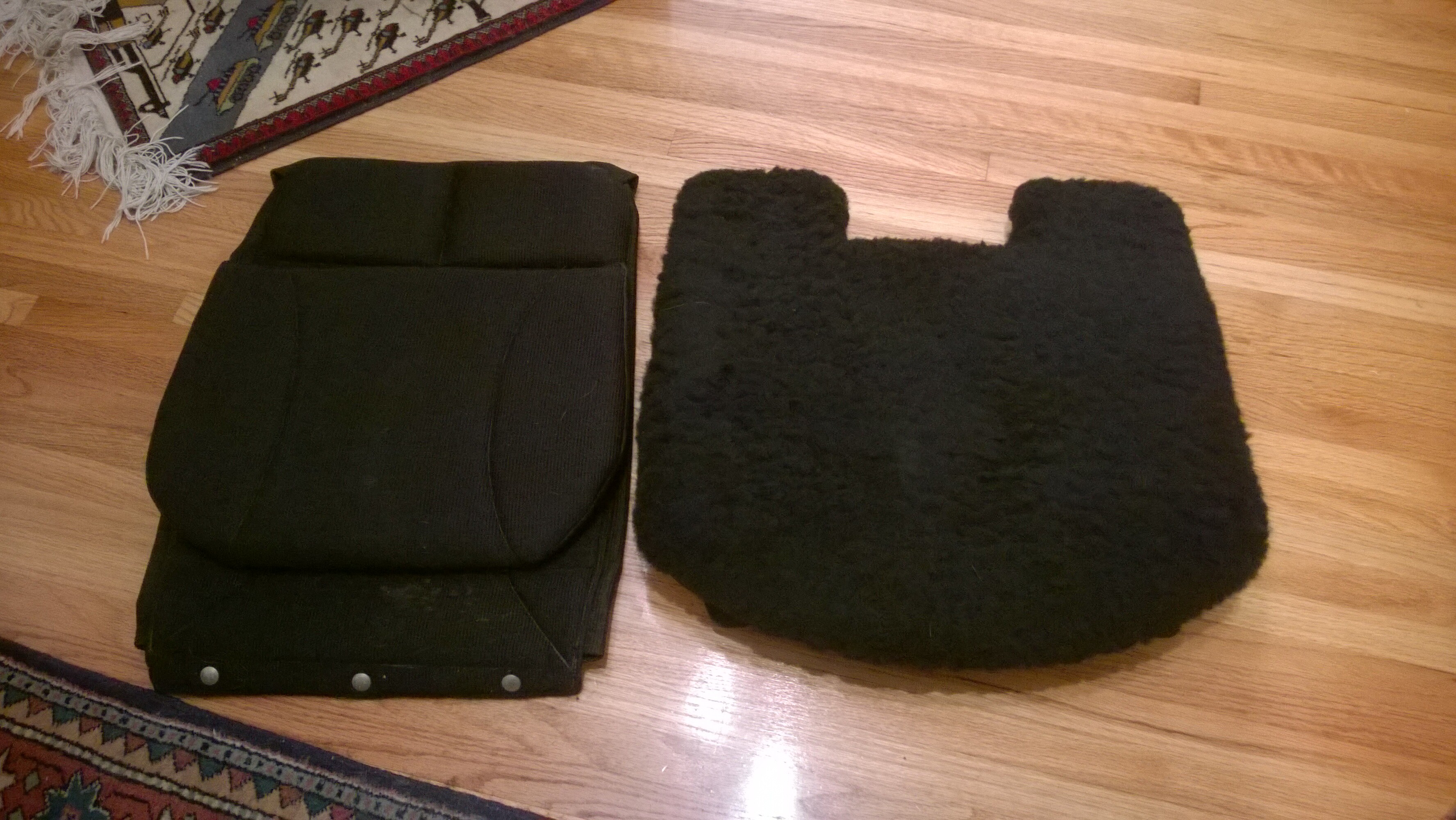

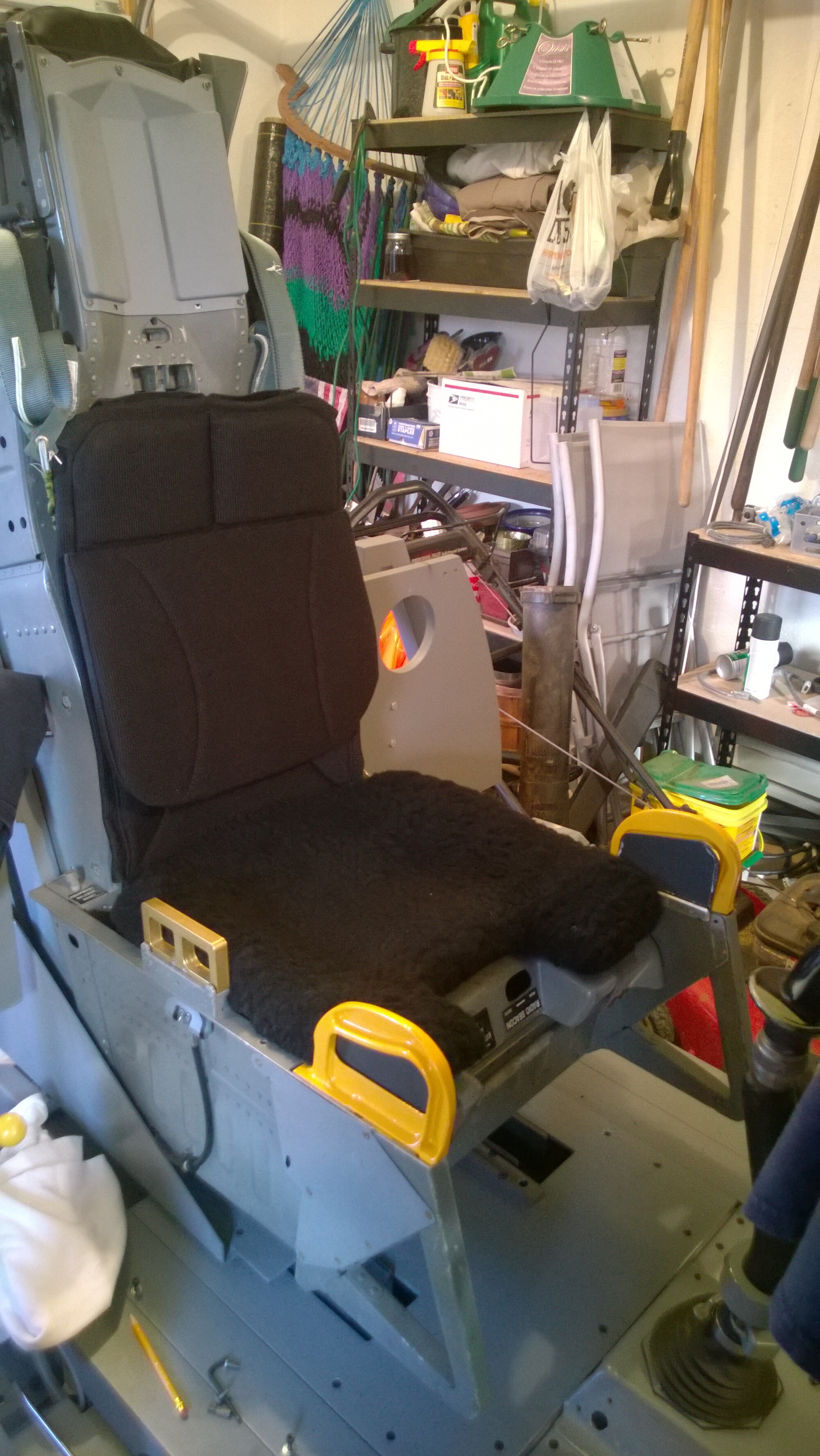

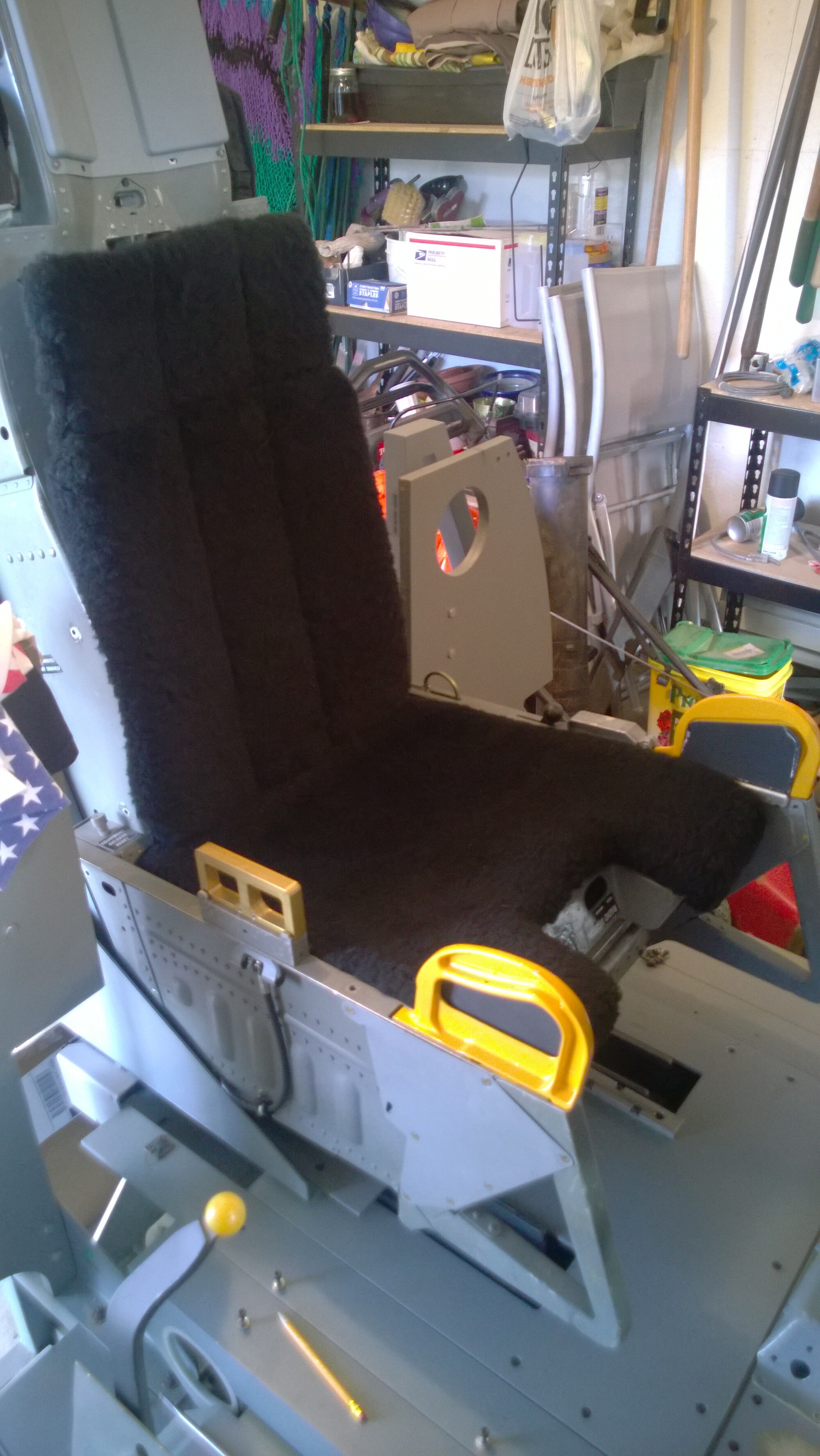

ACES II seat cushions.

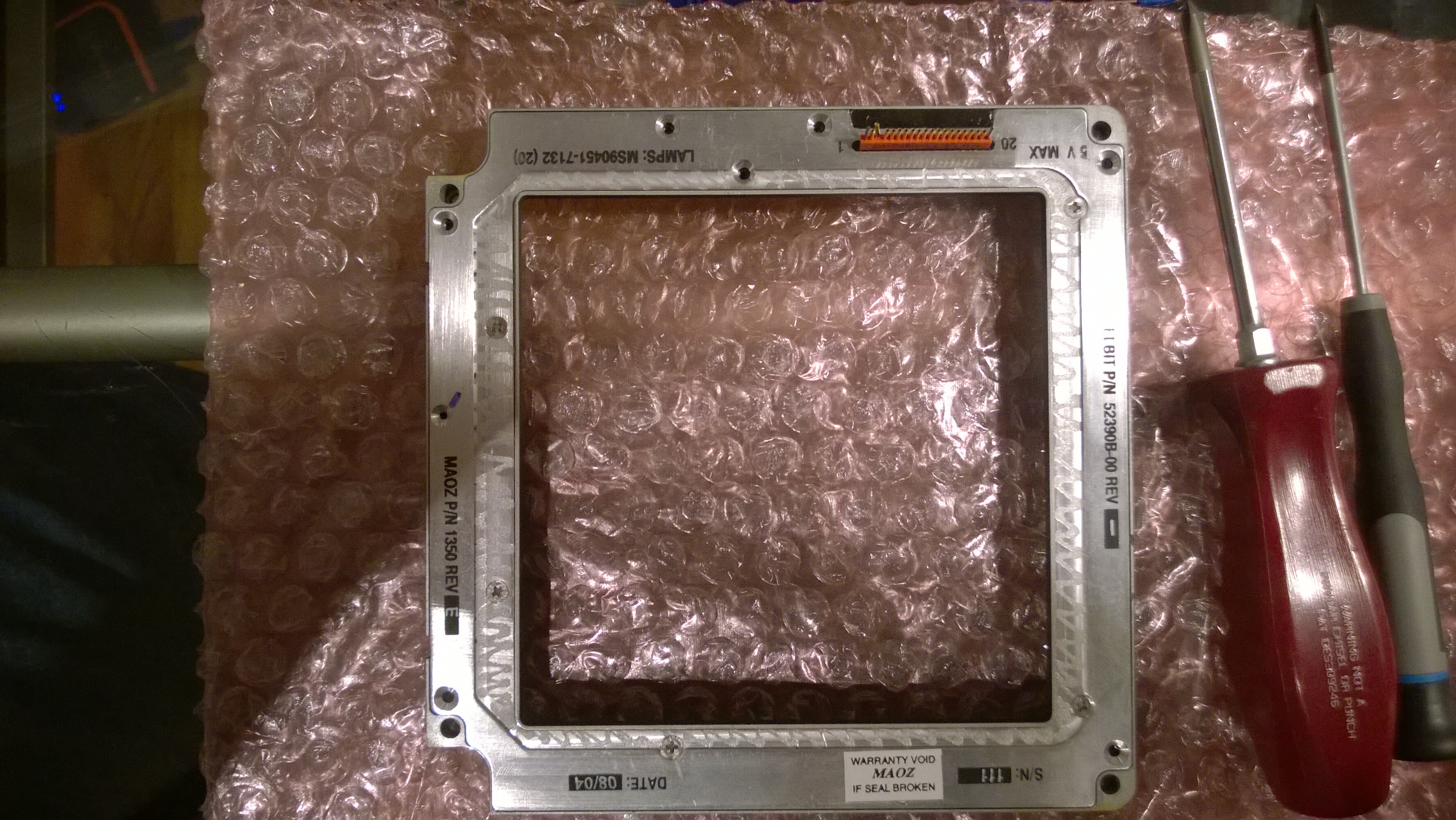

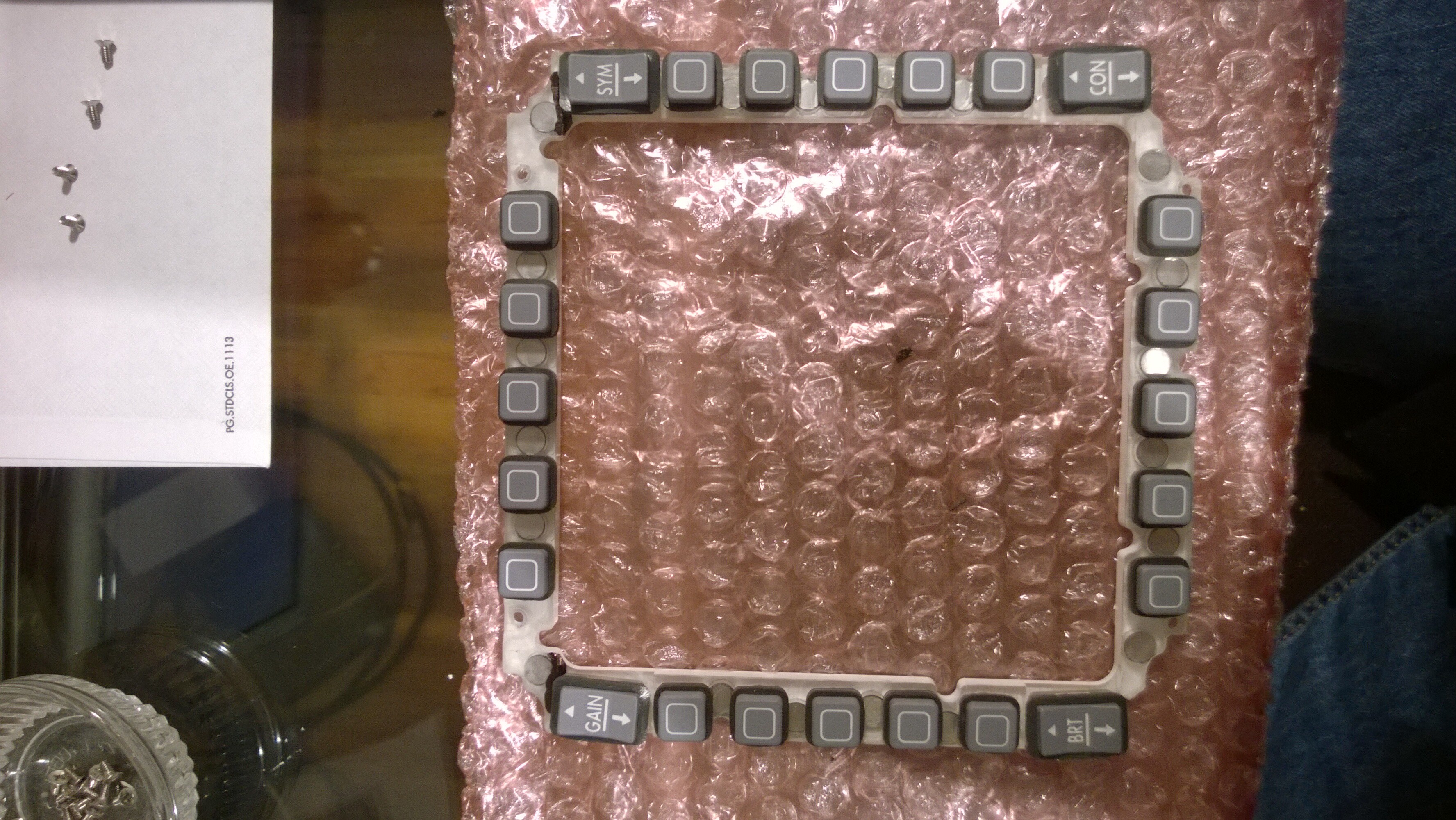

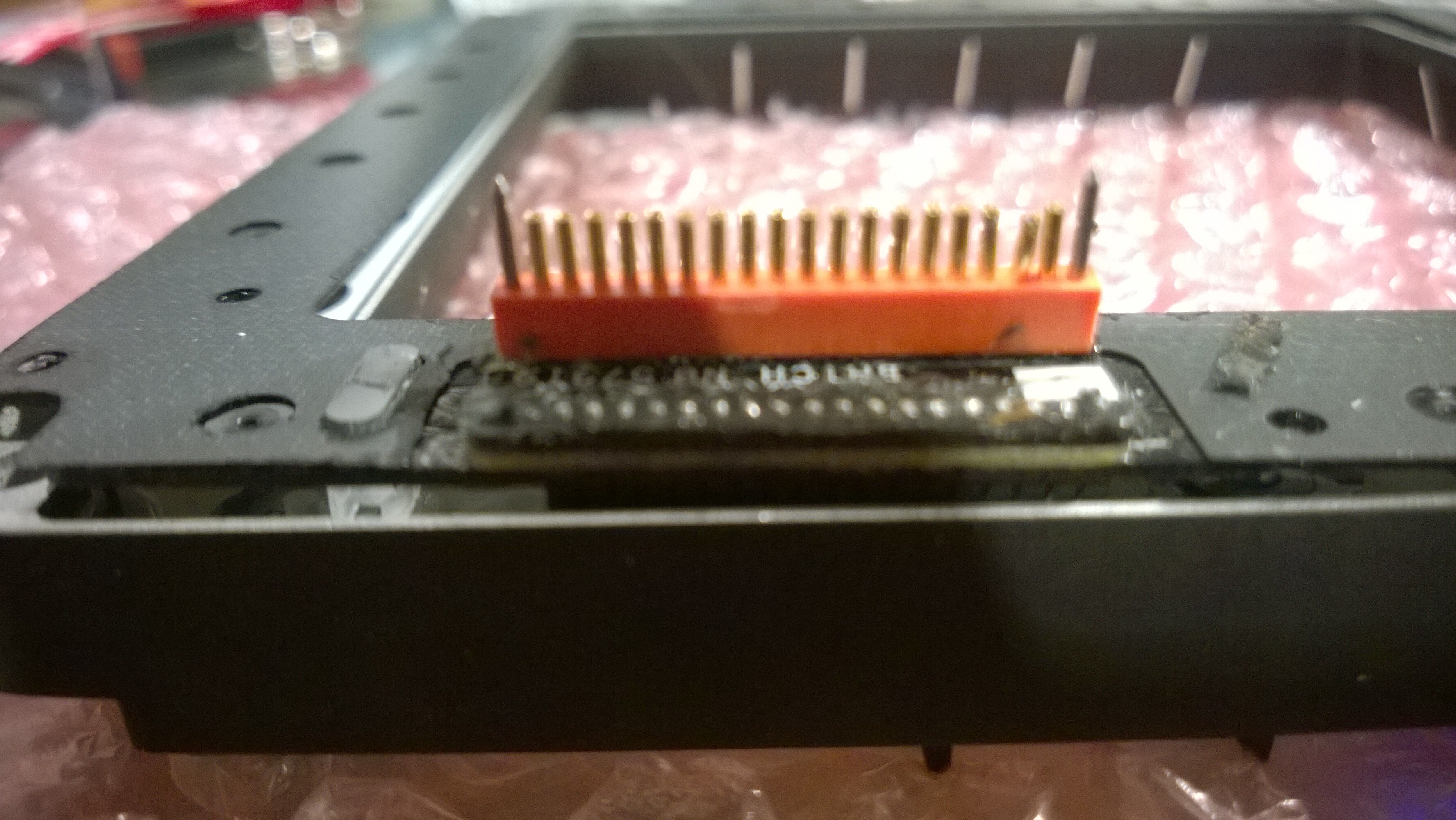

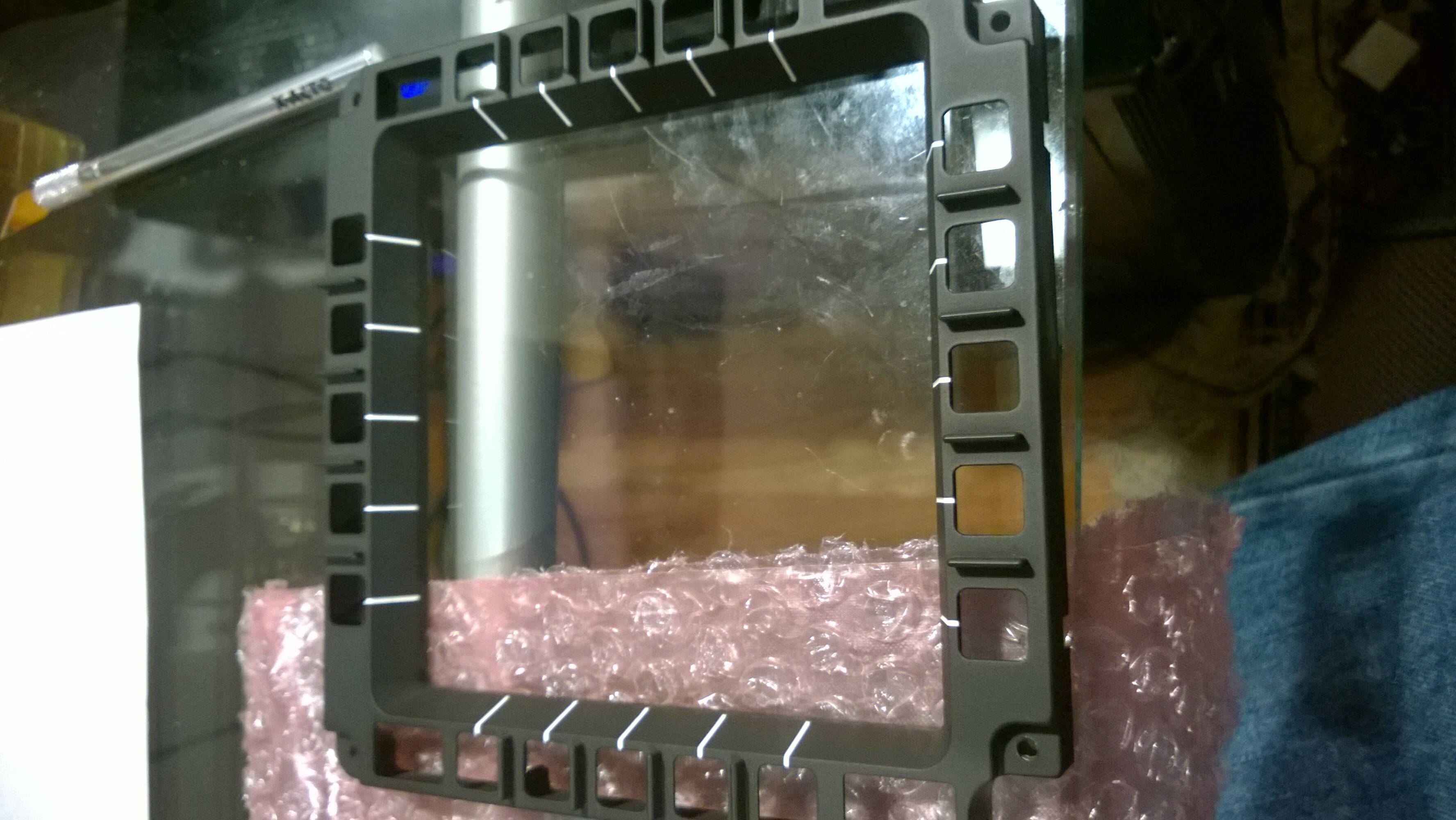

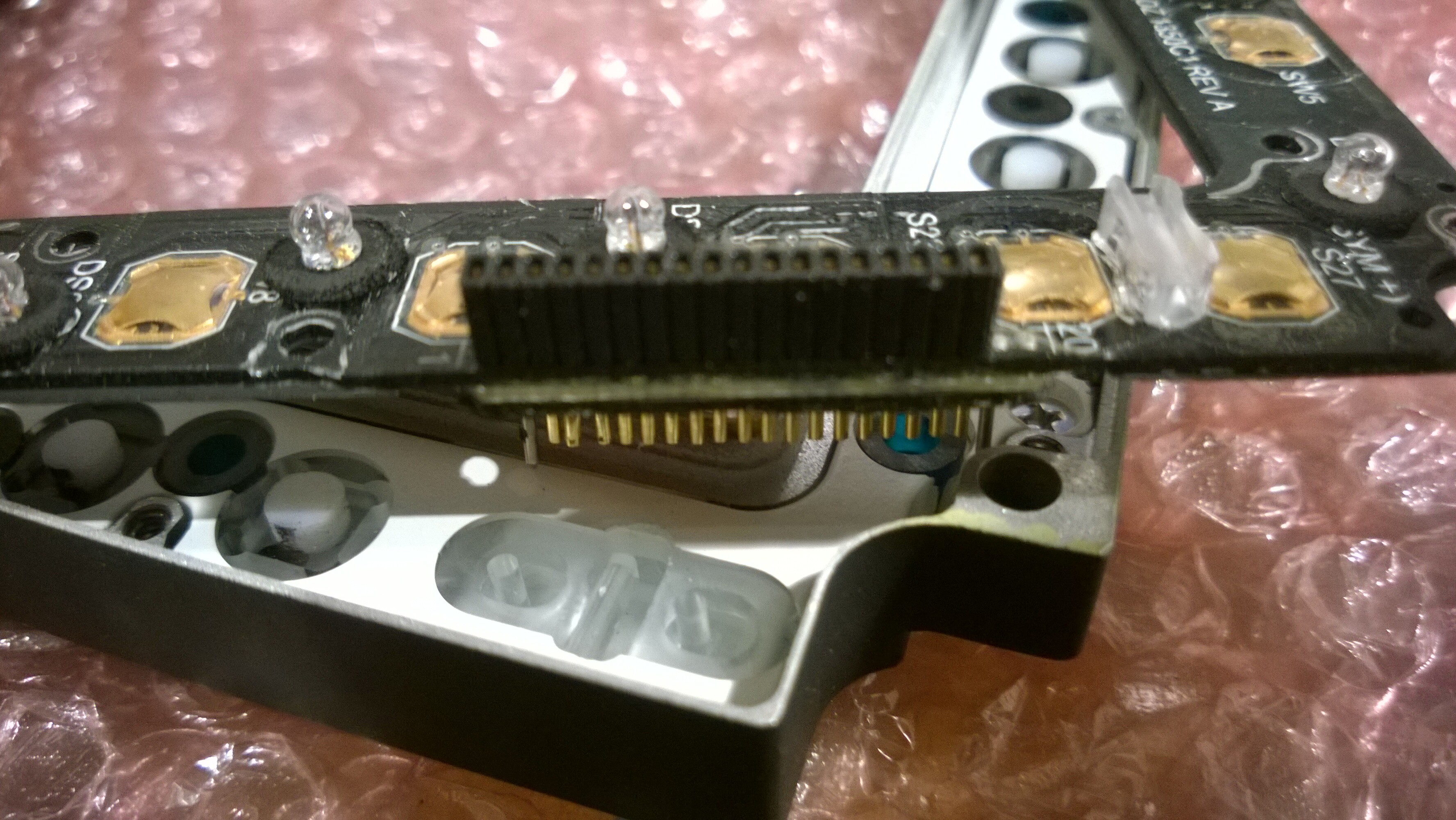

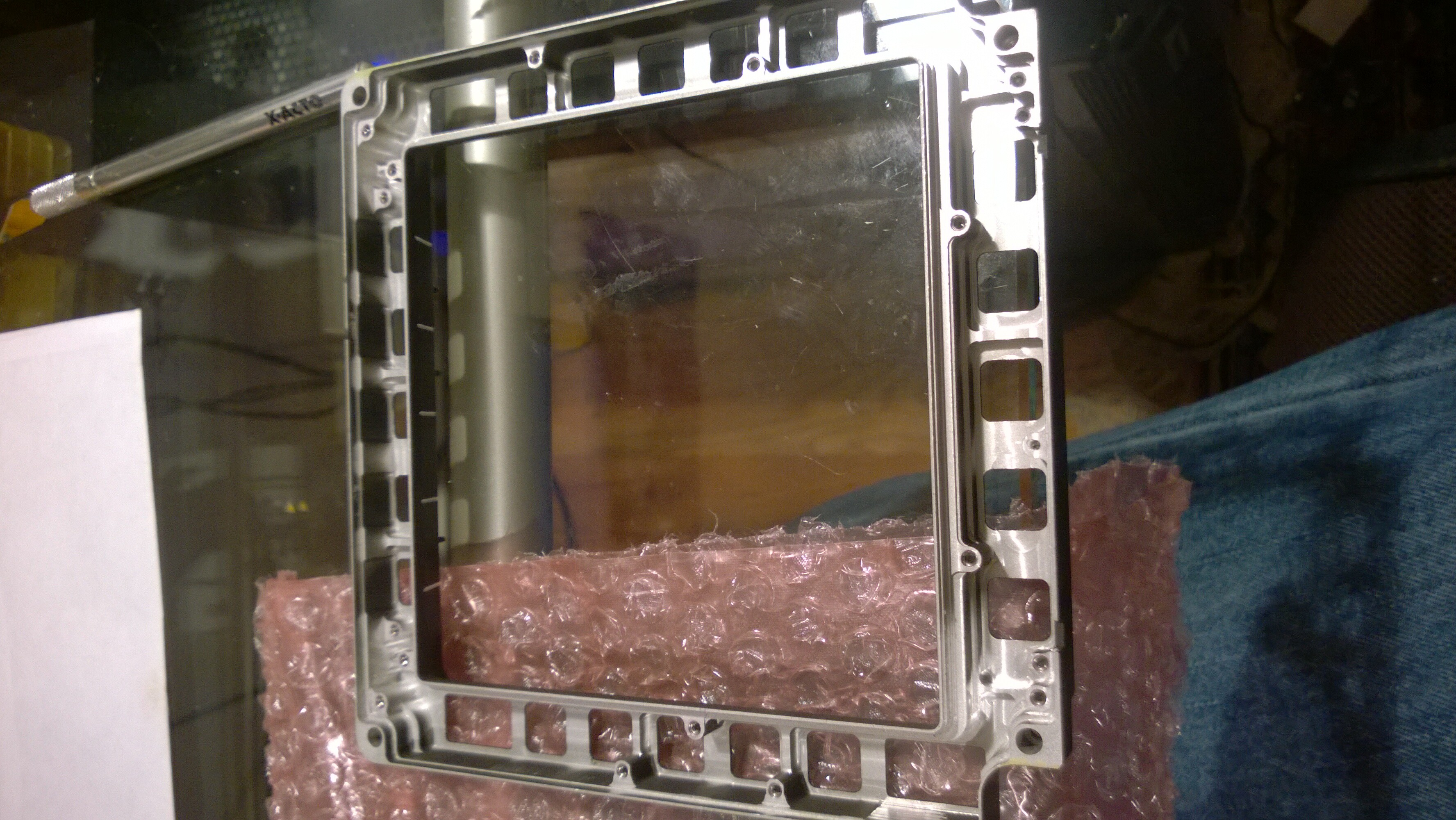

F-16 MFnullDs I have never found any for the A-10C

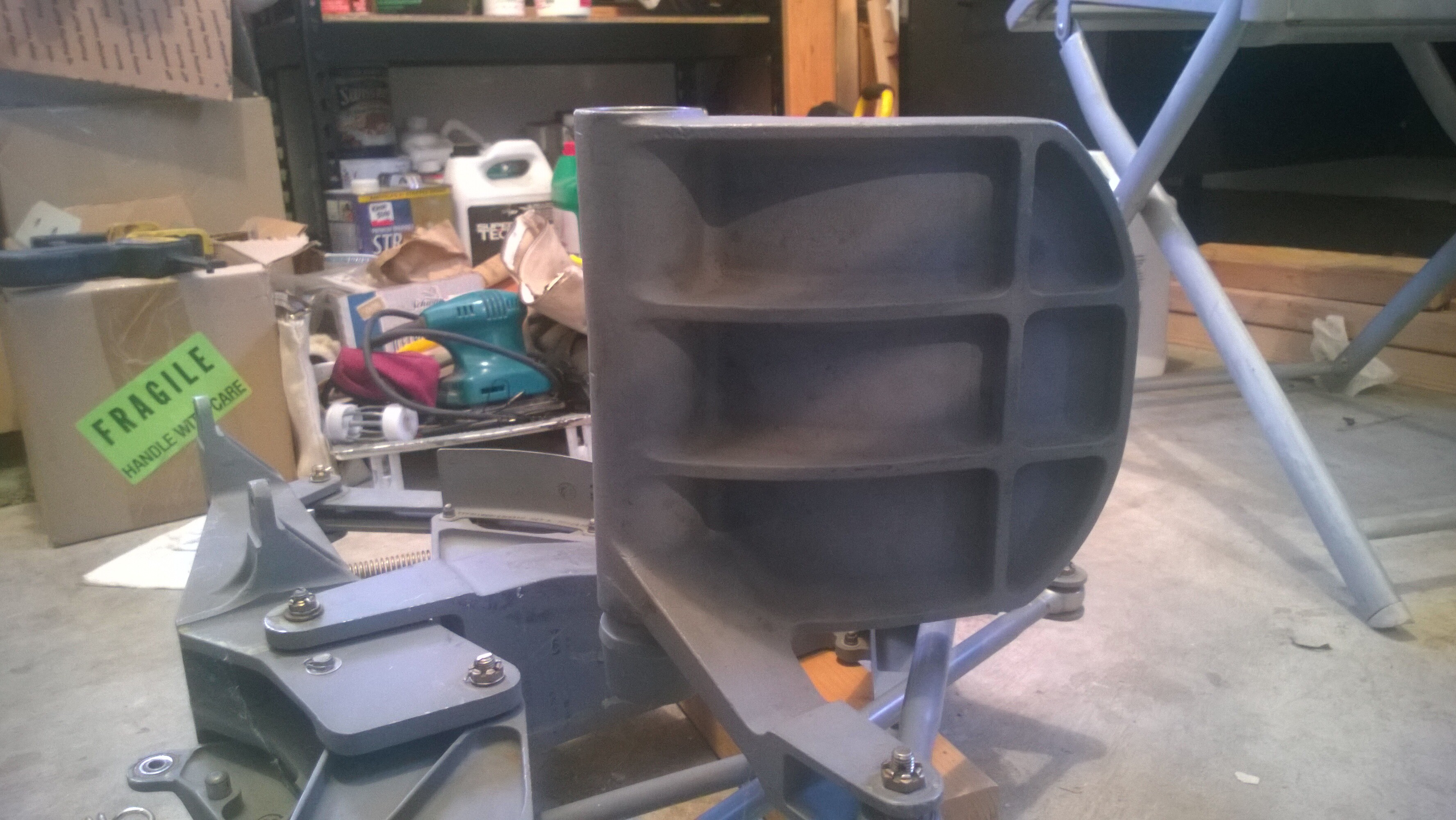

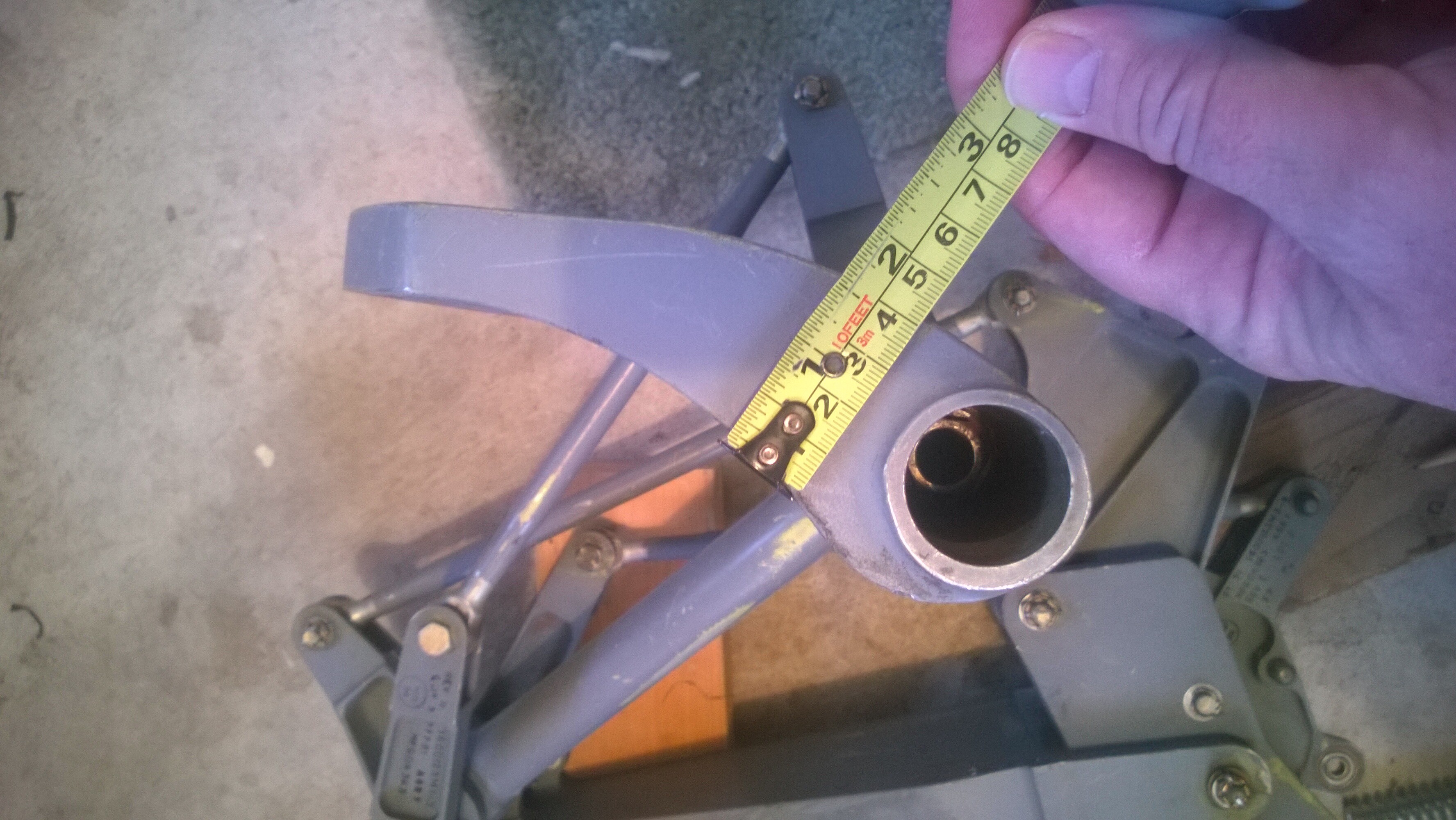

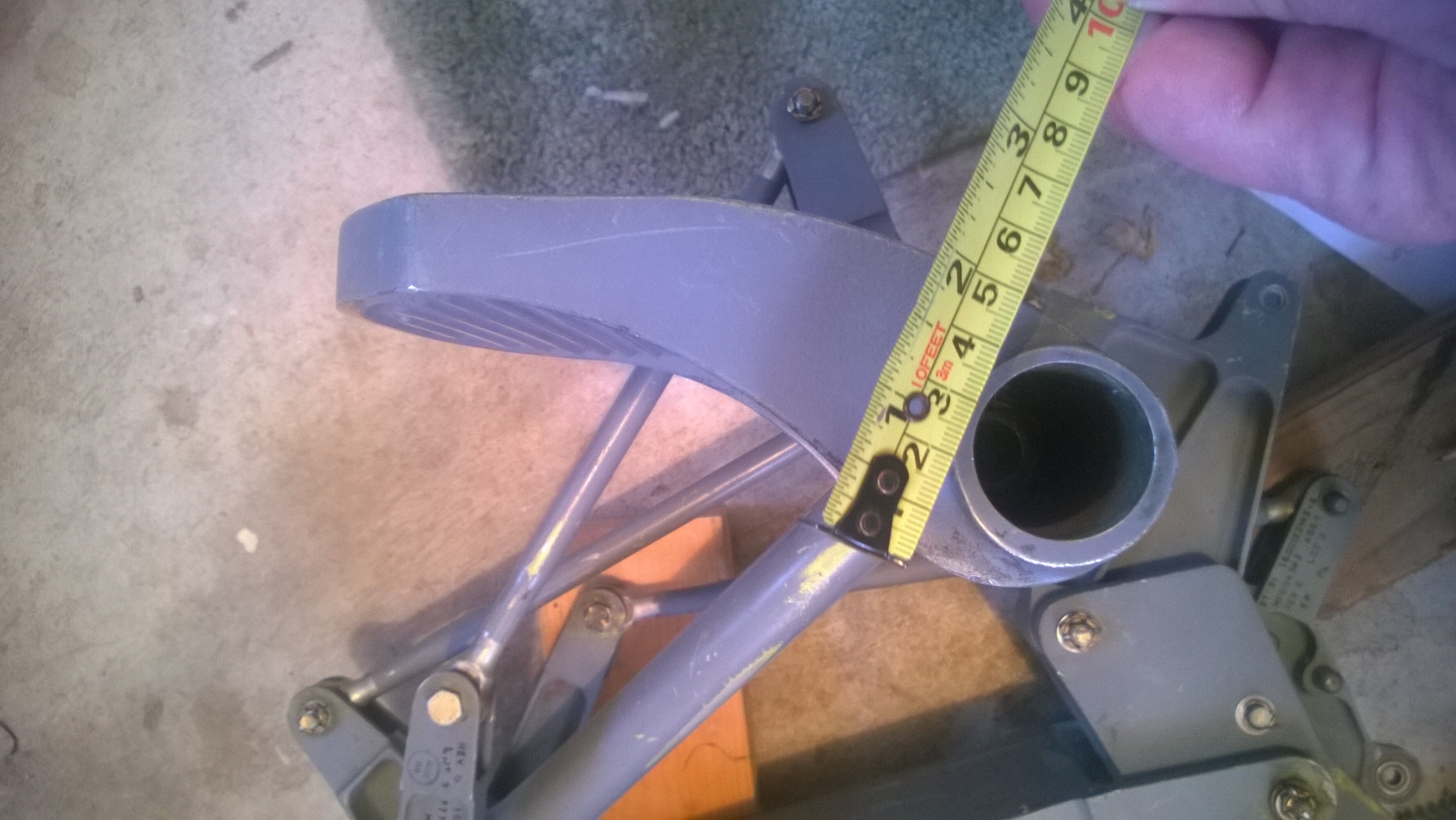

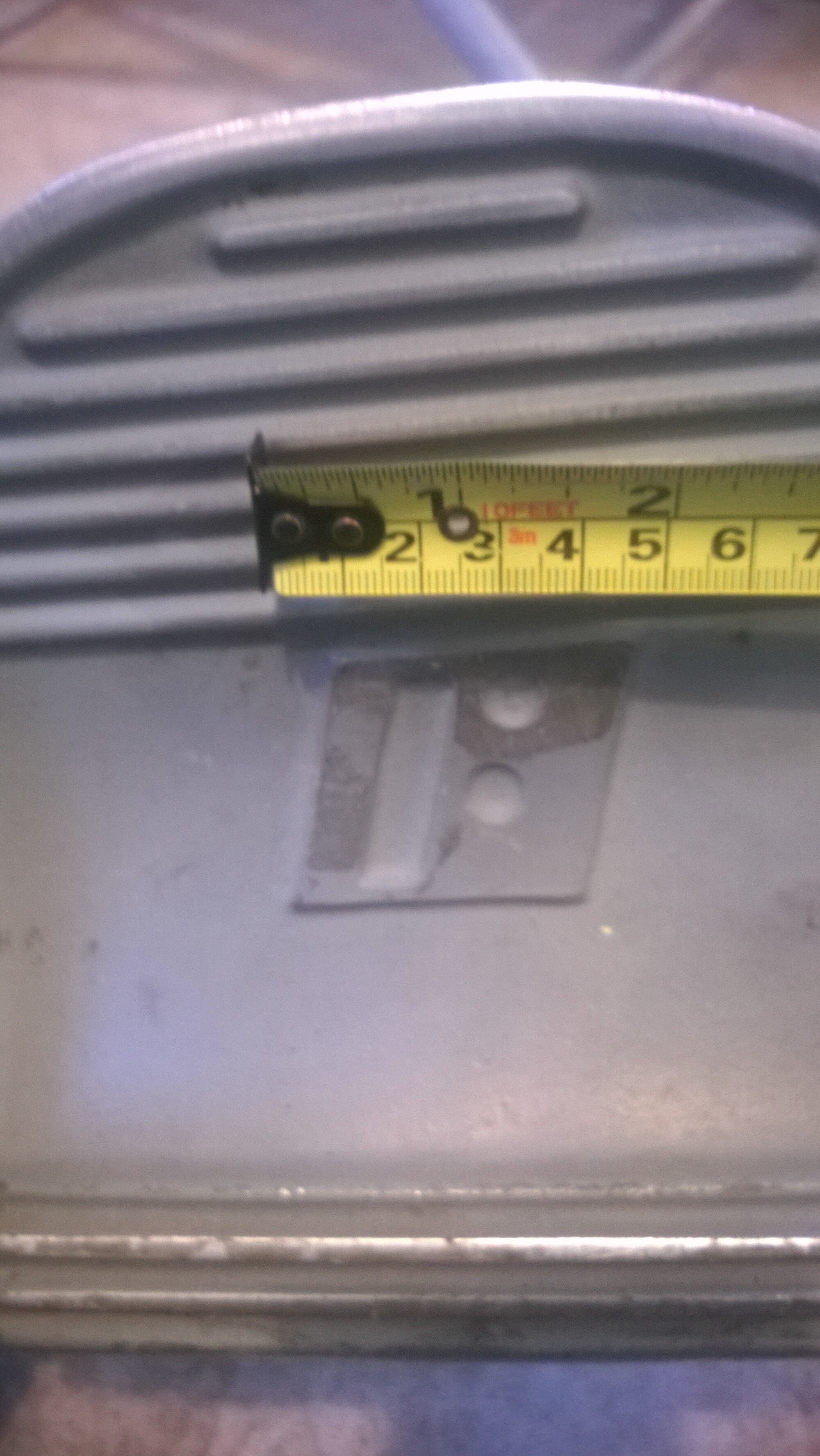

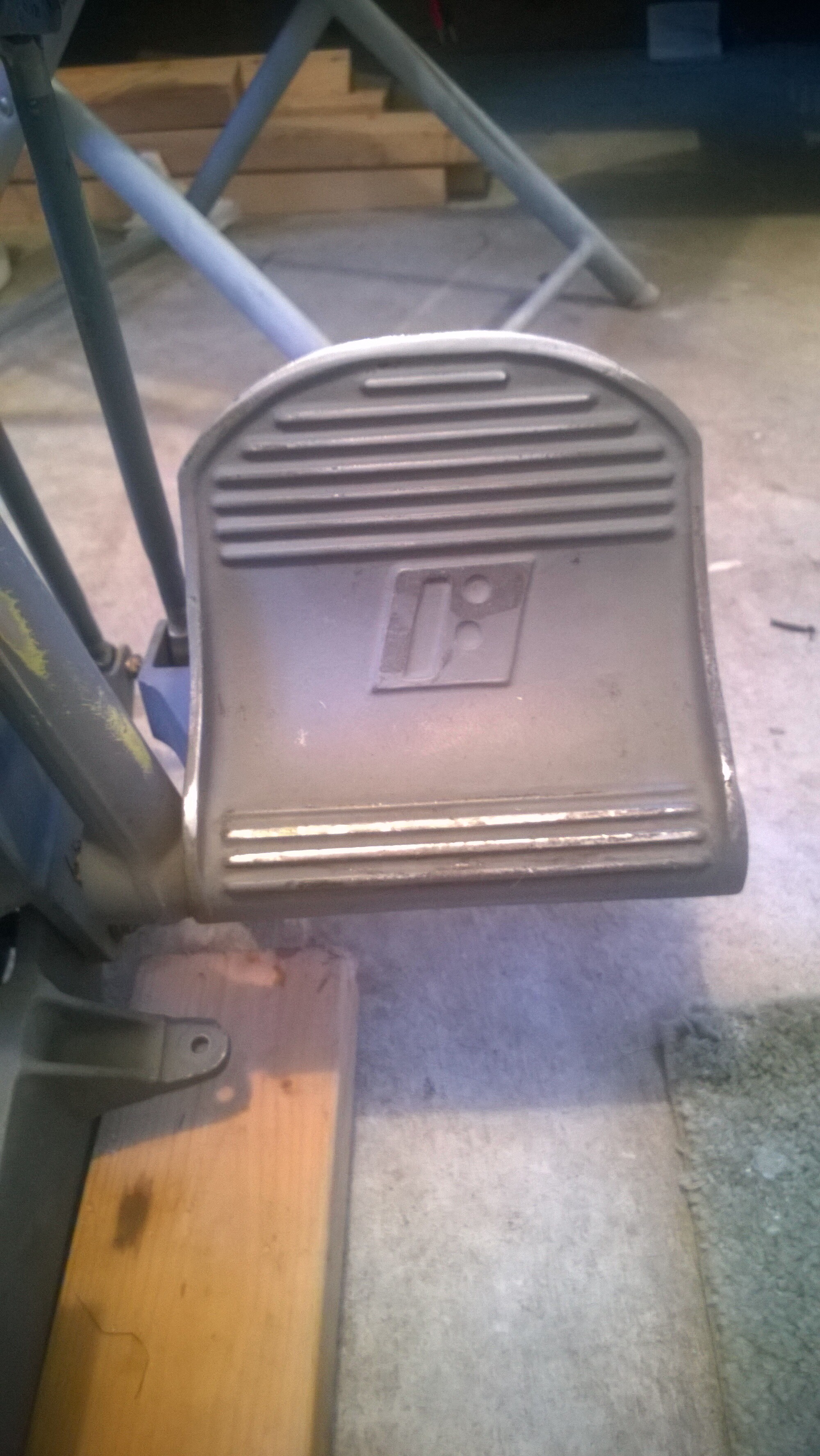

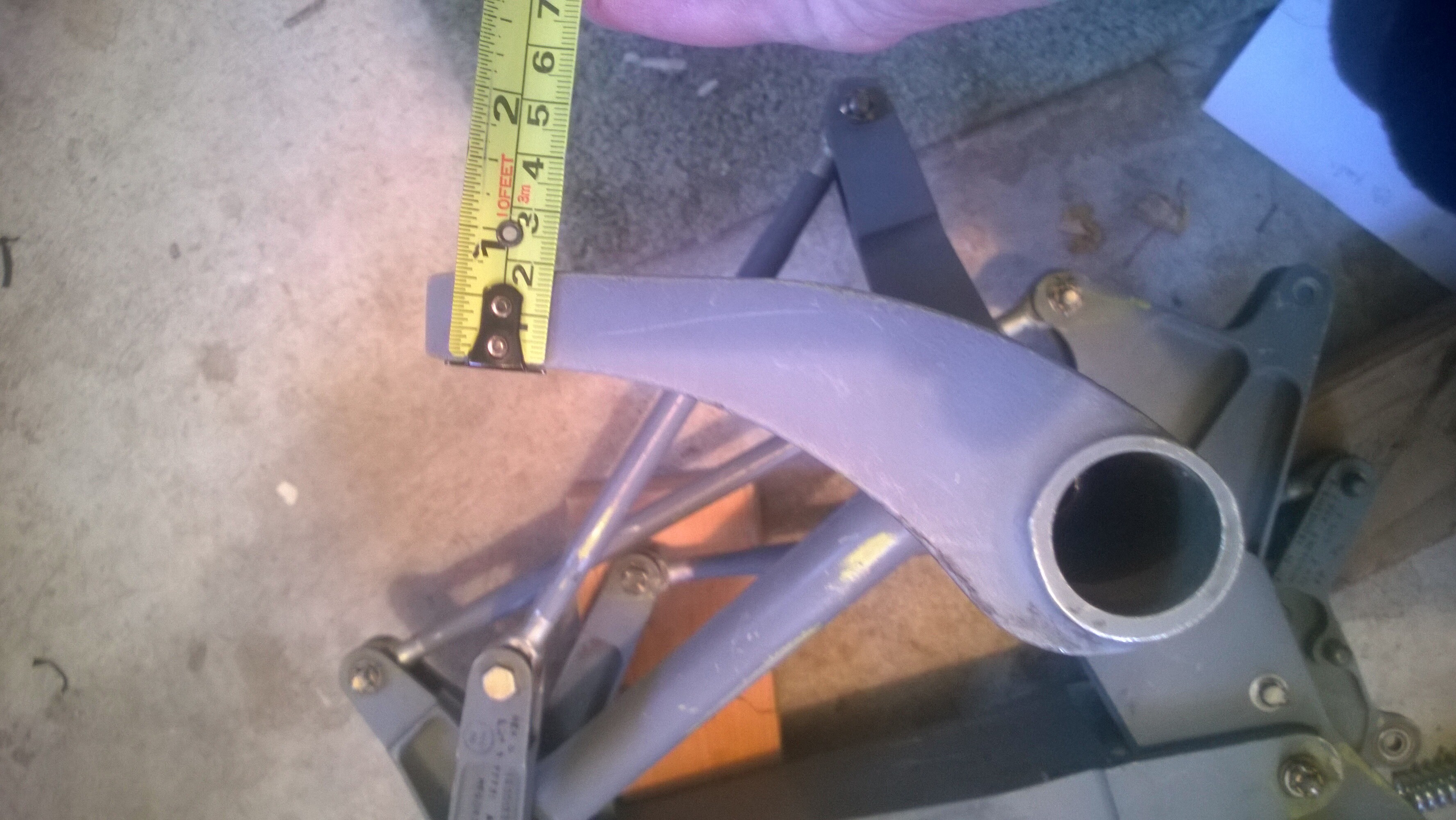

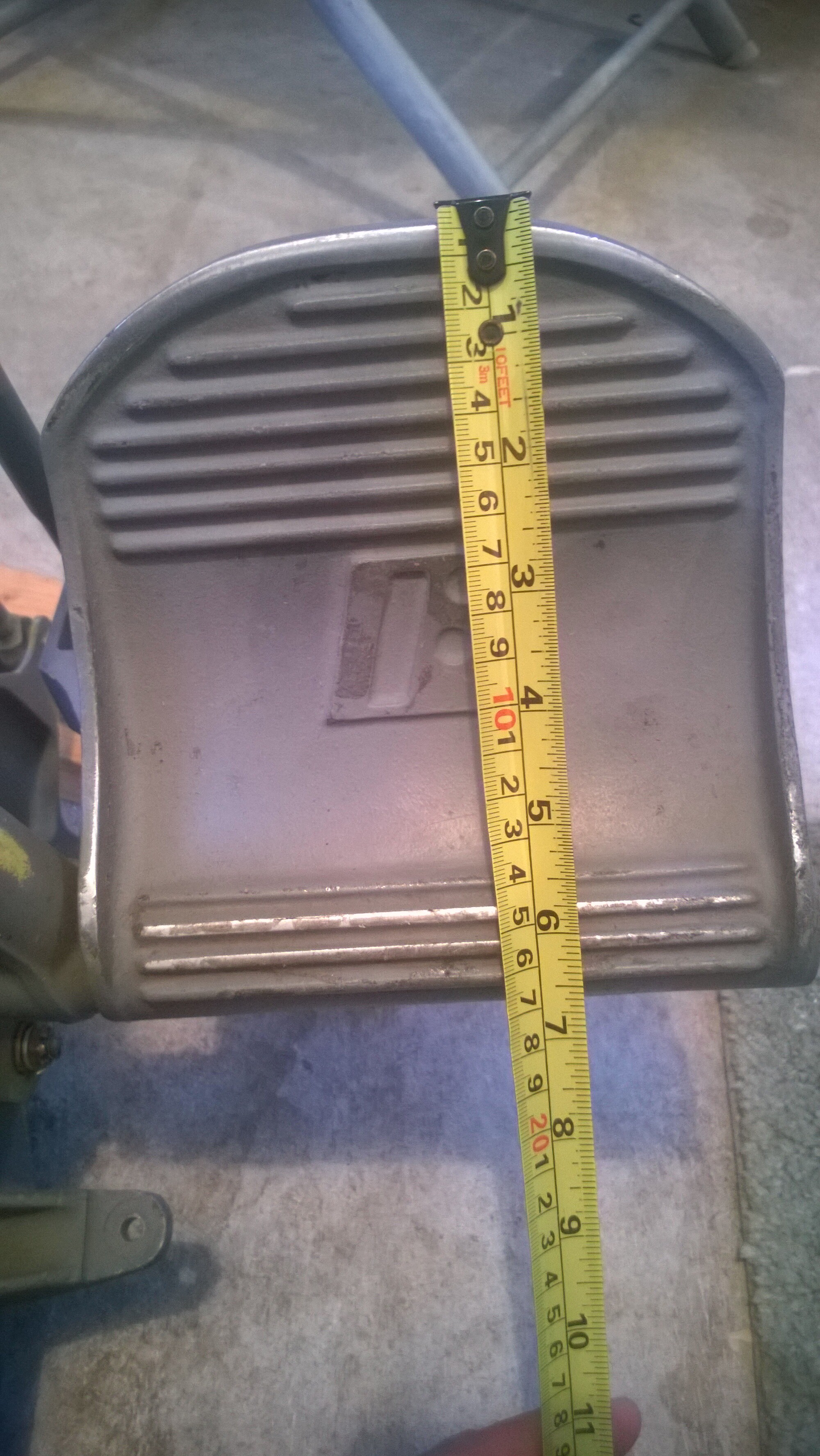

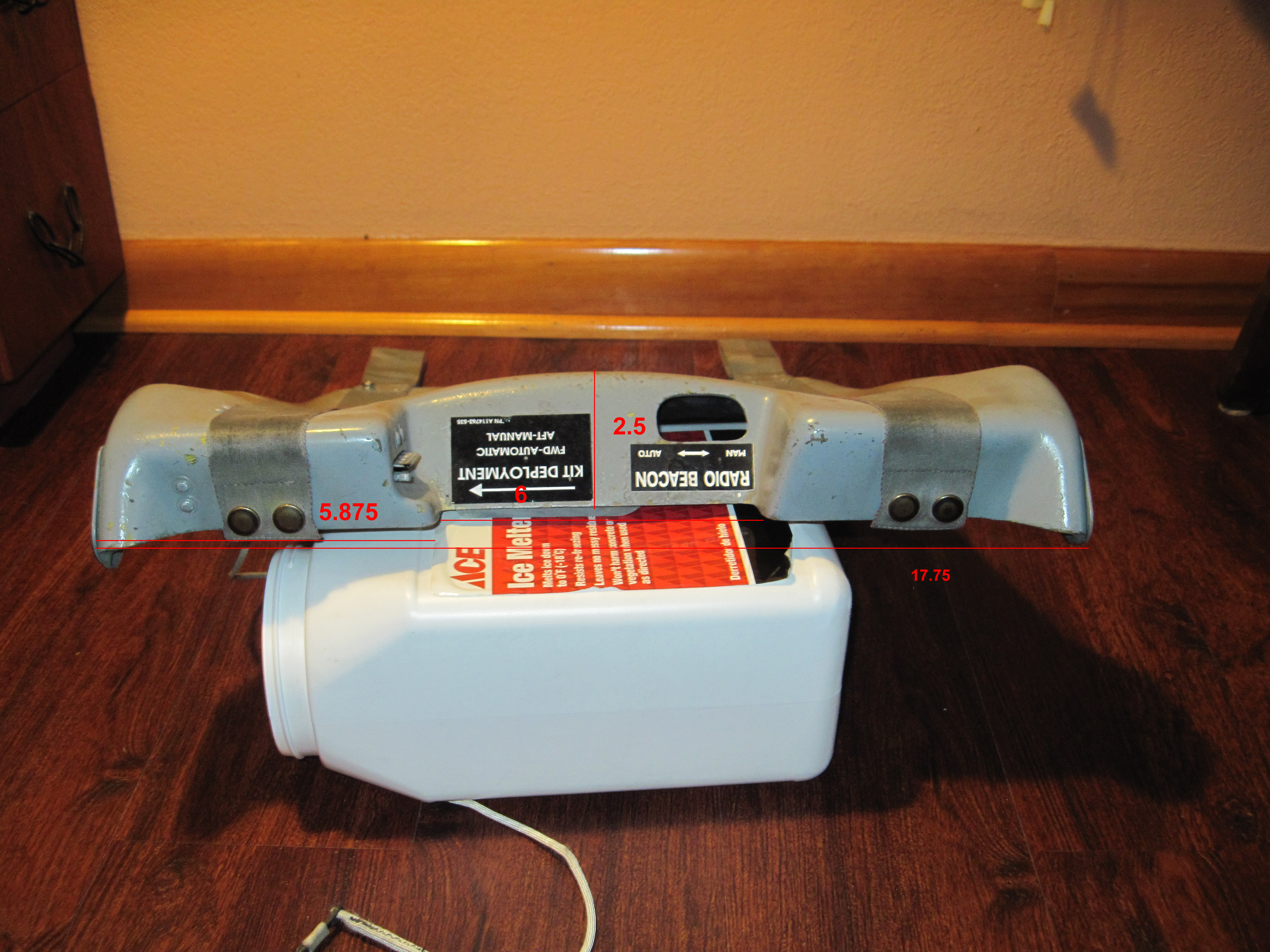

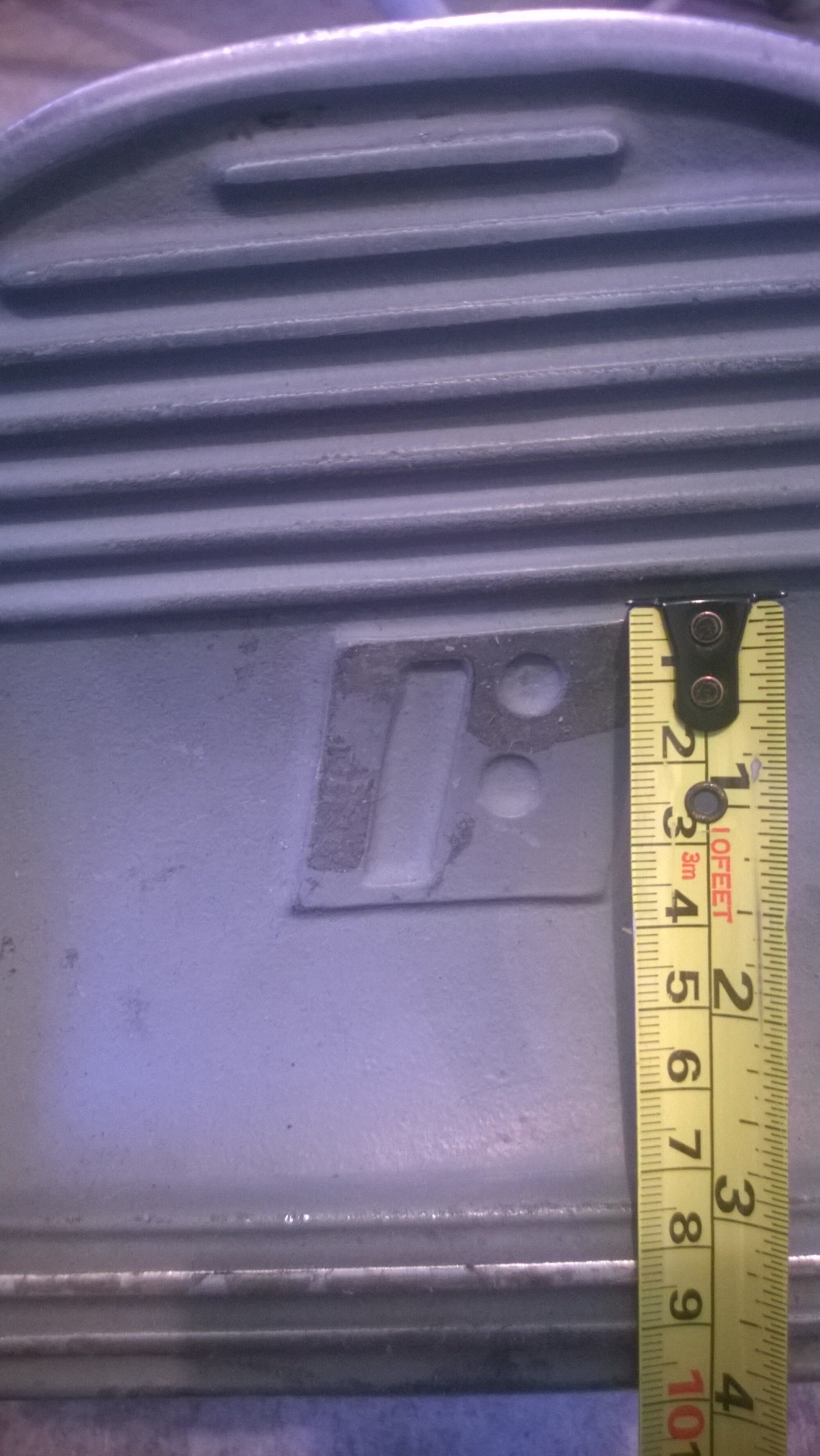

Some pictures of Rudder Pedals. nullnull

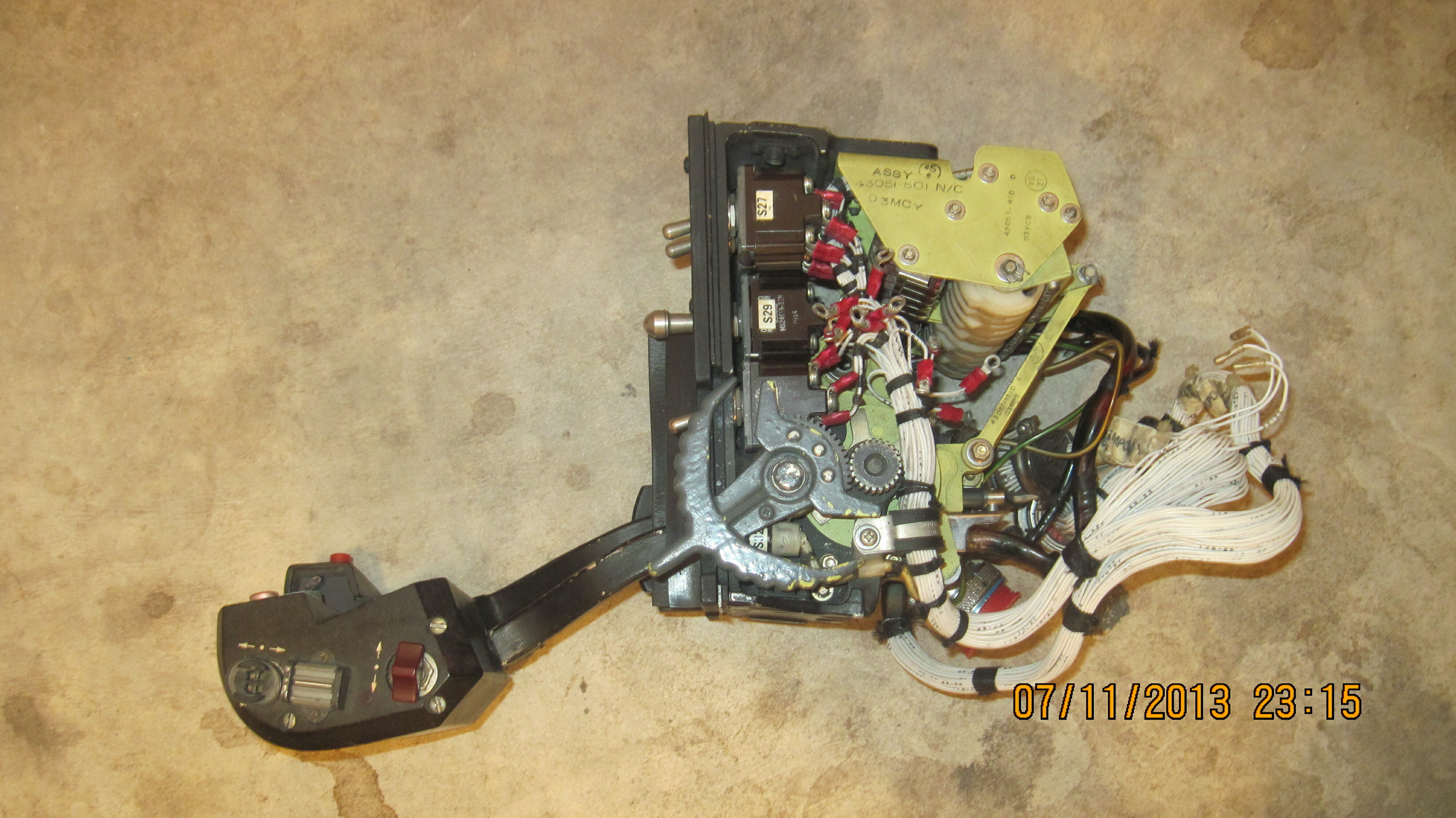

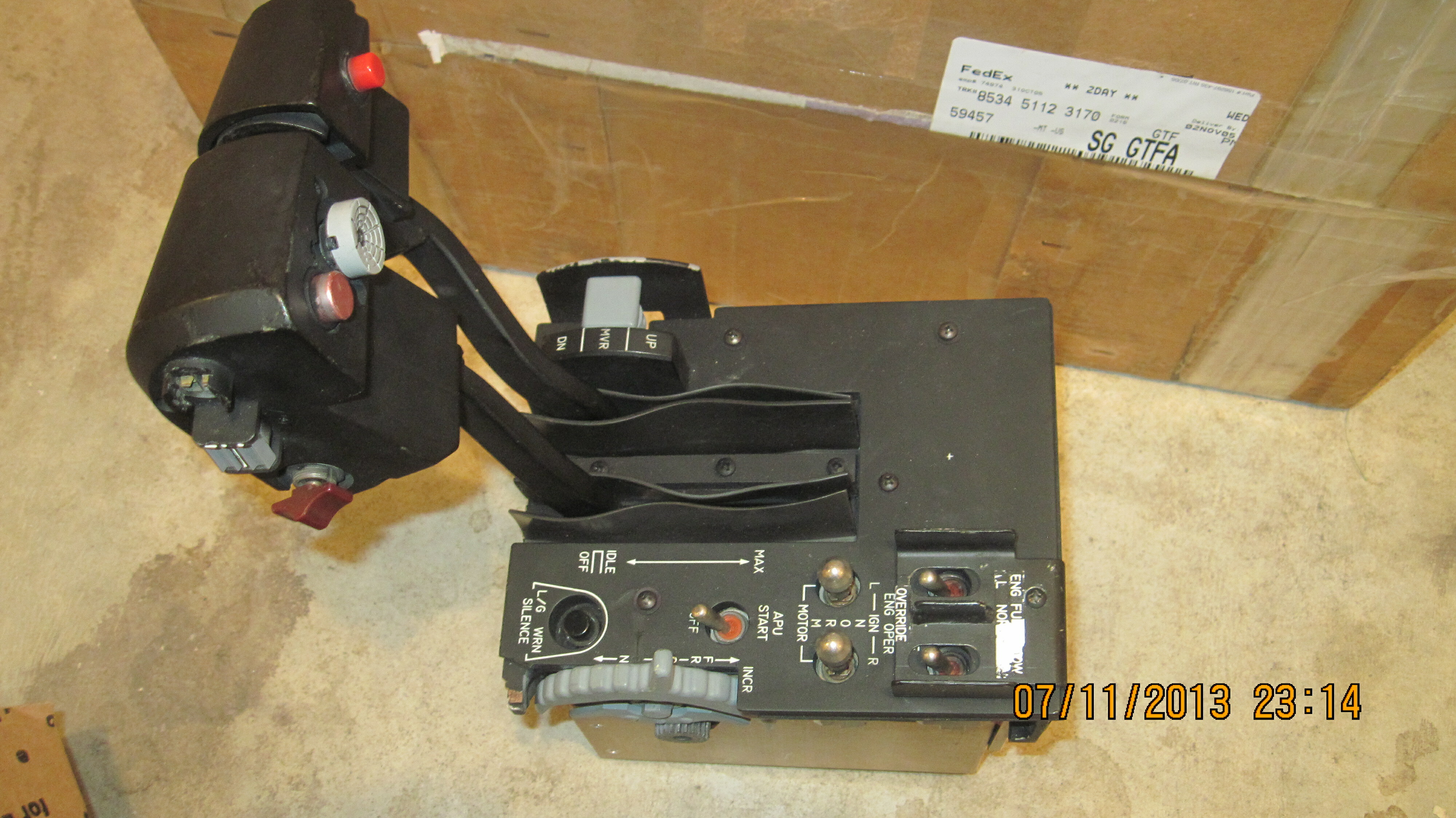

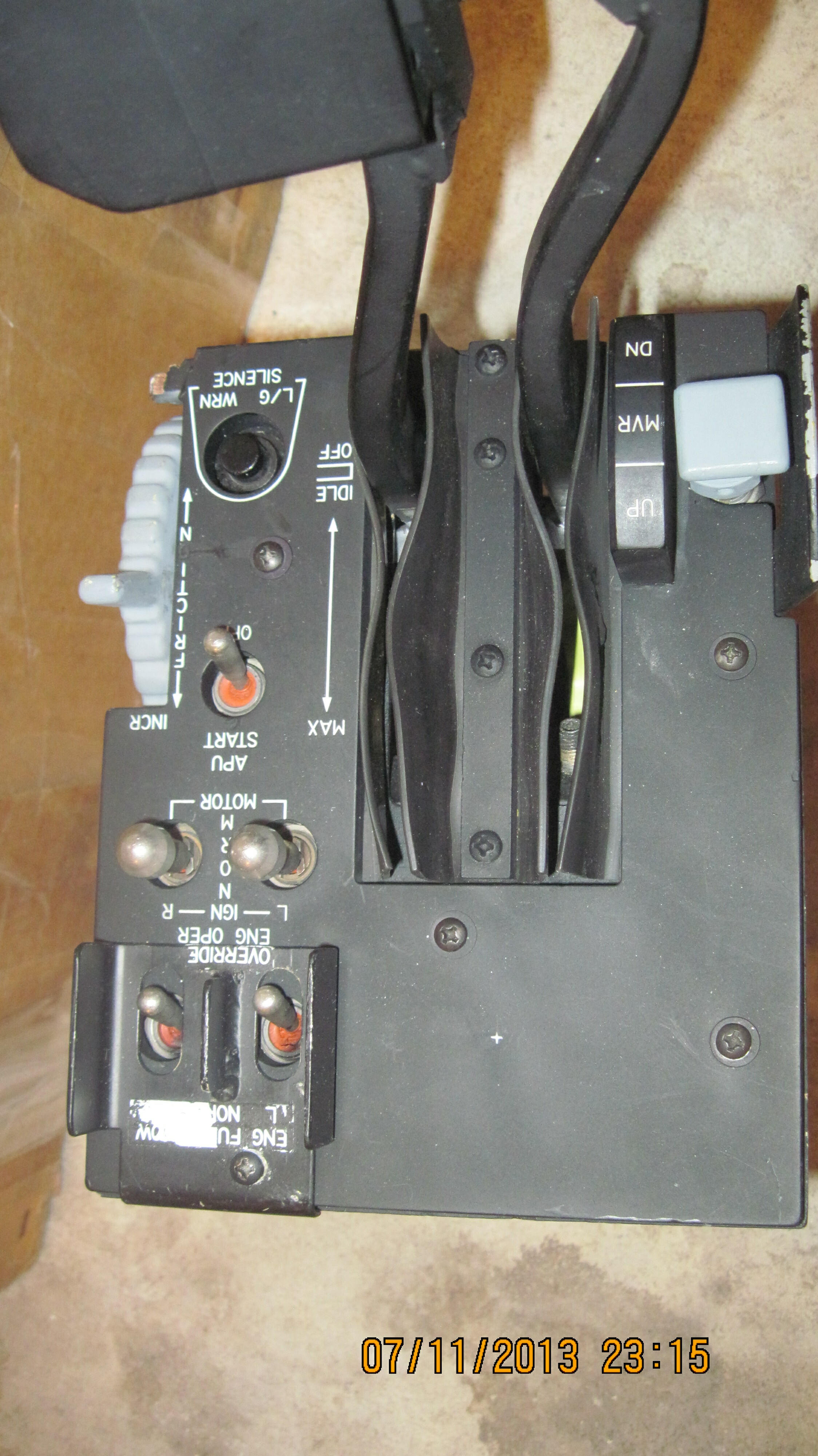

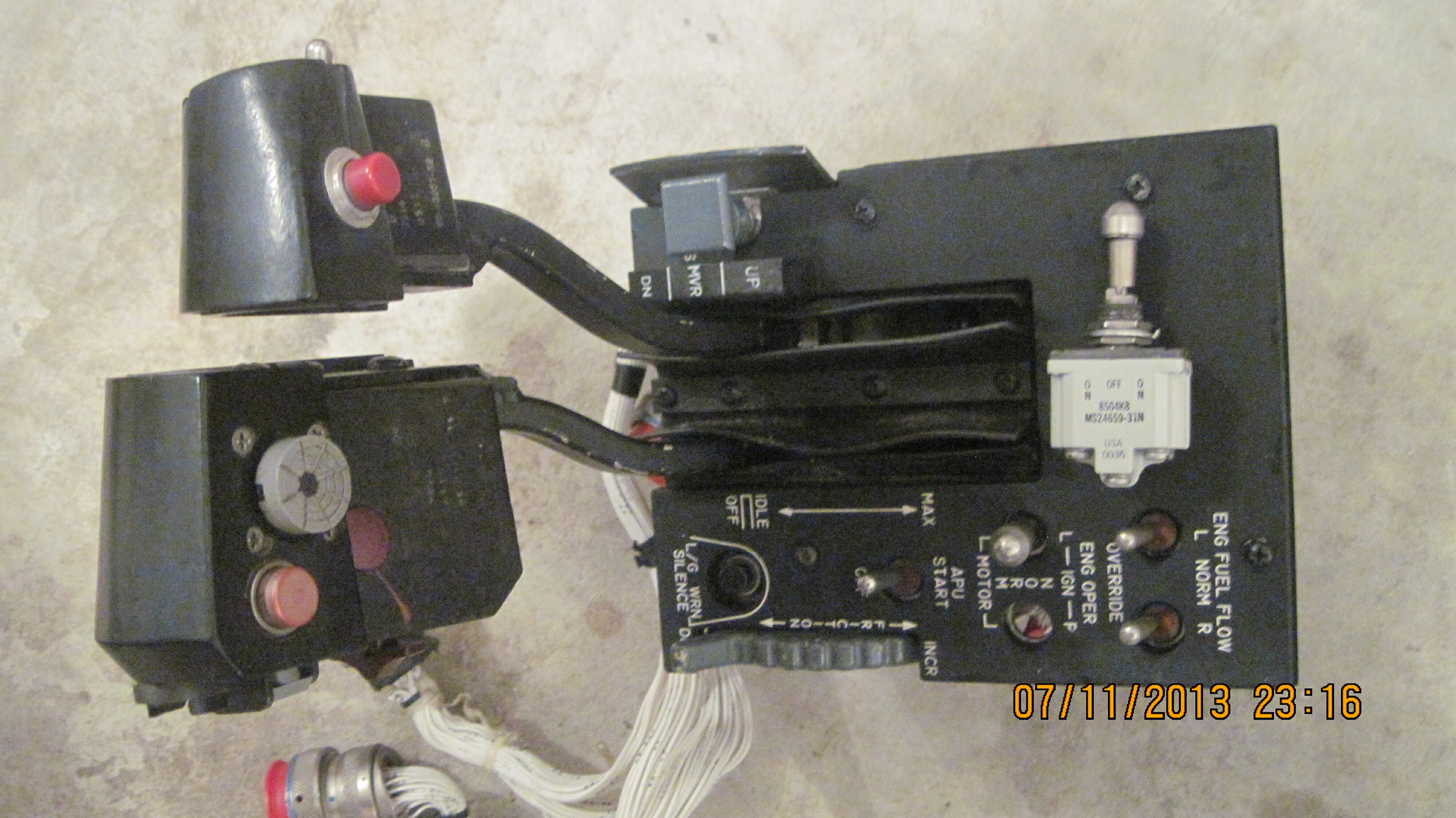

A few Throttle pictures

Just found these they may be of interest

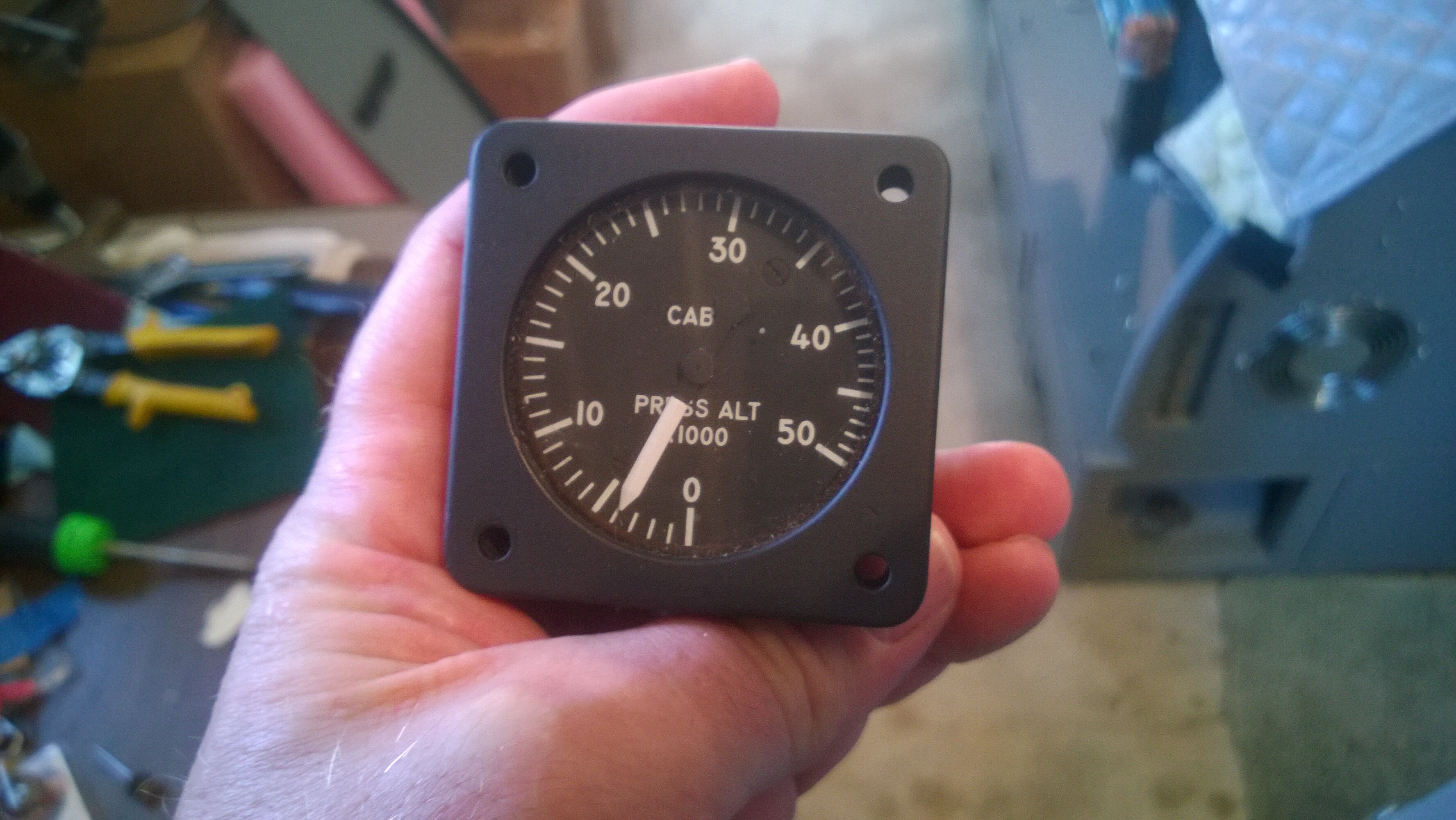

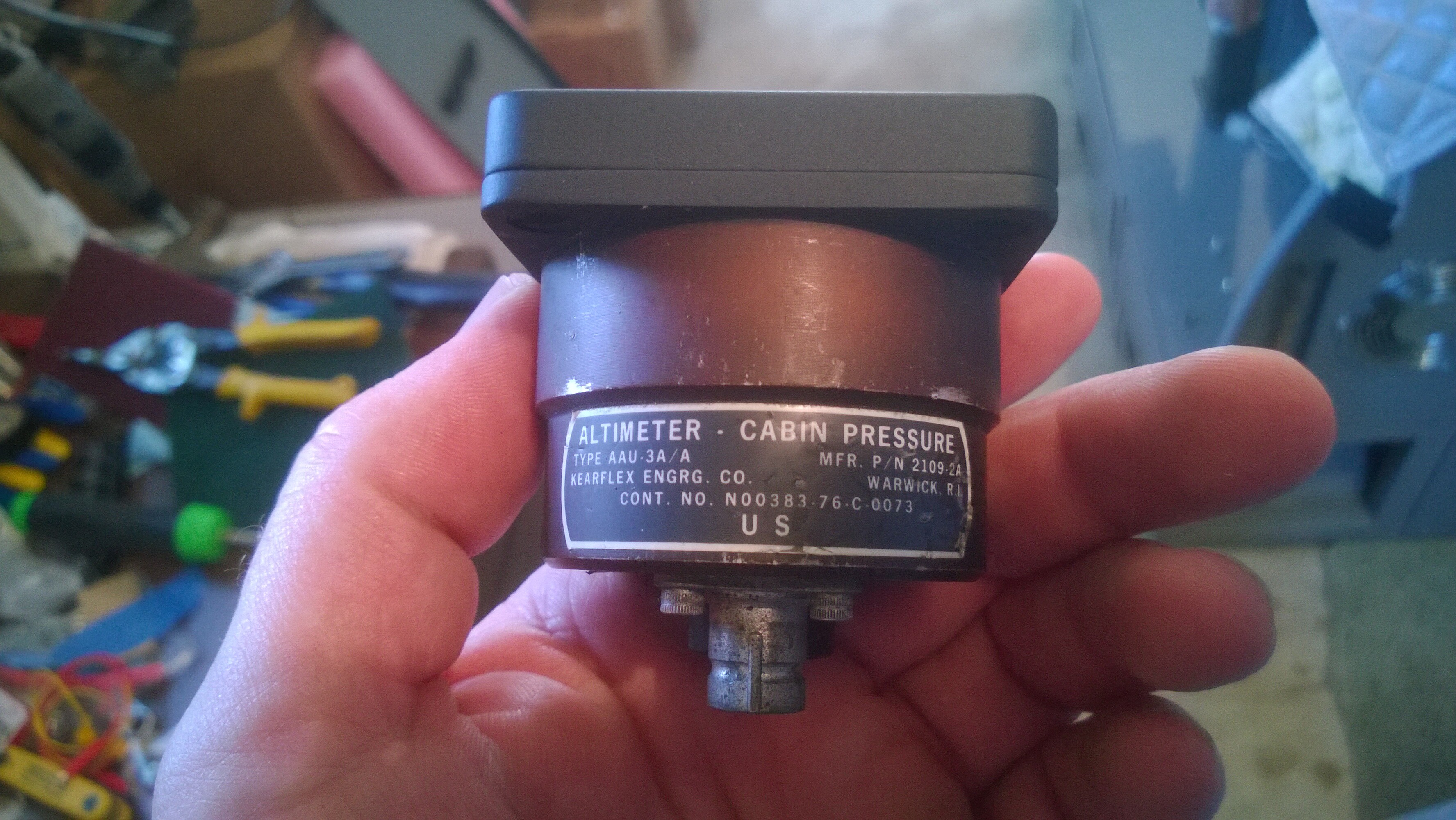

nullCabin pressure Indicator for the Environmental panel.null

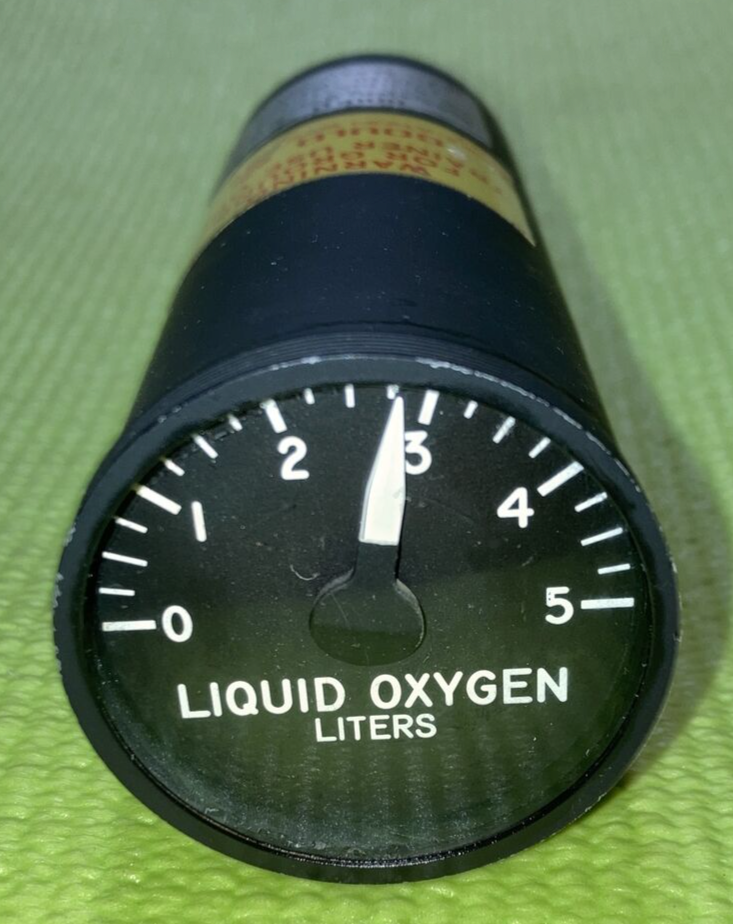

nullo2 gauge for the environmental Panel

Well unfortunately nothing in Vegas for the cockpit but a great time and awesome food.

well off to Las Vegas for the week end hopefully i may find a part or two Cheers

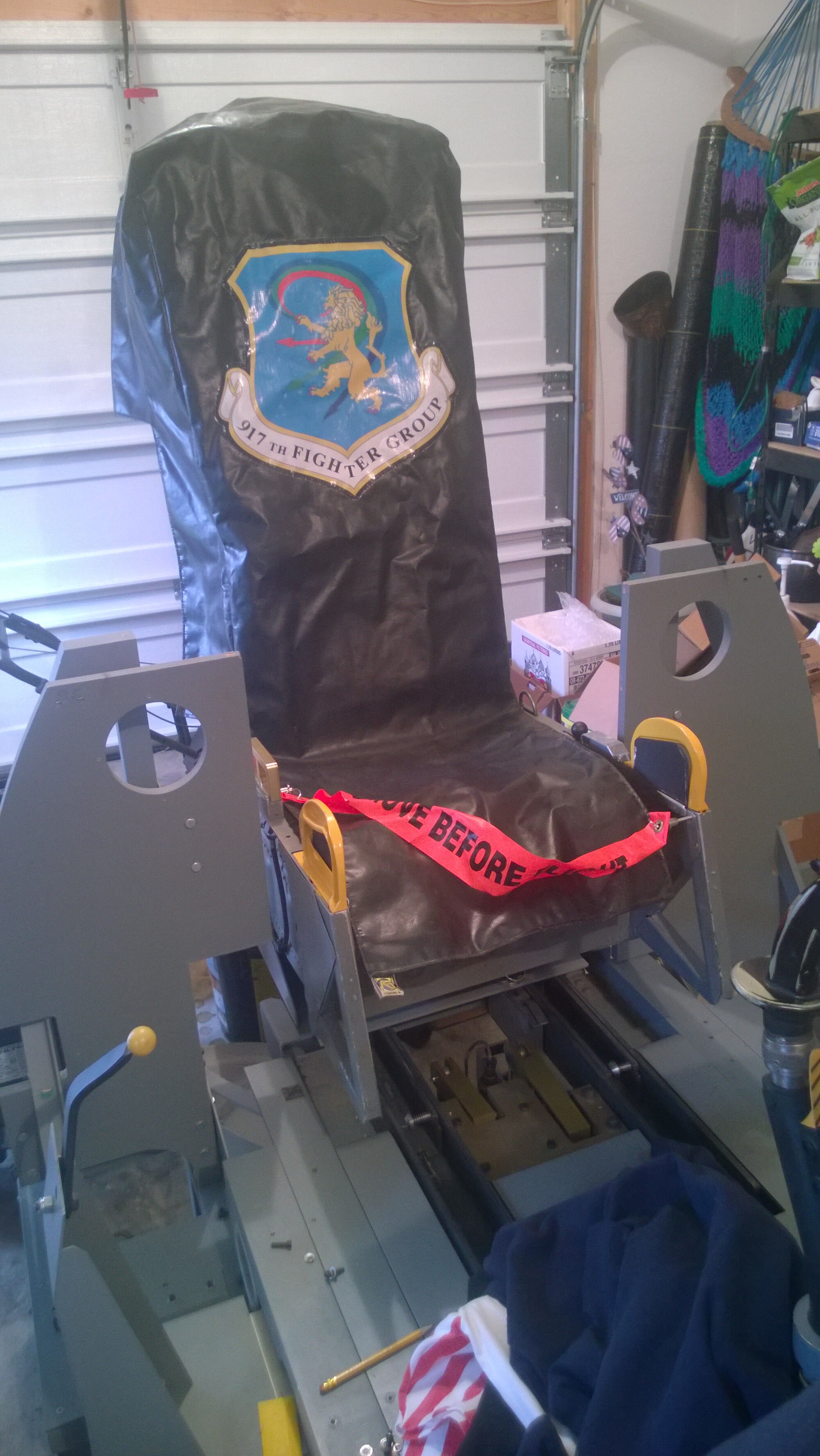

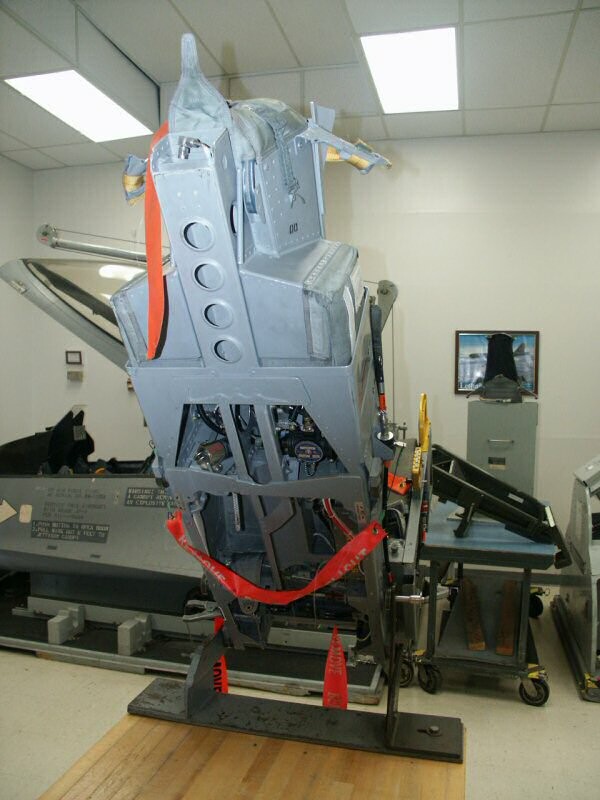

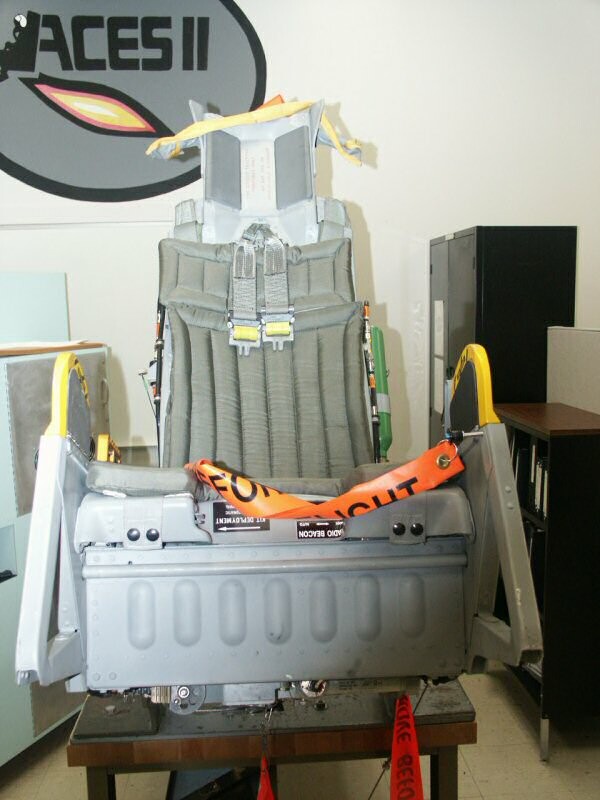

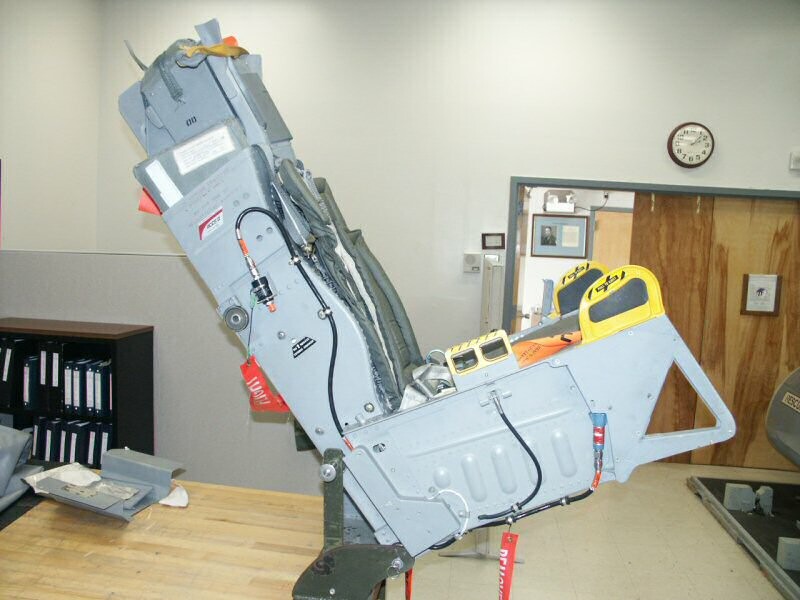

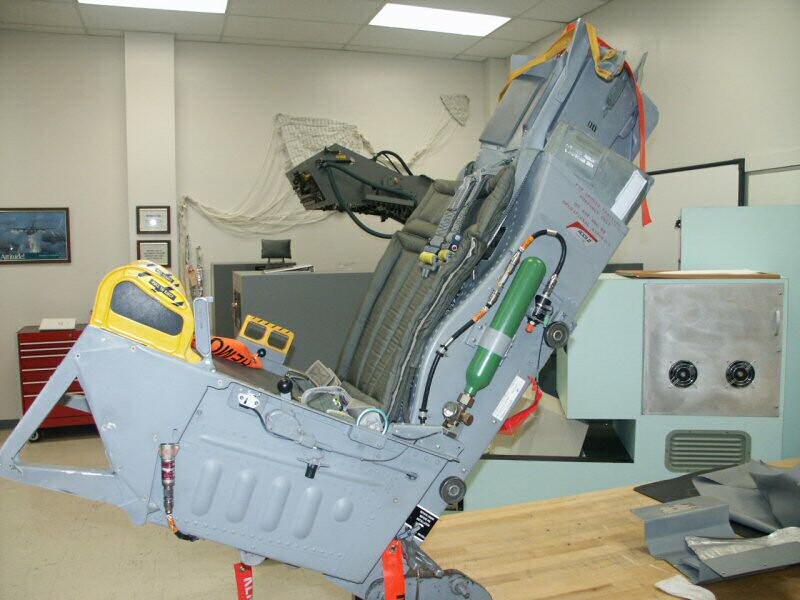

nullA few pictures of the A-10's ACES II

Sorry had to work and I am dead tired any ideas on what we should look at next?

I have found that Gordon URW Condensed Regular, and Medium For old panels looks the most real Font information as listed in MIL-M-18012 3.1.2.1 Letter design. The recommended letter form is shown on figure 1. This font is available for paste-up layout work, in double the specified sizes, as Artype S-274. The letter designs shows in MS33558 are acceptable for parts covered by this specification. The following commercial fonts having the size ratios specified herein for the classes and types of control panels coverered by this specification may be used. Stroke width of engraved letters shall be the same as that of the acceptable type fonts of the same letter heights. (a) Fonts for engraving: (1) Gorton extended (2) Groton normal (3) Gorton condensed (b) Fonts for printing and other reproduction methods: (1) Airport semibold (2) Futura demibold (3) Vogue medium (4) Lining Gothic No. 66 (5) Alternate Gothic No. 3

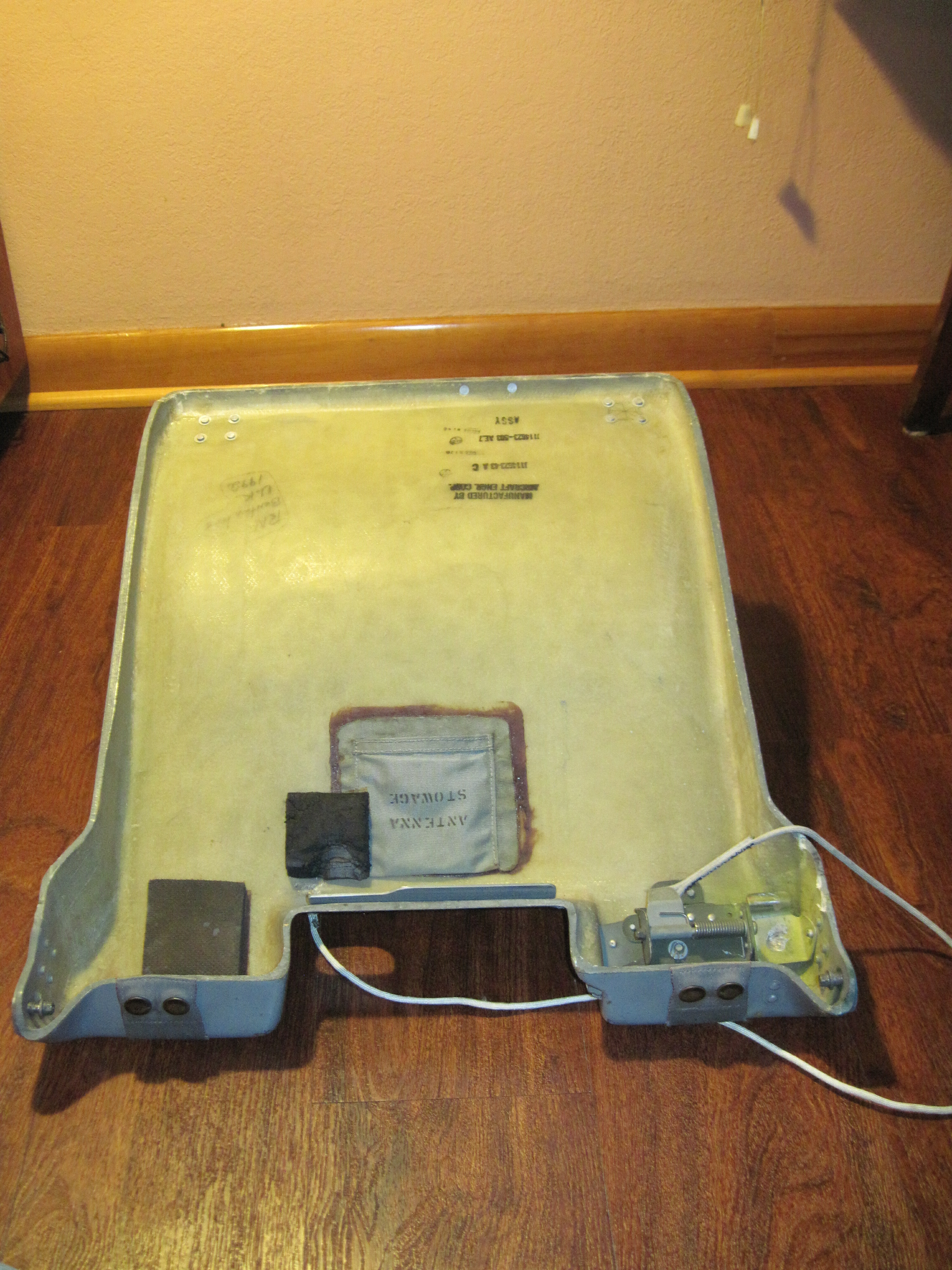

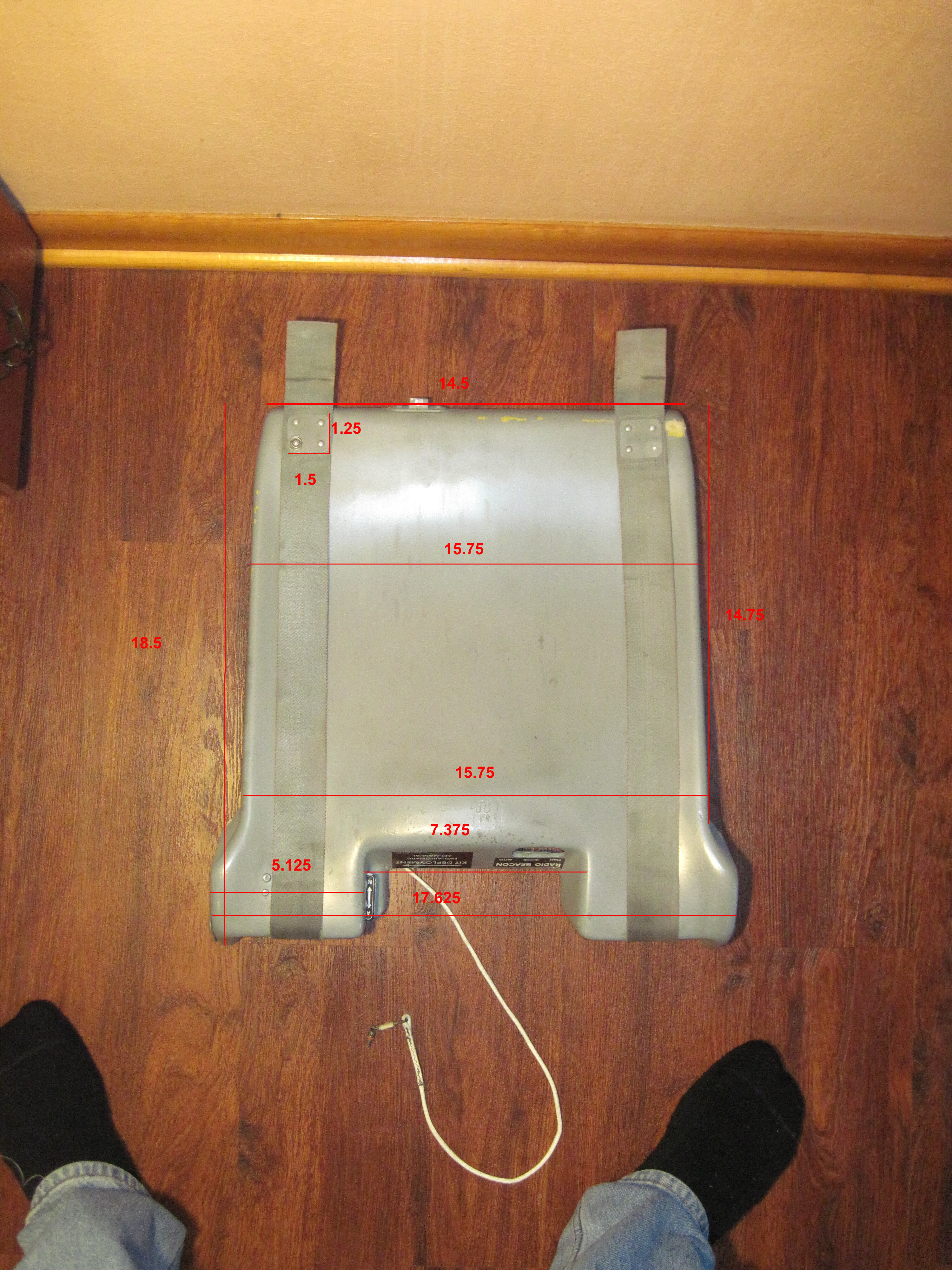

Some information on the AECS II seat pan a few mornulle pictures

Nicely done

The secrets to getting the mat finish for the indicators is to sandwich in a slice of Grafix Drafting Film Matte https://www.dickblick.com/items/grafix-drafting-film-matte-24-x-36-x-005-2-sided--single-sheet/?clicktracking=true&wmcp=pla&wmcid=items&wmckw=55521-1005&country=us&currency=usd&gad_source=1&gclid=CjwKCAiA04arBhAkEiwAuNOsIqwqr2MofaAYZIAh3-_tirhUSszMAxPwfQXpUvihNG8bdpYJOsiMGRoCVSoQAvD_BwE

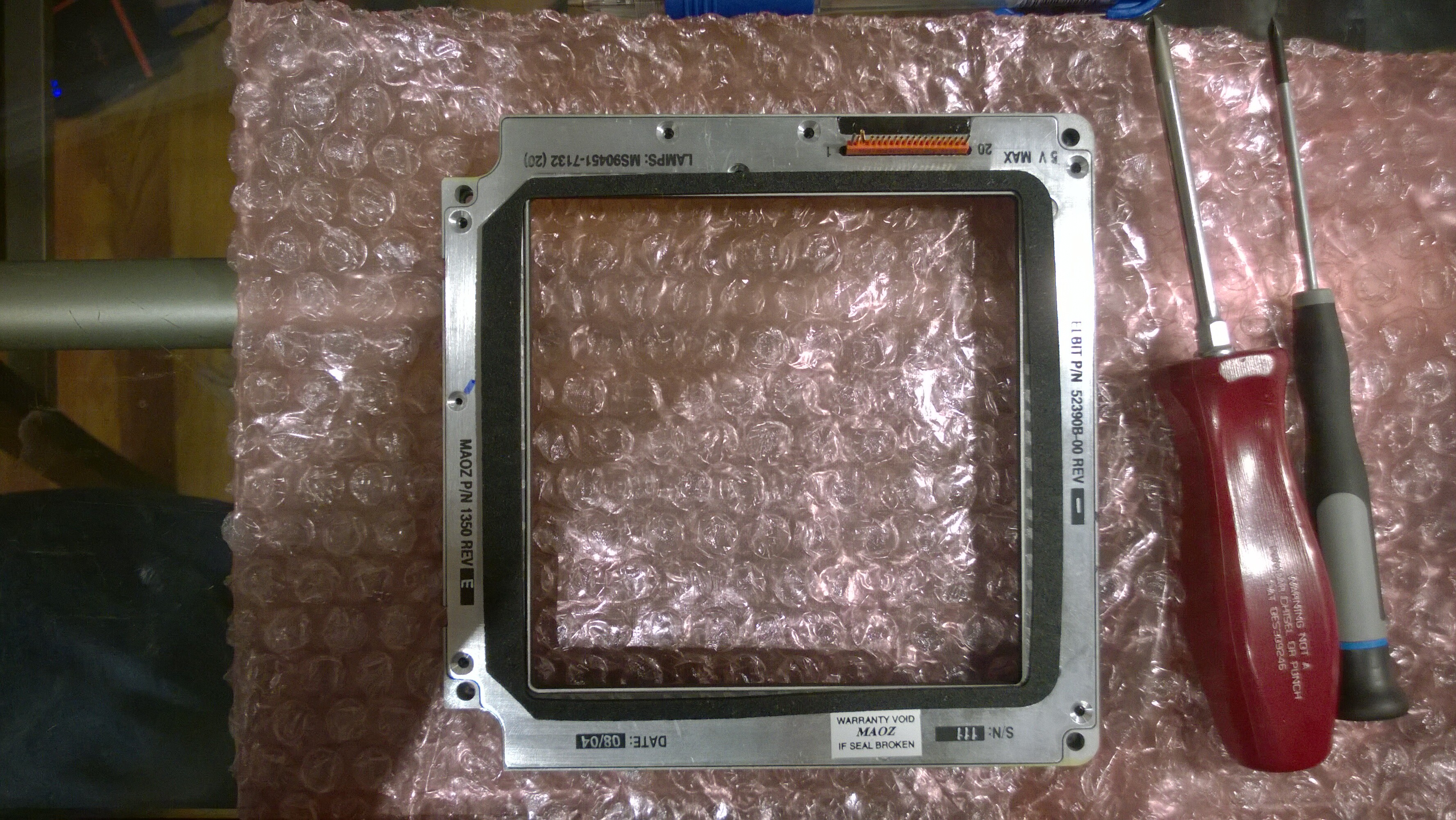

Spec for the Main Instrument 400635-100a.pdfpanel map light

I know the book is sold out but Mike's site has valuable information https://www.mikesflightdeck.com/mfdb/bsai/bsai.html

The an/arc 186
