Great, yet another service life extension coming up for my Cougar throttle

If you have changed one thing and something unrelated immediately goes wrong, then odds are it is the change that is responsible. The Midori sensors appear pretty robust - test the sensor outside the gimbal i.e. rotate the shaft with your fingers. My suspicion would be that it will track just fine. If that's the case, it comes back to an issue with re-installation. BTW forget about sourcing Midori sensors - $100 each and only available in pairs.

See this thread: In the end I stuck with the first set linked in the final post. They are not an exact match but the forces are close enough that I have Ian's originals fitted on the Y-axis and these replacements on the X-axis and there is no noticeable transition in forces between axes. Anyway you could always get 4 springs to be on the safe side.

WarBRD with Cougar and F/A-18 grips and 75mm extension, centre mounted. All good here. Currently use the heavy springs which are a very precise but a little on the light side although strong enough to centre the stick correctly. Have tried the extra heavy WarBRD springs but they were too much of a step up in terms of stiffness.

That’s what I also hoped was the issue but have checked and the bolt is tight. I even used a marker pen to draw a line on the arm to see if I could see any movement but can’t detect any. I’m going to try some loctite to see if that makes a difference. Update: I went down the Loctite route and tightened the screw as much as I dared. 3 days on, the centre point drift seems to have been largely eliminated. I've also switched to manual calibration, which seems to help with any extreme readings causing the calibration centre to drift.

After some further investigation, I’ve established that the sensor is good and the issue appears to be mechanical. However, after stripping down the gimbal and insuring that all the bolts are secure, I’m at a loss to work out what is causing the drift. There is a little play in the main bearings (lateral twist of about 1mm) but I can’t induce any significant movement in the controller output by twisting the stick. Anyway I first noticed the play a number of years ago and up until a few days ago, everything was performing as it should. Now, over time I get seemingly random drift in the min / max for the Y-axis (up to 15%) with a corresponding drift in the centre.

Well with some experimentation, I answered my own question. Even after removing the new springs, the sensor is still behaving erratically. I've flashed the firmware (usually the go to solution for calibration issues), re-installed the drivers and tried it on another PC. However, I am now I'm having to conclude that it could be a bad sensor or maybe a damaged wire. If it is the later at least I have a chance of fixing it. The Midori Halls Effect sensors are a drop in replacement and are still available but at c. $100 + shipping each and only available in pairs, not a realistic replacement. one minute

I have recently had to replace the X-axis springs in my U2:NXT modded Cougar. Having done this the Y-axis calibration is playing up. It calibrates OK, then quickly loses the centre and range of travel drifts over time. If I move the Y-axis up and down starting with a min of 0% and max of 100%, the min will first move to say 6% and a max of 100%. Then then the max will move to 94% and min 0% and so on. I immediately though that the sensor had come loose and was rotating independently. However, having stripped the base down, I can't find anything that needs tightening or any damaged wires. The build quality of Ian Johnson's gimbal is amazing BTW - still looks like new after c. 15 years of heavy use, no wear or play anywhere. So I'm left scratching my head trying to work out why the Y-axis is playing up. Since the only thing that has changed is a new set of springs and these are adjacent to the Halls sensor. My only remaining theory is that the new springs are spring steel and Ian's originals were stainless steel. If the new spring was inadvertently magnetised could this be screwing with the sensor, even from 60mm away? I understand stainless steel is difficult to magnetise (maybe one of the reasons Ian chose it in the first place). I have some stainless steel replacement springs on a slow boat from China, so should be able to test the theory in a few weeks but would be interested in others thoughts.

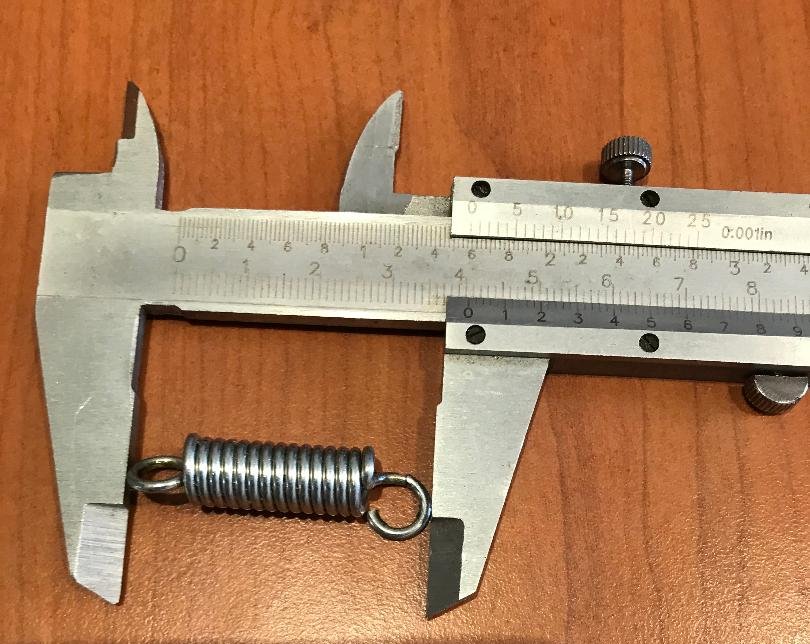

These are the replacement springs I currently have fitted on the X axis - maybe a little stronger than stock but only really noticable at the extremes of deflection (Spring steel, L:40 x W:8.5 x D:1.6) https://www.ebay.co.uk/itm/Expansion-Extension-Entended-Tension-springs-DIY-metal-Die-stand-mechanic-Motor/183492465366?ssPageName=STRK%3AMEBIDX%3AIT&var=690824744766&_trksid=p2057872.m2749.l2649 I have these on order (slow boat from China) and in theory they should be a better match for the originals (Stainless steel, L:40 x W:10 x D:1.5) https://www.ebay.co.uk/itm/Expansion-Tension-Spring-0-3-2mm-304-Stainless-Extension-Expanding-All-Sizes-DIY/283388107286?ssPageName=STRK%3AMEBIDX%3AIT&var=584365142309&_trksid=p2057872.m2749.l2649

Fair point - it had crossed my mind that it might be an option.

Well some of the springs I ordered arrived yesterday and the first set I fitted seem to be a reasonable match. The X axis is now a little heavier than before but really not that noticeable and it will do for now. I should have a set springs that are potentially a better match to Ian's originals in the next few weeks. BTW is there any trick to fitting the springs? I was lucky that the ones I used had hook ends but I would have really struggled had they been loops.

Ian didn't have any springs left but he gave me the name of the company that originally made them - they were custom parts. However, I suspect they are going to only do custom orders in numbers greater than the 2 springs I need. I will see if I can source something elsewhere of equivalent dimensions / resistance but if that fails, I will give Ian's supplier a try.

I've found some stainless steel springs of the correct dimensions and gauge steel but I suspect that this does not mean they will necessarily have similar properties. However, they are in China and current shipping is about 8 weeks! I'll see how I get on with Ian, at the very least hopefully he can give me the specs of the originals so I can try and source them.

Thanks - I did wonder if Ian was still active. I've sent him an email, fingers crossed.

After about 15 years of use one of the X-axis springs on my Cougar U2 NXT gimbal has failed. Measuring these up they appear to be stainless steel L:42mm, D:9mm with a gauge of 1.5mm. After a quick ebay search, it looks like finding an exact match might be tricky. Does anyone have good source for the correct type of springs or had to replace the U2 NXT springs in the past?

The firmware resides in the controller board in the stick base, so you are flashing that. However, this will also reset the calibration of the three throttle axes if you have he throttle connected to the stick. Obviously if the microstick is worn / dead a firmware flash won't help but it will sort out a lot of potential calibration issues.

My current set-up is a Cougar U2 NXT base and grip. This is centre mounted on a Monstertech mount with a 7.5cm extension. However, the width of the base limits how low I can drop the stick. I am looking at a Virpil base (either WarBRD or CM2) as a way to mount the stick a little lower. However, I have a few questions: 1) The tension of the U2 NXT gimbals is quite light but very smooth with no discernible centre – I find I can fly very precisely with this set-up. When initially installed the weight of the Cougar stick tipped it off centre but the tension of the U2 NXT springs can be easily adjusted to achieve a true hands-off centre. If I went with the WarBRD, would the base be able to cope with the weight of the stick and is the centre point mechanically adjustable? 2) Would a 7.5cm extension be too much for the WARBD (both spring tension and range of travel with the mount? 3) The other option is the CM2 base: The U2 NXT has a fairly light tension with a 7.5cm extension which I have grown accustomed to – would the beefier spring forces of the CM2 be too much? 4) And would the extra size (particularly depth) of the unit negate any benefit of dropping the base a few cm lower (the limit to how low I can go will be my chair)? Grateful for any insights WarBRD and CM2 users might have.

After I recently built a new rig with a clean install of Win 10, I had all sorts of problems with my Cougar. The throttle was only registering 40% to 100% through the full range of travel, the centre points for the ant range and elevation dials were way off (about 30%) and then the stick started to drift off centre even with my U2 NXT gimbals and sensors. Tried all sorts of things to sort it out (new pots, reinstall drivers multiple times, clearing Windows registry values, manual calibration etc). However, re-reading the various manuals (and there are a lot!), I came across the sentence that jogged my memory of a similar problem way back in the distant past: "Flashing the firmware is such a fundamental task that you must get comfortable with, as it will get you out of trouble should you run into problems with your Cougar 99 times out of 100!" I hadn't flashed the firmware for ages (probably 10 years). Anyway followed the instructions and hey presto, Cougar back to fully functionality. :doh: So a heads up to anyone having similar weird calibration problems with this Hotas, try flashing the firmware as it may be the problem and not hardware related. :thumbup:

I sent you an email as I am after both a Cougar throttle USB conversion kit as well as a Halls sensor kit for using the throttle connected to the stick (want to future proof should I decide to get a new stick base at some point). Could you confirm you got the mail pls.
