Saitek X55 DIY stick extension

[spaceraver]

Hello people.

For my next trick I'd like to show off my stick extention I made.

The whole thing took me roughly 2 hours to make, using only basic hand tools.

Note 1: You will loose the ability to use the stick twist, so unless you have pedals, don't do this mod.



Parts needed.

2x 27K4 resistors. (Match them with a multimeter if you have one.)

(No picture) :)

Heatshrink.

Bits of 20 awg wire to extend the second connector.

Hardware:

1x brass 1/2 to 3/4 inch adapter

1x brass 1/2 inch coupler

1x 1/2 inch brass pipe 60mm long (If you choose a longer pipe you have to extend your wires more)

1x 1/2 inch to 15mm soldering adapter

1x 15mm piece of hard copper tubing.



1x 3mm steel or brass bolt, pin or equivalent, as long as it's round.

Note 2: I had to use a copper tee to get the right length, but that was because I was lazy.



Tools needed:

Soldering iron.

Solder for wires.

Solder for tubing.

Blowtorch or gas torch. (MAPP is good)

Flux for copper tube.

Sandpaper or 3m pads for cleaning the copper and brass for soldering.

3mm drill and something to spin it. I used a cordless but if you have a pillar drill use it.

Calipers.

Multimeter



Time to take it apart:

I am referencing the guide on taking it apart found in the link below, because I am lazy and have already made the mod:

https://forums.frontier.co.uk/showthread.php?t=137522



First remove the 5 screws on the side of the stick, you don't need to remove the ones on the base.



Once, you've separated the two halves, disconnect the top connector, and you can put the half with the hand rest to one side.



Now remove the second connector, and remove the two screws holding the yaw unit in place.



You can loose the small pin that makes the retaining ring click, fortunately mine stayed in place.

So before you lift out the whole Yaw unit, make sure you have something to catch all parts.



Cut the 3 wires leading to the yaw pot as close to the pot as you can:



And you can actually pull the whole Yaw unit free, there is no friction. (Save or throw it out. Your choice)

Remove the bearing while you are at it. That part is set in place with friction.



The next part I don't have pictures of as it is already covered in heatshrink.

But we are making a simple voltage divider. Or a static pot if you will.



1.Cut some heatshrink for each of the 3 wires and put it on the wires, remember the center one will have the resistors in it too.



2. Remove 5mm of insulation from each of the 3 wires.



3. Take your 2x27K4 and twist them together like this, the ones pictured are not the ones I used, I just took a pair of random resistors for the picture:



4. Tin your resistors and wires.



5. Solder the twisted side of the resistors to the blue wire, with a red and a black wire at either end of the resistor pack.



6. Slide your heatshrink over and heat, add a 4th piece to cover the whole pack and avoid short-circuits.



This is what mine looks like when done.



There will be some more soldering after this. But for now just turn off the soldering iron.





Now on to the brass extension itself.

When done it will look like this:



1. Take the brass coupler and thread that tightly onto the other end of the brass pipe, your assembly should look like this now:



2. Time to solder the soldering connector to a piece of copper tube.

Cut a piece of tube roughly 55mm long, deburr, clean the end and add flux to both the tube and the solder fitting. Solder and let cool.

My scrap pile of tubing was too short so I added a tee in the other end because that was what I had laying around..



3. Thread the soldering connector into the coupler and turn it so the end of the threaded part aligns with the coupler. We actually need that slop for locking it.



4.Take your calipers, and with the two halves of the stick assembled measure from the bottom lip to the steel crossbar and add 1.5mm to that.

Mine was 13mm to the bottom so that made my crossbar 14.5mm to center.



5.Take your brass and copper assembly. Measure the distance from the coupler end and mark your copper tube.



6. Unscrew, drill with a 3mm drill, deburr the hole on both the in and outside.



7. Rethread it back on almost to the bottom of the coupler and set the assembly in the left side of the stick half, close the two halves of the stick together and tighten the coupler. But be gentle here, it,s still only plastic.



8. Take the 1/2 inch to 3/4 inch adapter and thread tightly by hand upside down onto the brass pipe.

Notice the small lip made by the adapter



9. Thread the adapter and pipe into the coupler.



10. Mark your adapter and pipe. Use the same distance we used for the copper to coupler end. Take note that the brass pipe and adapter must be drilled the same way as the top adapter piece, that means perpendicular to the trigger, Note where my brass pin is.



11. Unscrew the pipe from the coupler



12. Drill through both brass pieces with a 3mm drill.



13. Disassemble the stick and take out the copper and brass bits. It should lift out after rotating the coupler a bit CCW on the solder adapter



14. Snake your wires up through the brass and copper assembly



15. Assemble the bottom piece and add the 3mm bolt or brass pin.

Note that the fat part of the locking pin on the original adapter points forward when assembling.



16. Take out the Pinkie switch. Slowly and carefully bend the Pinkie switch wires so they don't touch the copper tube.



17. Remember the Second connector?



We need to splice more wire into that black cable.

Cut the connector off with enough wire to spare to extend your wires. 15mm from the connector should be enough. I made mine 30mm longer. And I spliced the wires after extending the stick with brass.



18. Reassemble the stick after you made the extension, tighten the coupler against the bottom of the stick

Again: Note that the fat part of the locking pin on the original adapter points forward when assembling. Screw the whole thing onto the base with the spring of your choice. I'm using the yellow, one up from red which was the softest, but that gave me a centering issue, brass weighs a bit.

As an added bonus the stick can be now turned to the left, because it lacks the center spring found in the yaw unit and due to friction it stays there. And it feels nice as a center mounted stick.

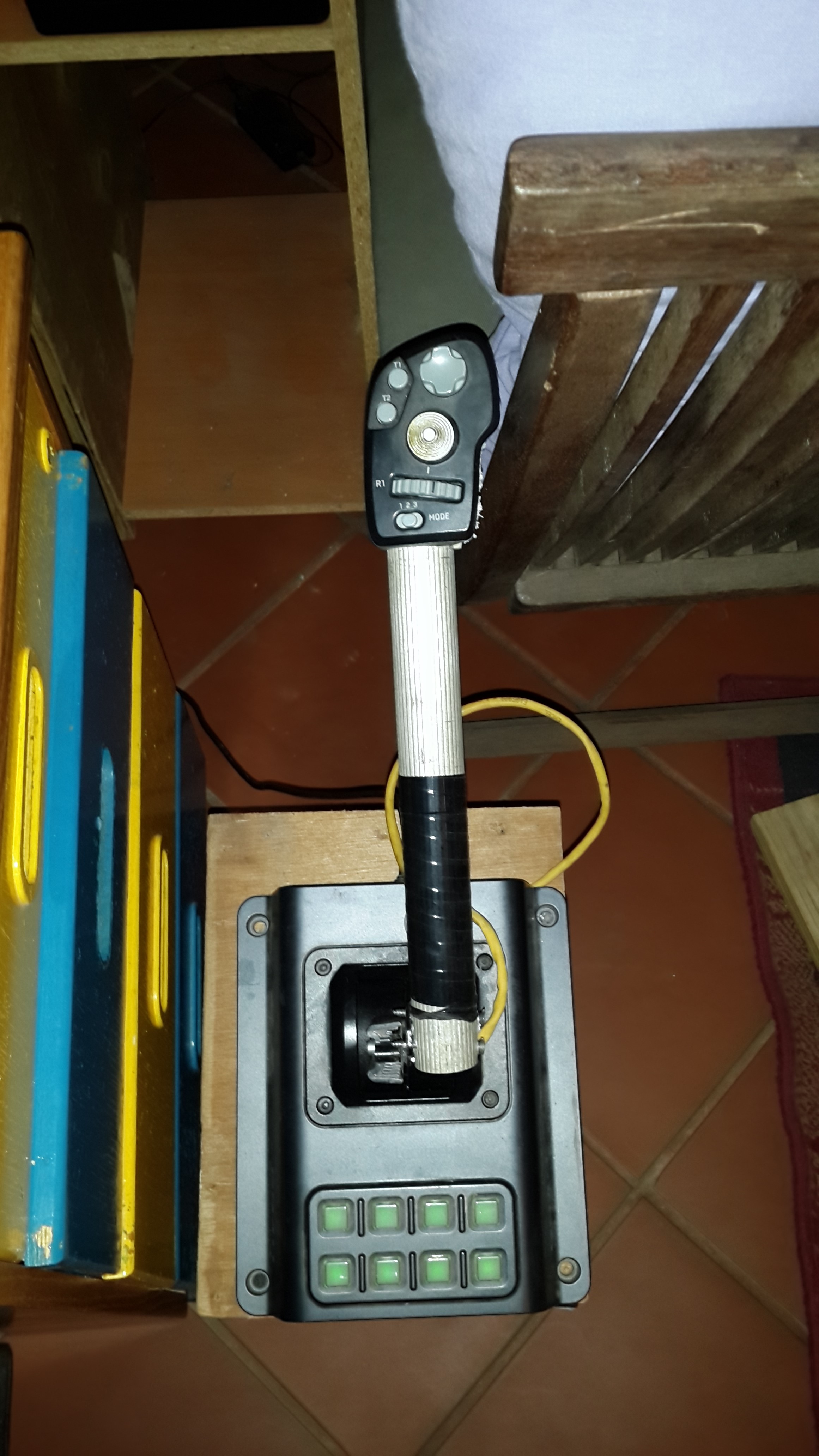

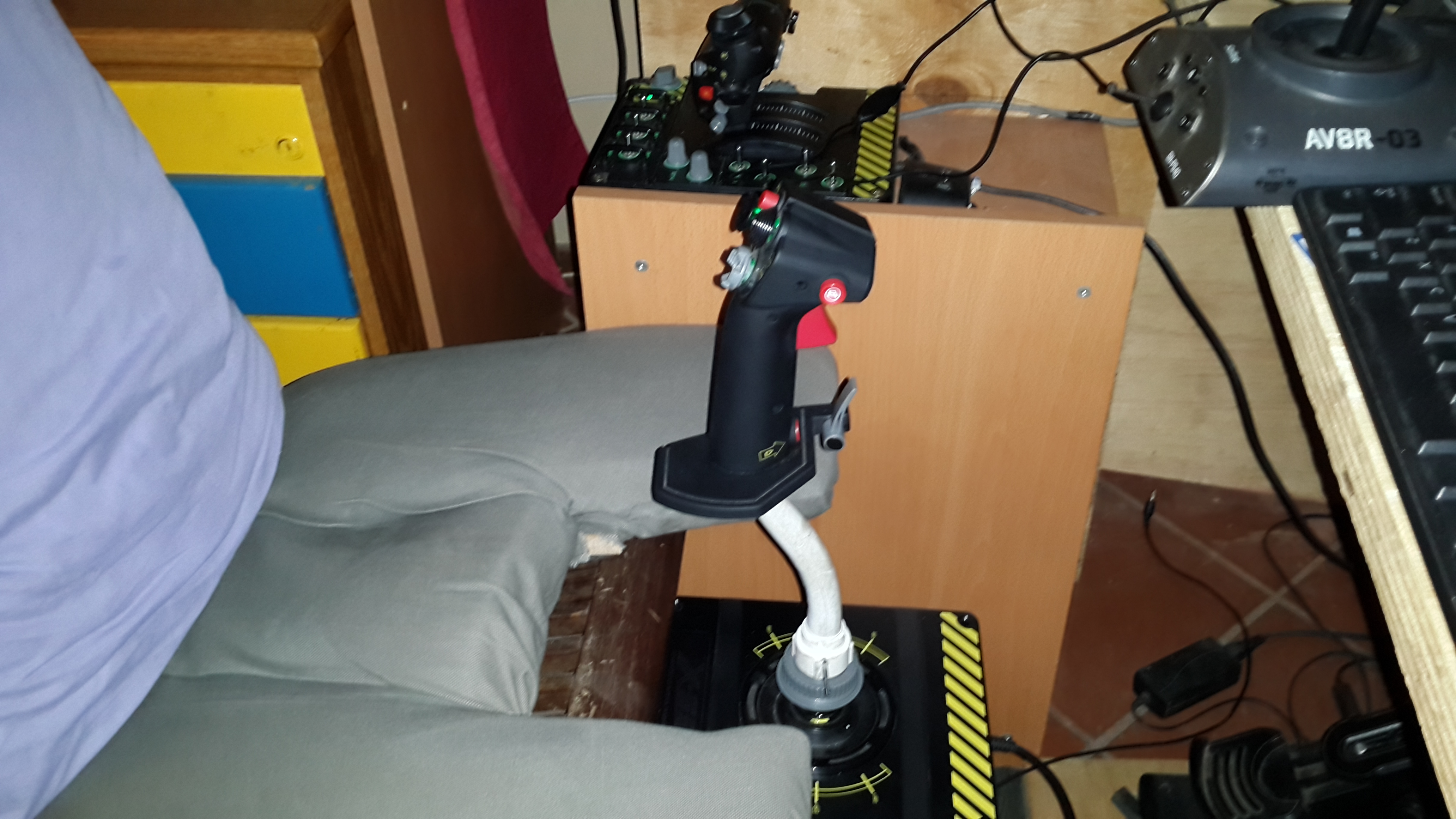

And there you have it.
