Left (or any) wing breaking off when pulling high Gs (G-limiter off)

[D4n]

When external fuel tank is empty, instead of external tank ripping off, a wing of the Mirage breaks (unrealistic afaik, I think the Dassault engineers made the fuel tank to automatically break off at certain G force)

I was pulling between 9 and 10 G at the moment the wing broke off (fuel tank didn't break at 7 g like it should imo).

Edited January 11, 2018 by DanielNL

[D4n]

edited.

[MegOhm_SD]

If your going to be pulling Gs like that, why not jettison the empty tanks you don't need first.

You might not be far from losing a wing anyway with or without with where your going.

Edited January 11, 2018 by MegOhm_SD

[D4n]

Couldn't, was in an engagement by the time the tank was empty :P

[Dagger71]

Couldn't, was in an engagement by the time the tank was empty :P





If the tank is empty I don't think it rips off at 7gs.

[D4n]

aha... still wing of Mirage shouldn't break at 10 g should it?

[Mitthrawnuruodo]

The wing certainly shouldn't break off at 10 g.



That would require a rather low factor of safety.

[GGTharos]

That depends heavily on gross weight and specific flight envelope.

[jojo]

The airframe is pretty stiff, according to this page +13.5G/ -9G

http://mecaniqueescadronscambresis.wifeo.com/notre-machine-le-mirage-2000-c.php

But if you go there, I don't think the plane would fly again :music_whistling: (elastic/ plastic limit)



These are former Mirage 2000 ground crew, they would now this kind of details.



RPL 522 tank (fuselage) if empty is cleared for 9G.



In the title, I read "G limiter off"



What switch did you use to do that ?

[D4n]

FBW G-limiter off...

[jojo]

FBW G-limiter off...



There isn't any switch called like this.

- VRILLE/ NORM (don't touch unless in spin)

- GAIN CDVE SEC (don't touch unless FBW failure)

- Autopilot disconnect/ exceed elastic limit.



Then we don't have any track, we don't know what speed you were flying, how much AoA you pulled or if really just pulled 10G or more.

[myHelljumper]

Are you talking about wing tanks or fuselage tanks ?



There is not G-limiter off switch in the mirage...

[D4n]

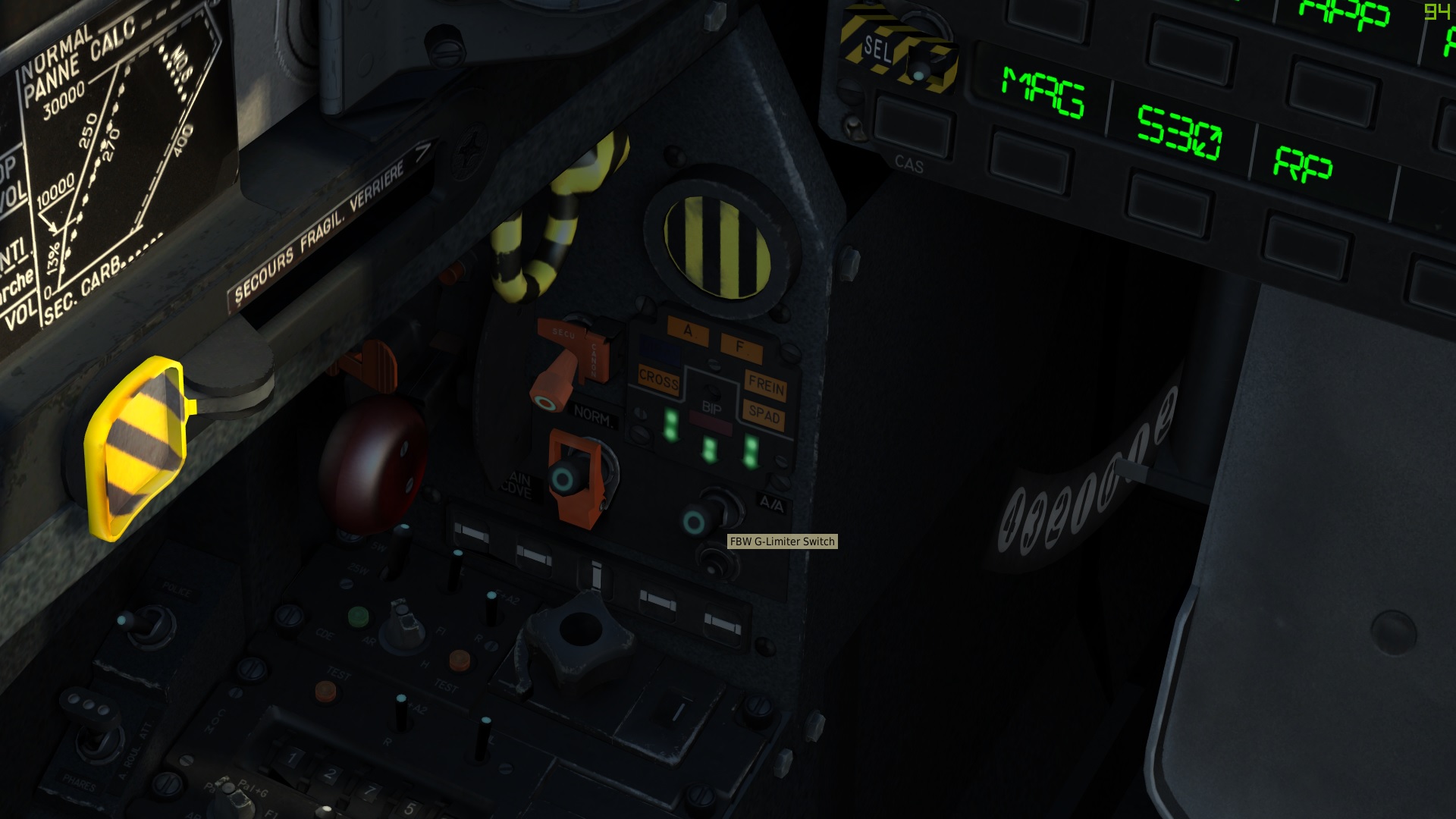

Ehhhh... So u telling me this translation is wrong? o_O (See yellow name tag in center of screen)





[D4n]

Centerline fuel tank...

[myHelljumper]

This switch change the FBW mode between charge and AA mode, it does not deactivate the G-limitation.



You are still limited to 9G within the elastic limit when in AA mode and your wings won't break at 9G (rated for 13.5G according to jojo).



We need a track or a tacview to see the condition where your wings broke off. I never broke a wing in a dogfight, even using the mechanical limit.

Edited January 11, 2018 by myHelljumper

[D4n]

The track files don't play correctly for me for some reason... All I see is the map, without any units...





It is definitely in one of these 3 tracks, not sure if anyone can get them to work in tacview or so...





(click blue dowload button in top right, 100 MB size sadly. I suggest starting watching the latest track file first) https://app.box.com/s/jsfi5txx0qmyn9q10kbbr1777pryydo2

Edited January 11, 2018 by DanielNL

[Robin_Hood]

Yes, this switch is not a limiter on-off switch, but switches between two different limiter modes (not only G I think, roll rate also ?).

However, I did experience wing breaking off with a clean aircraft (barring 2xR-550) using the elastic limit override while doing performance testing. At certain speeds, pulling the maximum amount of G "allowed" by overriding the limiter will break the wings.

I had the issue appear at 10 000 ft, 21 000 lbs, 2xR-550, around 450-500 knots, pulling 9.5 - 9.7 Gs

Edited January 11, 2018 by Robin_Hood

[D4n]

Edited, it's in the 3 tracks now, I checked my YouTube video of it, that other file was from before that incident.

[D4n]

Oh now I notice, there was micro freeze there just before, maybe server lag caused the stress values to suddenly spike or so?

[D4n]

And for some reason the bank angle instrument was still locked I notice now xD

[myHelljumper]

Oh now I notice, there was micro freeze there just before, maybe server lag caused the stress values to suddenly spike or so?



Most likely.

The new FM has problems with wing breaking off (happened to me due to AP oscillation) but I think cptSmiley is aware.

[jojo]

Yes, this switch is not a limiter on-off switch, but switches between two different limiter modes (not only G I think, roll rate also ?).

However, I did experience wing breaking off with a clean aircraft (barring 2xR-550) using the elastic limit override while doing performance testing. At certain speeds, pulling the maximum amount of G "allowed" by overriding the limiter will break the wings.

I had the issue appear at 10 000 ft, 21 000 lbs, 2xR-550, around 450-500 knots, pulling 9.5 - 9.7 Gs



Thanks.



Yep:

AA : 9G - 270 degrees/s

CHARGES: 6G - 150 degrees/s

[D4n]

And I guess that "cptSmiley" is a Razbam dev who's currently only spending time on the Harrier? -.-

[Robin_Hood]

CptSmiley is the maker of the Mirage 2000C flight model, and has not stopped working on it. We had several updates recently. Only avionics updates are on hold because of the Harrier.

[myHelljumper]

And I guess that "cptSmiley" is a Razbam dev who's currently only spending time on the Harrier? -.-



Do you understand that updating a FM takes times (weeks if not month) ? Are you aware that the mirage have had a BIG FM update last month (by ctpSmiley) ?

Edited January 12, 2018 by myHelljumper
