Here one solution to most warthog 3-way switch, fingerlift and TDC axis problems

[VirusAM]

For who uses warthog+mfd...i have done a version of the 128 buttons script for it...

Here is the script...the tmh and the lua for dcs world



it is not finished yet...but feel free to use and modify

target_128.zip

[majapahit]

Autopilot

CHAIN A/P, ATTH // unreliable (for me), some times does, a lot of times does not



has to be button in target CHAIN



DOWN+(A/P binding),

delay (111ms),

UP+(A/P binding),

delay (111ms),

DOWN+(ATTH binding),

delay (111ms),

UP+(ATTH binding)



This does work and puts the F18 in ATTH mode when simply switching up to PATH





   // TMWH 3-way AP - "A/P","ATTH" - (L_CTL+'1',L_ALT+'1' key bindings)
MapKey(&Throttle,APPAT,CHAIN(
DOWN+L_CTL+'1', // A/P
D(111),
UP+L_CTL+'1',
D(111),
DOWN+L_ALT+'1', // ATTH
D(111),
UP+L_ALT+'1'
));

[crowebar]

Thanks for sharing this Grodin, works great!

[Snakedoc]

Thank you so much for sharing your great work!! :D

[e33et]

Apuon/off Switch



Hello, could someone help me to fix the "MapKey(&Throttle, APUON, DX39); and MapKey(&Throttle, APUOFF, DX60);" button, because when i preparing for shutdown proceuer and is going to shut down the power.





I need to move the switch 2 times or either use rshift-l on keyboard, and

That is very annoying other wise the script works flawless!!:D :pilotfly:







Kind Regards

e33et

[AstonMartinDBS]

Many thanks for sharing this script, Grodin! It runs great and makes the bindings for all of the throttle switches in DCS so much easier. I'm so happy that I found this thread. :thumbup:



Add "Exclude(&TFRPRudder);" so it looks something like this:



//program startup

int main()

{



// Exclude Devices not present

Exclude(&TFRPRudder);



if(Init(&EventHandle)) return 1; // declare the event handler, return on error







//program startup

int main()

{

// Exclude Devices not present



Exclude(&Joystick);



if(Init(&EventHandle)) return 1; // declare the event handler, return on error



//add initialization code here

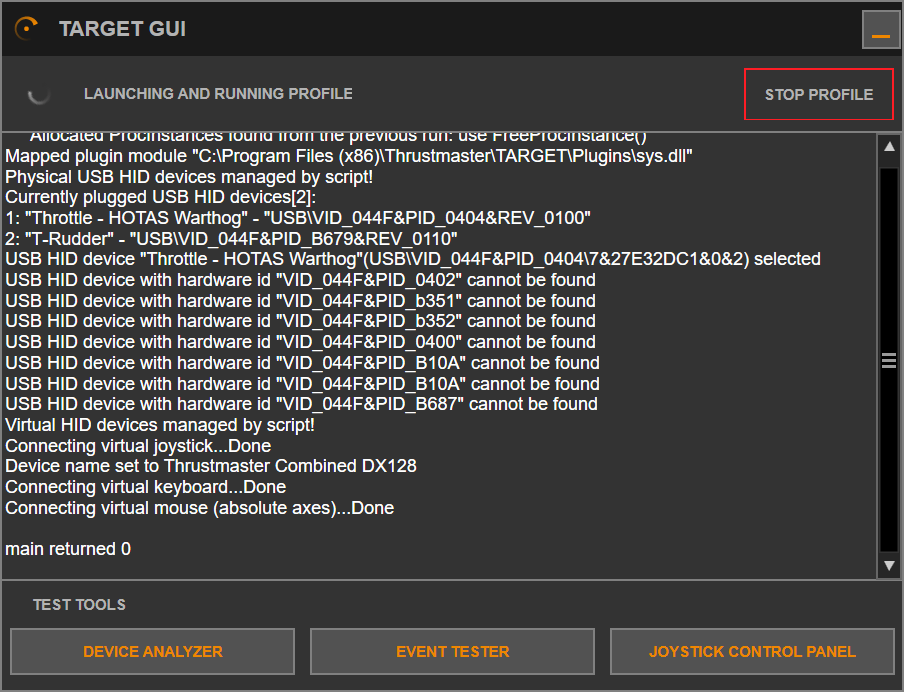

Had the same problem with my TFRP Rudder Pedals and managed to work again with your hint. But how can I eliminate the "USB HID device with hardware id XY cannot be found" messages in the TARGET script window?

Edited April 22, 2020 by AstonMartinDBS

[AstonMartinDBS]

But how can I eliminate the "USB HID device with hardware id XY cannot be found" messages in the TARGET script window?

Ok, I found the answer myself:

    //reject (non connected) devices from virtual controller
   Configure(&HCougar, MODE_EXCLUDED);
   Configure(&Joystick, MODE_EXCLUDED);
   Configure(&T16000, MODE_EXCLUDED);
   Configure(&T16000L, MODE_EXCLUDED);
   Configure(&LMFD, MODE_EXCLUDED);
   Configure(&RMFD, MODE_EXCLUDED);
   Configure(&TWCSThrottle, MODE_EXCLUDED);
