In-Game Scratchpad Mod Available - Works Great In VR!

[Seance12]

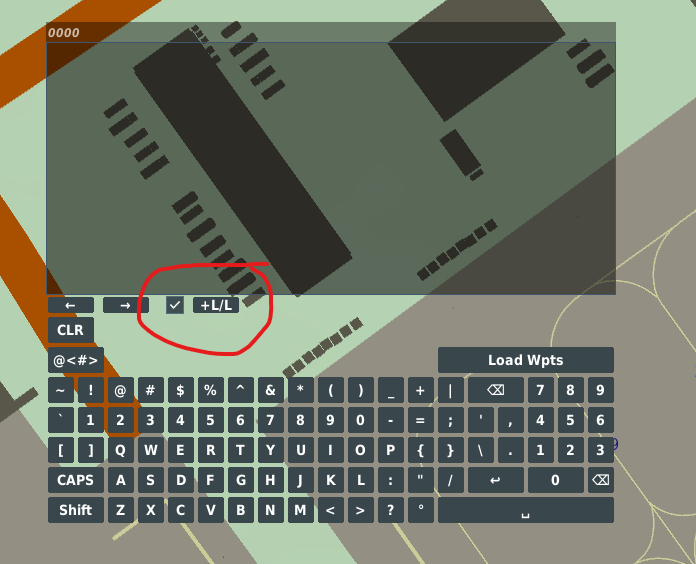

@Draken35Had this working for a long while, but something happened. I no longer have the square for the white marking circle, or the L/L button to enter coordinates anymore. I deleted and reinstalled from Draken35's post on page 33 but cannot get it to come up.

Edited February 23 by Seance12

[Draken35]

49 minutes ago, Seance12 said:

@Draken35Had this working for a long while, but something happened. I no longer have the square for the white marking circle, or the L/L button to enter coordinates anymore. I deleted and reinstalled from Draken35's post on page 33 but cannot get it to come up.

Try while manning a plane within a mission... That looks like your were in the main screen.

[Seance12]

@Draken35 Yup, Issue between the chair and keyboard.

[Draken35]

Support for the Ka-50's PVI-800 added. I posted it in the User files and will update this post with the link once the file is approved, extension attached meanwhile.

from the read me:

-- Ka-50 Blackshark
PVI-800 ONLY
WSS applies to Nav-Target points ONLY
There is no validation on the quantity / number of points per type.
The load sequence is reset to 1 for Nav-Target points every time the Load Wpnt button is pressed.

WDes:
@|#| ...  will load/replace  the next Nav Target point in the load sequence
@|T| ...  will load/replace  the next Nav Target point in the load sequence
@|N| ...  will load/replace  the next Nav point in the load sequence
@|A| ...  will load/replace  the next Airfield point in the load sequence
@|F| ...  will load/replace  the next Fix point in the load sequence
@|#| ...  WHEN # IS A NUMBER from 1 to 9  will load/replace Nav Target point number (#)
@|T#| ... WHEN # IS A NUMBER from 1 to 9   will load/replace Nav Target point number (#)
@|N#| ... WHEN # IS A NUMBER from 1 to 9   will load/replace Nav point  number (#)
@|A#| ... WHEN # IS A NUMBER from 1 to 9   will load/replace Airfield point  number (#)
@|F#| ... WHEN # IS A NUMBER from 1 to 9   will load/replace Fix point  number (#)



Download here:
https://www.digitalcombatsimulator.com/en/files/3344152/



Edited April 8 by Draken35

[greyeagle787]

Hello Again! Just bought the Chinook and I can't get the waypoints to load at all. Can anyone help with this? Thanks!

[Draken35]

5 hours ago, greyeagle787 said:

Hello Again! Just bought the Chinook and I can't get the waypoints to load at all. Can anyone help with this? Thanks!

Seems that the CDU key codes were changed again... So, it is broken for the time being



Edited April 27 by Draken35

[Mordants]

7 hours ago, Draken35 said:

Seems that the CDU key codes were changed again... So, it is broken for the time being



Not sure you're right there. I use a program called The Way and it works fine.

[Draken35]

4 hours ago, Mordants said:

Not sure you're right there. I use a program called The Way and it works fine.

I think you assumed that I did not check my code before posting and that I meant the codes were changed recently (as in the last DCS update). Unfortunately, you were wrong in both accounts. Also, you made the mistake of comparing two different pieces of software (even if they try to accomplish the same thing) made by different developers, but thanks for trying to help.

@greyeagle787 I updated the key codes and uploaded it to the user files . I'm not currently flying the hook so, please, give it a good test and let me know.

[greyeagle787]

1 hour ago, Draken35 said:

@greyeagle787 I updated the key codes and uploaded it to the user files . I'm not currently flying the hook so, please, give it a good test and let me know.

Will Do and Many Thanks!

[greyeagle787]

For the Hook do I have to do anything with the WSS @|#| or just hit "load waypoints" when on the CDU flight plan page?

[Draken35]

5 minutes ago, greyeagle787 said:

For the Hook do I have to do anything with the WSS @|#| or just hit "load waypoints" when on the CDU flight plan page?

Hit load.. I haven't added any other functionality to it and probably won't until the module is more developed (and I get the desire to fly it  )



[greyeagle787]

1 hour ago, Draken35 said:

Hit load.. I haven't added any other functionality to it and probably won't until the module is more developed (and I get the desire to fly it  )



[greyeagle787]

Just installed the update and CH-47 works fine now. Only issue is the new waypoints install in front of any existing WPs. Thanks again for this great MOD. Appreciate your work here and elsewhere in DCS.

[Draken35]

Update 250607A pushed to the user files
https://www.digitalcombatsimulator.com/en/files/3344152/

- AJS-37 Support added (Yes, I'm aware and know how to use the DTC functionality)
- Coordinate load speed improved for the Hornet



-- AJS-37 Viggen
Only B & M waypoints can be added. Bearing and range for offset points can be manually added.
Waypoint Sequence Start can be used to specify a startup waypoint and route. Default is 1
Examples:
Set WSS to point 3 :  @<3>
@|#| ...  will load/replace  the next B point in the load sequence
@|B| ...  will load/replace  the next B point in the load sequence
@|M| ...  will load/replace  the next M point in the load sequence
@|B3| ...  will load/replace B3 point
@|#|N 41°36'41"|E 44°33'51"||| -> will load the coordinates in the next waypoint in the sequence
@|#|N 41°36'41"|E 44°33'51"|180|10| -> will load the coordinates in the next waypoint in the sequence with an offset of 180° at 10km

[Recluse]

@Draken35  Sufficient to just replace  02-QWERTY_KB and Load Coordinates.lua for the update or are there other components as well that need to be replaced?

[Draken35]

1 hour ago, Recluse said:

@Draken35  Sufficient to just replace  02-QWERTY_KB and Load Coordinates.lua for the update or are there other components as well that need to be replaced?

Hook script is needed too…

[Recluse]

13 hours ago, Draken35 said:

Hook script is needed too…

The Date Modified on the Hook script was from back in April, while the Qwerty/Coordinates were from June 7, 2025 so I didn't think it was updated:

But I found I was using an older one anyway, so updated!

null

Edited 21 hours ago by Recluse

[Draken35]

The prior version was posted on 4/27/25... I touched the Hook script after for the Viggen
