Mossie Radio Equipment

[Krupi]

Just seeking some clarification, the current screenshots of the Mossie cockpit shows the Radio equipment, however I am confused as to what version we will be receiving.

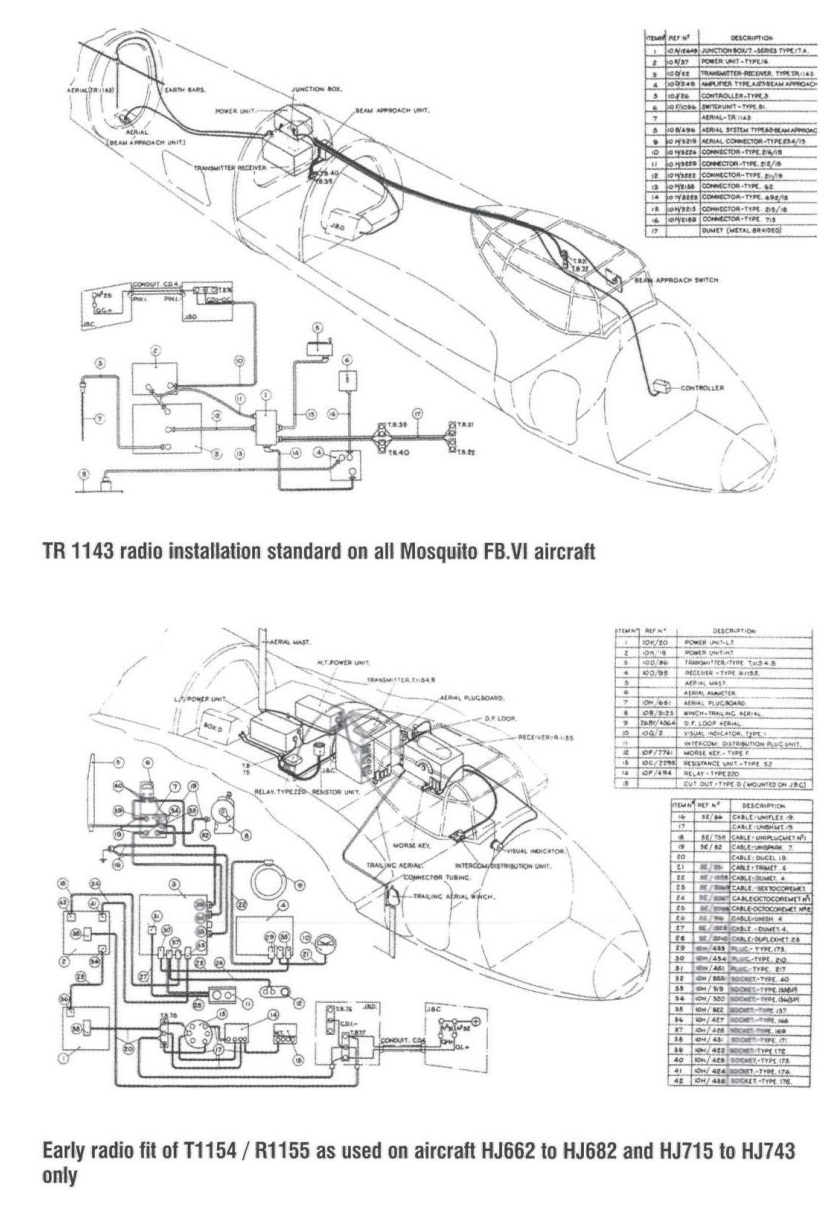

A book I have points to the arrangement we currently have, which shows the R1155 Receiver and the T1154 which were only on the very early FB. VI.





From the book I have...

As you can see this is what we have modeled, with a T1154 and R1155.

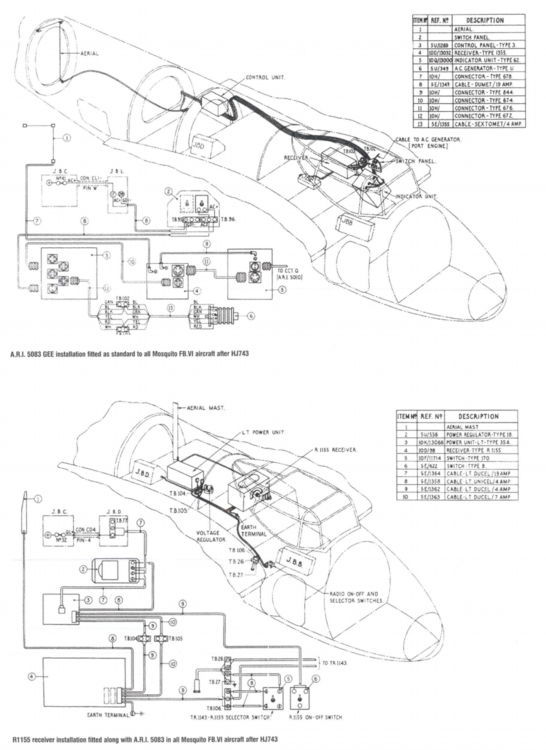

This is what was on the vast majority of FB. VI according to this book at least.





Edited May 19, 2021 by Krupi

[dmwierz]

Which book is that?

[Krupi]

This one...

https://www.abebooks.co.uk/9781906959081/Mosquito-FB.VI-Airframe-Systems-RAF-1906959080/plp


I went to an event hosted by the People Mosquito a few weeks back, wish I had asked the question then but I completely forgot.



It was a fascinating presentation, I learnt loads that I had not heard of before.

Edited May 19, 2021 by Krupi

[dmwierz]

Ah, saw that on the US Amazon site. Pretty expensive book; at least $60. Worth it, in your opinion?

[Krupi]

Would be nice to get some clarification on this as the news article specifically mentions T1154 and R155 which were only on earlier versions of the aircraft?


"DCS: Mosquito FB Mk.VI is progressing well. The cockpit is near final; we are adding details to instrumentation colour, reflections, and colour balance. Work on the radio transmitter T1154.B and receiver R1155 devices, as well as radio communications for VoiceChat, is also approaching completion. The external model is almost finished, and texturing is near completion. To keep you informed on the development process, we have taken the opportunity to prepare some In Development screenshots for you."





[Krupi]

If we are getting an early FB VI then this leads to an even more important question, what engines will this Mossie use the Mk 21, 23 as used on the early examples or Mk 25 as used on the vast majority.

[Krupi]

Big thank you to the eagle eyed Tricky on the ED Discord who spotted the following...





Merlin 25s confirmed



Edited July 10, 2021 by Krupi

[TWC_SLAG]

As long as we are talking about avionics, let us not forget about the air intercept radar.

[DD_Fenrir]

4 hours ago, TWC_SLAG said:

As long as we are talking about avionics, let us not forget about the air intercept radar.



Not applicable to this Mk.

Some were modified to carry an ASV radar in a small thimble housing that replaced the .303s but if it's AI radar then the dedicated NF marks, the II, XII or XIII are what you would need.

[TWC_SLAG]

15 hours ago, DD_Fenrir said:



Not applicable to this Mk.

Some were modified to carry an ASV radar in a small thimble housing that replaced the .303s but if it's AI radar then the dedicated NF marks, the II, XII or XIII are what you would need.


If those marks are what we need, then let’s get one of them.  DCS would be, I think, the only sim to have nightfighters since il2 1946.  They could then make a nightfighter version of the JU-88, also.  Add a few AI versions of British and German bombers, too.
