Is it possible to declutter the HSD/HAD?

Go to solution Solved by Frederf,

Recommended Posts

Sometimes I have like 40-50 wpt incl lines loaded into the HSD. Adding SAM rings, datalink and rangerings the HSD/HAD can sometimes become very cluttering. So I tried to de-select some of the "LINE"-information, however it doesn't seem to work, or am I doing something wrong? How can I deselect information displayed. (Maybe the functionality is not implemented yet?).

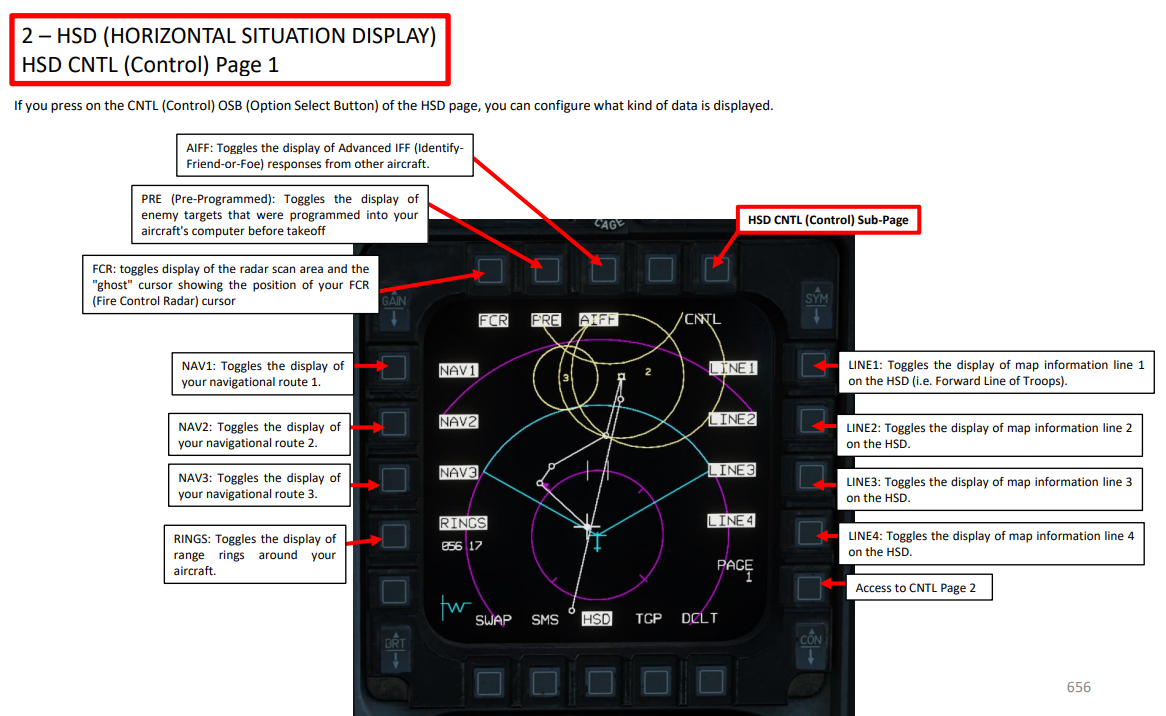

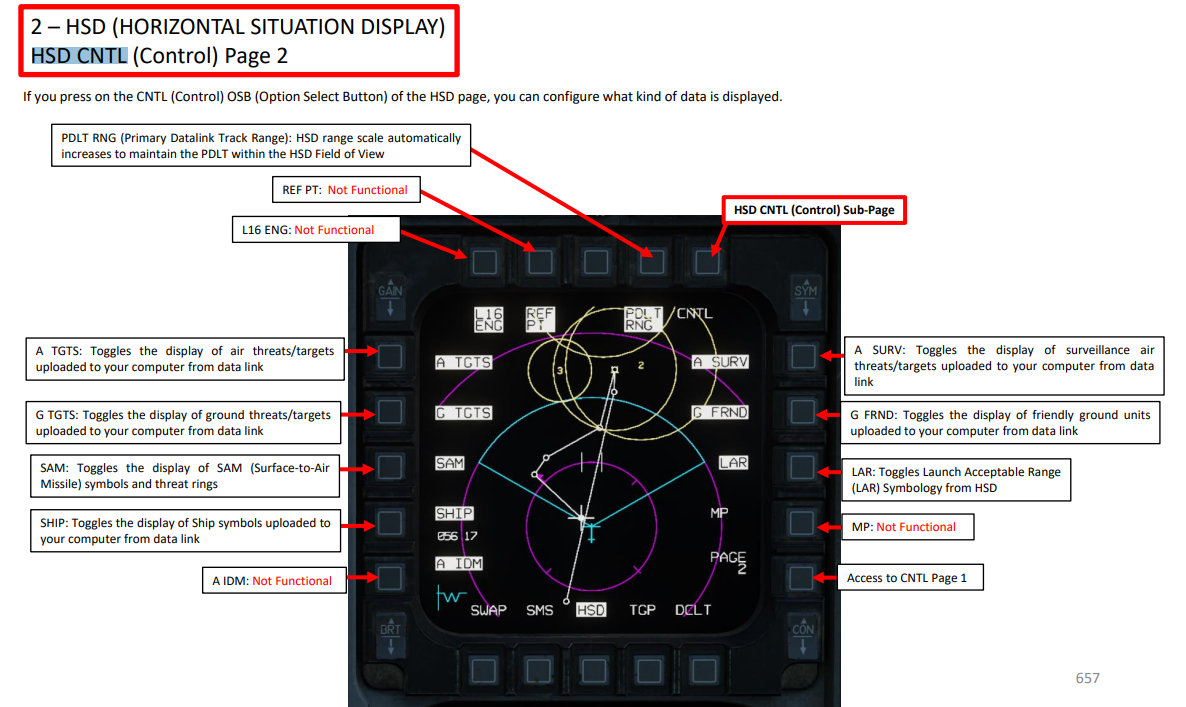

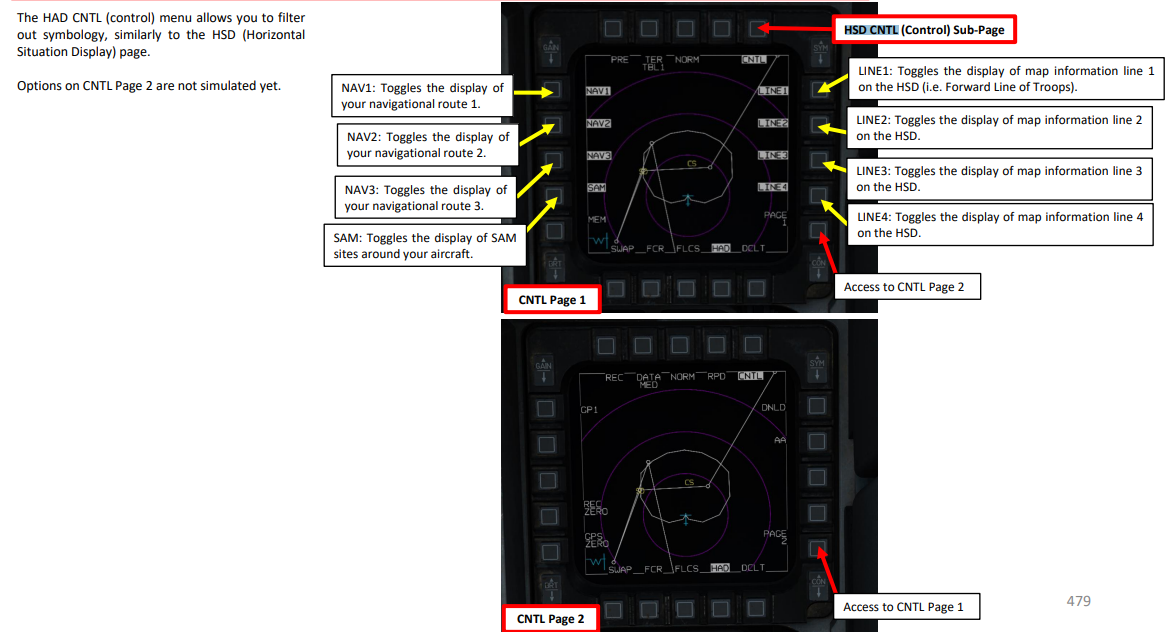

(Snapshot is from chucks guide)



I've tried to figure it out from chucks guide, however I had no luck.

Link to comment
Share on other sites

I think Line 1-4 are not implemented yet, they would be seperate dashed lines indicating something (like for example marking the area of operation for a tanker)


But if you press CNTL and then deselect something (that is implemented, like rings for example) then that will disappear from the HSD.


Link to comment
Share on other sites

  • Solution

There can be up to 3 navigational routes, flight plans if you will. DCS only populates NAV1 from the mission editor. Lines1-4 have traditionally been up to 5 waypoint-defined connected line segments each which could outline boxes or other shapes on the HSD.

We don't haves NAV2, NAV3, or any LINE yet so there's nothing to show/hide. NAV1 should show/hide the flight plan route though.

Edited by Frederf
  • Like 1
  • Thanks 1
Link to comment
Share on other sites

Looking forward to Lines being implemented.
I like putting in the FLOT and “kill boxes” for better SA.

Even better will be when we get the DTC and mission planning 🎉


i7 10700K OC 5.1GHZ / 500GB SSD & 1TB M:2 & 4TB HDD / MSI Gaming MB / GTX 1080 / 32GB RAM / Win 10 / TrackIR 4 Pro / CH Pedals / TM Warthog
