Hello, Before i say it's a bug, I need to ask first if it's intended to be this way or not.

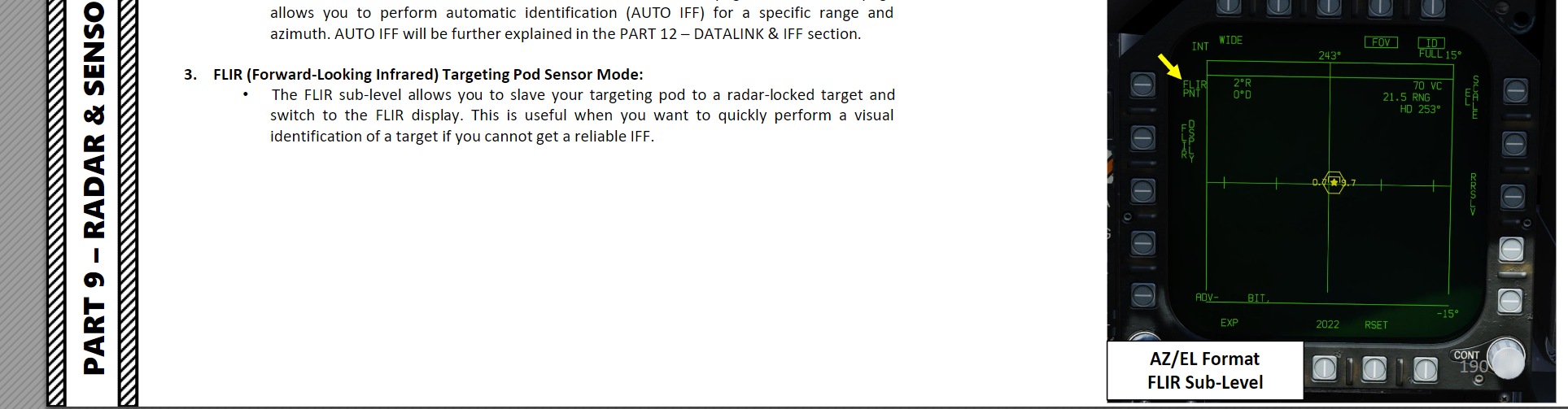

In the AZ/EL page, while having the flir and using the flir button as the pictures shows. Is it the case that the TGP will look at where you depress?


Because at the moment, when choosing the Flir and then useTDC depress on the TGT in the AZ/EL page, the radar will lock that target instead of just slaving of the POD.

The pod will only look when you depress on an empty space in the AZ/EL page and not when you depress on a Datalink contact, the pod till slave though if you have lock the target.


Is it a bug or not a bug?



AZEL.trk

Edited by Lekaa
  • ED Team
Posted

Hi,

from our manual which can be found in DCS World\Mods\aircraft\FA-18C\Doc folder, but I will check. Thanks

Quote



FLIR Sensor Mode
When the FLIR is selected as the active sensor, the AZ/EL format changes slightly, and some pushbuttons have different functions.
Centerpoint
elevation
Centerpoint
azimuth
Display FLIR format
FLIR FOV cycle
FLIR LOS
Slave FLIR to L&S
Boresight FLIR


EAGLE DYNAMICS Page 189
Figure 94. AZ/EL Format with FLIR
FLIR FOV cycle: Cycles between available FLIR fields of view: WFOV (wide), MED (medium), and NFOV
(narrow).
FLIR LOS: Indicates the FLIR line-of-sight. Note that the circle does not display the FOV area, as this would be
excessively small. The circle will enclose a HAFU symbol when the FLIR is slaved to a trackfile. This circle is
dimmed when RDR is the selected sensor.
Display FLIR format: Pressing this pushbutton displays the FLIR format.
Slave FLIR to L&S: Boxing this option will keep the FLIR LOS slaved to the current L&S.
Boresight FLIR: Pressing this button drives the FLIR LOS to boresight. Because the AZ/EL view is horizon stabilized, but the boresight LOS is not, changes in aircraft pitch will cause the LOS circle to drift up and down.
HOTAS Controls
The AZ/EL page can be quickly brought up using the HOTAS when it is not already displayed. When in A/A master
mode, bumping the Sensor Control Switch left will put the AZ/EL page on the left DDI, if the left DDI cannot take
TDC priority (e.g., the Stores format).
Pressing the TDC designate when the cursor is over an MSI trackfile designates that target as the current L&S.
If an L&S is already designated, the trackfile under the cursor is designated the DT2. If the target under the
cursor is the DT2, pressing TDC designate will make it the L&S, and the previous L&S will be erased. (It will not
be downgraded to DT2.)
When the sensor mode is set to FLIR, releasing TDC designate when the cursors are over a trackfile commands
the FLIR LOS to that trackfile. The FLIR will continuously track that target, even when the L&S changes. Boxing
the L+S pushbutton (see FLIR Sensor Mode, above) will return FLIR LOS to the L&S.
Pressing and holding TDC designate when the cursor is not over an MSI trackfile, but in the display area, changes
the cursor to a pointing cross. See Changing Radar Scan Centerpoint, below.
Bumping the Sensor Control Switch in the direction of the DDI showing the AZ/EL format commands the radar
to attempt single-target track (STT) on the MSI trackfile under the cursor. If the radar is already in STT mode,
bumping the Sensor Control Switch in this manner commands a break-lock.





  • Like 1


Forum rules - DCS Crashing? Try this first - Cleanup and Repair - Discord BIGNEWY#8703 - Youtube - Patch Status

Windows 11, NVIDIA MSI RTX 3090, Intel® i9-10900K 3.70GHz, 5.30GHz Turbo, Corsair Hydro Series H150i Pro, 64GB DDR @3200, ASUS ROG Strix Z490-F Gaming, PIMAX Crystal

Posted

Yes, TDC depress will designate any MSI trackfile. To slave the FLIR you should TDC depress over a blank space, slew over the track, then release.

Sent from my moto g stylus 5G (2022) using Tapatalk

  • Thanks 1
Posted (edited)
2 hours ago, Hulkbust44 said:

Yes, TDC depress will designate any MSI trackfile. To slave the FLIR you should TDC depress over a blank space, slew over the track, then release.

Sent from my moto g stylus 5G (2022) using Tapatalk


so if you only have Datalink contact, you can't slave your pod to him since nothing happens when you tdc depress on him regarding the pod, right?

I need to depress on empty space then slew it to him.



Edited by Lekaa
Posted
so if you only have Datalink contact, you can't slave your pod to him since nothing happens when you tdc depress on him regarding the pod, right?

No, you hold TDC depress, slew over the track, then release. Slave on the right should be boxed. The FLIR hexagon is bugged and will not follow a track without radar contribution...

Sent from my moto g stylus 5G (2022) using Tapatalk

  • Like 1
  • Thanks 1
Posted
1 hour ago, Hulkbust44 said:

No, you hold TDC depress, slew over the track, then release. Slave on the right should be boxed. The FLIR hexagon is bugged and will not follow a track without radar contribution...

Sent from my moto g stylus 5G (2022) using Tapatalk


Thanks, yeah, that works
