DIY Hall effect sensors

[Shein]

I have a set of rudder pedals I’m reworking. I have potentiometers hooked up to an arduino board but apparently hall effect sensors are better. I can find tons of tutorials on how to use them to detect the presence of a magnet but not how to have it be output as an analogue axis. Has anyone done it? Have links to videos or articles? Thanks

[yogi149]

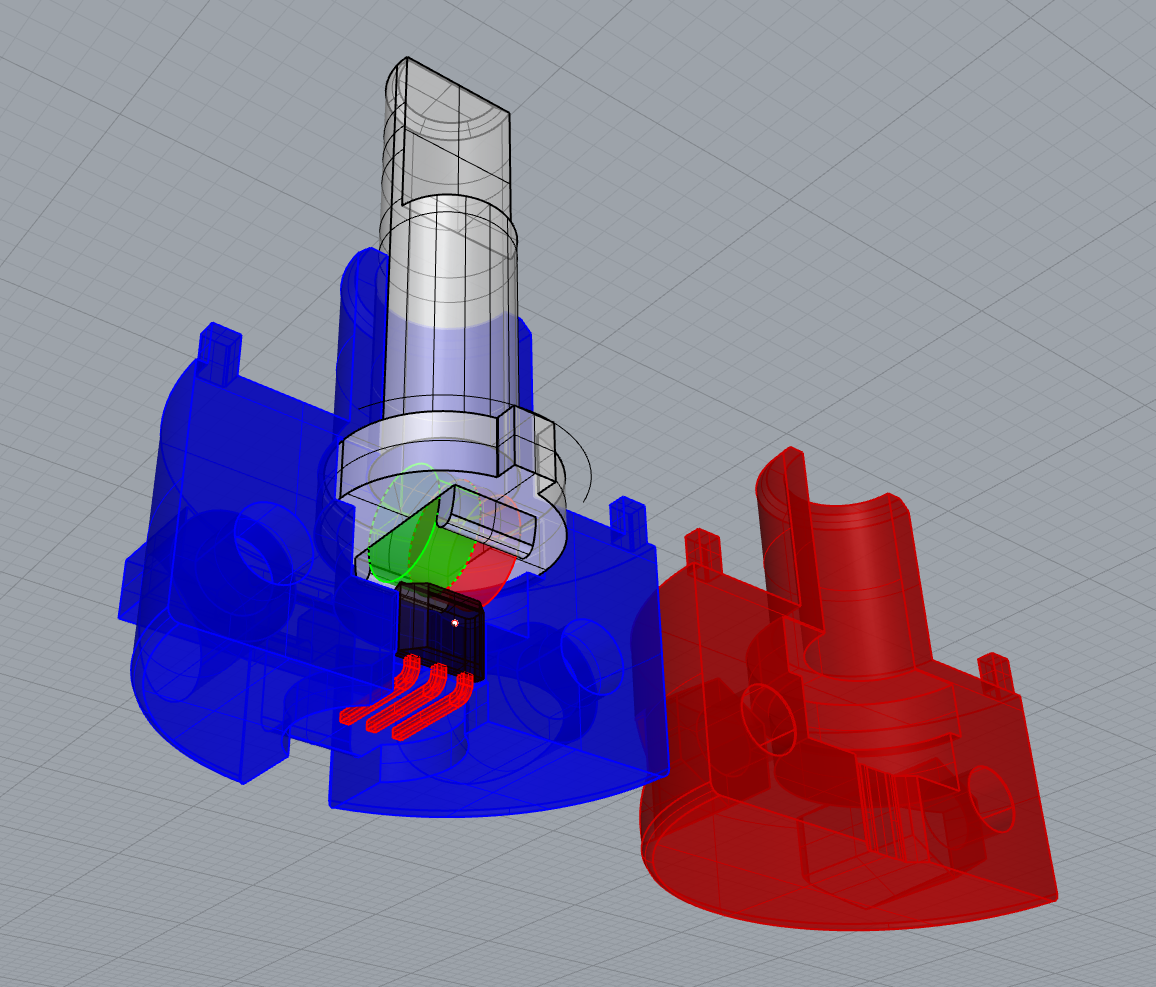

Hi, I made a simple Hall-sensor-Poti some years ago. It was a replacement in an old CH-Flight yoke.

The used Hall-sensor (A1302 or SS49E) detect the rotation of the north-south axle (see the magnet).

You can usefully detect only 120° of rotation, because it flips after 180°.

0°-30° and 150°-180° deliver unusable small values.



Edited November 17, 2023 by yogi149
typo

[Sacarino111]

On 11/12/2023 at 3:44 AM, Shein said:

I have a set of rudder pedals I’m reworking. I have potentiometers hooked up to an arduino board but apparently hall effect sensors are better. I can find tons of tutorials on how to use them to detect the presence of a magnet but not how to have it be output as an analogue axis. Has anyone done it? Have links to videos or articles? Thanks

Hi.

First of all, make sure the type of Hall eff sensor is the correct one (see @yogi149 above). The legs should be conected as the ones out of a pot; one for positive, the other one for ground end the third one as the signal.

Then make sure the magnet is placed corretly relative to the  sensor (90º from the N-S axis to the flat spot or upper position of the sensor).

Saludos

Saca111

[Bucic]

On 11/17/2023 at 5:11 PM, yogi149 said:

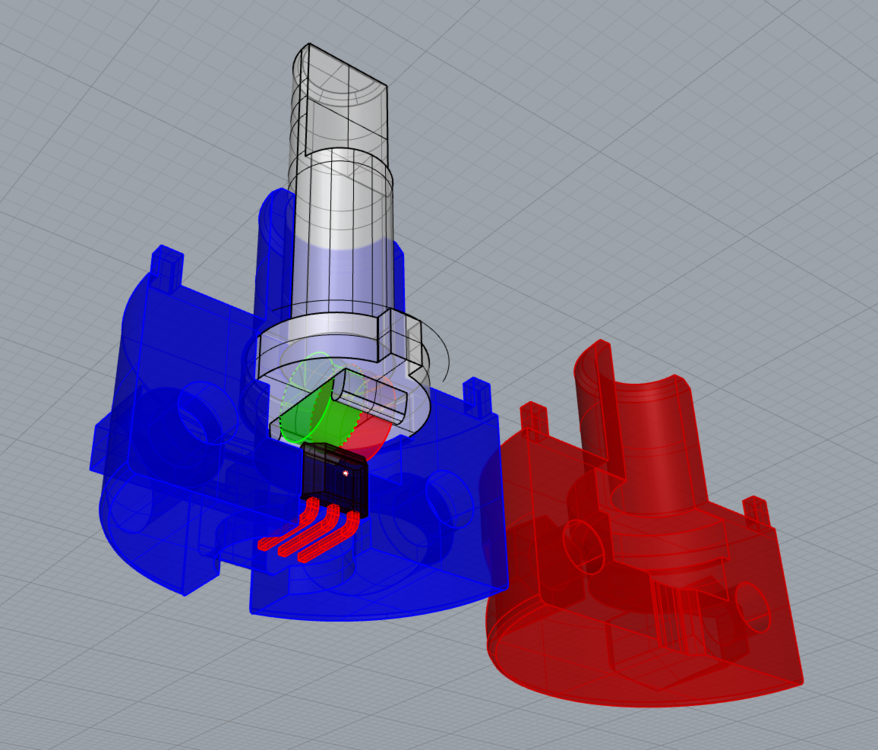

Hi, I made a simple Hall-sensor-Poti some years ago. It was a replacement in an old CH-Flight yoke.

The used Hall-sensor (A1302 or SS49E) detect the rotation of the north-south axle (see the magnet).

You can usefully detect only 120° of rotation, because it flips after 180°.

0°-30° and 150°-180° deliver unusable small values.





Could you please share the STL files for those?
