RvEYoda Posted March 31, 2010 Author Posted March 31, 2010 Hello Yoda I got LEAVU2 working great on my second monitor and wanted to thank you for a great product. I would like to know how it is possible to set it up on my monitor (21inch) 2 MFD's, 1 for HSI and the other for my TEW's. I am not sure how to do that, do I go to "instruments" click loF15hud 2 times and crop or something? thanks mate. I dont have an HSI, only an mfd HSD page, but yes, just click add two times. S = SPARSE(m,n) abbreviates SPARSE([],[],[],m,n,0). This generates the ultimate sparse matrix, an m-by-n all zero matrix. - Matlab help on 'sparse'
ScEBlack1 Posted March 31, 2010 Posted March 31, 2010 my bad meant to say HSD, do I open 2 MFD's then drag them to my second monitor, then size them to fit both on my monitor by clicking the corners and stretching them?
Schizwiz Posted March 31, 2010 Posted March 31, 2010 A video of my setup. This software rocks! To see your opponent for who he or she is,is to put your blade in front of their deepest secrets and make them come up front,outward with a defeat or a win.
RvEYoda Posted April 1, 2010 Author Posted April 1, 2010 Thanks for the video once again :)! 1 S = SPARSE(m,n) abbreviates SPARSE([],[],[],m,n,0). This generates the ultimate sparse matrix, an m-by-n all zero matrix. - Matlab help on 'sparse'
RvEYoda Posted April 3, 2010 Author Posted April 3, 2010 I updated the software yesterday, so those who havent done it already it can be a good thing to do so now. - Fixed a bug where HSD showed TWS info even when radar was in RWS mode - The new version is not compatible with teh old over datalink use the same download links as always S = SPARSE(m,n) abbreviates SPARSE([],[],[],m,n,0). This generates the ultimate sparse matrix, an m-by-n all zero matrix. - Matlab help on 'sparse'
ScEBlack1 Posted April 3, 2010 Posted April 3, 2010 Just LEAVU and contents of config correct? no dll's or the others?
RvEYoda Posted April 3, 2010 Author Posted April 3, 2010 (edited) Updated it again, much more efficient network code now for sim data. This second update is backwards compatible so you dont need to change it if you have no problems. It was meant to adress some problems that wireless users have reported. This doesnt affect dlink transmissions, which are already quite fast Edited April 3, 2010 by =RvE=Yoda S = SPARSE(m,n) abbreviates SPARSE([],[],[],m,n,0). This generates the ultimate sparse matrix, an m-by-n all zero matrix. - Matlab help on 'sparse'
RvEYoda Posted April 3, 2010 Author Posted April 3, 2010 Just LEAVU and contents of config correct? no dll's or the others? Just the Leavu zip. Don't forget to apply the compatibility for eri/leavu. I may make this automatic later That's right, no dll change. S = SPARSE(m,n) abbreviates SPARSE([],[],[],m,n,0). This generates the ultimate sparse matrix, an m-by-n all zero matrix. - Matlab help on 'sparse'
RvEYoda Posted April 4, 2010 Author Posted April 4, 2010 I will wait a while before releasing any new updates for leavu/eri. Need to make the installation easier and provide less options. Also going to introduce version numbers in the next release. 1 S = SPARSE(m,n) abbreviates SPARSE([],[],[],m,n,0). This generates the ultimate sparse matrix, an m-by-n all zero matrix. - Matlab help on 'sparse'
McDaniel Posted April 4, 2010 Posted April 4, 2010 A video of my setup. This software rocks! Hey Schizwiz, may I ask which LCD you use with cougar MFD? I get my MFD's next week and cant decide which LCD's to get :helpsmilie::smartass: |AMD 7800x3D | 64GB DDR5-3600| GTX 4090 | Virpil Stick, Collectiv, WW MIP, WW Throttle, MFG Crosswind V2 | Windows 11 64-bit | SSD Samsung | 4K LG Oled 48 | Oculus Q3 | Simlab based Cockpit
Maximus Posted April 5, 2010 Posted April 5, 2010 Hey Schizwiz, may I ask which LCD you use with cougar MFD? I get my MFD's next week and cant decide which LCD's to get :helpsmilie::smartass: it sure looks like Samsung U70 or Lilliput UM70. I may be wrong :) Maximus, The only real Maximus in DCS World. :music_whistling: I am not associated to viper 33 | Maximus. he is the imposter.

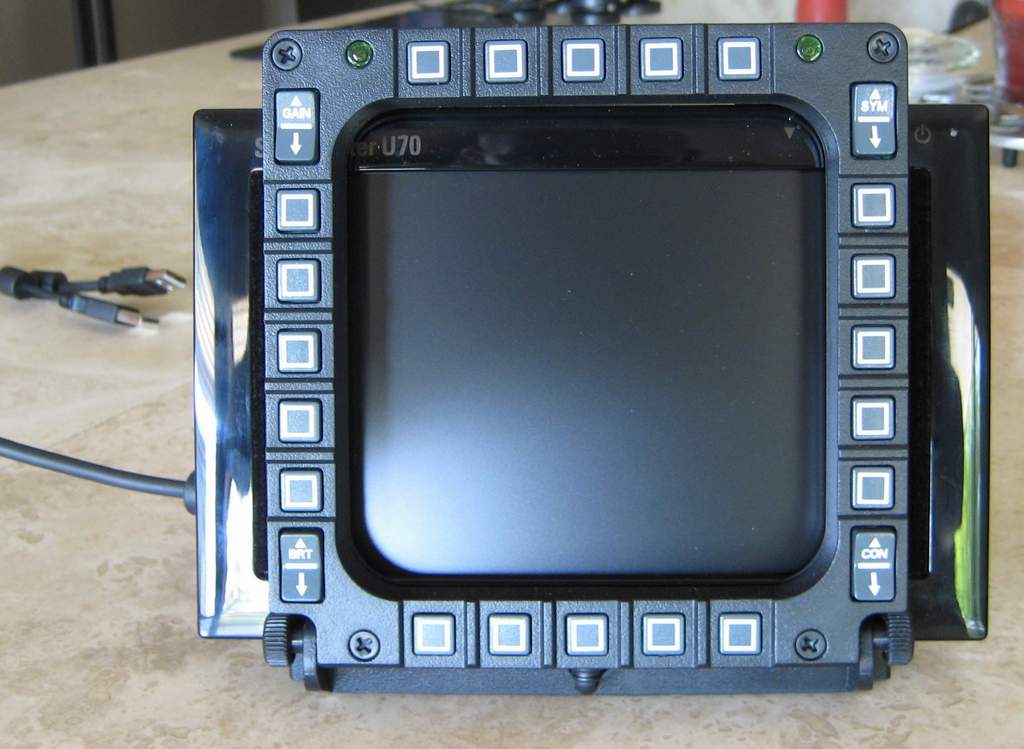

Schizwiz Posted April 5, 2010 Posted April 5, 2010 it sure looks like Samsung U70 or Lilliput UM70. I may be wrong :) Yes you are right, they are samsung U70s.They fit quite good behind the Cougar MFD frames.Only on the top side,they come out a little low,but that's not really an issue to me.The pic shows what I mean. hope this helps for you to make a decision grts To see your opponent for who he or she is,is to put your blade in front of their deepest secrets and make them come up front,outward with a defeat or a win.
McDaniel Posted April 5, 2010 Posted April 5, 2010 (edited) Thanks guys for the info! :thumbup: Its just very hard to find a source around here, well we will see! Edit...found them on ebay! So can you give me some infos about how to setup? Is it possible to use it also as shkval in BS with the normal multimonitor setup? Do you run win7 64 bit? Which drivers for the U70? and on and on??? :-) Thanks McDan out Edited April 5, 2010 by McDaniel |AMD 7800x3D | 64GB DDR5-3600| GTX 4090 | Virpil Stick, Collectiv, WW MIP, WW Throttle, MFG Crosswind V2 | Windows 11 64-bit | SSD Samsung | 4K LG Oled 48 | Oculus Q3 | Simlab based Cockpit
Schizwiz Posted April 5, 2010 Posted April 5, 2010 Thanks guys for the info! :thumbup: Its just very hard to find a source around here, well we will see! Edit...found them on ebay! So can you give me some infos about how to setup? Is it possible to use it also as shkval in BS with the normal multimonitor setup? Do you run win7 64 bit? Which drivers for the U70? and on and on??? :-) Thanks McDan out the drivers for the U70 I use are from Displaylink.You can find them on this site:http://www.displaylink.com/support/index.php I run win7 64bit. I use Xpadder to bind the key input of LEAVU to the Cougar MFD pack. It is possible to use the U70 as shkval in Black Shark,check out this thread: http://forums.eagle.ru/showthread.php?t=50425 grts To see your opponent for who he or she is,is to put your blade in front of their deepest secrets and make them come up front,outward with a defeat or a win.
McDaniel Posted April 5, 2010 Posted April 5, 2010 the drivers for the U70 I use are from Displaylink.You can find them on this site:http://www.displaylink.com/support/index.php I run win7 64bit. I use Xpadder to bind the key input of LEAVU to the Cougar MFD pack. It is possible to use the U70 as shkval in Black Shark,check out this thread: http://forums.eagle.ru/showthread.php?t=50425 grts That should get my started when the stuff arrives! Thank you! :thumbup: (about BS: sad it has to be in windowed mode to work) |AMD 7800x3D | 64GB DDR5-3600| GTX 4090 | Virpil Stick, Collectiv, WW MIP, WW Throttle, MFG Crosswind V2 | Windows 11 64-bit | SSD Samsung | 4K LG Oled 48 | Oculus Q3 | Simlab based Cockpit
Renato71 Posted April 6, 2010 Posted April 6, 2010 Hi Yoda, First of all, thanks for developing and releasing this application :thumbup: Then, I'm sorry to say, but I have some problems. I've downloaded Leavu.zip and followed your instructions as per readme file. On the first run I was able to add all three instruments. Now, I'm not sure about starting procedure, so I started FC2 and then clicked Connect Sim. Nothing happened, button only changed into Connecting to sim... and stayed like that while I was flying in F-15 (singleplayer, instant mission only). None of the instruments were working. I started LEAVU on the same PC and monitor as FC2, then I moved instruments to second monitor (of a smaller resolution). On the second run I was not able to add any instrument. They simply wouldn't show up on the screen. Java seems to be installed OK. Do you need any further info? I'm selling MiG-21 activation key. Also selling Suncom F-15E Talon HOTAS with MIDI connectors, several sets. Contact via PM.
GGTharos Posted April 7, 2010 Posted April 7, 2010 Renato, there are a couple things to check: First confirm that the LUA is running. Jump into an eagle, go narrow azimuth and move the cursor around, see if it slews your radar scan zone. If that's running, then you may have a network problem. Firewall Putting in the wrong IP Other If the LUA is not working ... do you maybe have another FC2 install on the same computer and you're running the wrong one? [sIGPIC][/sIGPIC] Reminder: SAM = Speed Bump :D I used to play flight sims like you, but then I took a slammer to the knee - Yoda
Renato71 Posted April 7, 2010 Posted April 7, 2010 LUA should be running OK. I got tacview working fine, if that is of any clue to this problem. But, I've checked in F-15. Cursor is not moving scan zone, I have to move scan zone manualy. (I didn't knew that you can move scan zone with cursor in the first place.) Firewall should not be a problem, I suppose, no problem in MP. For IP, and other settings, I left as deliverd in zip, meaning localhost in LEAVU window. But, I've noticed that netSec.lua has "*" instead of localhost. I've tried *, lh, local IP.... Other... dunno :D FC2 english download version over english LOMAC, on fresh install of 64-bit w2k3. Running in fullscreen. No known issues with any other prog/app. I did not alter any keycommand in FC2, instead I use Saitek profiler for Cyborg Evo and X52pro (simultaneously, cos I got X52 with defective stick, but OK throttle; no problems in any other a/c). Also, Export.lua calls for Yoda_Export.lua, which is not in zip package, but I've copied it from Yoda Export.zip. Still, not working with or without. And, regardless to tacview script. I have no other modes or LUA scripts installed, apart from tacview and some graphic tweaking as described in Yoda's post in another topic. Of note, I forgot to mention in previous post, on first run when instruments appeared and after I moved them to second monitor, they flickered when exiting the mission. Did not flicker when entering mission. VGA GF 8800GT, AMD 64x2 4800+, 4GB RAM. I'm selling MiG-21 activation key. Also selling Suncom F-15E Talon HOTAS with MIDI connectors, several sets. Contact via PM.
ScEBlack1 Posted April 7, 2010 Posted April 7, 2010 Did you place the files for tacview AFTER you installed LEAVU? because if you do it will cancel out LEAVU i found out.
GGTharos Posted April 7, 2010 Posted April 7, 2010 Renato, the LUA that controls LEAVU is not running (although it isn't quite the same code, it also happens to run the part that slews your scan zone around). Obviously I can't diagnose the reason, but that's where you need to look. [sIGPIC][/sIGPIC] Reminder: SAM = Speed Bump :D I used to play flight sims like you, but then I took a slammer to the knee - Yoda
Renato71 Posted April 7, 2010 Posted April 7, 2010 Shouldn't it be enough to delete/comment dofile line in export.lua? I did both before asking here :( One more thing. Theres a file Everything.zip - there you have Config.lua where EnableExportScript = false ? I'm selling MiG-21 activation key. Also selling Suncom F-15E Talon HOTAS with MIDI connectors, several sets. Contact via PM.
GGTharos Posted April 7, 2010 Posted April 7, 2010 This setting will not affect anything in SP. Take everything in the everything.zip and copy it into your export folder. Just back up your export.lua first, and then replace it with the one from everything.zip - see if everything runs when you do that. And yes, commenting/uncommenting stuff should theoretically work, but without seeing it all I can't tell:) [sIGPIC][/sIGPIC] Reminder: SAM = Speed Bump :D I used to play flight sims like you, but then I took a slammer to the knee - Yoda
Renato71 Posted April 7, 2010 Posted April 7, 2010 (edited) PS - Besides, whats that got to do with me not being able to start any instrument any more? Further note: I've installed 32bit JRE before starting LOME. Just now, when instruments stopped to appear, I've treid with 64bit and left 32 bit dll's. Then I used 64bit dll'd. No go in both cases. And, Everything.zip contains two more files then leavu.zip: lua_keys.dll and lua_keys_win7.dll. PPS - tested my java install online: Your Java configuration is as follows: Vendor: Sun Microsystems Inc. Version: Java 6 Update 19 Operating System: Windows 2003 5.2 Architecture: x86 the last one is strange.... I'll go reinstall java... Edited April 7, 2010 by Renato71 I'm selling MiG-21 activation key. Also selling Suncom F-15E Talon HOTAS with MIDI connectors, several sets. Contact via PM.
GGTharos Posted April 7, 2010 Posted April 7, 2010 Ah .. sorry, I didn't realize it was just instruments not starting up - I thought you were saying it wasn't connecting to your sim at all. [sIGPIC][/sIGPIC] Reminder: SAM = Speed Bump :D I used to play flight sims like you, but then I took a slammer to the knee - Yoda
ScEBlack1 Posted April 7, 2010 Posted April 7, 2010 Take contents of LEAVU folder Config and place in Export folder along with folder content of LEAVU+ERI Take contents of Yoda Export and place in Export folder Take contents of ERI radar and place in Export folder Take DLL's from LEAVU folder jre32 and place in WINDOWS 32 folder Take JAVA and SOUNDS folder's from LEAVU and place in c/programs folder IN a folder called LEAVU Then go to c/programs and open up your LEAVU folder, click on JAVA, click on LEAVU2 executable jar file. click on Instruments, click on lof15mfd (top one), click add, click Connect Sim Start FC2.0 and it will work when enter F15 and fly.
